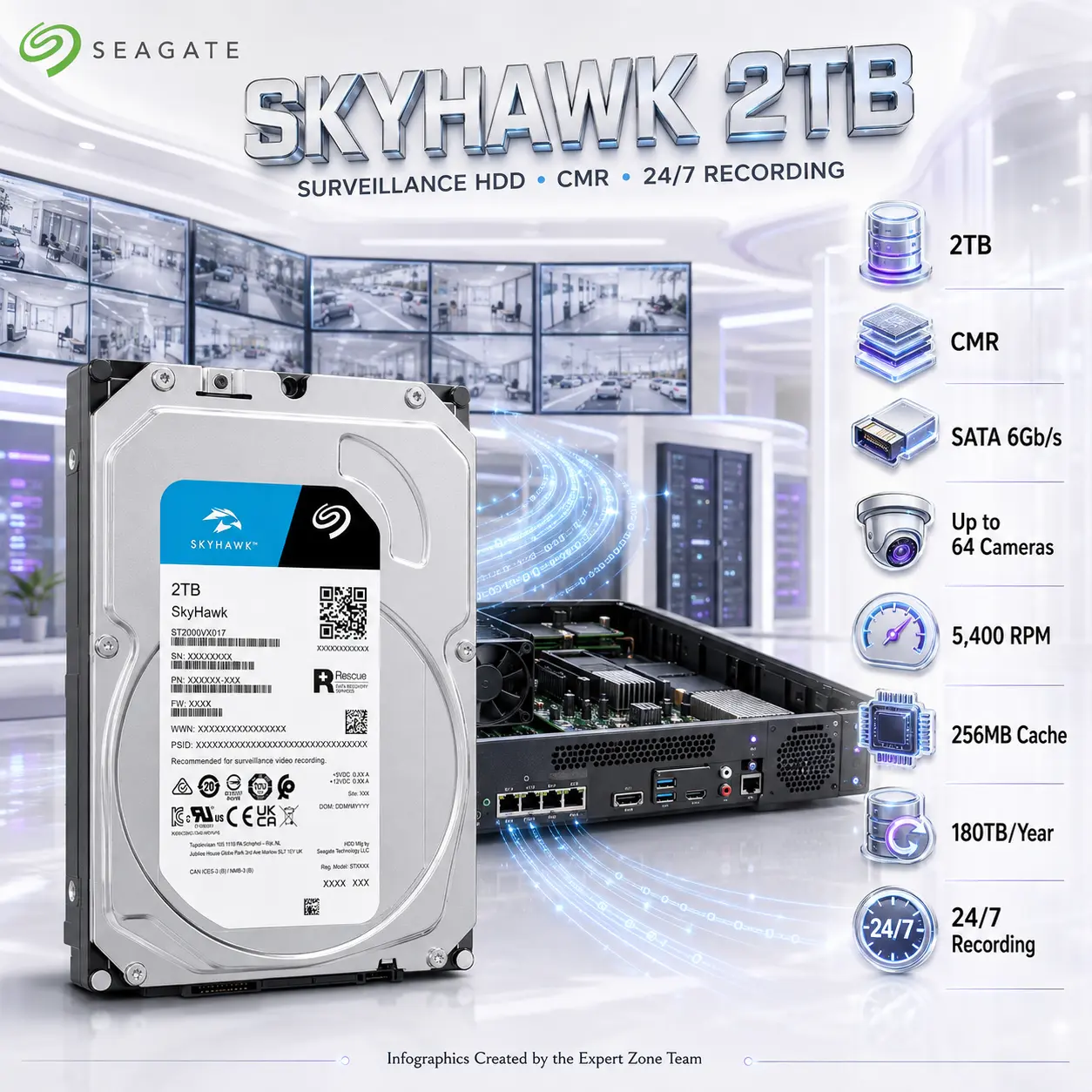

Seagate SkyHawk 2TB Surveillance HDD, CMR, SATA 6Gb/s, 256MB Cache, 5,400 RPM, 180MB/s, 180TB/Year, 1M-Hour MTBF | ST2000VX017
114 $
Out of stock
Out of stock
Categories: COMPUTER PARTS, HARD DRIVE " DISK ", HDD/SSD/NVME
Expert Features
- 2TB Surveillance Capacity : Stores continuous footage from compatible home, office, retail, warehouse, and commercial security systems without wasting money on performance features that surveillance recording does not need.
- Purpose-Built for 24×7 Recording : Designed for always-on video-surveillance workloads, where the drive may remain powered and recording every hour of the year.
- CMR Recording Technology : Uses Conventional Magnetic Recording, providing stable sustained-write behavior for continuous multi-camera recording.
- ImagePerfect Firmware : Surveillance-optimized firmware helps support smooth video capture and reduce interruptions or dropped frames during continuous recording.
- Up to 64 HD Cameras : Supports compatible surveillance systems recording video from as many as 64 HD cameras.
- Up to Eight Drive Bays : Designed for compatible DVR and NVR systems containing up to eight storage bays.
- 180MB/s Sustained Performance : Delivers up to 180MB/s maximum sustained transfer performance, providing dependable throughput for multiple video streams.
- 256MB Cache : The generous 256MB cache helps the drive handle ongoing surveillance data more efficiently.
- SkyHawk Health Management : Included drive-health technology supports prevention, intervention, and recovery functions in compatible surveillance systems.
- 180TB Annual Workload : Rated for an always-on workload of up to 180TB per year, giving it far more recording stamina than a basic desktop drive.
- One-Million-Hour MTBF : Rated for 1,000,000 hours mean time between failures, supporting dependable long-term surveillance installations.
- Tarnish-Resistant Components : Protective internal components help improve reliability when the drive operates for long periods in challenging environments.
- Efficient Power Consumption : Uses approximately 3.7W during average operation, 2.5W while idle, and only 0.25W in standby or sleep mode.






Expert Specs
| Specification | Details |
|---|---|
| Brand | Seagate |
| Product Series | SkyHawk |
| Exact Model Number | ST2000VX017 |
| Product Type | Internal Surveillance Hard Drive |
| Capacity | 2TB |
| Form Factor | 3.5-Inch |
| Interface | SATA 6Gb/s |
| Recording Technology | CMR |
| Drive Design | Air-Filled |
| Surveillance Firmware | ImagePerfect |
| SkyHawk Health Management | Included |
| Drive Bays Supported | Up to 8 |
| Cameras Supported | Up to 64 HD Cameras |
| Rotational-Vibration Sensors | Not Included |
| Maximum Sustained Transfer Rate | 180MB/s |
| Cache | 256MB |
| Spindle Speed / RPM | Not Specified in the Official Datasheet |
| Tarnish-Resistant Components | Yes |
| Load / Unload Cycles | 600,000 |
| Non-Recoverable Read Error Rate | Maximum 1 per 10¹⁴ Bits Read |
| Power-On Hours per Year | 8,760 |
| Workload Rate Limit | 180TB per Year |
| MTBF | 1,000,000 Hours |
| Limited Warranty | 1 Year |
| Rescue Data Recovery Services | 1 Year, Subject to Regional Availability |
| Typical Startup Current | 1.8A at 12V |
| Average Operating Power | 3.7W |
| Average Idle Power | 2.5W |
| Standby / Sleep Power | 0.25W / 0.25W |
| 5V Voltage Tolerance | ±5% |
| 12V Voltage Tolerance | ±10% |
| Minimum Operating Ambient Temperature | 0°C |
| Maximum Drive-Reported Operating Temperature | 65°C |
| Minimum Non-Operating Ambient Temperature | −40°C |
| Height | 20.20mm / 0.795in Maximum |
| Width | 101.6mm / 4.00in Maximum |
| Depth | 146.99mm / 5.787in Maximum |
| Typical Weight | 415g / 0.915lb |
| Carton Unit Quantity | 25 |
| Cartons per Pallet / Layer | 40 / 8 |
| Best-Fit Applications | Compatible Network Video Recorders and Video DVRs |
