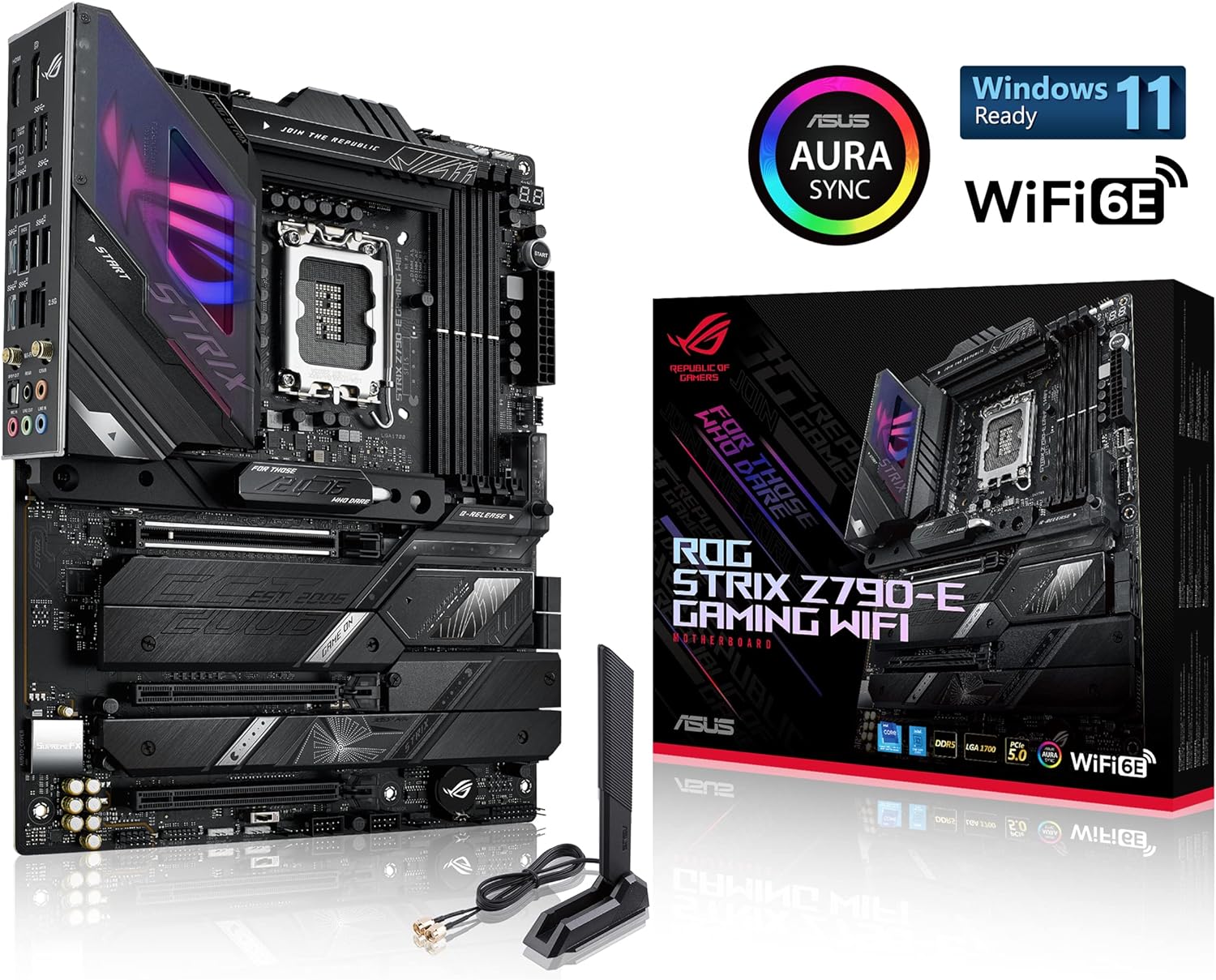

ASUS ROG Strix Z790-E Gaming WiFi 6E LGA 1700 (Intel 14th,13th&12th Gen) ATX Gaming Motherboard (PCIe 5.0, DDR5,18+1 power stages,2.5 Gb LAN, Thunderbolt 4, 5xM.2, 1xPCIe 5.0 M.2) | OPEN BOX

ASUS ROG Strix Z790-E Gaming WiFi 6E LGA 1700 (Intel 14th,13th&12th Gen) ATX Gaming Motherboard (PCIe 5.0, DDR5,18+1 power stages,2.5 Gb LAN, Thunderbolt 4, 5xM.2, 1xPCIe 5.0 M.2) | OPEN BOX

Original price was: 374 $.Current price is: 298 $.

Quantity
Categories: ,

Expert Features ~ OPEN BOX

  • BIOS update may be required when used with some 14th generation Intel Core processors, visit ASUS support website for more information
  • Intel LGA 1700 socket: Ready for 14th &12th &13th Gen Intel Core processors, support PCIe 5.0,DDR5 and out-of-box Windows 11 ready
  • AI Motherboard : AI Overclocking, AI cooling II, AI networking(GameFirst VI) and AI noise cancellation
  • Robust Power Solution: 18+1 90A power stages with ProCool II power connector, high-quality alloy chokes and durable capacitors to support multi-core processors
  • High-performance Gaming Networking: On-board WiFi 6E and Intel 2.5 Gb Ethernet with ASUS LANGuard
  • Best Gaming Connectivity: USB 3.2 Gen 2×2 Type-C rear I/O port and front-panel connector with PD 3.0 up to 30W, eleven additional USB 3.2 Gen 2 and Gen 1 ports, PCIe 5.0 x16 SafeSlot, HDMI 2.1, and DisplayPort 1.4
  • PC DIY Friendly: SafeDIMM, PCIe 5.0 Safeslot, Q-LED, M.2 Q-Latch, CPU socket lever protector, Pre-mount I/O shield, BIOS FlashBack

Expert Specs

Model
Brand ASUS
Series ROG
Model ROG STRIX Z790-E GAMING WIFI
Part Number 90MB1CL0-M0AAY0

Supported CPU
CPU Socket Type LGA 1700
CPU Type Intel® Socket LGA1700 for 14th & 13th Gen Intel® Core™ Processors & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors*
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
* Refer to www.asus.com for CPU support list.** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
Supported CPU Technologies Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0*

* Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.

Chipsets
Chipset Intel Z790

Memory
Number of Memory Slots 4x288pin (DDR5)
Memory Standard DDR5 7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
OptiMem II
* Supported memory types, data rate(Speed), and number of DRAM module vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list.
Maximum Memory Supported 256GB
Channel Supported

Dual Channel

Expansion Slots
PCI Express 5.0 x16 Intel® 14th & 13th & 12th Gen Processors*
1 x PCIe 5.0 x16 slot*** Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/).
** When M.2_1 is occupied with SSD device, PCIEX16(G5) will run x8 only.
*** To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.
PCI Express 4.0 x16 2 x PCIe 4.0 x16 slot (supports x4 mode)

Storage Devices
SATA 6Gb/s Total supports 5 x M.2 slots and 4 x SATA 6Gb/s ports*
M.2 Intel® 14th &13th & 12th Gen Processors*
M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
Intel® Z790 Chipset**
M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_5 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode & SATA modes)
4 x SATA 6Gb/s ports
* Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10.
SATA RAID 0/1/5/10

Onboard Audio
Audio Chipset ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080
– Impedance sense for front and rear headphone outputs
– Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
– High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
– Supports up to 32-Bit/384 kHz playbackAudio Features
– SupremeFX Shielding Technology
– ALC4080 + Savitech SV3H712 AMP
– Gold-plated audio jacks
– Rear optical S/PDIF out port
– Premium audio capacitors
– Audio cover
Audio Channels ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080
– Impedance sense for front and rear headphone outputs
– Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
– High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
– Supports up to 32-Bit/384 kHz playback
Audio Features
– SupremeFX Shielding Technology
– ALC4080 + Savitech SV3H712 AMP
– Gold-plated audio jacks
– Rear optical S/PDIF out port
– Premium audio capacitors
– Audio cover

Onboard LAN
LAN Chipset 1 x Intel 2.5Gb Ethernet
Max LAN Speed 2.5Gbps
Wireless LAN Wi-Fi 6E
2×2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
Supports 2.4/5/6GHz frequency band** WiFi 6E 6GHz regulatory may vary between countries.
Bluetooth Bluetooth v5.2

Rear Panel Ports
Back I/O Ports 1 x USB 3.2 Gen 2×2 port (1 x USB Type-C)
7 x USB 3.2 Gen 2 ports (6 x Type-A, 1 x USB Type-C )
4 x USB 3.2 Gen 1 ports (4 x Type-A)
1 x HDMI port
1 x DisplayPort
1 x Wi-Fi Module
1 x Intel 2.5Gb Ethernet port
5 x Gold-plated audio jacks*
1 x Optical S/PDIF out port
1 x BIOS FlashBack button
1 x Clear CMOS button
*The rear panel Lime (Line out) port does not support spatial audio. If you wish to use spatial audio make sure to connect your audio output device to the audio jack on the front panel of your chassis.

Internal I/O Connectors
Onboard USB 1 x USB 3.2 Gen 2×2 connector (supports USB Type-C with up to 30W PD Fast-charge)
2 x USB 3.2 Gen 1 header support additional 4 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
Other Connectors Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
5 x 4-pin Chassis Fan headersStorage related
5 x M.2 slots (Key M)
4 x SATA 6Gb/s portsMiscellaneous
3 x Addressable Gen 2 headers
1 x Alternative PCIe Mode Switch
1 x AURA RGB header
1 x CPU Over Voltage jumper
1 x Front Panel Audio header (AAFP)
1 x 20-3 pin System Panel header with Chassis intrude function
1 x Power button
1 x Thermal Sensor header
1 x Thunderbolt header

Physical Spec
Form Factor ATX
LED Lighting RGB
Dimensions (W x L) 12.0″ x 9.6″
Power Pin 1 x 24-pin Main Power connector
2 x 8-pin +12V Power connector

Windows Compatibility
Windows 11 Supported

Features
Features Extreme Engine Digi+
– 5K Black Metallic CapacitorsASUS Q-Design
– M.2 Q-Latch
– PCIe Slot Q-Release
– Q-DIMM
– Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
– Q-SlotASUS Thermal Solution
– M.2 heatsink backplate
– M.2 heatsink
– VRM heatsink designASUS EZ DIY
– BIOS FlashBack button
– BIOS FlashBack LED
– Clear CMOS button
– CPU Socket lever protector
– ProCool II
– Pre-mounted I/O shield
– SafeSlot
– SafeDIMM

AURA Sync
– AURA RGB header
– Addressable Gen 2 RGB headers

Front Panel USB 3.2 Gen 2×2 with PD Fast-charge Support
– Support: up to 30W charging
– Output: 5/9V max. 3A, 12V max 2.5A
– Compatible with PD3.0

Packaging
Package Contents Cables
2 x SATA 6Gb/s cablesAdditional Cooling Kit
1 x DDR5 Fan holder
1 x Fan holder
1 x Thermal pad for M.2Miscellaneous
1 x ASUS Wi-Fi moving antennas
1 x Cable ties package
1 x M.2 backplate Q-Latch package
1 x M.2 Q-Latch package
1 x ROG Graphics card holder
1 x ROG key chain
1 x ROG Strix stickers
1 x ROG Strix thank you card
2 x M.2 Rubber Packages
1 x M.2 backplate Rubber PackageDocumentation
1 x User manual
