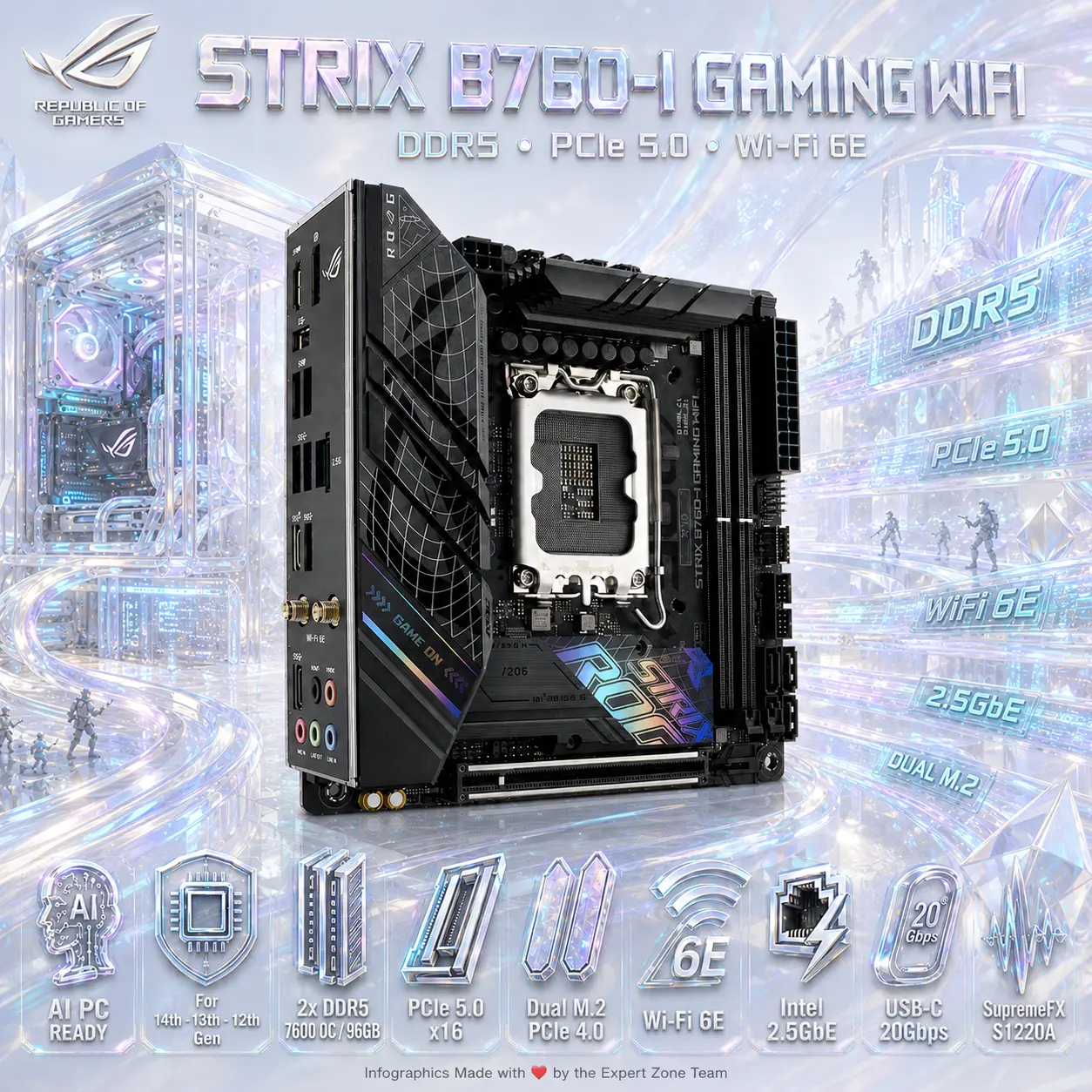

Expert Features ~ REFURB

• 14th / 13th / 12th Gen Intel Support : LGA1700 socket compatibility covers Intel Core 14th, 13th, and 12th Gen processors plus supported Pentium Gold and Celeron CPUs, giving compact-build users a broad Intel CPU ecosystem.
• Mini-ITX Gaming Muscle : The 17 × 17cm Mini-ITX form factor packs enthusiast-class gaming connectivity into a seriously compact footprint—perfect when desk space is precious but FPS is non-negotiable.
• 8 + 1 + 2 Power Stages : A robust VRM architecture uses power stages rated for up to 80A, paired with ProCool power delivery, alloy chokes, and durable capacitors for demanding Intel processors.
• DDR5 Up to 7600 OC : Two DIMM slots support up to 96GB of DDR5 memory with speeds reaching DDR5-7600 OC, dual-channel architecture, Intel XMP, and ASUS OptiMem II.
• PCIe 5.0 x16 SafeSlot : The main graphics slot runs PCIe 5.0 x16 from the CPU, giving high-performance GPUs a future-ready expansion pathway.
• Dual PCIe 4.0 M.2 Storage : Two M.2 slots support PCIe 4.0 x4 NVMe storage, giving a small-form-factor build serious high-speed SSD capability without sacrificing valuable chassis space.
• Four SATA 6Gbps Ports : Traditional SATA SSDs and hard drives are still invited to the party, with four SATA 6Gbps connections and Intel Rapid Storage Technology RAID support.
• Wi-Fi 6E Connectivity : Integrated 2×2 Wi-Fi 6E supports 2.4GHz, 5GHz, and—where locally permitted—6GHz wireless networking for lower-latency modern connectivity.
• Intel 2.5Gb Ethernet : Wired gaming gets an Intel 2.5GbE connection with ASUS LANGuard, giving compatible high-speed networks considerably more bandwidth than standard Gigabit Ethernet.
• Bluetooth 5.3 : Built-in Bluetooth 5.3 connects compatible controllers, headphones, keyboards, mice, speakers, and other wireless peripherals without requiring a separate adapter.
• 20Gbps Rear USB-C : A rear USB 3.2 Gen 2×2 Type-C port delivers up to 20Gbps signaling for compatible external SSDs and high-speed USB devices.
• Front USB-C Support : An internal USB 3.2 Gen 2 connector supports a compatible chassis front-panel USB Type-C port, keeping modern connectivity accessible instead of buried behind your rig.
• HDMI 2.1 + DisplayPort 1.4 : Integrated display connectivity includes HDMI 2.1 and DisplayPort 1.4 with support up to 4K at 60Hz when paired with a processor that provides compatible integrated graphics.
• SupremeFX S1220A Audio : ROG SupremeFX combines the S1220A codec with a Savitech SV3H712 amplifier, 120dB playback SNR, 113dB recording SNR, impedance sensing, and premium audio capacitors.
• Two-Way AI Noise Cancelation : ASUS software can reduce unwanted background noise from both microphone input and incoming audio streams for clearer compatible voice-chat and communication setups.
• Heavy-Duty Thermal Control : VRM heatsinks, an M.2 heatsink with backplate, chipset cooling, dedicated CPU and chassis fan headers, and an AIO pump header keep thermal management flexible inside compact builds.
• M.2 Q-Latch : Install or remove a compatible M.2 SSD without wrestling with a tiny traditional retaining screw—because disappearing screws under the desk are not an enthusiast feature.
• Q-LED Diagnostics : Dedicated LEDs identify CPU, DRAM, VGA, and boot-device issues, dramatically simplifying troubleshooting when your fresh build decides to test your patience.
• Pre-Mounted I/O Shield : The rear I/O shield comes installed from the factory, reducing assembly hassle and keeping the compact build process cleaner.
• Aura Sync RGB Expansion : One Addressable Gen 2 header and one Aura RGB header provide lighting connectivity for compatible RGB components and ASUS Aura Sync ecosystems.

***The Antennas of the refurb version look different that the antennas in the official ROG STRIX B760-I GAMING WIFI  images . In reality , they are rod-shaped dual antennas “refurb version” .
