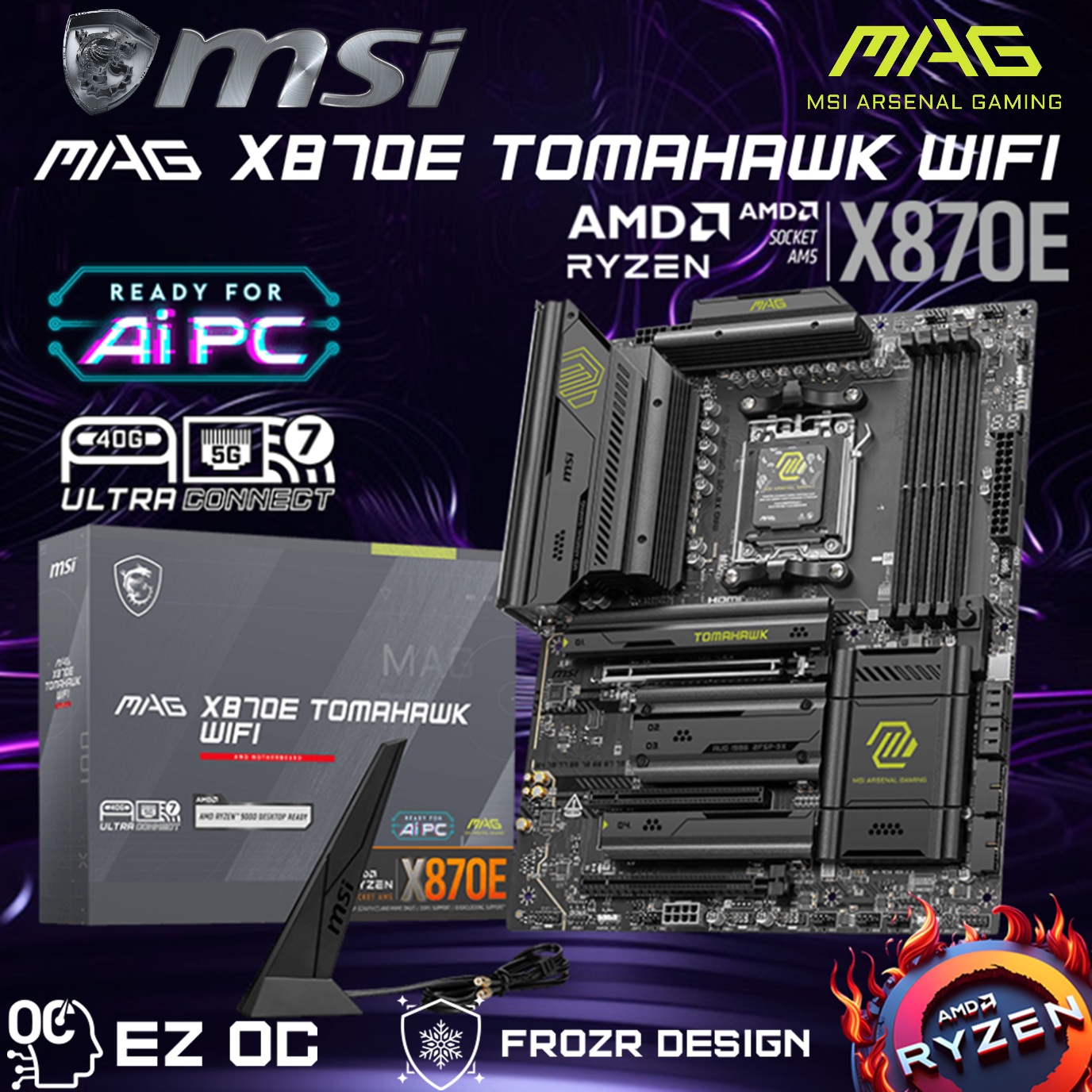

MSI MAG X870E TOMAHAWK WIFI AMD AM5 ATX Motherboard ;  Dual Channel DDR5 8400+ MT/s (OC) ; PCIe 5.0 slot, Lightning Gen 5 x4 M.2 ; Audio Boost 5 ; Frozr Guard Heatsink ; Supports AMD Ryzen™ 9000 / 8000 / 7000 Series (911-7E59-006)

MSI MAG X870E TOMAHAWK WIFI AMD AM5 ATX Motherboard ;  Dual Channel DDR5 8400+ MT/s (OC) ; PCIe 5.0 slot, Lightning Gen 5 x4 M.2 ; Audio Boost 5 ; Frozr Guard Heatsink ; Supports AMD Ryzen™ 9000 / 8000 / 7000 Series (911-7E59-006)

362 $

Quantity
Categories: ,

Expert Features

  • Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors
  • Supports DDR5 Memory, Dual Channel DDR5 8400+ MT/s (OC)
  • Ultra Performance: 14+2+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, Memory Boost, 8-layer PCB made by 2oz thickened copper and server-grade level material
  • Frozr Guard: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and EZ M.2 Shield Frozr II are built for high performance system and non-stop experience
  • EZ DIY: EZ M.2 Shield Frozr II, EZ M.2 Clip II, EZ PCIe Release and EZ Antenna
  • Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 5 x4 M.2
  • Ultra Connect: USB4 and 5G LAN with Wi-Fi 7 Solution – the latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission
  • Audio Boost 5: Reward your ears with studio-grade sound quality for the most immersive gaming experience

EXPERT SPECIFICATION

OPERATING SYSTEM Support for Windows® 11 64-bit
Manufacturer Number MAG X870E TOMAHAWK WIFI
Product Condition New
CPU Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors
Chipset AMD X870
CPU Socket Socket AM5
Form Factor ATX
Memory 4 x DDR5 UDIMM, Maximum Memory Capacity 256GB
Memory Support DDR5 8400 – 5600 (OC) MT/s / 5600 – 4800 (JEDEC) MT/s
Ryzen™ 9000 Series Processors max. overclocking frequency:

  • 1DPC 1R Max speed up to 8400+ MT/s
  • 1DPC 2R Max speed up to 6400+ MT/s
  • 2DPC 1R Max speed up to 6400+ MT/s
  • 2DPC 2R Max speed up to 4800+ MT/s

Supports AMD POR Speed and JEDEC Speed
Supports Memory Overclocking and AMD EXPO
Supports Dual-Channel mode
Supports Non-ECC, Un-buffered memory
Supports CUDIMM, Clock Driver bypass mode only

  • CUDIMM support and POR boot frequency may vary by CPU series, with manual overclocking available after boot. Certain CPUs may fail to boot, but future BIOS updates will improve compatibility.
  • The DIMM slots on this motherboard have double-sided latches.
  • Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product’s Support page or visit https://www.msi.com/support/.
LAN 1 x Realtek® 8126 5G LAN
Wireless LAN Wi-Fi 7
The Wireless module is pre-installed in the M.2 (Key-E) slot

  • Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps
  • Supports 802.11 a/ b/ g/ n/ ac/ ax/ be
Bluetooth Supports Bluetooth® 5.4, MLO, 4KQAM

  • 6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 version 24H2.
  • The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor’s website for details. Bluetooth 5.4 will be ready in Windows 11 version 24H2.
Audio Realtek® ALC4080 Codec
7.1-Channel USB High Performance Audio

  • Supports up to 32-bit/384kHz playback on front panel
  • Supports S/PDIF output
STORAGE 2 x M.2 Gen5 x4 128Gbps slots
2 x M.2 Gen4 x4 64Gbps slots
4 x SATA 6Gbps ports
Onboard Graphics 1 x HDMI™

  • Support HDMI™ 2.1 FRL, maximum resolution of 8K 60Hz

2 x Type-C DisplayPort

  • USB4® port, supporting DisplayPort 1.4 with HBR3 over USB Type-C, maximum resolution of 4K 60Hz
  • Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
RAID –
I/O (Rear) Clear CMOS Button
USB 10Gbps Type-A
USB 5Gbps Type-A
USB 2.0
5G LAN
Wi-Fi / Bluetooth
Audio connectors
Flash BIOS Button
HDMI™
USB 40Gbps Type-C
USB 10Gbps Type-C
USB 10Gbps Type-A
Expansion Slots 3 x PCI-E x16 slot
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
PCI_E1 slot

  • Supports PCIe 5.0 x16 (For Ryzen™ 9000/ 7000 Series processors)
  • Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors)
  • Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor)
USB (Front) 4 x USB 5Gbps Type A
1 x USB 20Gbps Type C
4 x USB 2.0
USB (Rear) 3 x USB 5Gbps Type A
2 x USB 10Gbps Type A
1 x USB 10Gbps Type C
2 x USB 40Gbps Type C
4 x USB 2.0
Internal Connectors 1 x Power Connector(ATX_PWR)
2 x Power Connector(CPU_PWR)
1 x Power Connector(PCIE_PWR 8pin)
1 x Front Type-C Quick Charge Connector(PD_PWR1)
1 x CPU Fan
1 x Combo Fan (Pump_Sys Fan)
6 x System Fan
1 x EZ Conn-header (JAF_2)
2 x Front Panel (JFP)
1 x Chassis Intrusion (JCI)
1 x Front Audio (JAUD)
3 x Addressable V2 RGB LED connector (JARGB_V2)
1 x RGB LED connector(JRGB)
1 x TPM pin header(Support TPM 2.0)
4 x USB 2.0 ports
4 x USB 5Gbps Type A ports
1 x USB 20Gbps Type C ports
Dimensions 9.60″ x 12.00″
