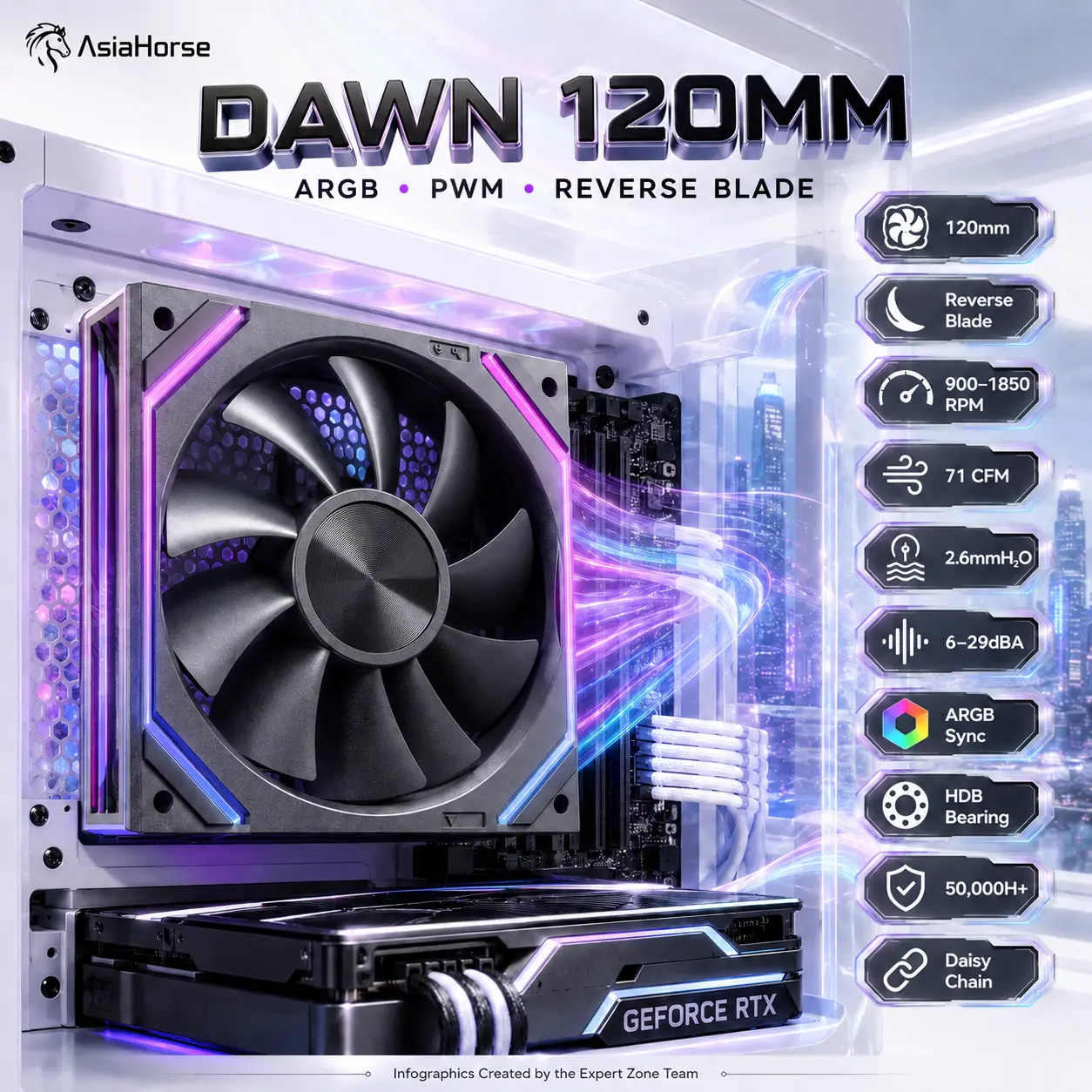

AsiaHorse DAWN 120mm ARGB PWM Case Fan, Reverse Blade, 900–1850 RPM, 71 CFM, 2.6mmH₂O, HDB Bearing, Modular Daisy Chain, 29dBA Max, 1-Pack | BLACK
8 $
Expert Features
- Reverse-Blade Airflow : The selected Reverse-blade configuration moves air from the visible front side toward the rear, making it suitable for standard PC-case intake or exhaust layouts depending on mounting position.
- High-Output 120mm Cooling : Delivers up to 71 CFM airflow, giving gaming cases strong ventilation for moving GPU and CPU heat out before temperatures start cooking your performance.
- Serious Static Pressure : Produces up to 2.6mmH₂O static pressure, helping the fan push air through restricted case panels, dust filters, and cooling surfaces more effectively.
- PWM Speed Control : Operates across a confirmed 900–1850 RPM range, balancing quieter low-speed operation with stronger airflow when system temperatures rise.
- Low-Noise Performance : Rated from approximately 6 to 29dBA, keeping airflow aggressive without making your gaming setup sound like a tired generator.
- Hydro-Dynamic Bearing : The lubricated HDB bearing reduces friction and wear for smoother rotation, quieter operation, and reliable long-term cooling.
- Over 50,000-Hour Lifespan : The bearing and closed-loop oiling design are rated for more than 50,000 operating hours, so this fan is built for the long grind.
- Modular Daisy-Chain Design : Multiple compatible DAWN fans can be linked with reduced cable clutter, helping builders achieve a cleaner and easier-to-manage PC interior.
- ARGB Infinity-Mirror Lighting : Features an illuminated ARGB layout with an infinity-mirror-inspired appearance for clean, synchronized lighting rather than messy random glow.
- Major Lighting Ecosystem Support : ARGB effects can synchronize through compatible ASUS Aura Sync, Gigabyte RGB Fusion, and MSI Mystic Light Sync environments.
- Single-Fan Upgrade : This exact configuration includes one black 120mm Reverse-blade fan, making it ideal for replacing a damaged fan or filling one remaining case position






Expert Specs
| Specification | Details |
|---|---|
| Brand | AsiaHorse |
| Product Series | DAWN |
| Product Type | ARGB PWM PC Case Fan |
| Selected Configuration | 1-Pack – Reverse Blade |
| Color | Black |
| Quantity | 1 Fan |
| Fan Size | 120mm |
| Dimensions | 120 × 120 × 25mm |
| Blade Orientation | Reverse Blade |
| Airflow Direction | Front to Back |
| Speed Range | 900–1850 RPM |
| Maximum Airflow | 71 CFM |
| Maximum Static Pressure | 2.6mmH₂O |
| Noise Range | 6–29dBA |
| Bearing Type | Hydro-Dynamic Bearing |
| Bearing Lubrication | Oil-Filled HDB with Closed-Loop Oiling Design |
| Rated Lifespan | Over 50,000 Hours |
| Speed Control | PWM |
| Lighting Type | Addressable RGB |
| Lighting Design | ARGB Light Strips with Infinity-Mirror Styling |
| Lighting Synchronization | ASUS Aura Sync / Gigabyte RGB Fusion / MSI Mystic Light Sync |
| Connection Design | Modular Daisy Chain |
| Cable-Management Benefit | Multiple Compatible Fans Can Be Linked with Reduced Cabling |
| Intended Application | Desktop PC Case Cooling |
| Exact Variant Note | Specifications Apply Exclusively to the Black, Single-Pack, Reverse-Blade Version |
