ZOTAC GAMING GeForce RTX 5060 Twin Edge OC GPU With 8GB GDDR7, DLSS 4, 3840 CUDA Cores, 2527 MHz Engine Boost, PCIe 5.0, Twin 90mm Fans, Blackwell Architecture, Ray Tracing, Compact 2-Slot Design

🎮 Expert Features

  • Next-Gen Blackwell Architecture: Powered by NVIDIA’s all-new Blackwell GPU architecture, the RTX 5060 delivers faster performance, superior efficiency, and cutting-edge AI acceleration for the modern gamer.
  • DLSS 4 Magic: Harness the power of Deep Learning Super Sampling 4 to upscale resolution and boost frame rates with jaw-dropping clarity — it’s like cheating, but legal.
  • Ray Tracing Reloaded: Dive into lifelike lighting, reflections, and shadows powered by 4th Gen RT Cores for a hyper-realistic gaming experience.
  • Tensor Powerhouse: With 5th Gen Tensor Cores, unleash AI-driven rendering, denoising, and frame generation that redefine what “smooth” truly means.
  • 8GB GDDR7 Memory: Experience lightning-fast data transfer and improved memory efficiency that keeps your GPU fed, even in the most graphics-hungry titles.
  • Twin Edge Cooling: Stay chill with dual 90mm BladeLink fans engineered for maximum airflow and minimal noise — because no one likes fan rage.
  • Compact Beast: Designed with an SFF-ready 2-slot profile, this card fits perfectly in small form factor builds while still packing serious punch.
  • Metal Backplate Armor: Rigid, stylish, and ready to protect your GPU’s guts — because looking cool matters too.
  • Versatile Outputs: Connect up to four displays via 3x DisplayPort 2.1b and 1x HDMI 2.1b, supporting up to 8K HDR and high refresh-rate 4K gaming.
  • Optimized Experience: Fine-tune your overclocking, fan curves, and lighting using the ZOTAC GAMING FireStorm Utility.



đź§  Expert Specs

Category Specification
Model ZOTAC GAMING GeForce RTX 5060 Twin Edge OC
GPU Architecture NVIDIA Blackwell
CUDA Cores 3840
Boost Clock 2527 MHz
Memory 8GB GDDR7
Memory Bus 128-bit
Memory Clock 28 Gbps
Bus Interface PCI Express 5.0 x8
Ray Tracing Cores 4th Generation
Tensor Cores 5th Generation
DLSS Version NVIDIA DLSS 4
Display Outputs 3 x DisplayPort 2.1b, 1 x HDMI 2.1b
Max Display Support 4 Displays
HDCP 2.3
DirectX Support DirectX 12 Ultimate
OpenGL Support 4.6
Vulkan Support 1.4, Vulkan RT APIs
Power Requirement 550W PSU Recommended
Max Power Consumption 145W
Power Connector 1 x 8-pin
Dimensions (L x H x W) 220.5 x 120.25 x 41.6 mm (2-slot)
Software Compatibility Game Ready / Studio Drivers, FireStorm Utility
Operating Systems Windows 10 / 11 (64-bit)

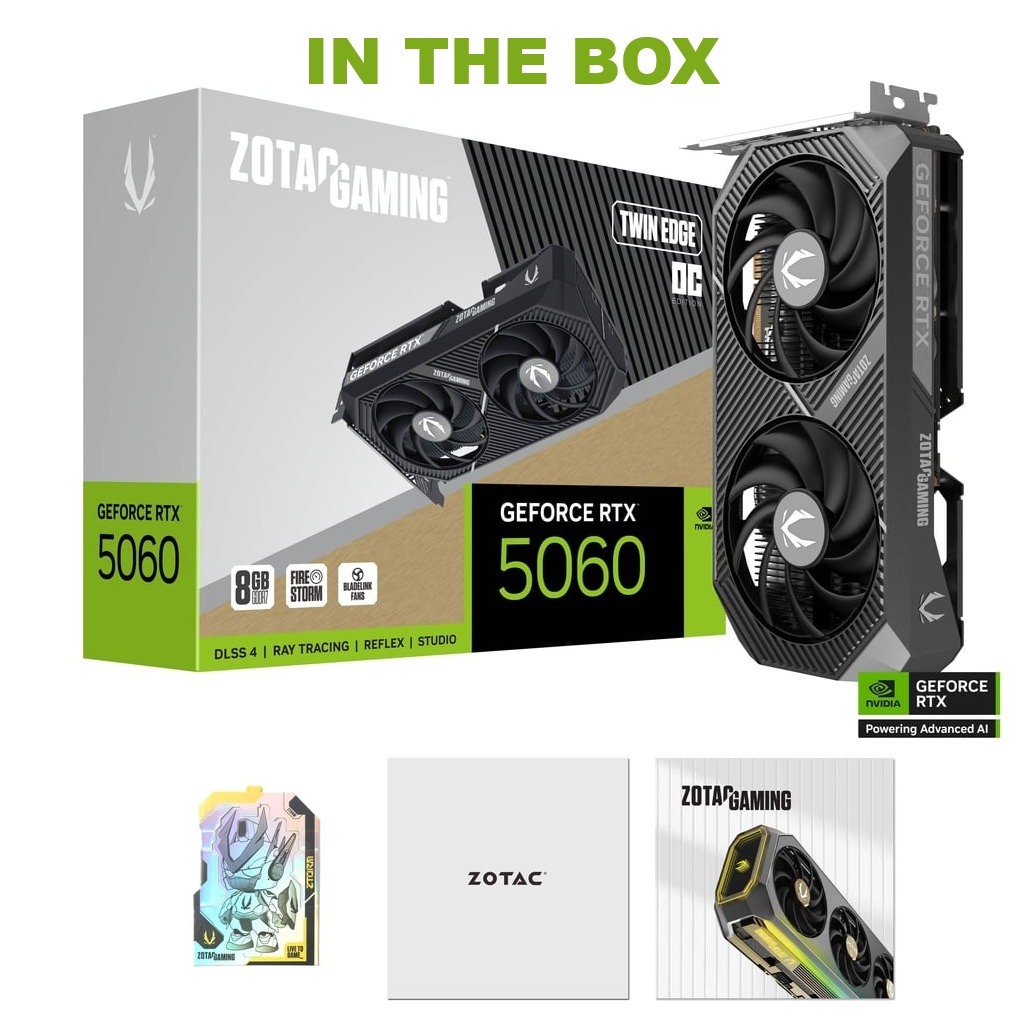

Included Accessories User Manual
SKU / EAN / UPC ZT-B50600H-10M / 8886307700834 / 810012085830
