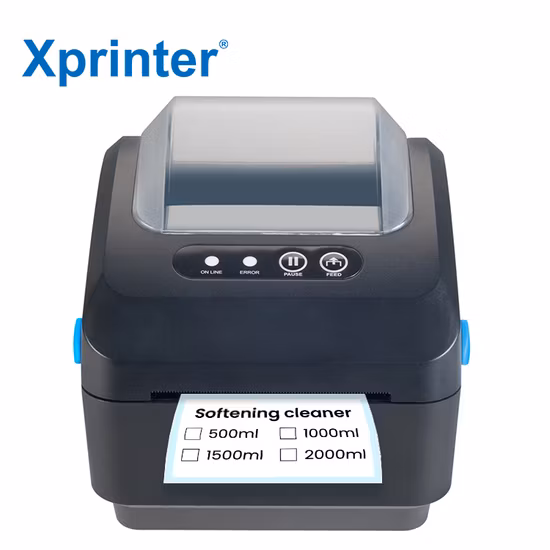

XPRINTER XP-320B Thermal Label Printer – 203 DPI, 127mm/s Speed, USB + LAN + Bluetooth, Direct Thermal, QR & Barcode, Compact Design, Windows/Android/iOS Support

XPRINTER XP-320B Thermal Label Printer – 203 DPI, 127mm/s Speed, USB + LAN + Bluetooth, Direct Thermal, QR & Barcode, Compact Design, Windows/Android/iOS Support

68 $

Quantity
Categories: ,

Expert Features

  • High-Speed Thermal Printing – Print labels up to 127mm per second with crisp 203 DPI resolution for sharp barcodes, QR codes, and text — perfect for shipping, retail, and warehouse applications.
  • Flexible Connectivity Options – Supports USB, LAN, Bluetooth, and optional Wi-Fi or 4G Cloud Printing, giving you freedom to print from multiple devices and platforms with ease.
  • Versatile Media Compatibility – Handles continuous, gap, and black mark labels from 20mm to 84mm width, suitable for logistics, product labeling, and barcode applications.
  • Multiple Sensor Support – Features gap, black mark, and cover-open sensors for precise label detection and smooth operation during high-volume printing.
  • Comprehensive Barcode Support – Prints 1D and 2D barcodes, including QR Code, PDF-417, EAN, UPC, CODE128, and more, ensuring compatibility with all major labeling systems.
  • Compact & Durable Design – Weighing just 1.1kg, the XP-320B fits seamlessly on any workspace while delivering a 50km print head lifespan for long-term reliability.
  • Cross-Platform SDK Support – Compatible with Windows, Android, and iOS via SDK integration — ideal for businesses, stores, and logistics operations.
  • Energy Efficient – Operates on DC 24V, 2.5A output for stable performance while minimizing power consumption.

Expert Specs

Specification Details
Model XPRINTER XP-320B
Printing Method Direct Thermal
Resolution 203 DPI
Max Print Speed 127 mm/s (5 inches per second)
Max Print Width 20 ~ 80 mm
Media Type Continuous, Gap, Black Mark
Media Width 20 ~ 84 mm
Media Thickness 0.06 ~ 0.19 mm
Core Diameter 25 ~ 38 mm
Sensors Gap, Black Mark, Cover Open
Memory 4M RAM / 4M Flash
Interfaces USB / USB + LAN / USB + Serial + LAN / USB + Wi-Fi / USB + 4G
1D Barcode Support CODE128, EAN128, CODE39, EAN13, UPC-A, POSTNET, etc.
2D Barcode Support QR Code, PDF-417, DataMatrix
Rotation Angles 0°, 90°, 180°, 270°
Emulation Modes TSPL, ESC/POS
Print Head Life 50 km
Dimensions (W x D x H) 162 x 187 x 146 mm
Weight 1.1 kg
Input Power AC 100–240V, 2A, 50–60Hz
Output Power DC 24V, 2.5A
Operating Temperature 5°C – 45°C, 20–80% RH
Storage Conditions -40°C – 55°C, ≤93% RH (at 40°C)
Drivers Windows
SDK Windows / Android / iOS
Use Case Barcode Label Printing for Retail, Warehouse, Logistics, Shipping
