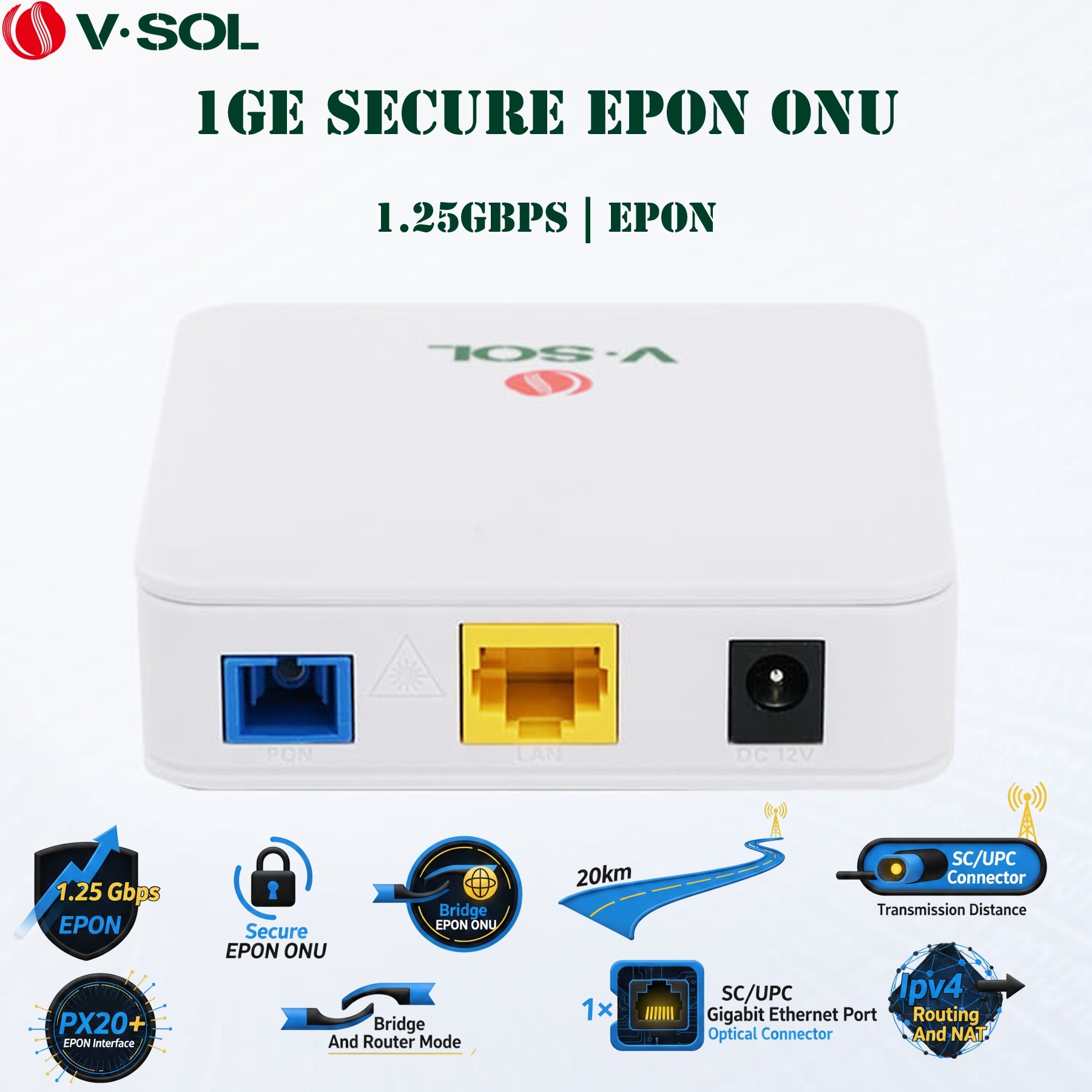

Expert Features

• 1.25Gbps EPON Throughput : Supports symmetrical 1.25Gbps uplink and downlink performance for stable, high-speed EPON access networks.
• Secure EPON ONU Architecture : Designed to prevent Rogue ONU behavior while ensuring long-term network stability and controlled access.
• HGU And SFU Support : Flexible deployment supporting both Home Gateway Unit and Single Family Unit access scenarios.
• Bridge And Router Operating Modes : Supports both bridging and routing modes to adapt to different network architectures.
• Wide Working Temperature Design : Engineered to operate reliably from -10°C to +55°C, suitable for diverse environments.
• Long-Term Stable Connection : Hardware and firmware design optimized for continuous, reliable network operation.
• Single Gigabit Ethernet Interface : Includes one 1GE auto-negotiation RJ45 LAN port for wired connectivity.
• EPON PX20+ Optical Interface : SC single-mode SC/UPC connector with up to 20km transmission distance.
• Advanced Rogue ONU Detection : Built-in abnormal protection with Rogue ONU detection and hardware Dying Gasp support.
• Integrated Firewall Protection : Supports DDOS defense and filtering based on ACL, MAC, and URL rules.
• VLAN Flexibility : Multiple VLAN modes including tag, transparent, trunk (up to 8 VLANs), and 1:1 translation.
• Multicast Optimization : Supports IGMP v1/v2/Snooping with up to 64 multicast groups and 8 multicast VLANs.
• QoS Traffic Control : Supports four queues with SP and WRR scheduling and 802.1P prioritization.
• Comprehensive Management Options : Supports CTC OAM 2.0/2.1, Web UI, Telnet, and CLI management interfaces.

Expert Specs
