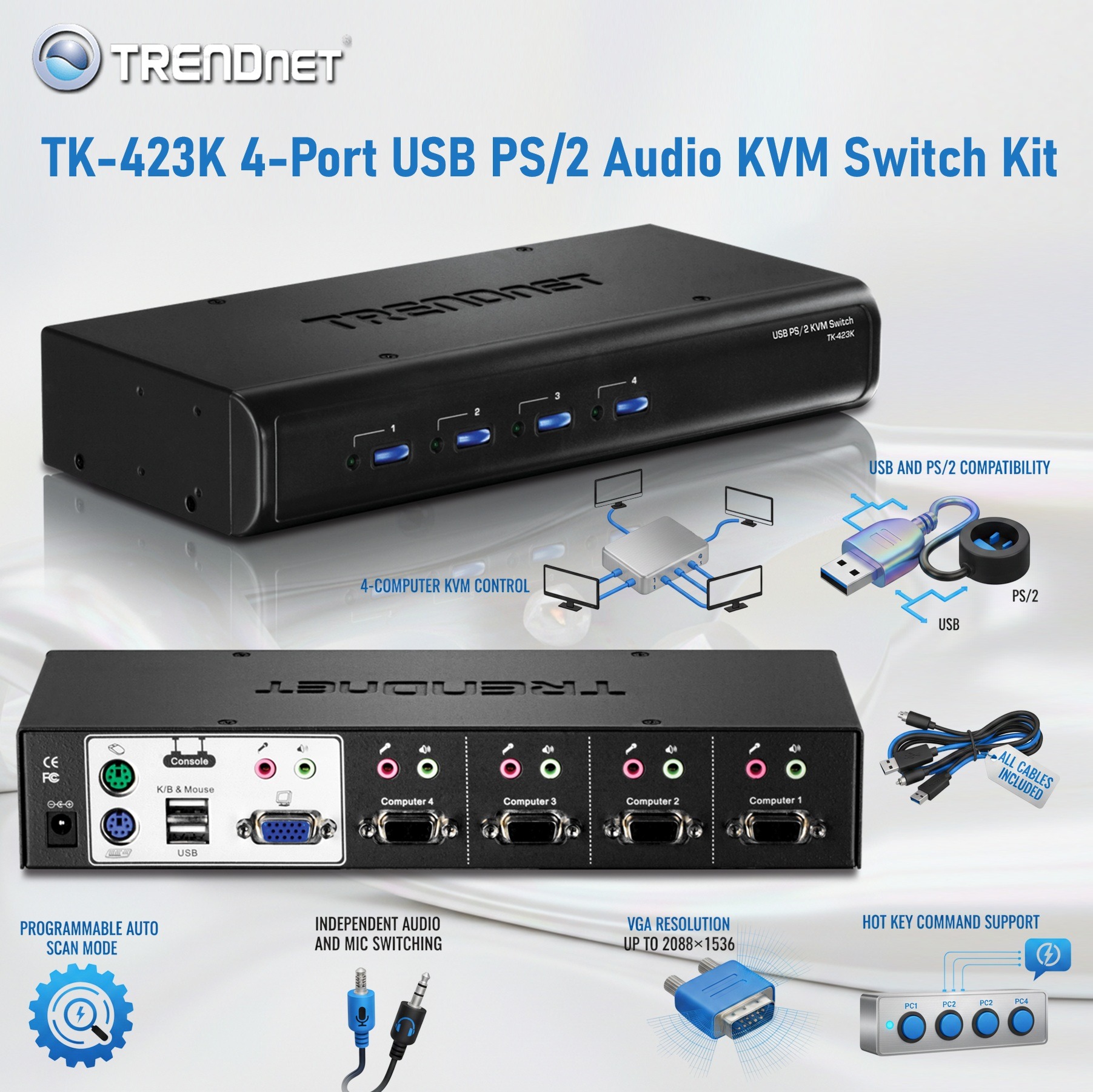

TRENDnet 4-Port USB PS/2 Audio KVM Switch Kit With VGA Support Up To 2048×1536, Independent Audio Switching, Manage 4 Computer, Hot Keys, 2-Way Audio, And Complete Cable Set | TK-423K

TRENDnet 4-Port USB PS/2 Audio KVM Switch Kit With VGA Support Up To 2048×1536, Independent Audio Switching, Manage 4 Computer, Hot Keys, 2-Way Audio, And Complete Cable Set | TK-423K

90 $

Quantity
Categories: ,

Expert Features

  • 4-Port Multi-Computer Control : Manage up to four computers or servers using a single keyboard, mouse, monitor, and audio setup for efficient workspace consolidation.
  • High-Resolution VGA Video Support : Delivers sharp visuals with support for resolutions up to 2048 × 1536 at 60Hz, exceeding standard 1080p output.
  • Independent Audio And PC Switching : Audio and microphone channels can be switched separately from computer control for flexible monitoring setups.
  • Dual USB And PS/2 Compatibility : Supports both USB and PS/2 keyboards and mice on console and computer connections, ensuring legacy and modern system compatibility.
  • Hot Key And Push Button Switching : Switch systems instantly using programmable keyboard hot keys or front-panel push buttons.
  • Audible Switching Confirmation : An audio notification confirms successful port switching, eliminating guesswork during operation.
  • LED Status Indicators : Integrated LEDs clearly display active connections and system status at a glance.
  • Automatic Scanning Mode : Programmable scan intervals from 5 to 99 seconds allow automated monitoring of connected systems.
  • Complete Cable Kit Included : Ships with all required KVM, audio, microphone, and USB-to-PS/2 adapter cables—no additional purchases needed.
  • Externally Powered Design : Includes a dedicated 5V DC power adapter to ensure stable operation across all connected systems.

4-port USB, PS / 2 KVM Switcher, KVM

Expert Specs

Category Specification
Model TRENDnet TK-423K (Version v1.2R)
Supported Computers Up to 4
Video Interface VGA (HDB-15)
Max Resolution Up to 2048 × 1536 @ 60Hz
Console Keyboard USB or PS/2
Console Mouse USB or PS/2
Console Monitor VGA HDB-15 Female
Console Audio 3.5 mm Speaker Jack
Console Microphone 3.5 mm Microphone Jack
Computer Video Ports VGA HDB-15 Female
Computer Audio Ports 3.5 mm Speaker + Microphone Jacks
Computer Keyboard Input USB or PS/2
Computer Mouse Input USB or PS/2
Switching Controls Front Panel Push Buttons, Keyboard Hot Keys
Switching Notification Audio Alert
Scan Interval 5 – 99 Seconds (Programmable)
Operating Temperature 0 – 40°C (32 – 104°F)
Operating Humidity Up To 90% Non-Condensing
Power Input 100 – 240V AC, 50/60Hz, 0.5A
Power Output 5V DC, 2A External Adapter
Power Consumption 5W Max
Dimensions 255 × 118 × 45 mm (10 × 4.6 × 1.8 in.)
Weight 1 kg (2.2 lbs.)
Certifications CE, FCC
