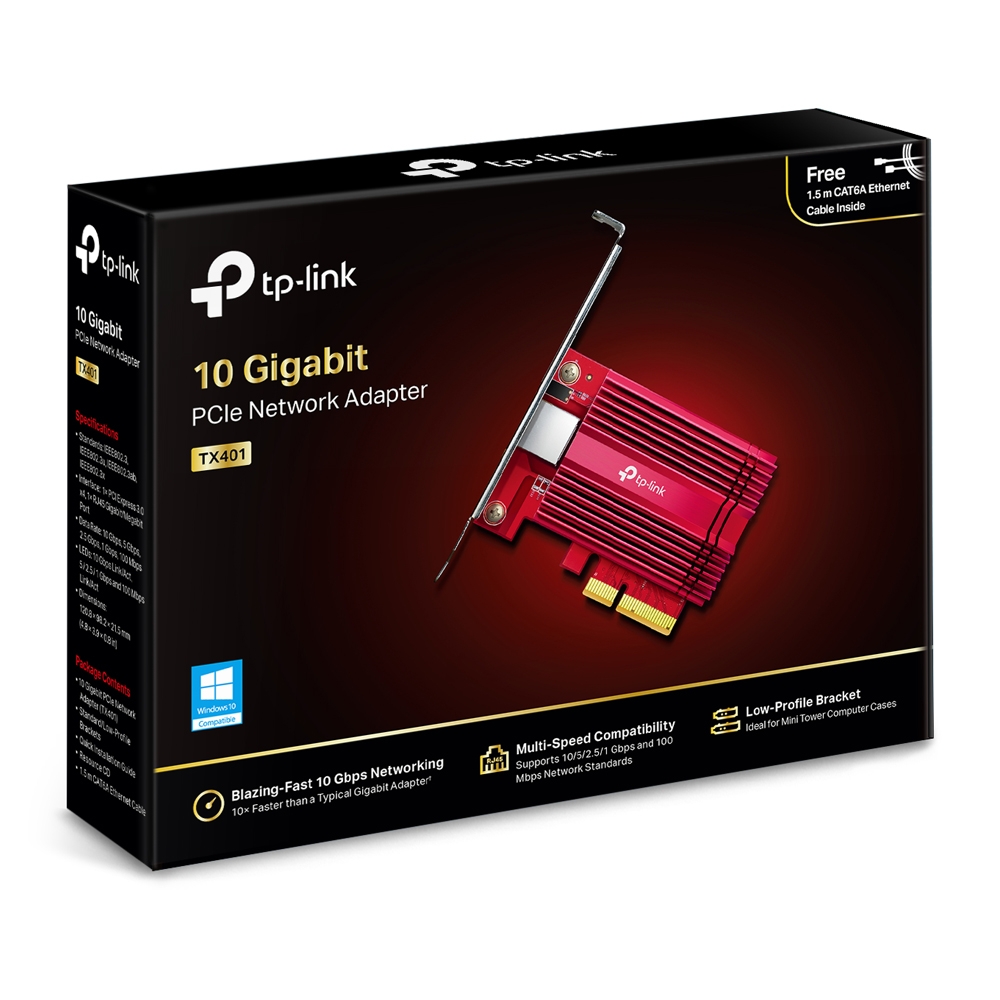

TPLINK TX401 10 GIGABIT PCIE NETWORK ADAPTER

TPLINK TX401 10 GIGABIT PCIE NETWORK ADAPTER

84 $

Quantity
Categories: , , , ,

TX401

  • 10 Gbps Networking – Combined with the latest 10GBase-T Technology, TX401 delivers extreme speeds of up to 10 Gbps, which is 10× faster than typical Gigabit adapters, guaranteeing smooth data transmissions for both internet access and local data transmissions.†
  • Versatile Compatibility – With extreme speed and ultra-low latency, 10GBase-T is backwards compatible with Fast Ethernet and Gigabit Ethernet, automatically negotiating between higher and lower speed connections.
  • CAT6A Ethernet Cable – To maximize TX401’s performance, a 1.5 m CAT6A Ethernet Cable is included—rated for up to 10 Gbps while a regular cable is only rated for 1 Gbps.
  • Low-Profile and Full-Height Brackets – In addition to the standard bracket, a low-profile bracket is provided for mini tower computer cases. Customized options give you the flexibility to find a bracket that perfectly fits your board design.
Interface 1× PCI Express 3.0 x4, 1× RJ45 Gigabit/Megabit Port
Network Media 10GBASE-T/5GBASE-T/2.5GBASE-T/1000BASE-T/100BASE-TX
LED 10 Gbps Link/Act, 5 / 2.5 / 1 Gbps and 100 Mbps Link/Act
Data Rates 100 Mbps, 1 Gbps, 2.5 Gbps, 5 Gbps, 10 Gbps for Half-Duplex mode,
200 Mbps, 2 Gbps, 5 Gbps, 10 Gbps, 20 Gbps for Full-Duplex mode
Dimensions 120.8 × 98.2 × 21.5 mm (4.8 × 3.9 × 0.8 in)
Flow Control 802.3x
OTHERS
Certification FCC, CE, RoHS
Package Contents 10 Gigabit PCIe Network Adapter (TX401)
Standard/Low-Profile Brackets
Quick Installation Guide
Resource CD
1.5 m CAT6A Ethernet Cable
System Requirements Windows 11/10/8.1/8/7, Windows Servers 2019/2016/
2012 R2, Linux
