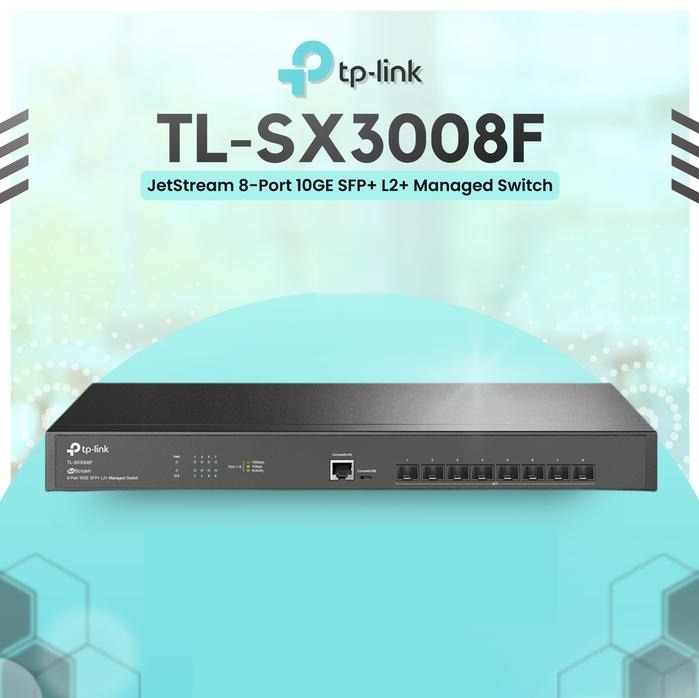

TP-Link TL-SX3008F JetStream 8-Port 10G SFP+ L2+ Managed Switch – 160 Gbps Switching, Static Routing, QoS, IPv6, Omada SDN Cloud Management, Robust Security, Rack-Mountable

TP-Link TL-SX3008F JetStream 8-Port 10G SFP+ L2+ Managed Switch – 160 Gbps Switching, Static Routing, QoS, IPv6, Omada SDN Cloud Management, Robust Security, Rack-Mountable

333 $

Quantity
Categories: , ,

Expert Features

  • 8× 10G SFP+ Ports: Lightning-fast 10 Gbps connections for high-bandwidth networking.
  • High Switching Capacity: 160 Gbps non-blocking switching capacity for uninterrupted data flow.
  • Omada SDN Integration: Zero-Touch Provisioning (ZTP), centralized cloud management, and intelligent monitoring.
  • Static Routing & L3 Features: Efficiently route internal traffic, support IPv6, DHCP server/relay, and IP interfaces.
  • Robust Security: IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm Control, DHCP Snooping, 802.1X, and Radius Authentication.
  • Advanced QoS: L2/L3/L4 prioritization for voice and video applications; IGMP Snooping optimizes multicast streams.
  • Standalone Management: Web GUI, CLI (Console, Telnet, SSH), SNMP, RMON, and dual-image firmware for robust control.
  • Enterprise L2+ Features: 802.1Q VLAN, Port Mirroring, STP/RSTP/MSTP, Link Aggregation, 802.3x Flow Control.
  • ISP Features: sFlow, QinQ, L2PT, PPPoE ID Insertion, IGMP authentication, OAM, and DLDP.
  • IPv6 Ready: Dual-stack IPv4/IPv6, MLD Snooping, IPv6 ACL, DHCPv6 Snooping, PMTU Discovery, Neighbor Discovery.
  • Rack-Mountable & Fanless: 1U design with low heat dissipation for quiet, efficient operation.

Expert Specs

Category Details
Model TP-Link TL-SX3008F
Type L2+ Managed Switch
Ports 8× 10G SFP+, 1× RJ45 Console, 1× Micro-USB Console
Switching Capacity 160 Gbps
Forwarding Rate 119.04 Mpps
MAC Address Table 32 K
Packet Buffer Memory 16 Mbit
Jumbo Frame Support 9 KB
L2 Features VLAN (802.1Q), Port Mirroring, STP/RSTP/MSTP, Link Aggregation, 802.3x Flow Control
L2+/L3 Features Static Routing, IGMP Snooping, QoS, IPv6, DHCP Server/Relay, IP Interfaces
Security Features IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm Control, DHCP Snooping, 802.1X, Radius Authentication
Management Web GUI, CLI (Console, Telnet, SSH), SNMP, RMON, Dual Image, Omada SDN Cloud & Omada App
QoS L2/L3/L4 QoS, Voice & Video Optimization, IGMP Snooping/Filtering/Throttling
ISP Features sFlow, QinQ, L2PT, PPPoE ID Insertion, IGMP Authentication, OAM, DLDP
Fan Fanless
Power Supply 100–240 V AC, 50/60 Hz
Max Power Consumption 15.46 W
Heat Dissipation 52.75 BTU/hr
Dimensions (W×D×H) 17.3 × 7.1 × 1.7 in (440 × 180 × 44 mm)
Mounting Rack-Mountable
