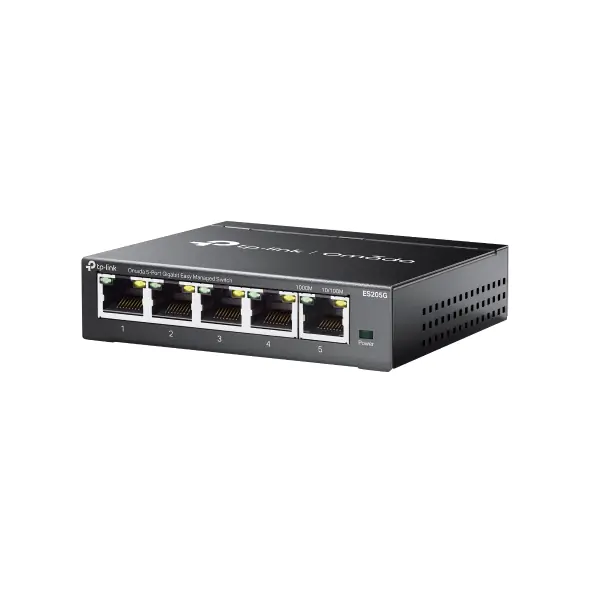

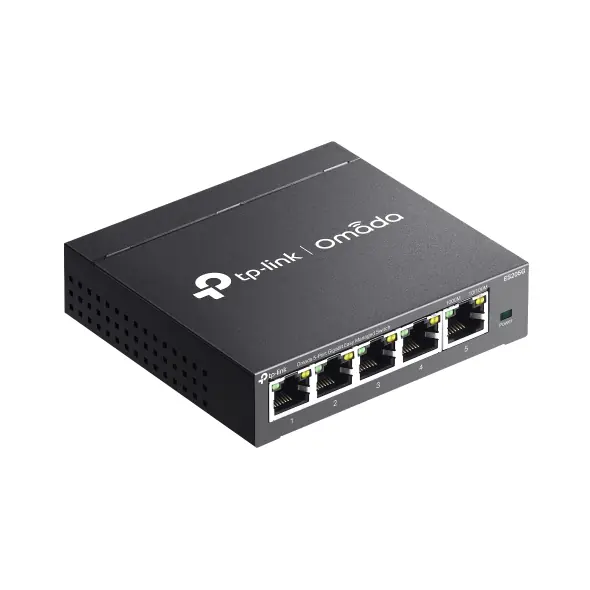

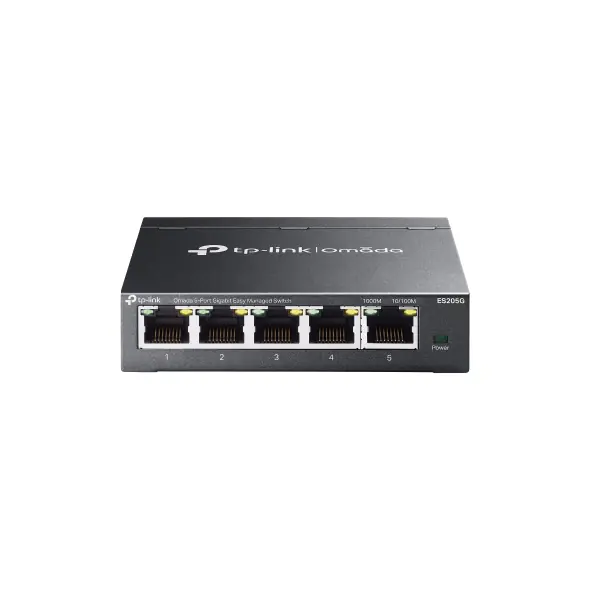

TP-Link Omada ES205G 5-Port Gigabit Easy Managed Switch – Fanless, Cloud-Managed, VLAN, QoS, Loop Prevention, IGMP Snooping

24 $

Out of stock

Categories: NETWORK, SWITCH

Expert Features:

5× Gigabit Ports: Enjoy high-speed, stable connections with five 10/100/1000 Mbps RJ45 ports, supporting Auto MDI/MDIX.
Quiet Fanless Operation: Silent performance ideal for noise-sensitive environments like offices or homes.
Centralized Cloud Management: Manage multiple devices via the Omada app or Omada SDN controller (hardware/software/cloud-based).
Advanced Layer 2 Features: Includes VLAN, IGMP snooping, port mirroring, static link aggregation, and loop prevention.
Robust Traffic Control: Leverage DSCP/802.1p QoS, bandwidth control, and storm control for optimized network performance.
Durable & Versatile Design: Compact metal casing with desktop or wall-mounting options and built-in physical security lock.
Zero-Touch Provisioning: Effortless deployment for businesses using Omada Cloud-Based Controller.

Expert Specs:

Specification	Details
Model	TP-Link Omada ES205G
Ports	5× 10/100/1000 Mbps RJ45
Switching Capacity	10 Gbps
Forwarding Rate	7.4 Mpps
MAC Address Table	8K
Buffer Memory	4 Mbits
Jumbo Frame	15 KB

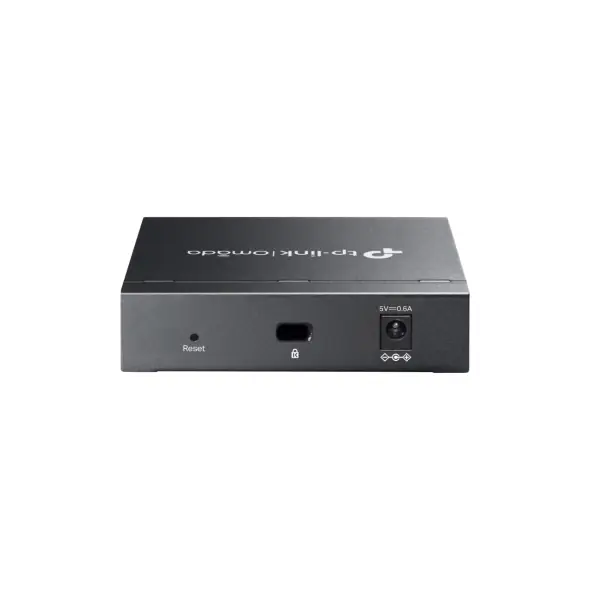

Power Supply	5V DC, 0.6A External Adapter
Surge Protection	±6kV
QoS Support	802.1p/DSCP, WRR, Port-Based, 8 Priority Queues
VLAN Support	802.1Q Tag VLAN (Up to 32 groups, 4K VID), Port-based, MTU
L2 Features	Loop Prevention, Link Aggregation, Port Mirroring, LLDP
Multicast Support	IGMP Snooping (v1/v2/v3), Fast Leave
Cloud Management	Via Omada Controllers (App/Web-Based/Cloud-Based)
Mounting Options	Desktop, Wall-Mountable
Dimensions (W×D×H)	100 × 98 × 25 mm
Weight	Lightweight, Compact
Environment	Operating: 0°C~~40°C; Storage: -40°C~~70°C
Certifications	FCC, CE, RoHS
Included in Box	ES205G Switch, Power Adapter, Installation Guide, Feet
