TP-Link Aginet XC220-G3 AC1200 Wireless XPON Router Dual-Band 1.2Gbps WiFi, 300Mbps 2.4GHz, 867Mbps 5GHz, GPON+EPON Dual Mode, 2× Gigabit LAN, MU-MIMO, EasyMesh, WPA3 Security, Parental Controls, TR-069/OMCI
32 $
Categories: MODEM ROUTER DSL/VDS/FIBER, NETWORK
Expert Features
- Superfast Dual-Band WiFi: Enjoy blazing speeds up to 1.2 Gbps—867 Mbps on 5 GHz for gaming and streaming, 300 Mbps on 2.4 GHz for browsing and everyday tasks.
- XPON Dual Modes: Flexible fiber access with automatic GPON + EPON switching for versatile high-speed internet.
- Gigabit Wired Connectivity: 2× Gigabit LAN ports for ultra-stable wired connections to PCs, consoles, and smart devices.
- MU-MIMO Technology: Simultaneously stream data to multiple devices for zero-lag performance.
- EasyMesh-Compatible: Build a smart mesh network for full-home coverage and seamless roaming with one WiFi name.
- Smooth IPTV Experience: Optimized with IGMP Proxy/Snooping, Bridge, and Tag VLAN for uninterrupted video streaming.
- Enhanced Security: WPA3 encryption, multi-SSID, and parental controls for safe, customizable online experiences.
- Compact Fiber Tray Design: Protects redundant fiber cable and prevents accidental damage.
- Remote & Cloud Management: TR-069/OMCI, Aginet ACS, and TAUC enable effortless device control from anywhere.

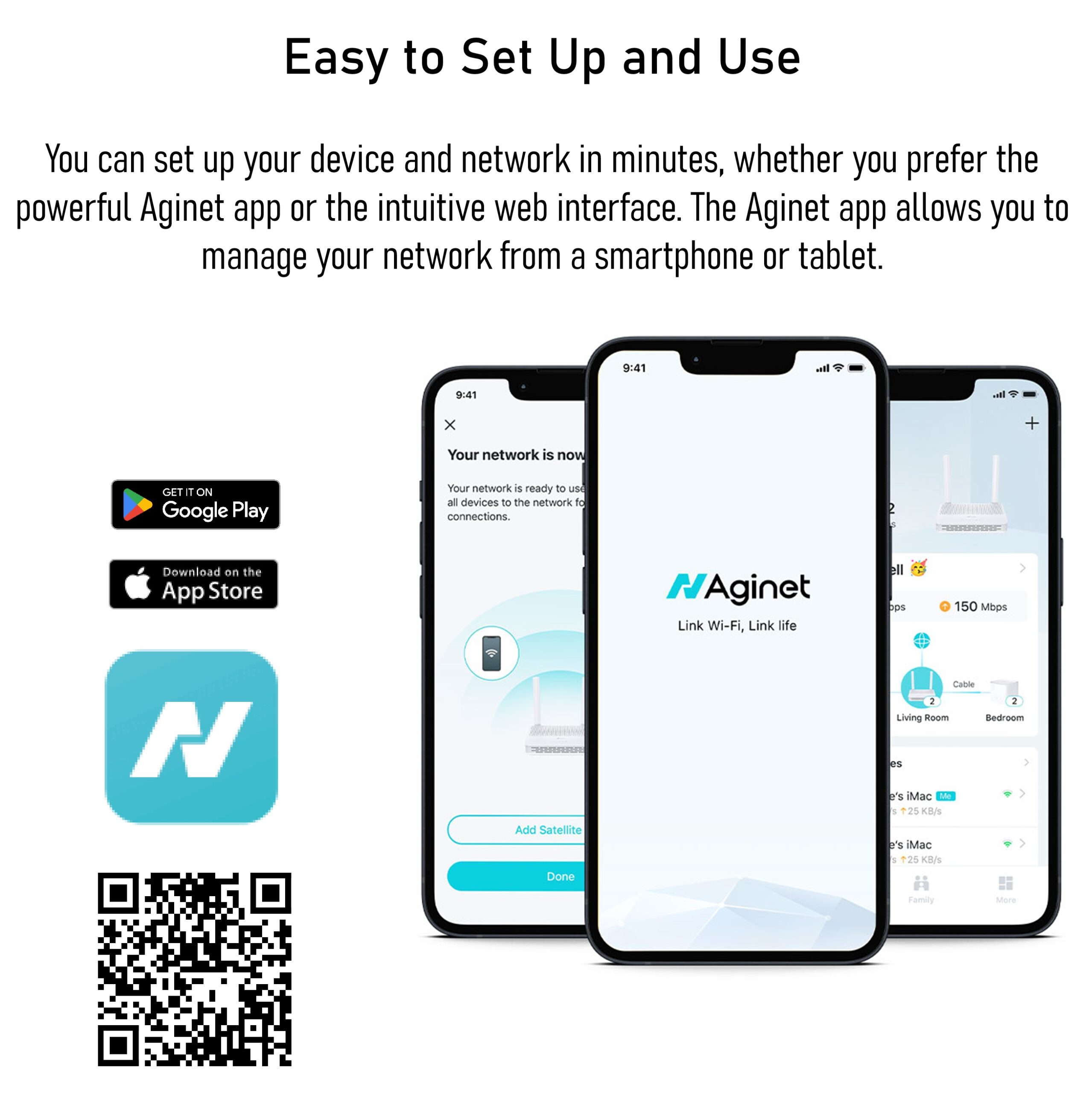

- User-Friendly Setup: Manage network easily via Aginet app or intuitive web interface, QR code included for instant app download.
- High-Gain Beamforming Antennas: Direct signal precisely to your devices for optimized WiFi coverage and reliability.






Expert Specs
| Category | Specification |
|---|---|
| Model | TP-Link Aginet AC1200 Wireless XPON Router XC220-G3 |
| WiFi Speed | 5 GHz: 867 Mbps, 2.4 GHz: 300 Mbps |
| WiFi Bands | Dual-Band (2.4 GHz + 5 GHz) |
| Spatial Streams | 2 + 2 simultaneous |
| XPON Modes | GPON + EPON dual mode |
| LAN Ports | 2 × Gigabit RJ45 LAN |
| PON Port | 1 × GPON/EPON port |
| MU-MIMO | Yes |
| EasyMesh | Yes, 802.11k/v/r support |
| Beamforming | Yes, high-gain antennas |
| Security | WPA/WPA2/WPA3, Multi-SSID, Parental Controls, NAT Firewall, MAC/IP/URL Filtering, DoS Defense |
| IPTV Support | IGMP Proxy/Snooping, Bridge, VLAN Tag |
| Wireless Functions | WDS Bridge, WMM, Wireless Stats, Enable/Disable Wireless |
| Wireless Schedule | Supported on both 2.4 GHz and 5 GHz |
| External Power Supply | 12V/1.0A |
| Buttons | WPS/Wi-Fi, RESET |
| Antennas | 2 External Dual-Band Antennas |
| GPON Speeds | Downstream: 2.488 Gbps, Upstream: 1.244 Gbps |
| EPON Speeds | Downstream: 1.25 Gbps, Upstream: 1.25 Gbps |
| Software Features | DHCP, NAT, Port Mapping, Static Routing, DDNS, QoS, VPN Pass-through, Remote & Cloud Management |
| Protocols | IPv4, IPv6 |
| System Requirements | Windows 98SE/NT/2000/XP/Vista/7/8/8.1/10, Mac OS, Linux, IE11, Firefox 12+, Chrome 20+, Safari 4+ |
| Environment | Operating Temp: 0–40℃, Storage Temp: -40–60℃, Operating Humidity: 10–90%, Storage Humidity: 5–90% |
| Package Contents | Router, RJ45 Cable, Power Adapter, Quick Installation Guide |
