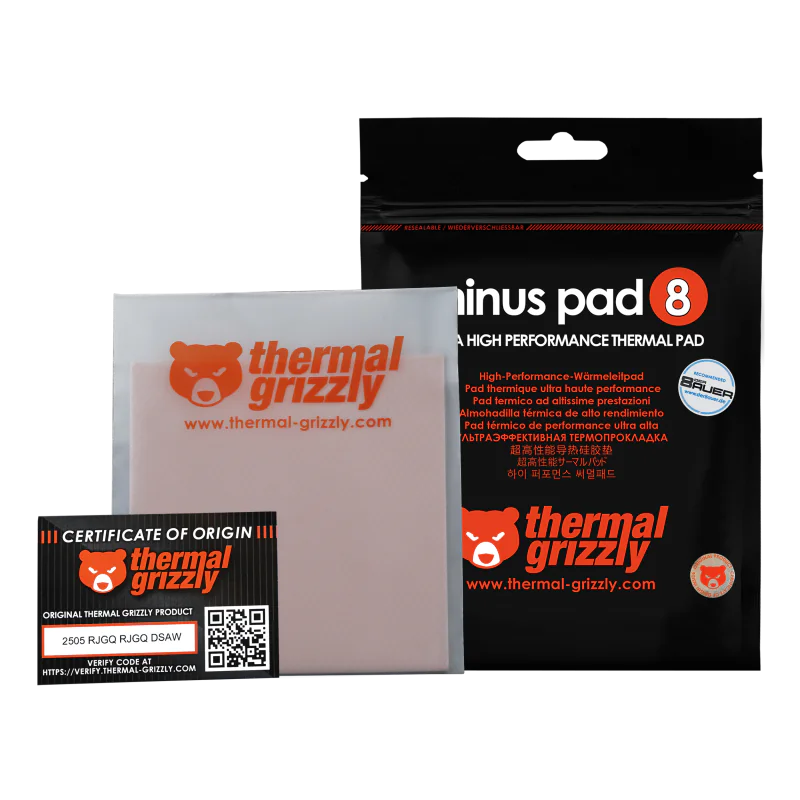

Thermal Grizzly Minus Pad 8 | 100x100x0.5mm | High Thermal Conductivity | Compressible & Electrically Insulating | -100°C to +250°C | RoHS Compliant

20 $

Quantity
Categories: ,

Expert Features:

  • Ultra-High Thermal Conductivity: Designed to fill microgaps between components, Minus Pad 8 offers excellent heat transfer efficiency for advanced cooling applications.
  • Flexible & Compressible Surface: Built with a highly elastic and adaptable structure, allowing it to conform easily to uneven surfaces for optimal thermal contact.
  • Premium Material Composition: Made from a ceramic silicon complex and nano aluminum oxide, ensuring long-term stability and consistent thermal performance.
  • Electrically Insulating: Safely used around sensitive electronics, offering electrical insulation of 8 kV/mm, compliant with ASTM D149 standards.
  • Wide Operating Temperature Range: Delivers reliable performance from -100°C up to +250°C, making it suitable for extreme environments.
  • Eco-Friendly & RoHS Compliant: Manufactured with non-toxic, environmentally safe materials, aligning with RoHS standards for responsible tech use.
  • Quick & Simple Installation: Requires only minimal pressure to apply—perfect for CPUs, GPUs, VRMs, RAM modules, and other high-temperature ICs.
  • Non-Flammable (UL94 V-0 Rated): Engineered to resist ignition and flame propagation, adding another layer of system safety.
  • Ideal for Pros: Trusted by PC builders, and thermal engineers for bridging thermal gaps where paste isn’t practical.

Expert Specs:

Specification Details
Product Name Thermal Grizzly Minus Pad 8
Size 100 x 100 mm
Thickness 0.5 mm
Color Pink
Thermal Conductivity Very High (Exact value depends on thickness)
Material Composition Ceramic Silicon Complex + Nano Aluminum Oxide
Compressibility High
Hardness Shore 00-60
Electrically Insulating Yes (8kV/mm, ASTM D149)
Flammability Rating UL94 V-0
Operating Temperature -100°C to +250°C
Installation Method Light pressure — adhesive-free
RoHS Compliant Yes
Application Use CPUs, GPUs, VRMs, Chipsets, Memory Modules
