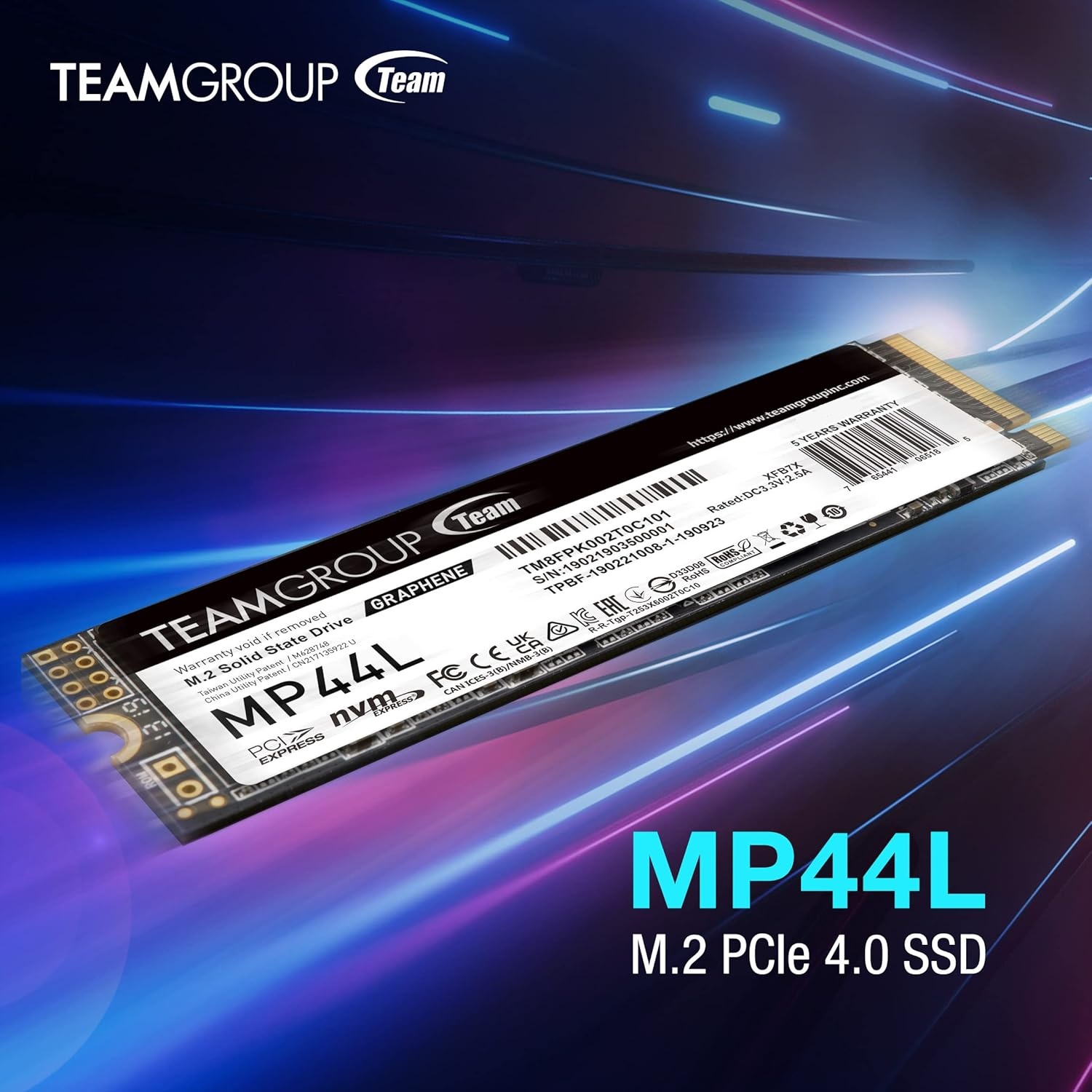

TEAMGROUP MP44L 1TB SLC Cache NVMe 1.4 PCIe Gen 4×4 M.2 2280 Laptop & Desktop SSD (R/W Speed up to 5,000/4,500MB/s) TM8FPK001T0C101

$

Quantity

Expert Features

  • NVMe PCIe Gen4x4 High Speed Interface – Sequential read/write speed can reach up to 5,000 / 4,500MB/s. Compared with the PCIe Gen3 interface, the performance is more than doubled,and drastically enhances work efficiency.
  • MP44L M.2 PCIe SSD is the first product to introduce conductive graphene coating on aluminum foil to the SSD label. Less than 1mm thick, the new label design eradicates mechanical interference when assembling. Moreover, together with the onboard M.2 heat sink, the heat dissipating performance is doubled!
  • M.2 2280 specification: Supports the next-generation platforms of Intel and AMD. Suitable for both desktop and notebook. Capable of reading and writing large amounts of game data, complex graphics and motion processing algorithms, or loading heavy duty video/graphics editing software.
  • Supports SLC Caching technology. Greatly enhance computing performance.

Expert Specs

Model
Brand Team Group
Series MP44L
Model TM8FPK001T0C101
Device Type Internal Solid State Drive (SSD)
Used For Consumer
Details
Form Factor  M.2 2280
Capacity 1TB
Memory Components  TLC
Interface PCIe 4.0 x4 with NVMe 1.4
Protocol NVMe 1.4
Performance
Max Sequential Read Up to 5000 MBps
Max Sequential Write Up to 4500 MBps
4KB Random Read Up to 525,000 IOPS
4KB Random Write Up to 550,000 IOPS
Terabytes Written (TBW) 600TB
MTBF  1,500,000 hours
Features
Features TEAMGROUP MP44L M.2 PCIe SSD adopts the PCIe Gen4x4 interface. Compared with the PCIe Gen3, the performance is more than doubled. The read/write speeds reach up to 5,000 / 4,500MB/s, drastically improving work efficiency. It is the first product to incorporate a heat sink label using a unique graphene coating on aluminum foil to further upgrade heat dissipation performance. It supports the S.M.A.R.T. monitoring software, Windows TRIM optimization option, and LDPC technology simultaneously.
Environmental
Operating Temperature 0°C ~ +70°C
Storage Temperature -40°C ~ +85°C
Operating Humidity RH 90% under 40°C (operational)
Max Shock Resistance 1,500G/0.5ms
Max Vibration Resistance 80Hz~2,000Hz/20G
Dimensions & Weight
Height 2.25mm
Width 22mm
Depth 80mm
Weight 7g
