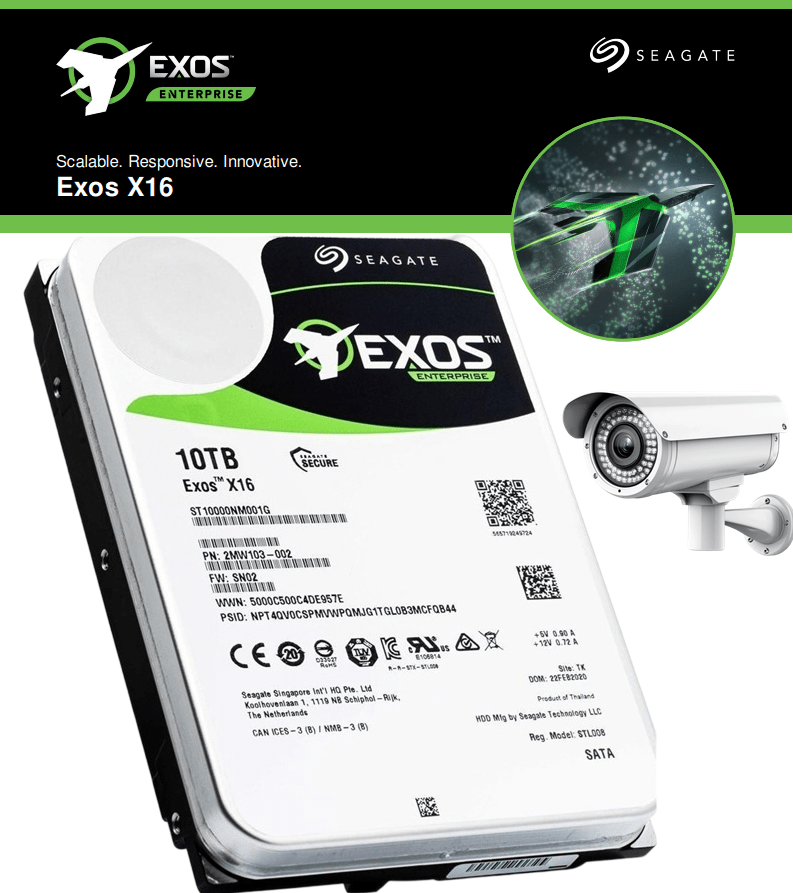

Seagate Exos X16 ST10000NM001G 10TB 7200RPM SATA 6Gb/s 256MB Cache Enterprise Hard Drive – 2.5M-Hour MTBF, PowerChoice™, Helium Sealed, RAID-Ready 24×7 Reliability

Seagate Exos X16 ST10000NM001G 10TB 7200RPM SATA 6Gb/s 256MB Cache Enterprise Hard Drive – 2.5M-Hour MTBF, PowerChoice™, Helium Sealed, RAID-Ready 24×7 Reliability

0 $

Quantity
Categories: , ,

🧠 Expert Features

  • 10TB of Scalable Power: Step into enterprise-level performance with a massive 10TB capacity built for data centers, cloud storage, and hyperscale operations.
  • Helium-Sealed Drive Design: Lightweight, cooler, and more efficient—Seagate’s helium technology minimizes drag and maximizes storage density for a lower total cost of ownership.
  • 2.5 Million-Hour MTBF: Rock-solid reliability engineered for non-stop 24×7 operation in demanding enterprise environments.
  • PowerChoice™ & PowerBalance™: Smart technologies that dynamically optimize energy usage without compromising performance, ideal for maximizing rack efficiency.
  • Ultra-Fast 7200RPM with 245MB/s Transfer Speed: Crush latency and accelerate large-scale workloads, data backups, and distributed storage systems.
  • Enterprise-Grade Security: Supports Seagate Secure™ features with firmware verification, encryption-ready models, and fast, secure data erasure for safe retirement.
  • SuperParity Data Integrity: Designed with advanced parity error correction for bulletproof reliability under heavy RAID configurations.
  • Digital Environmental Sensors: Monitors internal drive conditions for optimal performance and long-term health.
  • Built for the Cloud Era: Tuned for massive data centers, Hadoop, Ceph, and enterprise backup/restore applications.
  • 1-Year Limited Warranty: Backed by Seagate’s trusted enterprise support and reliability guarantee.

💾 Expert Specs

Category Details
Model Number ST10000NM001G
Series Seagate Exos X16
Capacity 10TB
Interface SATA 6.0Gb/s (Compatible with 3.0Gb/s & 1.5Gb/s)
Spindle Speed (RPM) 7200 RPM
Cache (Multisegmented) 256MB
Max. Sustained Transfer Rate (MB/s) 245MB/s
Random Read/Write 4K QD16 (IOPS) 170 / 440
Average Latency 4.16ms
Workload Rate Limit 550TB/year
Mean Time Between Failures (MTBF) 2,500,000 hours
Reliability Rating (AFR) 0.35%
Nonrecoverable Read Errors per Bits Read 1 per 10¹⁵
Power-On Hours (per Year) 8,760 (24×7 Operation)
PowerChoice™ Technology Yes
PowerBalance™ Technology Yes
Helium Sealed-Drive Design Yes
SuperParity Yes
Hot-Plug Support Yes
RSA 2048 Firmware Verification (SD&D) Yes
Idle Power Consumption 5W (Average)
Max Operating Power (Random 4K/16Q) 9.5W / 6.0W
Power Requirements +12V and +5V
Operating Temperature Range 5°C – 60°C
Non-Operating Vibration (2–500Hz) 2.27 Grms
Shock (Operating Read/Write) 50 Gs
Shock (Non-Operating) 200 Gs
Height 26.11 mm (1.028 in)
Width 101.85 mm (4.01 in)
Depth 147 mm (5.787 in)
Weight 670 g (1.477 lb)
Form Factor 3.5-inch

🧩 Best-Fit Applications

  • Hyperscale Cloud Data Centers
  • Massive Scale-Out Enterprise Storage
  • Distributed File Systems (Hadoop, Ceph)
  • High-Density RAID and JBOD Arrays
  • Enterprise Backup and Restore (D2D, Virtual Tape)
  • Centralized Surveillance & Big Data Workload

💬 Expert Verdict

The Seagate Exos X16 ST10000NM001G is a powerhouse for hyperscale environments. It’s cool, quiet, helium-sealed, and obsessively engineered for maximum reliability. Whether you’re scaling your cloud infrastructure or running a 24×7 enterprise storage farm, this drive delivers unshakable performance, data integrity, and cost efficiency—all in one elegant 10TB beast.
