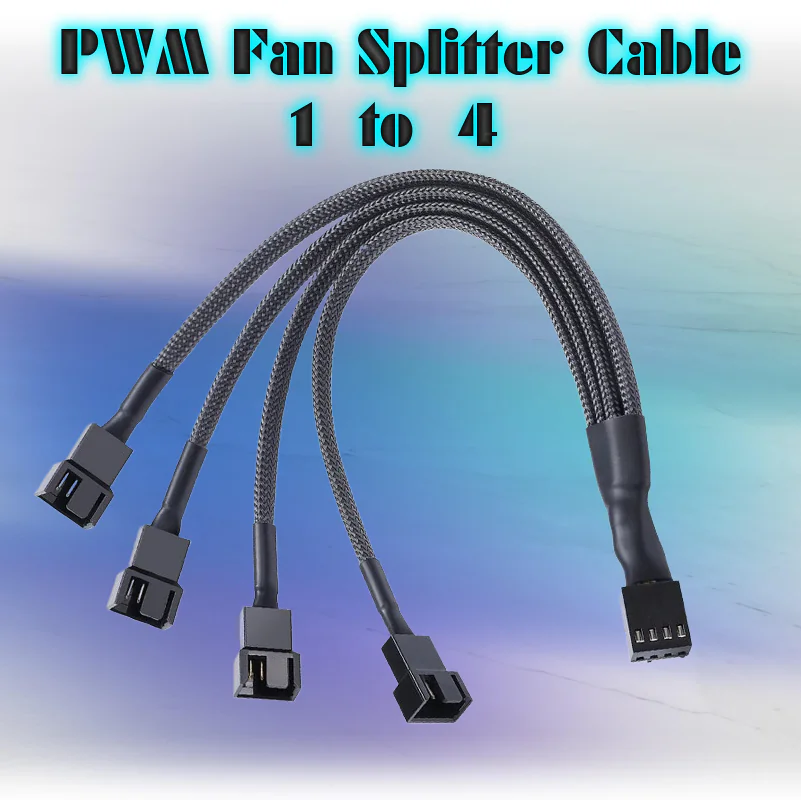

PWM Fan Splitter Cable 1-To-4 Black Mesh Sleeved – 4-Pin Female To 4x 4-Pin Male Connectors – 10 Inch Extension – Supports RPM Signal On One Fan – Compatible With 3-Pin & 4-Pin Fans

PWM Fan Splitter Cable 1-To-4 Black Mesh Sleeved – 4-Pin Female To 4x 4-Pin Male Connectors – 10 Inch Extension – Supports RPM Signal On One Fan – Compatible With 3-Pin & 4-Pin Fans

CONTACT FOR PRICE

Categories: ,

⚙️ Features

  • 1-to-4 Fan Expansion – Connects up to four case or CPU fans from a single 4-pin motherboard header (CPU_FAN or SYS_FAN).
  • PWM Signal Synchronization – All connected fans follow the same PWM signal, allowing unified speed control via motherboard software (AI Suite, EasyTune, Fan Xpert, etc.).
  • Accurate RPM Monitoring – Only one fan connector (full 4-pin) sends RPM feedback to the motherboard to avoid signal conflicts.
  • Universal Compatibility – Works with both 4-pin PWM fans and 3-pin DC fans (3-pin fans will run at full speed).
  • Premium Sleeved Design – Black sleeved braiding for better durability, aesthetics, and easier cable management.
  • Stable 12V DC Power – Ensures consistent voltage delivery to all connected fans.

🔌 Connector Layout

Connector Type Purpose
1x 4-pin Female Plugs into motherboard header
1x 4-pin Male (Full) Sends RPM signal back to motherboard
3x 4-pin Male (No Tach) For fan power + PWM only (no RPM feedback)

⚠️ Note: Connect the 4-pin male with all pins to the fan you wish to use for RPM monitoring. The others are missing the tachometric (RPM) pin by design.

📐 Specifications

Specification Details
Cable Type PWM 1-to-4 Fan Splitter
Connector A 4-pin Female (Motherboard side)
Connector B 1x 4-pin Male (with tach signal)
Connector C 3x 4-pin Male (no tach pin)
Compatibility 3-pin and 4-pin fans
Power 12V DC
Length 10 inches (approx. 26.9 cm)
Color Black Sleeved
Use Case CPU cooler, case fans, fan hubs

🧠 Smart Design

  • Prevents RPM signal interference that can cause unstable readings.

  • Ideal for PWM-capable motherboard headers (check your board’s specs to confirm PWM support).

  • Works great for compact builds where limited headers are a constraint.
