PCIe 3.0 x4 to M.2 NGFF NVMe SSD Adapter Card, High-Speed 32Gbps Transfer, Wide Compatibility, Low/Full Profile Brackets, No Driver Required
6 $
Categories: COMPUTER PARTS, PCI-PCIE CARDS
🚀 Expert Features
- Boosts Storage Flexibility: Instantly adds an M.2 NGFF PCIe SSD slot to desktops without onboard M.2 support.
- Ultra-Fast Data Transfer: Supports PCIe 3.0 x4 interface with blazing speeds up to 32Gbps for faster boots, gaming, and transfers.
- Wide Compatibility: Works with M.2 M-Key NVMe SSDs in 2242, 2260, and 2280 formats; also compatible with PCIe 2.0 (at reduced speeds).
- Tool-Free DIY Installation: Plug-and-play setup with no drivers required for most modern Windows and Linux systems.

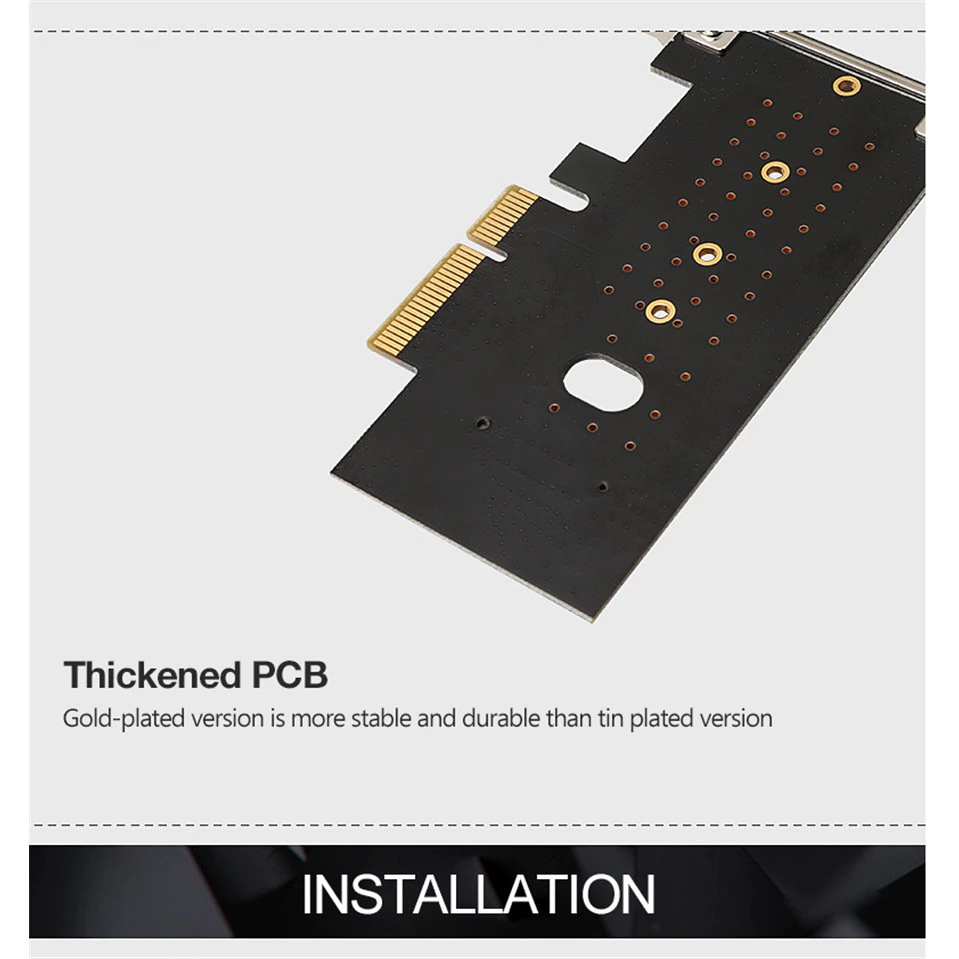

- Heat-Efficient Design: Vented, immersion gold PCB with enhanced thermal dissipation and dual-sided SSD module support.
- Flexible Fit: Comes with both full-profile and low-profile brackets to fit a range of PC cases.
- Solid Build Quality: Premium PCB ensures stable connection and reliable data transmission.
- System-Friendly: Supports native drivers for Windows 10/8, Windows Server 2012 R2, Linux (Ubuntu, Fedora, SUSE), and more.
- Smart Power Delivery: Draws power directly from the PCIe slot (3.3V) — no external power needed.





🧠Expert Specs
| Specification | Details |
|---|---|

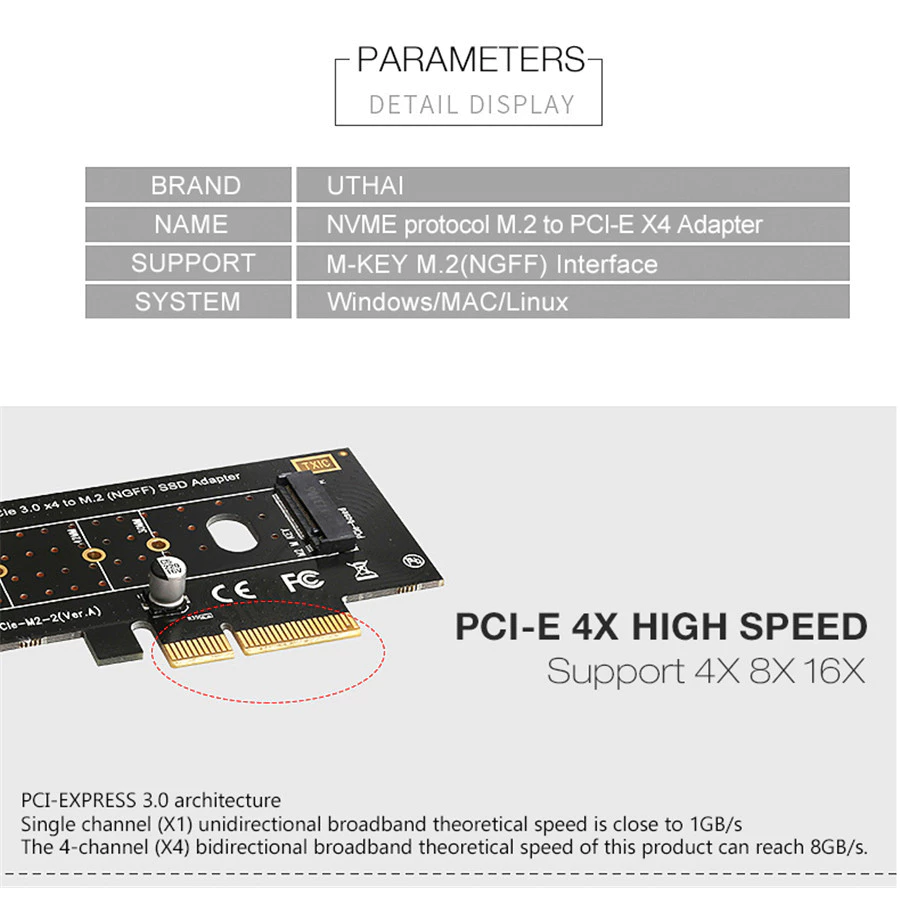

| Interface | PCI Express 3.0 x4 (also backward compatible with PCIe 2.0) |
| Supported SSD Type | M.2 NGFF (M-Key) PCIe NVMe SSDs only (2242 / 2260 / 2280) |
| Max Transfer Speed | Up to 32Gbps (with PCIe 3.0 x4 slot) |

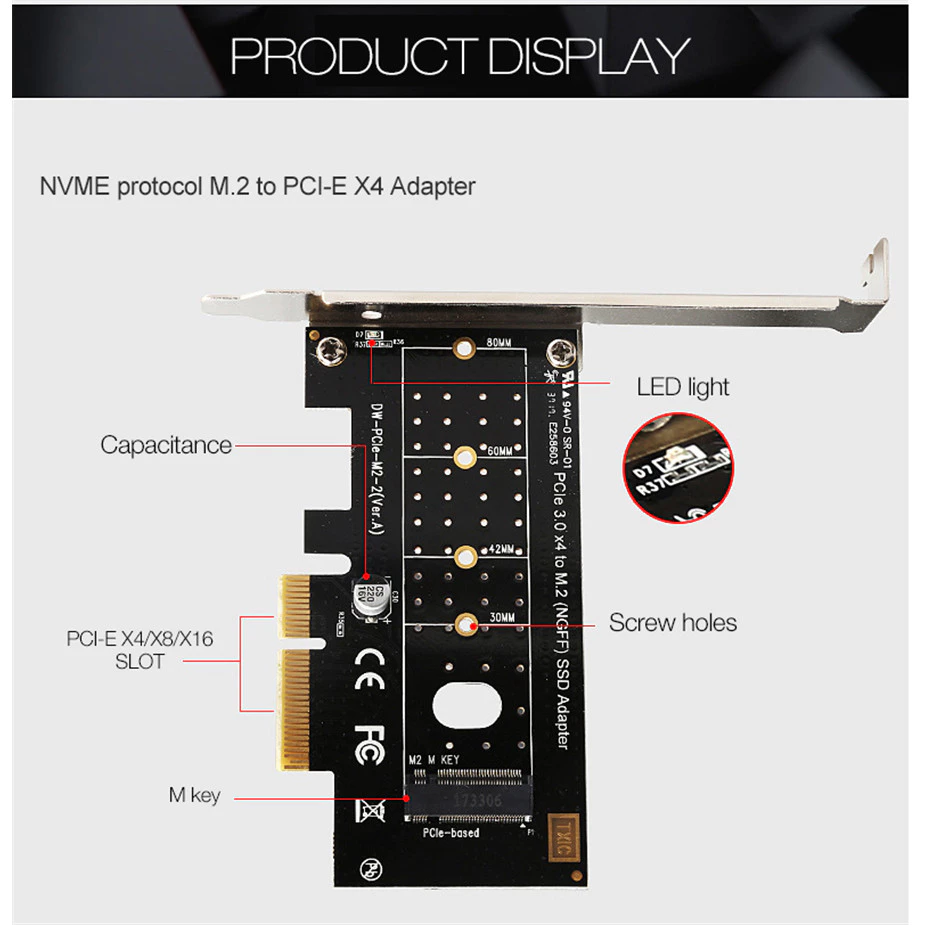

| Connector Type | 1x M-Key 2280-D5-M M.2 Socket |
| Form Factor Support | 2242 / 2260 / 2280 SSD sizes |
| Bracket Type | Includes Full Profile & Low Profile Brackets |
| Driver Requirement | No drivers needed for most OS; NVMe driver required for Win7/Server 2008 R2 |
| OS Compatibility | Windows 10/8, Linux Distros, Windows Server 2012 R2 |
| Power Supply | 3.3V via PCIe Bus |
| LED Indicator | Non |
| Thermal Management | Vented immersion-gold PCB design |
| Mounting Flexibility | Movable standoff supports 42mm / 60mm / 80mm M.2 lengths |
| Temperature Range | Industrial-grade: -40°C to 85°C |
| Note (Incompatibility) | Not compatible with B-Key, B+M-Key SATA SSDs, or PCIe-AHCI SSDs |
| Required Slot | PCIe x4 / x8 / x16 (PCIe 3.0 recommended for full speed) |
