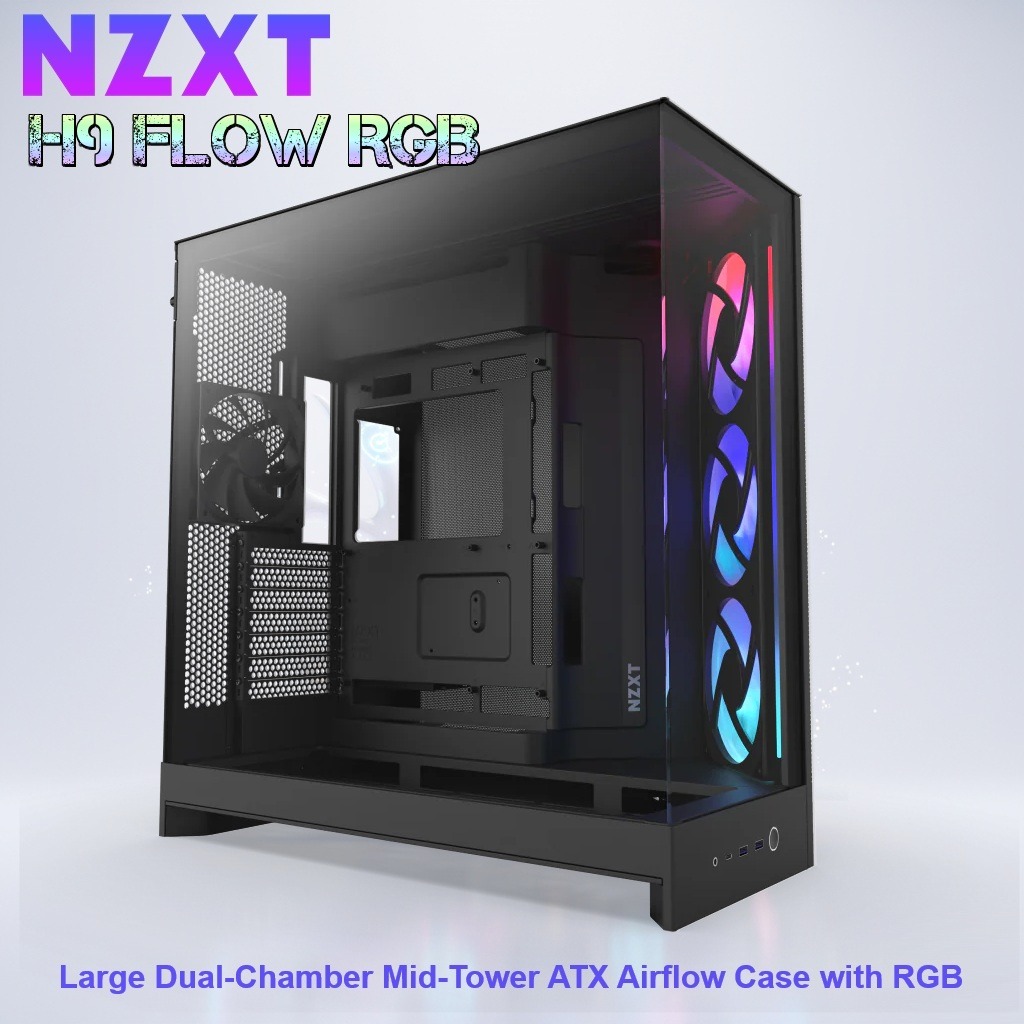

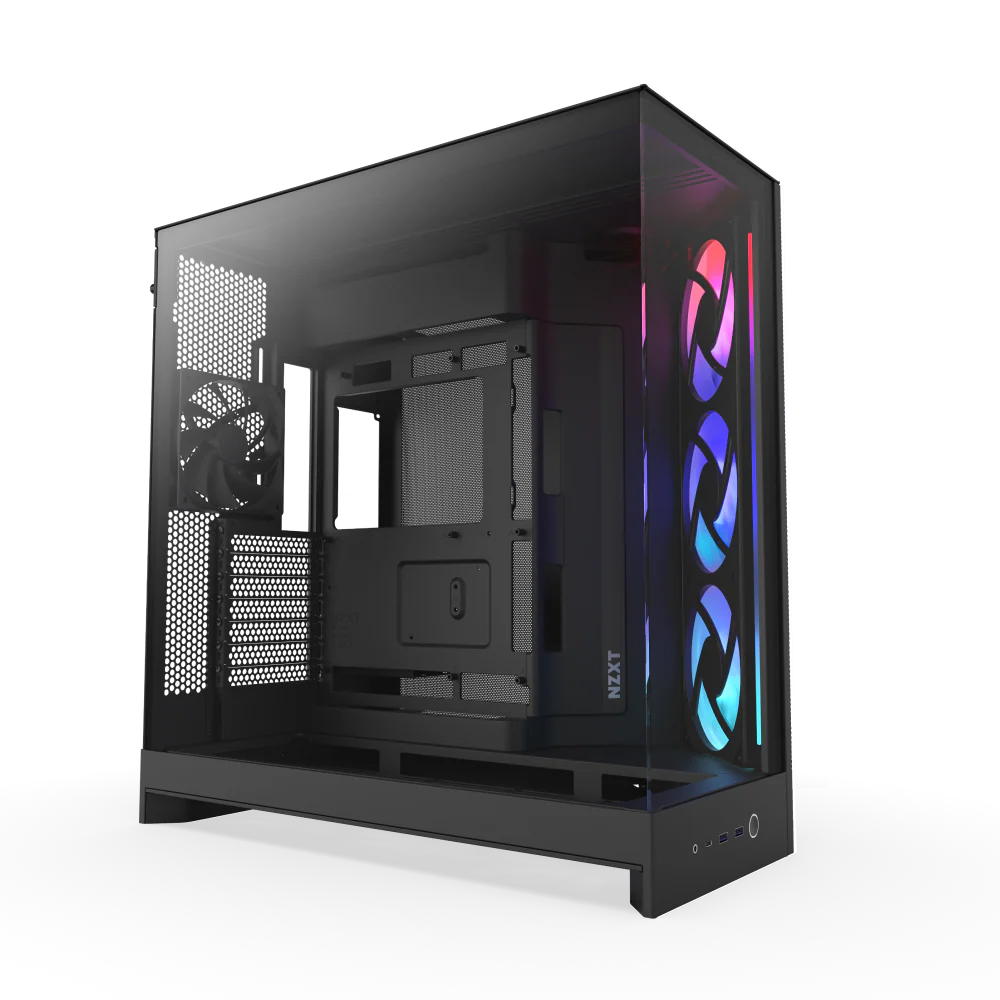

NZXT H9 Flow RGB Large Dual-Chamber Mid-Tower ATX Airflow BLACK Case With Mesh Panels, 10-Fan Support, 420mm Radiator Space, 435mm GPU Clearance, And Back-Connect Ready

NZXT H9 Flow RGB Large Dual-Chamber Mid-Tower ATX Airflow BLACK Case With Mesh Panels, 10-Fan Support, 420mm Radiator Space, 435mm GPU Clearance, And Back-Connect Ready

217 $

Quantity
Categories: ,

⚙️ Expert Features

  • Dual-Chamber Design For Smarter Cooling: Separates the heat from your GPU and CPU away from the PSU and drives — like giving your components their own apartments.
  • Airflow Wizardry: Mesh top and side panels + angled front-right fans = airflow so smooth your GPU will practically purr.
  • RGB Fan Ready: Includes one mighty F420 RGB Core fan and one stealthy F120Q (CV) fan, both pre-installed to keep things breezy right out of the box.
  • 10-Fan Maximum Capacity: You can literally create a wind tunnel — nine 140mm fans across top, side, and bottom plus one 120mm in the rear.
  • Panoramic Tempered Glass View: Wraparound glass lets you flaunt your components like a sci-fi museum exhibit.
  • 420mm Radiator Support: Accommodates up to 420mm radiators on both the top and front-right for elite cooling flexibility.
  • GPU Clearance Up To 435mm: Bring on those chunky RTX 50-Series cards — this beast can handle them with style.
  • Cable Management Nirvana: Spacious channels, built-in Velcro straps, and tie-down points make cable chaos a thing of the past.
  • Back-Connect Ready: Future-proofed for ASUS BTF and MSI Project Zero motherboards — enjoy a build so clean, it looks photoshopped.
  • Premium Build Quality: Cold-rolled SPCC steel frame, tempered glass, and NZXT’s trademark minimalist-meets-mecha design.

🔬 Expert Specs

Category Specification
Model NZXT H9 Flow RGB
Case Type Mid-Tower Dual-Chamber ATX
Color BLACK
Material SPCC Steel, Tempered Glass

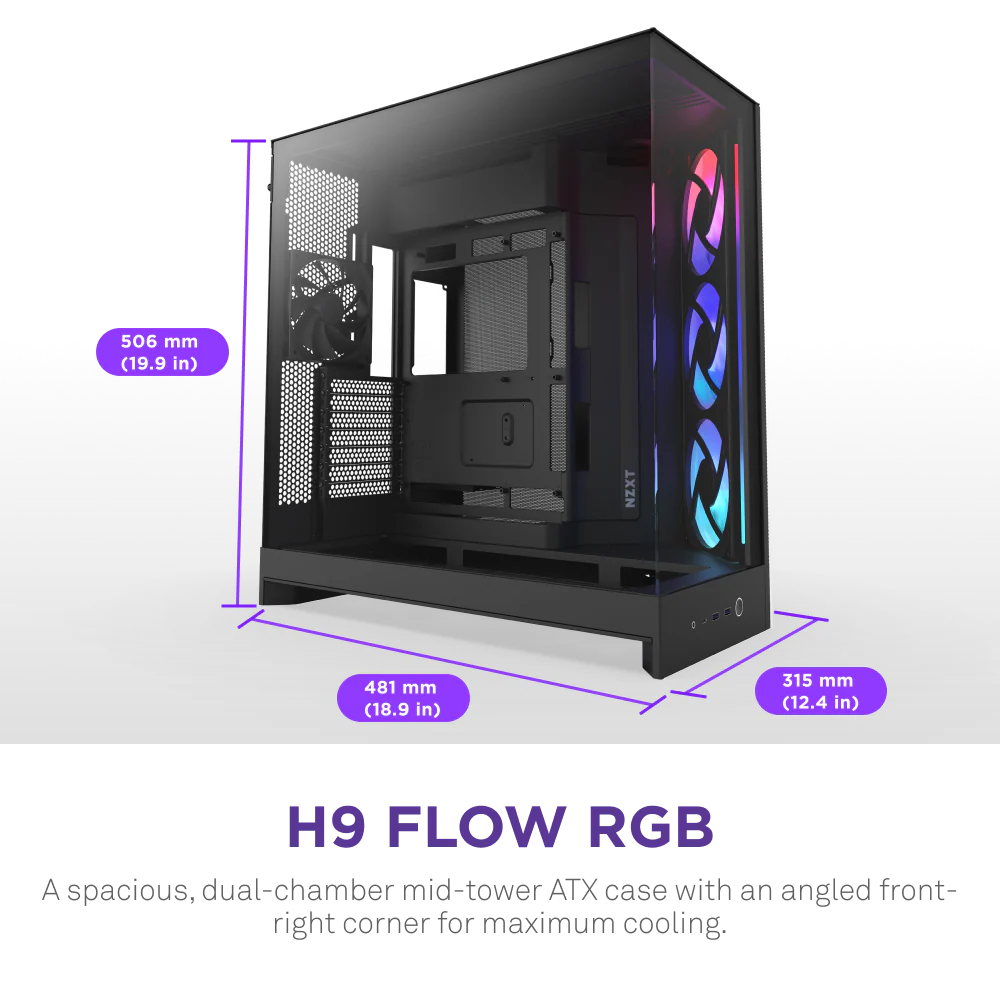

Dimensions (H × W × D) 506 × 315 × 481 mm
Weight 12.6 kg (27.78 lb)
Volume 76.7 Liters
Motherboard Support ATX, Micro-ATX, Mini-ITX
Front I/O Ports 2 × USB 3.2 Type-A, 1 × USB 3.2 Gen2x2 Type-C, 1 × Headset Jack
Expansion Slots 7 Standard, 0 Vertical
Drive Bays (2.5″) 4 + 2
Drive Bays (3.5″) 2

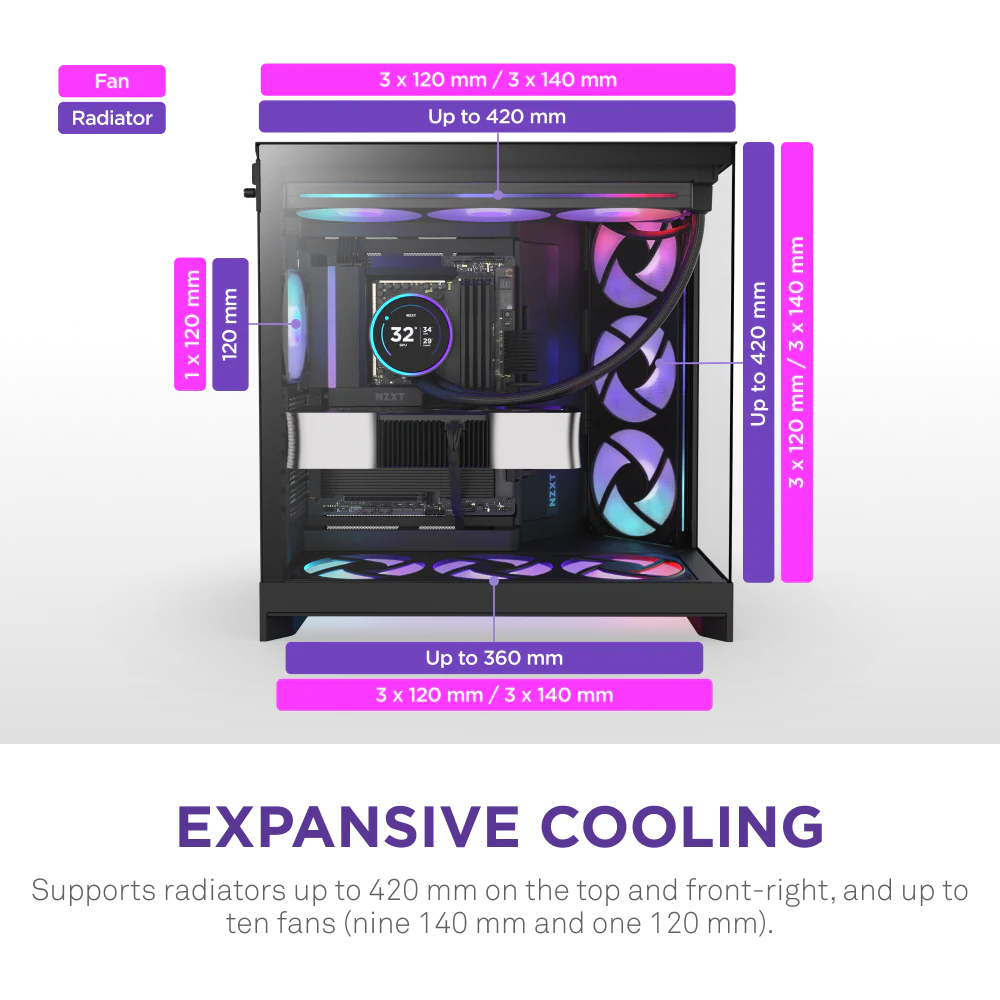

Fan Support (Front-Right) 3 × 120mm / 3 × 140mm (1 × F420 RGB Core Included)
Fan Support (Top) 3 × 120mm / 3 × 140mm
Fan Support (Bottom) 3 × 120mm / 3 × 140mm
Fan Support (Rear) 1 × 120mm (1 × F120Q (CV) Included)
Radiator Support (Front-Right) Up To 420 mm
Radiator Support (Top) Up To 420 mm
Radiator Support (Bottom) Up To 360 mm
Radiator Support (Rear) Up To 120 mm
GPU Clearance Up To 435 mm
CPU Cooler Clearance Up To 165 mm
PSU Clearance Up To 200 mm
Airflow Design Perforated Steel Mesh With Angled Intake
Fan Model (Front) F420 RGB Core
Fan Speed (F420 RGB Core) 2,000 ± 200 RPM
Fan Airflow (F420 RGB Core) 98.61 CFM
Fan Static Pressure (F420 RGB Core) 3.2 mmH₂O
Fan Noise (F420 RGB Core) 34.5 dBA
Fan Connector (F420 RGB Core) 8-pin With Splitter
Fan Model (Rear) F120Q (CV)
Fan Speed (F120Q (CV)) 1,350 ± 150 RPM
Fan Airflow (F120Q (CV)) 60.2 CFM
Fan Static Pressure (F120Q (CV)) 1.05 mmH₂O
Fan Noise (F120Q (CV)) 24.1 dBA
Fan Connector (F120Q (CV)) 3-pin
Compatibility ASUS BTF, MSI Project Zero Back-Connect Motherboards
Usage Scenarios Gaming, Workstations, Streaming, RGB Showcases
