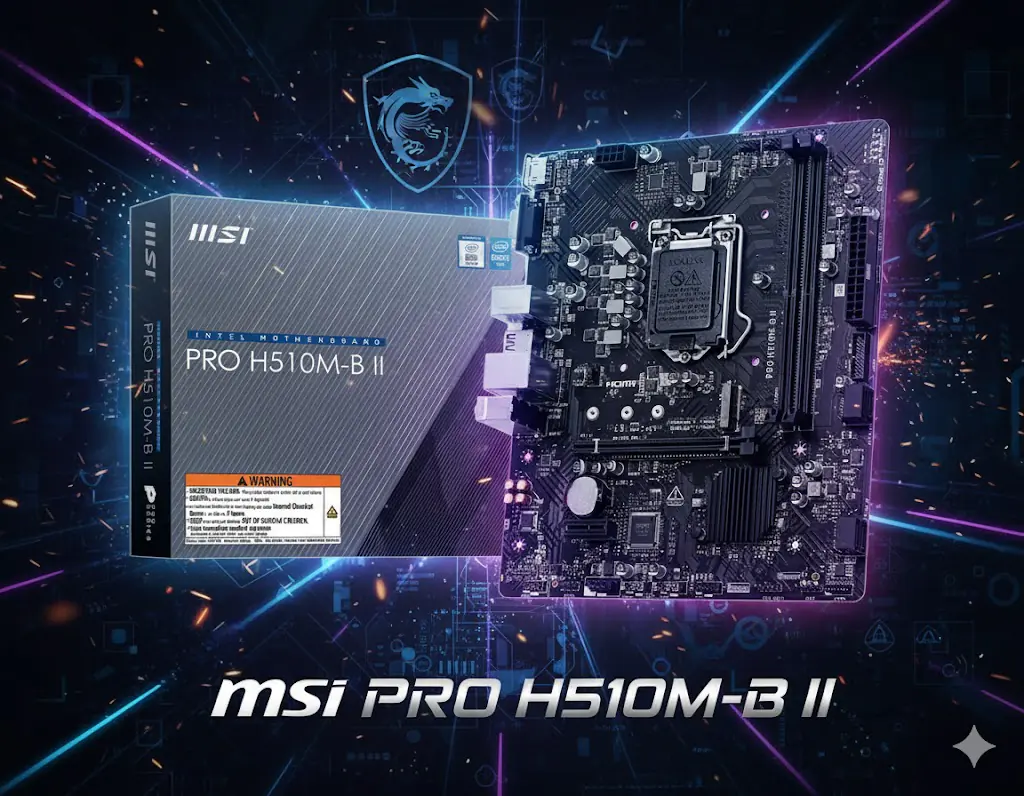

MSI PRO H510M-B II mATX Motherboard – LGA 1200, 10th Gen Intel Core/Pentium/Celeron Support, DDR4 2933MHz, M.2 & SATA Storage, HDMI/VGA, Audio Boost & Steel Armor

82 $

Categories: COMPUTER PARTS, Motherboards

Expert Features

10th Gen Intel CPU Support: Compatible with Intel® Core™, Pentium® Gold, and Celeron® processors for LGA 1200 socket, enabling robust performance for office or gaming builds.
Advanced Memory Boost: Supports DDR4 memory up to 2933MHz, dual-channel configuration, non-ECC unbuffered modules, and Intel® XMP profiles for stable and optimized performance.
Core Boost Technology: Premium layout and digital power design enhance CPU core performance, allowing more cores to run smoothly and efficiently.
High-Definition Audio Boost: Realtek® ALC897 Codec with 7.1-Channel audio delivers studio-grade sound quality for immersive multimedia and gaming experiences.
Steel Armor Protection: Reinforced PCI-E slot to protect VGA cards from bending and EMI, ensuring long-term stability and performance under heavy graphics loads.
Flexible Storage Options: Supports 1x M.2 PCIe 3.0 x4 / SATA mode and 4x SATA 6Gb/s ports, providing versatility for SSDs and HDDs in various configurations.
Comprehensive Connectivity: Includes HDMI 1.4 up to 4K 30Hz, VGA up to 2048×1536, USB 5Gbps Type-A ports, USB 2.0, and Gigabit LAN for full system connectivity.
Tri-Fan & Thermal Support: Multiple fan headers for CPU and system fans ensure optimal cooling and system stability during heavy workloads.
EZ Debug LED: Quickly troubleshoot motherboard issues with 4 easy-to-read debug LEDs, simplifying setup and maintenance.
Windows OS Ready: Fully compatible with Windows® 11 64-bit and Windows® 10 64-bit for modern computing needs.

Expert Specs

Specification	Details
Brand	MSI
Model	PRO H510M-B II
Form Factor	mATX (202 × 236 mm)
CPU Socket	LGA 1200
Supported CPUs	10th Gen Intel Core™, Pentium® Gold, Celeron®
Chipset	Intel H510
Memory Slots	2x DDR4
Maximum Memory	64GB
Memory Support	2133/2400/2666/2933 MHz, Dual-Channel, Non-ECC, XMP
Expansion Slots	1x PCI-E x16, 1x PCI-E x1
M.2 Slot	1x M.2 (PCIe 3.0 x4 / SATA mode, 2280/2260/2242)
SATA Ports	4x SATA 6Gb/s
USB Ports	Rear: 4x USB 2.0, 2x USB 5Gbps Type-A; Front: 4x USB 2.0, 2x USB 5Gbps Type-A
LAN	Realtek® 8111H Gigabit
Audio	Realtek® ALC897, 7.1-Channel HD Audio
Internal I/O	ATX_PWR, CPU_PWR, CPU Fan, 2x System Fan, Front Panel, Front Audio, COM, RGB LED, TPM Header, USB Ports
Back Panel Ports	HDMI, VGA, Keyboard/Mouse, USB 5Gbps Type-A, USB 2.0, LAN, Audio Connectors
LED Features	4x EZ Debug LED
Operating System	Windows® 11 64-bit, Windows® 10 64-bit
Special Features	Core Boost, Memory Boost, Audio Boost, Steel Armor
Color	Black
Box Content	MSI PRO H510M-B II Motherboard
