MSI PRO B760M-A WIFI DDR4 II mATX Motherboard LGA 1700, dual-channel DDR4 5333+ MHz , PCIe 4.0, Dual M.2 Gen4, 2.5G LAN, Wi-Fi 6E, HDMI™/DP, 7.1 HD Audio, Support Intel® Core™ 14th/ 13th/ 12th Gen Processors

MSI PRO B760M-A WIFI DDR4 II mATX Motherboard LGA 1700, dual-channel DDR4 5333+ MHz , PCIe 4.0, Dual M.2 Gen4, 2.5G LAN, Wi-Fi 6E, HDMI™/DP, 7.1 HD Audio, Support Intel® Core™ 14th/ 13th/ 12th Gen Processors | 1 YEAR WARRANTY

149 $

CPU Compatibility – Supports Intel® Core™ 14th / 13th / 12th Gen, Pentium® Gold, and Celeron® Processors (LGA 1700).
Memory Boost – 4x DDR4 DIMMs, dual-channel up to DDR4-5333+ MHz (OC), max capacity 128GB, Intel® XMP support.
Graphics & Display – HDMI™ 2.1 and DisplayPort 1.4 outputs, supporting 4K @ 60Hz (processor graphics required).
Expansion & Storage – 2x PCIe 4.0 x16 slots, 1x PCIe 3.0 x1, 2x M.2 Gen4 x4 slots with Shield FROZR, 4x SATA 6Gbps ports, RAID 0/1/5/10.
Networking Power – Realtek® 2.5G LAN + Intel® Wi-Fi 6E with Bluetooth® 5.3.
Thermal Solutions – Extended heatsink, 7W/mK MOSFET thermal pad, Frozr AI cooling, EZ Debug LED.
Premium Build – 6-layer PCB with 2oz thickened copper for durability and stable overclocking.
High-Quality Audio – Realtek® ALC897 codec, 7.1-channel HD audio with Audio Boost.
Comprehensive Connectivity – USB 3.2 Gen2 (10Gbps), USB 3.2 Gen1 (5Gbps), USB 2.0, RGB headers, and rich I/O options.

Category	Details
Chipset	Intel® B760
CPU Support	Intel® Core™ 14th/13th/12th Gen, Pentium® Gold, Celeron®
Socket	LGA 1700
Memory	4x DDR4 DIMMs, up to 128GB, 5333+ MHz (OC), Dual-Channel, XMP, Non-ECC, Unbuffered
Graphics Output	2x HDMI™ 2.1 (4K@60Hz), 2x DisplayPort 1.4 (4K@60Hz) CPU with iGPU required
Expansion Slots	2x PCIe 4.0 x16, 1x PCIe 3.0 x1
Storage	2x M.2 PCIe 4.0 x4 (2280/2260/2242, Shield FROZR), 4x SATA 6Gbps, RAID 0/1/5/10
Audio	Realtek® ALC897, 7.1-Channel HD Audio
Networking	Realtek® RTL8125BG 2.5G LAN, Intel® Wi-Fi 6E, Bluetooth® 5.3

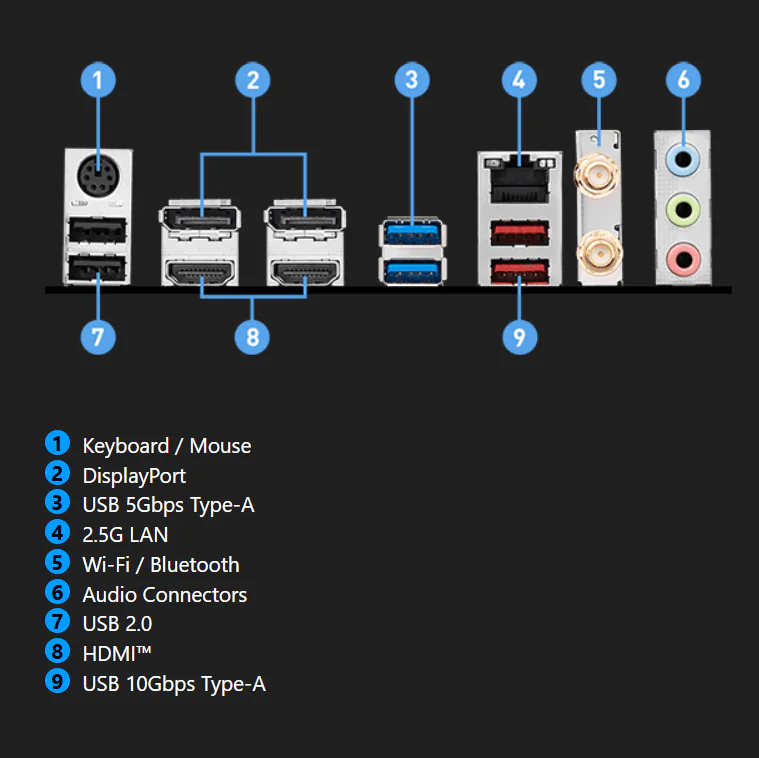

USB Ports	Rear: 2x USB 10Gbps Type-A, 2x USB 5Gbps Type-A, 2x USB 2.0 Front: 4x USB 5Gbps Type-A, 1x USB 5Gbps Type-C, 4x USB 2.0
Internal I/O	ATX_PWR, 2x CPU_PWR, CPU Fan, Pump Fan, 2x System Fan, RGB headers, TPM, JCOM, JAUD
Cooling Features	Extended Heatsink, MOSFET Thermal Pad (7W/mK), Frozr AI Cooling, EZ Debug LED
PCB	6-layer, 2oz thickened copper, mATX (243.84mm x 243.84mm)
Operating System	Windows® 11 64-bit, Windows® 10 64-bit
Box Contents	Motherboard, Wi-Fi Antennas, SATA cables, User Manual, I/O Shield, Driver Utilities
