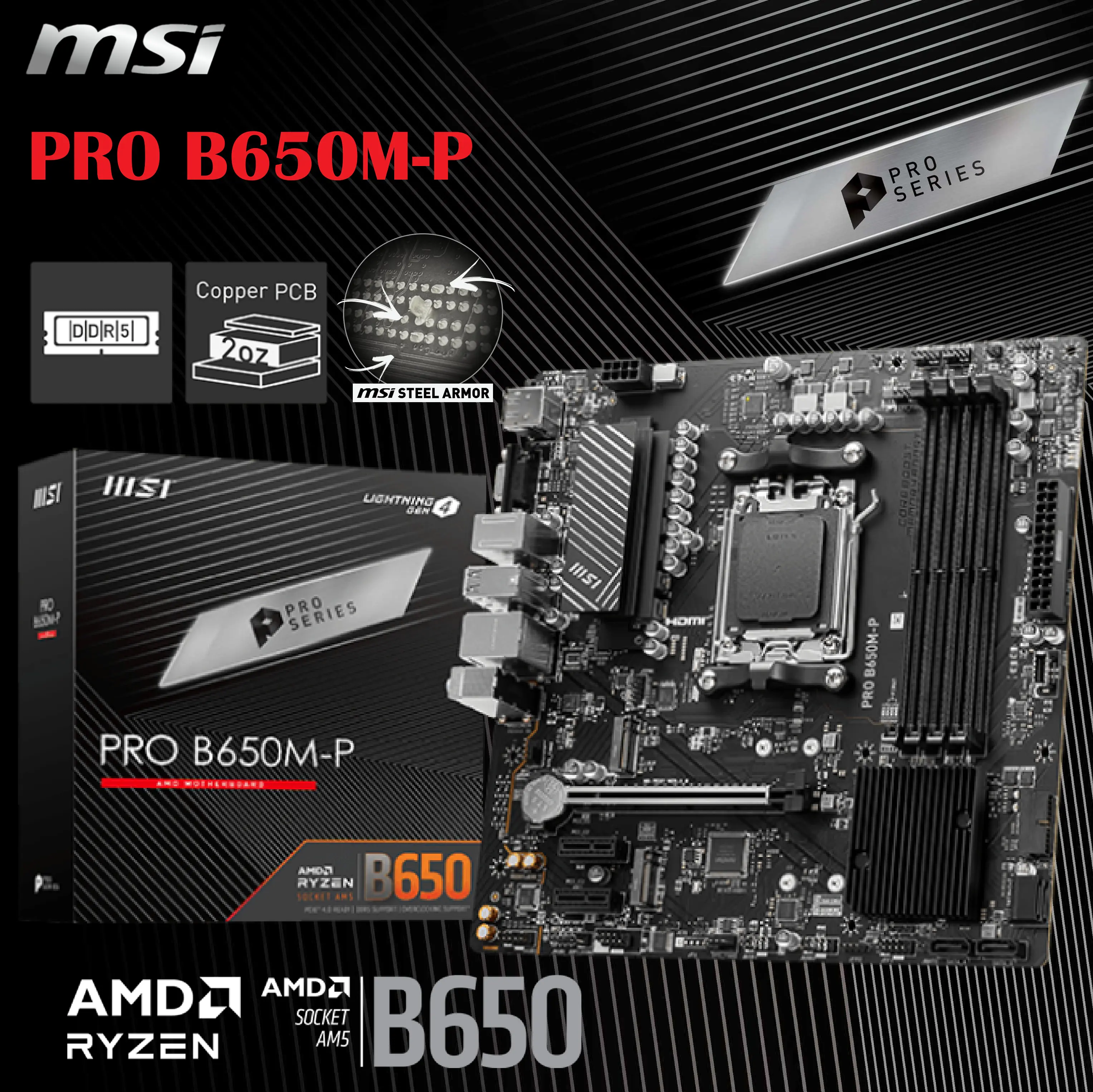

MSI PRO B650M-P ProSeries Motherboard (AMD Ryzen 9000/8000/7000 Series Processors, AM5, DDR5, PCIe 4.0, M.2, SATA 6Gb/s, USB 3.2 Gen 2, HDMI/DP, 2.5Gbps LAN, mATX)

MSI PRO B650M-P ProSeries Motherboard (AMD Ryzen 9000/8000/7000 Series Processors, AM5, DDR5, PCIe 4.0, M.2, SATA 6Gb/s, USB 3.2 Gen 2, HDMI/DP, 2.5Gbps LAN, mATX)

127 $

Quantity
Categories: ,

Expert Features

  • Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors
  • Supports DDR5 Memory, Dual Channel DDR5 7200+MHz (OC)
  • Core Boost : With premium layout and digital power design to support more cores and provide better performance
  • Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility
  • High Quality PCB: 6-layer PCB made by 2oz thickened copper
  • Lightning Fast Game experience: PCIe 4.0 slots, Lightning Gen 4 x4 M.2
  • 2.5G LAN: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
  • AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience
  • Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength

EXPERT SPECIFICATION

OPERATING SYSTEM Support for Windows® 11 64-bit, Windows® 10 64-bit
Manufacturer Number PRO B650M-P
Product Condition New
CPU Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors

  • AMD Ryzen™ 9000- BIOS update may be required

Socket AM5
Chipset AMD® B650 Chipset
CPU Socket AM5
Form Factor M-ATX
Memory 4 x DDR5, Maximum Memory Capacity 128GB

  • Memory Support DDR5 6000+(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz

Max. overclocking frequency:

  • 1DPC 1R Max speed up to 6000+ MHz
  • 1DPC 2R Max speed up to 6000+ MHz
  • 2DPC 1R Max speed up to 6000+ MHz
  • 2DPC 2R Max speed up to 5400+ MHz

Support Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports AMD EXPO™
LAN 1 x Realtek® 8125BG 2.5G LAN
Wireless LAN –
Bluetooth –
Audio Realtek® ALC897 Codec

  • 7.1-Channel High Definition Audio
MULTI-GPU –
STORAGE 2 x M.2 PCIe 4.0 x4 slots
4 x SATA 6Gb/s ports
Onboard Graphics 1 x HDMI™
1 x DisplayPort
1x VGA
Support HDMITM 2.1, maximum resolution of 4K 60Hz*
Supports DP1.4, maximum resolution of 4K 60Hz*
Support VGA, maximum resolution of 1920×1200 60Hz*
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
RAID Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
I/O (Rear) DisplayPort
VGA
Keyboard / Mouse
USB 2.0
2.5G LAN
Audio connectors
Flash BIOS Button
HDMI™
USB 2.0
USB 3.2 Gen 1 5Gbps (Type-A)
USB 3.2 Gen 2 10Gbps (Type-A)
Expansion Slots 1 x PCI-E x16 slot
2 x PCI-E x1 slot
PCI_E1 PCIe 4.0 supports up to x16 (From CPU)
PCI_E2 PCIe 3.0 supports up to x1 (From Chipset)
PCI_E3 PCIe 3.0 supports up to x1 (From Chipset)
USB (Front) 4 x USB 2.0
2x USB 3.2 Gen1 Type A
1x USB 3.2 Gen2 Type C
USB (Rear) 2 x USB 3.2 Gen1 Type A
2 x USB 3.2 Gen2 Type A
4 x USB 2.0
Internal Connectors 1 x Power Connector(ATX_PWR)
1 x Power Connector(CPU_PWR)
1 x CPU Fan
1 x Pump Fan
3 x System Fan
2 x Front Panel (JFP)
1 x Chassis Intrusion (JCI)
1 x Front Audio (JAUD)
1 x Com Port (JCOM)
2 x Addressable V2 RGB LED connector (JARGB_V2)
2 x RGB LED connector(JRGB)
1 x TPM pin header(Support TPM 2.0)
4 x USB 2.0 ports
2 x USB 3.2 Gen1 Type A ports
1 x USB 3.2 Gen2 Type C ports
Dimensions 9.60″ x 9.60″
