MSI MAG B860 TOMAHAWK WIFI ATX Motherboard , Wi-Fi 7, 5G LAN, Thunderbolt 4, PCIe 5.0, DDR5 9200+ OC, & EZ DIY Features , Supports LGA 1851 Intel® Core™ Ultra Processors (Series 2) | 1 YEAR WARRANTY

MSI MAG B860 TOMAHAWK WIFI ATX Motherboard , Wi-Fi 7, 5G LAN, Thunderbolt 4, PCIe 5.0, DDR5 9200+ OC, & EZ DIY Features , Supports LGA 1851 Intel® Core™ Ultra Processors (Series 2) | 1 YEAR WARRANTY

248 $

Quantity
Categories: ,

🧠 Expert Features

  • Intel Core Ultra Ready: Built to harness the full power of Intel® Core™ Ultra Processors (Series 2) on the new LGA 1851 socket, this motherboard is prepped for next-gen AI-PCs, delivering future-ready performance for gamers and creators alike.
  • DDR5 Memory Beast Mode: Supports up to 256GB Dual Channel DDR5 9200+ MT/s (OC)—with Memory Boost and XMP 3.0 profiles optimized by MSI OC Lab. Because latency is the real final boss.

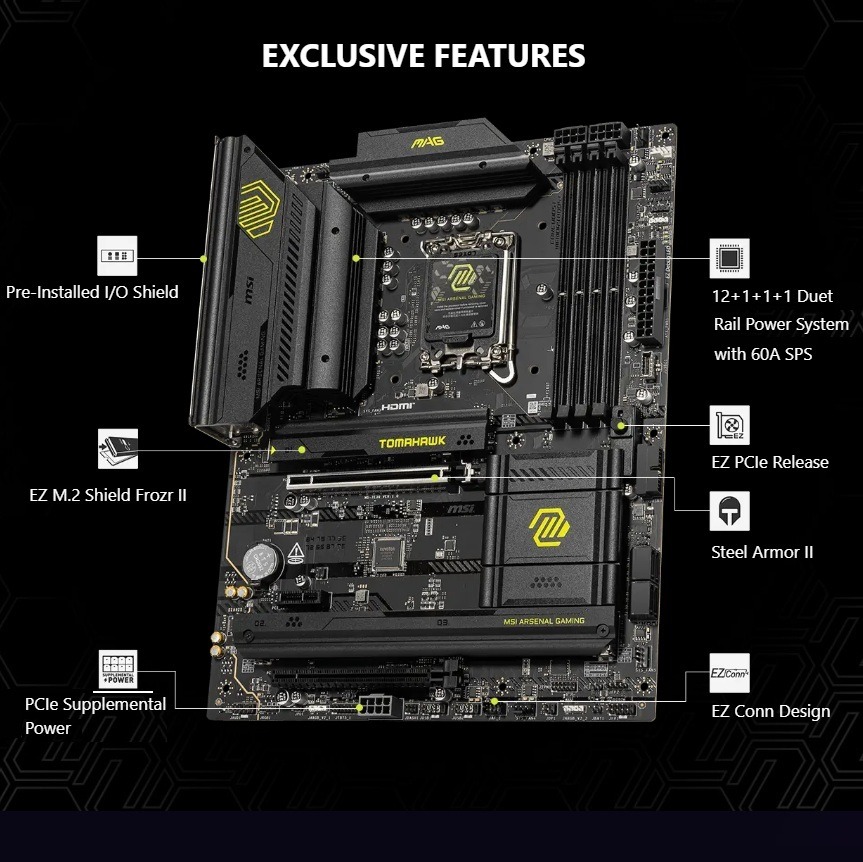

  • Ultra Power Delivery:  A 12+1+1+1 Duet Rail Power System with 60A Smart Power Stages, dual 8-pin CPU connectors, and Core Boost technology ensures your CPU runs smooth even under brutal workloads. Reinforced by a 6-layer, 2oz copper PCB, this board’s built for 24/7 gaming marathons.

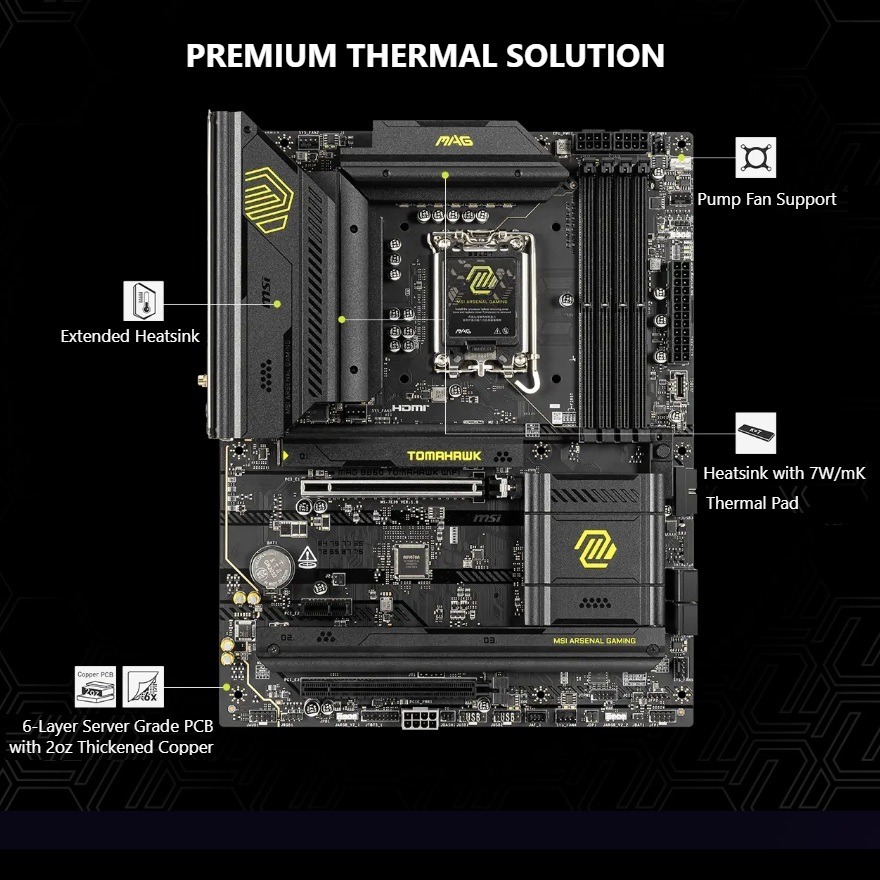

  • Frozr Guard Thermal Design: Keep cool under pressure with extended heatsinks, 7W/mK MOSFET pads, extra choke pads, and EZ M.2 Shield Frozr II. Heat management that feels like cryo-cooling.

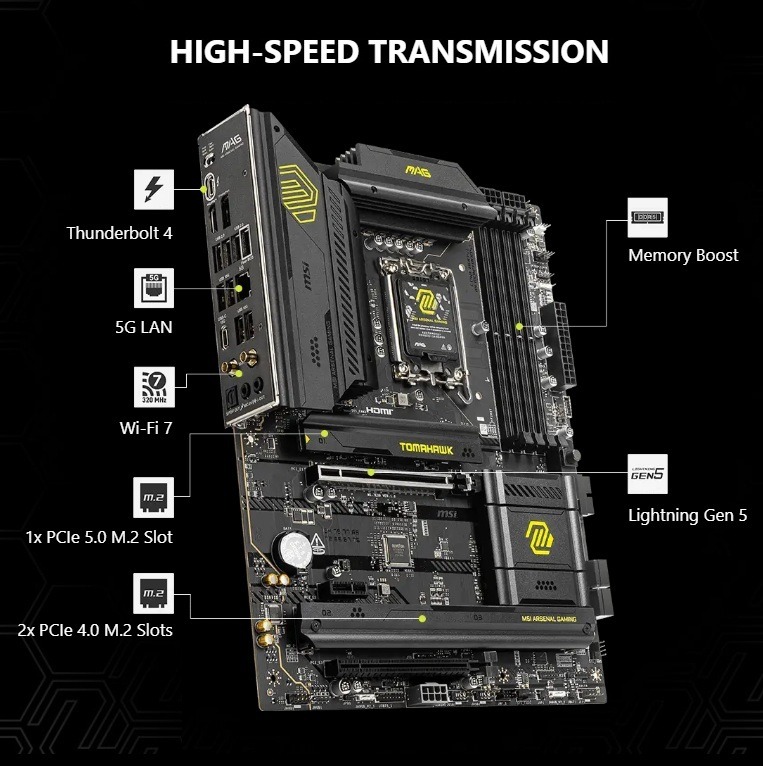

  • PCIe 5.0 + M.2 Gen5 Storage: One PCIe 5.0 x16 slot (Steel Armor II + EZ PCIe Release) and a Gen5 M.2 slot (128Gbps) deliver lightning-fast data transfer speeds, perfect for next-gen GPUs and blazing-fast NVMe SSDs.
  • Ultra Connect Suite: Featuring Intel® Killer™ Wi-Fi 7, Intel® Killer™ 5G LAN, and a Thunderbolt™ 4 port (40Gbps) with DisplayPort 2.1 support, this board is a connectivity powerhouse for pro gamers and media pros.
  • EZ DIY Ecosystem: No tools? No problem. EZ M.2 Clip II, EZ PCIe Release, EZ Antenna, and EZ Shield Frozr II make upgrades fun again—no screws, no stress, no lost sanity.
  • Audio Boost Technology: Immersive 7.1-channel HD Audio with Realtek® ALC897 codec and S/PDIF output gives you studio-grade sound for cinematic battles and crystal-clear comms.
  • Frozr Control Center: Manage fan speeds, monitor temps, and optimize airflow with MSI Center’s Cooling Wizard and Frozr AI Cooling.
  • Thunderbolt 4 Display Versatility: With HDMI™ 2.1 (8K 60Hz), DisplayPort 1.4 (4K 60Hz), and Type-C DP 2.1 (8K 60Hz) outputs, the TOMAHAWK turns your gaming setup into a visual war machine.

⚙️ Expert Specs

Category Specification
Model MSI MAG B860 TOMAHAWK WIFI
Operating System Windows® 11 64-bit
CPU Support Intel® Core™ Ultra Processors (Series 2)
Socket LGA 1851
Chipset Intel B860
Form Factor ATX (12.0″ × 9.6″)
Memory 4× DDR5 UDIMM, up to 256GB
Memory Speed (OC) 9200+ / 7200 / 6400 / 5600 MT/s (1DPC/2DPC Configurations)
JEDEC Support 6400–4800 MT/s
Memory Features Dual Channel, XMP 3.0, Non-ECC, Unbuffered, CUDIMM
Power Design 12+1+1+1 Duet Rail Power System, 60A SPS, Dual 8-pin CPU
PCB 6-layer, 2oz Thickened Copper
Cooling Frozr Guard Heatsinks, EZ M.2 Shield Frozr II, MOSFET Pads (7W/mK), Choke Pads
LAN Intel® Killer™ E5000 5G LAN
Wireless Intel® Killer™ BE1750x Wi-Fi 7 (2.4GHz/5GHz/6GHz, up to 5.8Gbps)
Bluetooth Bluetooth® 5.4, MLO, 4KQAM
Audio Realtek® ALC897 7.1-Channel HD Audio, S/PDIF Output
Storage 1× M.2 Gen5 x4 (128Gbps), 2× M.2 Gen4 x4 (64Gbps), 4× SATA 6Gbps
RAID Support RAID 0 / 1 / 5 / 10 (SATA)
Expansion Slots 2× PCIe x16, 1× PCIe x1
PCI_E1 PCIe 5.0 x16 (CPU)
PCI_E2 PCIe 4.0 x1 (Chipset)
PCI_E3 PCIe 4.0 x4 (Chipset)
Onboard Graphics 1× HDMI™ 2.1 (8K 60Hz), 1× DisplayPort 1.4 (4K 60Hz), 1× Thunderbolt™ 4 Type-C (DP 2.1, 8K 60Hz)
Thunderbolt Thunderbolt™ 4 (40Gbps, DisplayPort 2.1 UHBR20, Daisy Chain support)

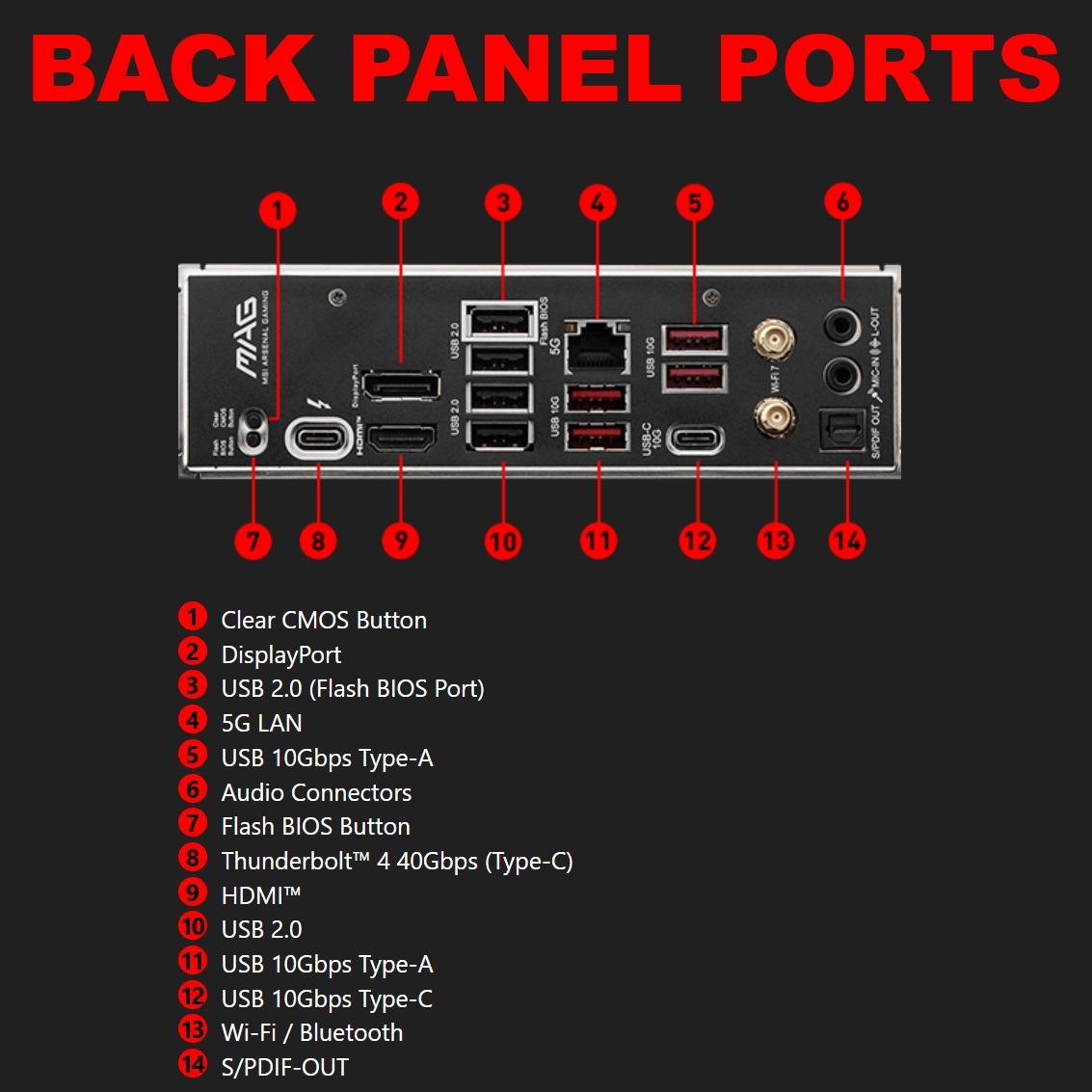

Rear I/O Ports Clear CMOS Button, Flash BIOS Button, 1× Thunderbolt 4 Type-C, 1× HDMI™, 1× DisplayPort, 4× USB 10Gbps Type-A, 1× USB 10Gbps Type-C, 4× USB 2.0, 1× 5G LAN, Wi-Fi / BT, S/PDIF, Audio Jacks
Front USB Ports 2× USB 5Gbps Type-A, 1× USB 10Gbps Type-C, 4× USB 2.0
Internal Headers Thunderbolt 5 Card, ATX_PWR, Dual CPU_PWR, PCIe_PWR 8-pin, CPU Fan, Pump/Combo Fan, 5× System Fan, 3× ARGB, 2× RGB, TPM 2.0, Audio, Front Panel, JCI, JDASH, JDASH1
RGB Control 3× Addressable Gen 2 Headers (JARGB_V2), 2× RGB Headers (JRGB)
EZ DIY Tools EZ PCIe Release, EZ M.2 Clip II, EZ Antenna, EZ Shield Frozr II
Connectivity Thunderbolt™ 4, Wi-Fi 7, Killer 5G LAN, USB 40Gbps Type-C
VESA / Mounting Standard ATX Case Compatibility
Dimensions 12.00″ × 9.60″
Audio Software Audio Boost, Nahimic Support
