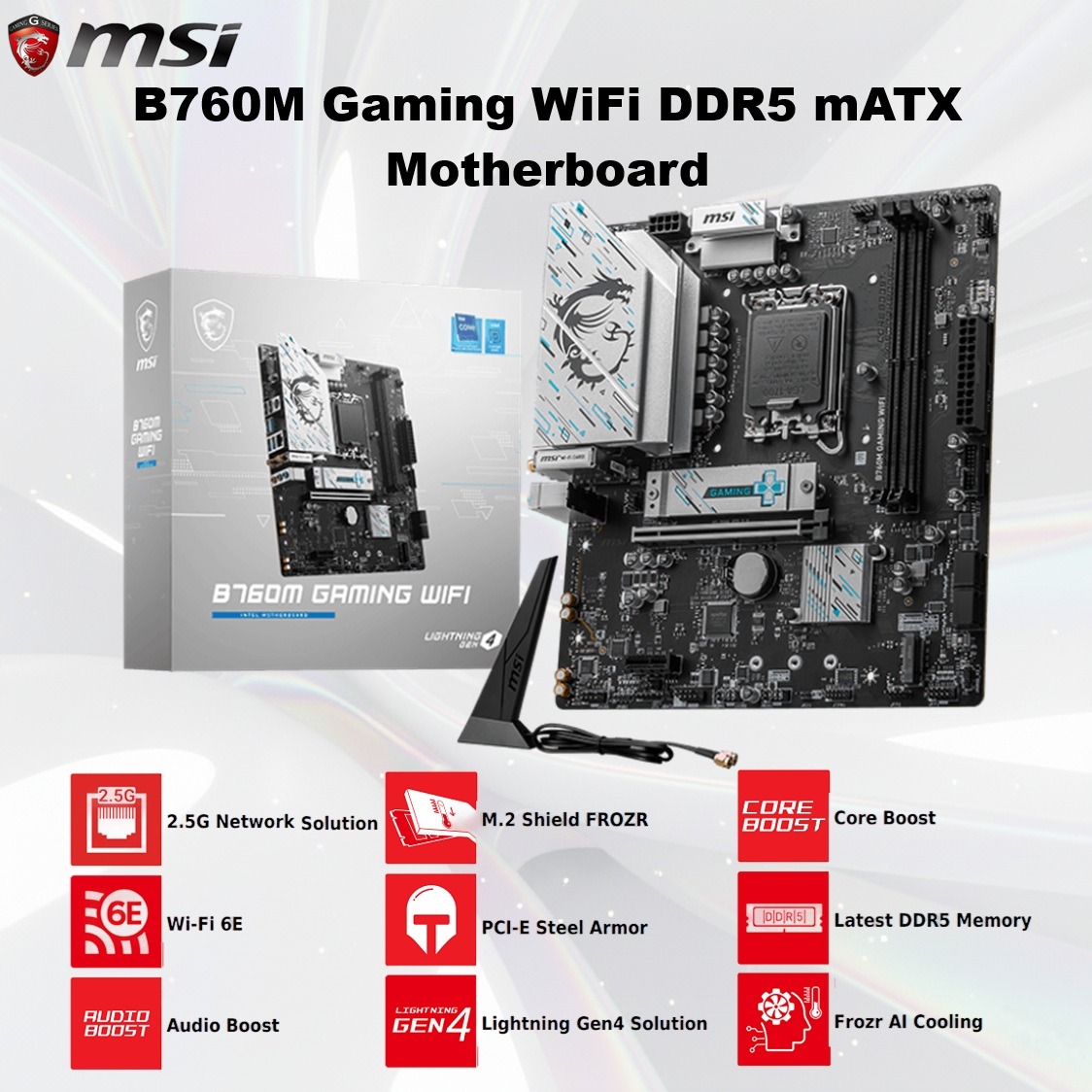

MSI B760M Gaming WiFi DDR5 mATX Motherboard – LGA1700 For Intel 14th/13th/12th Gen – Wi-Fi 6E -2.5G LAN – PCIe 4.0 – Dual Channel DDR5 8000MHz OC – M.2 Shield Frozr — Steel Armor – ALC897 Audio

MSI B760M Gaming WiFi DDR5 mATX Motherboard – LGA1700 For Intel 14th/13th/12th Gen – Wi-Fi 6E -2.5G LAN – PCIe 4.0 – Dual Channel DDR5 8000MHz OC – M.2 Shield Frozr — Steel Armor – ALC897 Audio | 1 YEAR WARRANTY

145 $

LGA 1700 Powerhouse: Supports Intel® Core™ 14th, 13th, and 12th Gen CPUs — built to unleash next-gen performance right out of the box.
DDR5 Turbocharged Memory: Dual-channel DDR5 up to 8000+ MHz (OC) with MSI Memory Boost for ultra-clean data signals and blazing multitasking power.

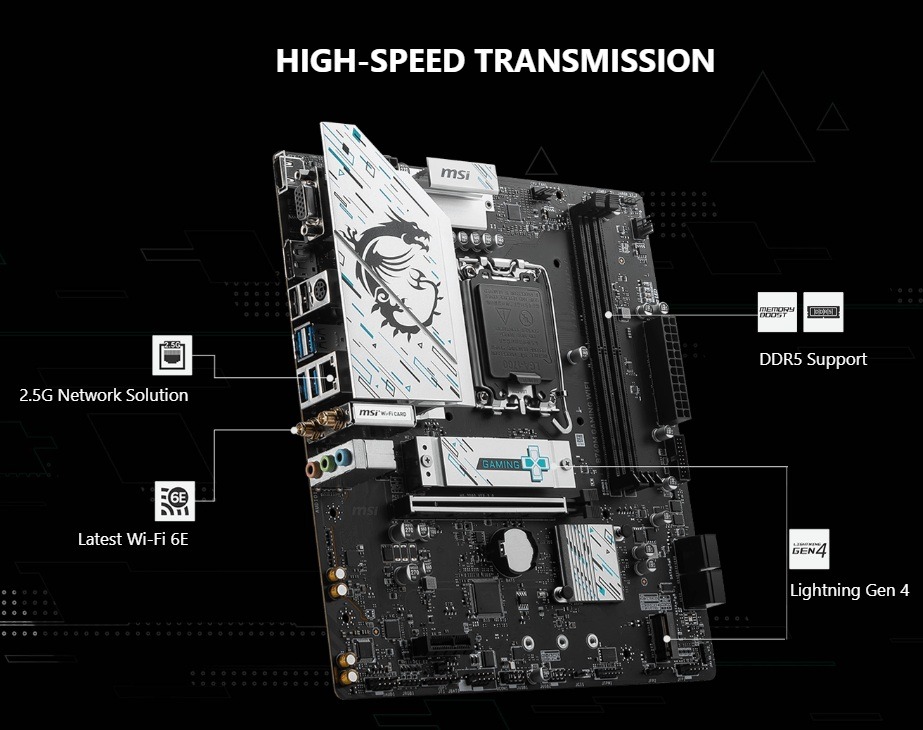

Wi-Fi 6E + 2.5G LAN Combo: Low latency, high speed, and gamer-grade stability with the latest Intel® Wi-Fi 6E and Realtek® RTL8125B 2.5G LAN chipset.
Lightning Gen 4 PCIe + Steel Armor: Double bandwidth up to 64GB/s with reinforced PCIe slots — ready to handle monster GPUs without flexing.

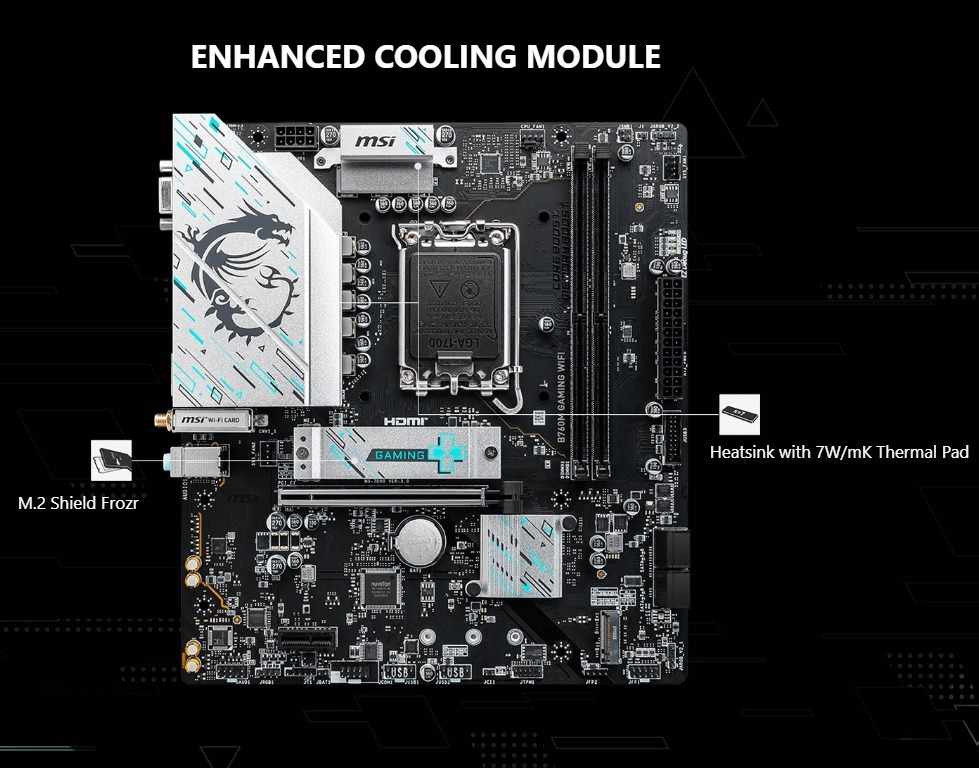

M.2 Shield Frozr Cooling: Keeps NVMe SSDs chill under pressure for sustained top-tier performance during long gaming or rendering sessions.
7W/mK Thermal Pads & VRM Heatsink: Efficient thermal engineering to maintain system stability even when all cores go beast mode.

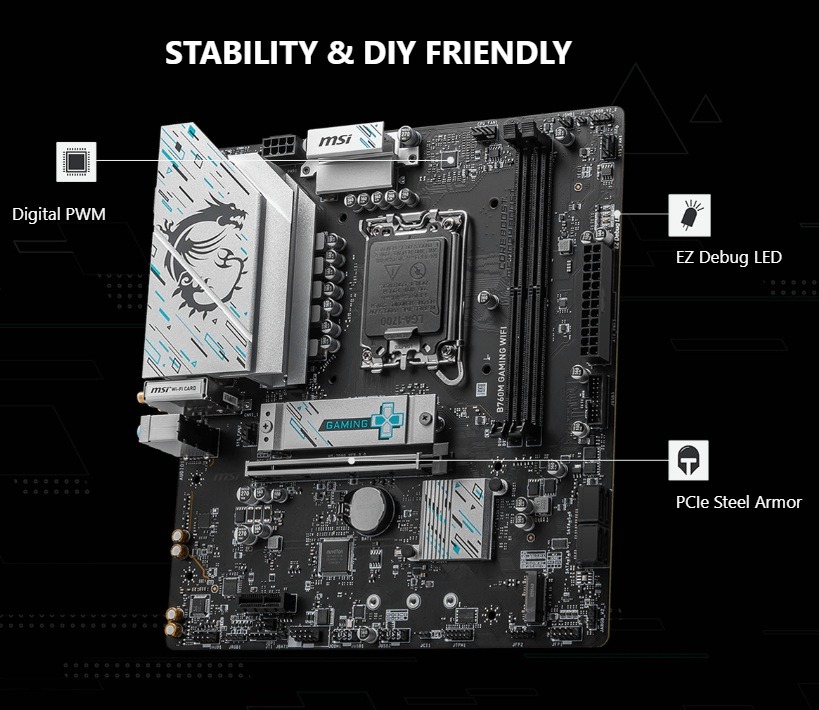

DIY-Friendly Wizardry: EZ M.2 Clip, solid pin connectors, and automatic driver utility installer for the no-fuss builders and upgraders.
Audio Boost with Realtek® ALC897 Codec: Studio-grade 7.1-channel HD audio that makes your game worlds sound rich, crisp, and immersive.
Mystic Light RGB & Extensions: Expand your light show with customizable RGB headers — no separate controller needed.
Fortified Protection: Anti-corrosive stainless steel I/O shield, transient voltage suppressors (TVS), and over-current protection for long-term durability.

Category	Specification
Chipset	Intel® B760
CPU Support	Intel® Core™ 14th / 13th / 12th Gen, Pentium® Gold & Celeron® (LGA1700)
Form Factor	mATX (220mm x 243.84mm)
Memory	2× DDR5 DIMMs, Dual Channel, Up to 128GB
Memory Speed	DDR5 8000+(OC) / 7800 / 7600 / 7400 / 7200 / 7000 / 6800 / 6600 / 6400 / 6200 / 6000 / 5800 / 5600 / 5400 / 5200 / 5000 / 4800MHz
Memory Features	Intel® XMP 3.0, Dual-Controller Dual-Channel, Non-ECC Unbuffered
Graphics Outputs	1× HDMI™ 2.1 (4K@60Hz), 1× DisplayPort 1.4 (4K@60Hz), 1× VGA
Expansion Slots	1× PCIe 4.0 x16, 1× PCIe 4.0 x1
Audio	Realtek® ALC897 Codec, 7.1-Channel HD, S/PDIF Output
Storage	2× M.2 (PCIe 4.0 x4 / SATA), 4× SATA 6Gb/s
RAID Support	RAID 0, 1, 5, 10 for SATA Devices
USB (Rear)	2× USB 2.0, 4× USB 3.2 Gen1 Type-A (5Gbps)
USB (Front)	4× USB 2.0, 2× USB 3.2 Gen1 Type-A
Networking	Realtek® RTL8125B 2.5G LAN
Wireless	Intel® Wi-Fi 6E (2.4/5/6GHz, 160MHz, 2.4Gbps) + Bluetooth® 5.3
Internal I/O	ATX_PWR, CPU_PWR, 2× Fan Headers, Front Panel, TPM 2.0, RGB + ARGB Headers
LED Indicators	4× EZ Debug LED

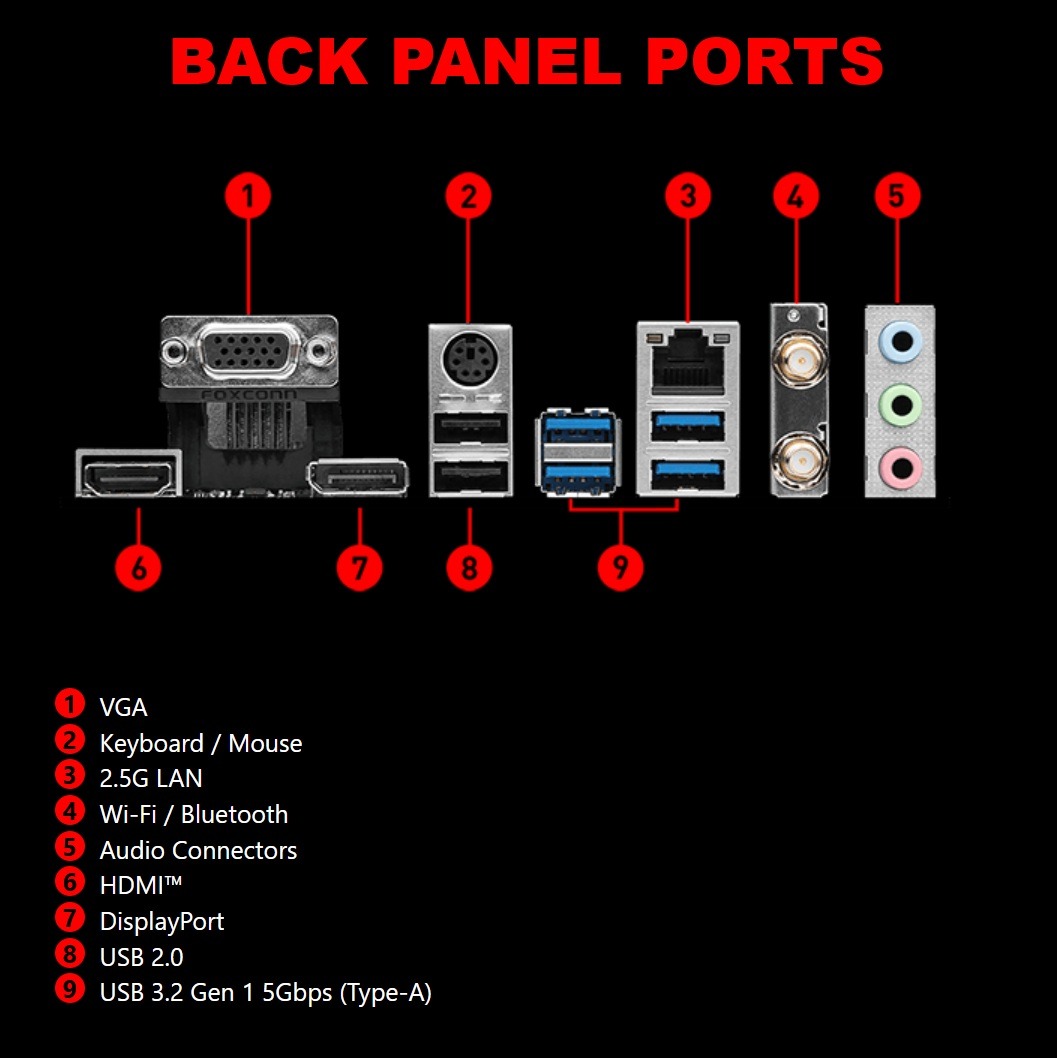

Back Panel Ports	VGA, HDMI™, DisplayPort, 2× USB 2.0, 4× USB 3.2 Gen1, 2.5G LAN, Audio Jacks, Wi-Fi/Bluetooth Antenna
Protection	Stainless Steel I/O Shield, Solid Pin Connectors, Over-Current & EMI Shielding
Operating System	Windows® 11/10 64-bit Supported
Extras	AIDA64 Extreme 60-day Trial, Norton 360 Deluxe Trial, M.2 Shield Frozr, Steel Armor, Mystic Light RGB
