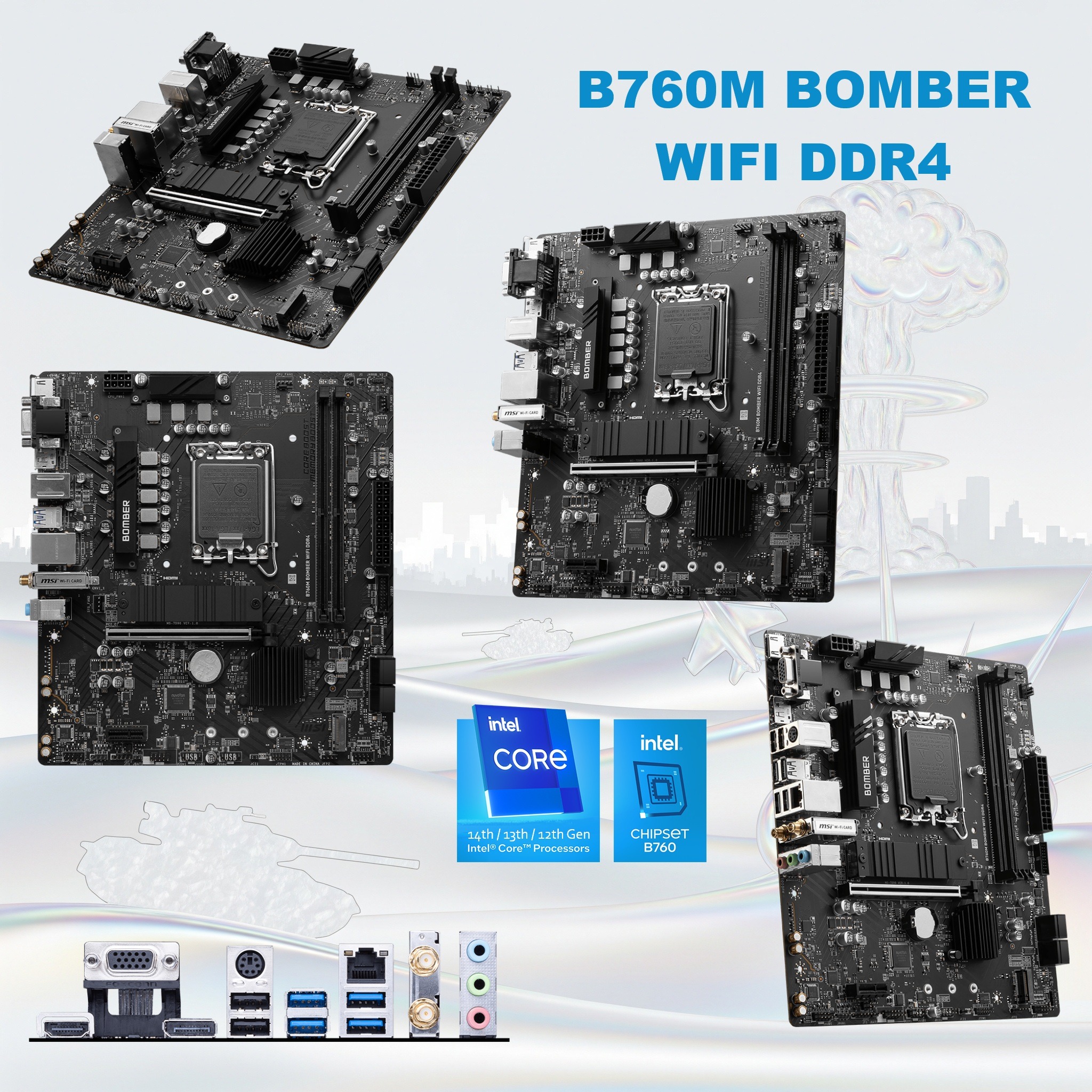

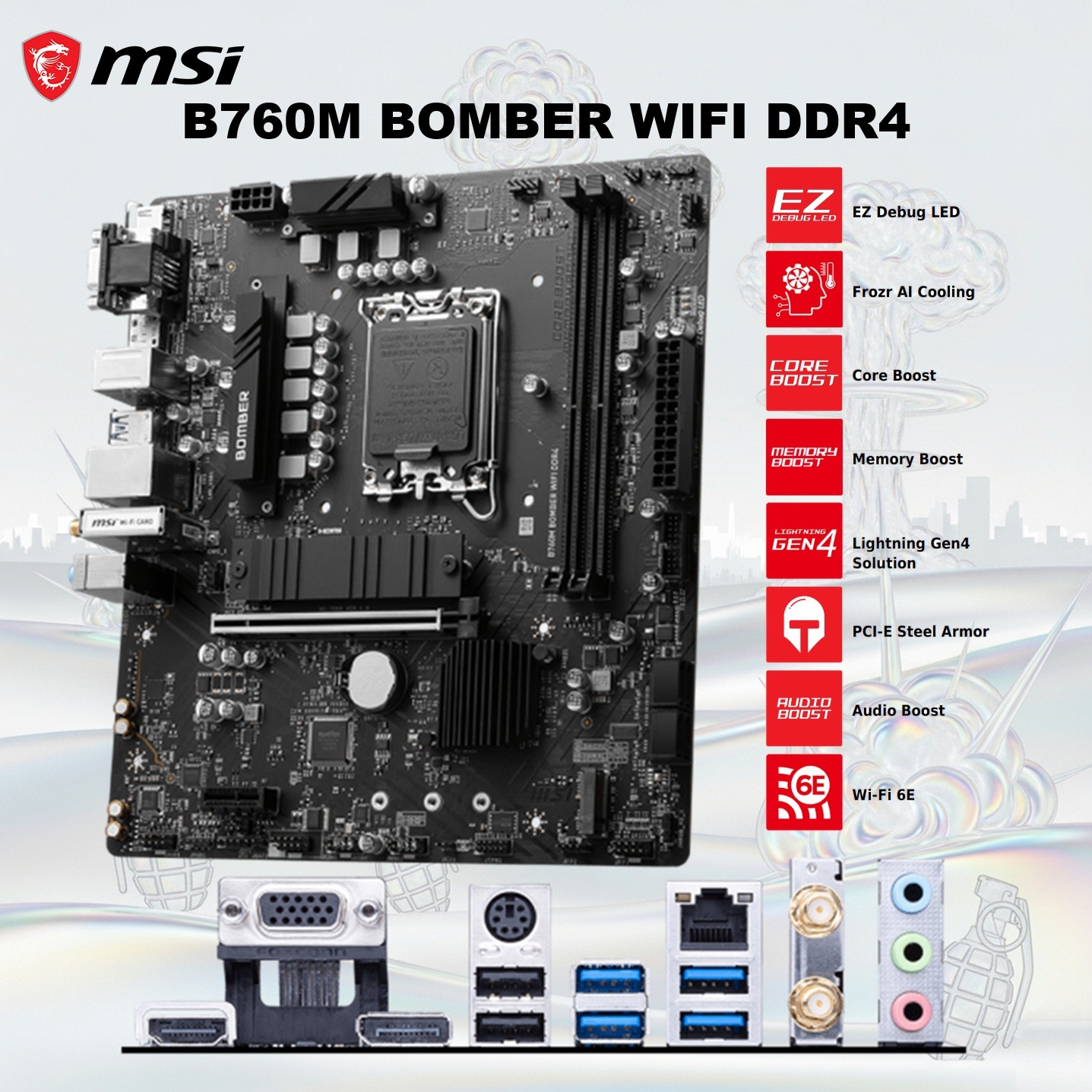

MSI B760M Bomber WiFi DDR4 mATX Motherboard , Supports Intel Core 14th/13th/12th Gen , PCIe 4.0 , Wi-Fi 6E ,2.5G LAN , Dual M.2 Gen4 , HDMI DP VGA , Audio Boost , RGB Sync | 1 YEAR WARRANTY

MSI B760M Bomber WiFi DDR4 mATX Motherboard , Supports Intel Core 14th/13th/12th Gen , PCIe 4.0 , Wi-Fi 6E ,2.5G LAN , Dual M.2 Gen4 , HDMI DP VGA , Audio Boost , RGB Sync | 1 YEAR WARRANTY

0 $

Quantity
Categories: ,

🚀 Expert Features

  • Intel-Ready Arsenal: Fully compatible with Intel® Core™ 14th, 13th, and 12th Gen processors, plus Pentium® Gold and Celeron® for LGA 1700 socket—your gateway to the latest power cores.
  • Dual-Channel DDR4 Mastery: Supports up to 64GB DDR4-4800+ MHz (OC) for seamless multitasking, turbo-boosted by Memory Boost technology for pure, stable data transfer.
  • Core Boost Engineering: Premium digital power design ensures your CPU runs cooler, faster, and steadier—even when overclocking under pressure.
  • Lightning Gen4 Storage: Dual M.2 slots with M.2 Shield Frozr keep your SSDs chilled and blazing fast—no throttling, just pure PCIe 4.0 speed.
  • PCIe 4.0 GPU Support: Reinforced Steel Armor PCIe x16 slot guards your graphics card from bending and interference while delivering top-tier bandwidth.
  • Next-Gen Networking: Experience 2.5G LAN + Wi-Fi 6E for ultra-fast, low-latency gaming and streaming, built for both wired warriors and wireless tacticians.
  • Audio Boost Immersion: Realtek® ALC897 codec delivers crisp, studio-grade 7.1-channel sound—hear every footstep before it hears you.
  • Triple Display Power: HDMI™ 2.1, DisplayPort 1.4, and VGA outputs for up to 4K 60Hz visuals; flexible setups for gaming, work, or both.
  • RGB & EZ Debug LED: Illuminate your rig with addressable RGB headers and troubleshoot easily with 4x EZ Debug LEDs—because heroes hate guessing.
  • Compact Powerhouse: mATX form factor (220 Ă— 243.84 mm) packs high-end performance in a smaller footprint—perfect for mid-tower and space-efficient builds.
  • OS Ready: Fully supports Windows® 10/11 64-bit, ensuring optimal compatibility and driver stability.

⚙️ Expert Specs

Category Details
Chipset Intel® B760
CPU Support Intel® Core™ 14th / 13th / 12th Gen, Pentium® Gold & Celeron® (LGA 1700)
Form Factor mATX (220 Ă— 243.84 mm)
Memory 2Ă— DDR4 DIMM Slots, Dual Channel, Up to 64GB
Memory Speed 4800+(OC)/4600(OC)/4400(OC)/4266(OC)/4200(OC)/4000(OC)/3800(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200(JEDEC)/2933(JEDEC)/2666(JEDEC)/2400(JEDEC)/2133(JEDEC)
Overclocking 1DPC 1R: 4800+ MHz / 1DPC 2R: 4600+ MHz
Memory Features Dual Channel, Non-ECC Unbuffered, Intel® XMP Ready
Graphics Ports 1× HDMI™ 2.1 (4K@60Hz), 1× DisplayPort 1.4 (4K@60Hz), 1× D-Sub (2048×1536@50Hz)
Expansion Slots 1Ă— PCIe 4.0 x16, 1Ă— PCIe 4.0 x1
Audio Realtek® ALC897, 7.1-Channel HD Audio
Storage 2Ă— M.2 (PCIe 4.0 x4 / SATA), 4Ă— SATA 6Gb/s
RAID Support RAID 0, 1, 5, 10 (SATA Devices)
LAN Realtek® RTL8125B 2.5Gbps LAN
Wireless Intel® Wi-Fi 6E + Bluetooth® 5.3
USB (Rear) 2Ă— USB 2.0, 4Ă— USB 5Gbps Type-A
USB (Front) 4Ă— USB 2.0, 2Ă— USB 5Gbps Type-A
Internal I/O 1Ă— ATX_PWR, 1Ă— CPU_PWR, 1Ă— CPU Fan, 2Ă— Sys Fan, 2Ă— RGB (JARGB_V2), 1Ă— JRGB, 1Ă— TPM 2.0, 1Ă— JAUD, 2Ă— JFP, 1Ă— JCI, 1Ă— JCOM

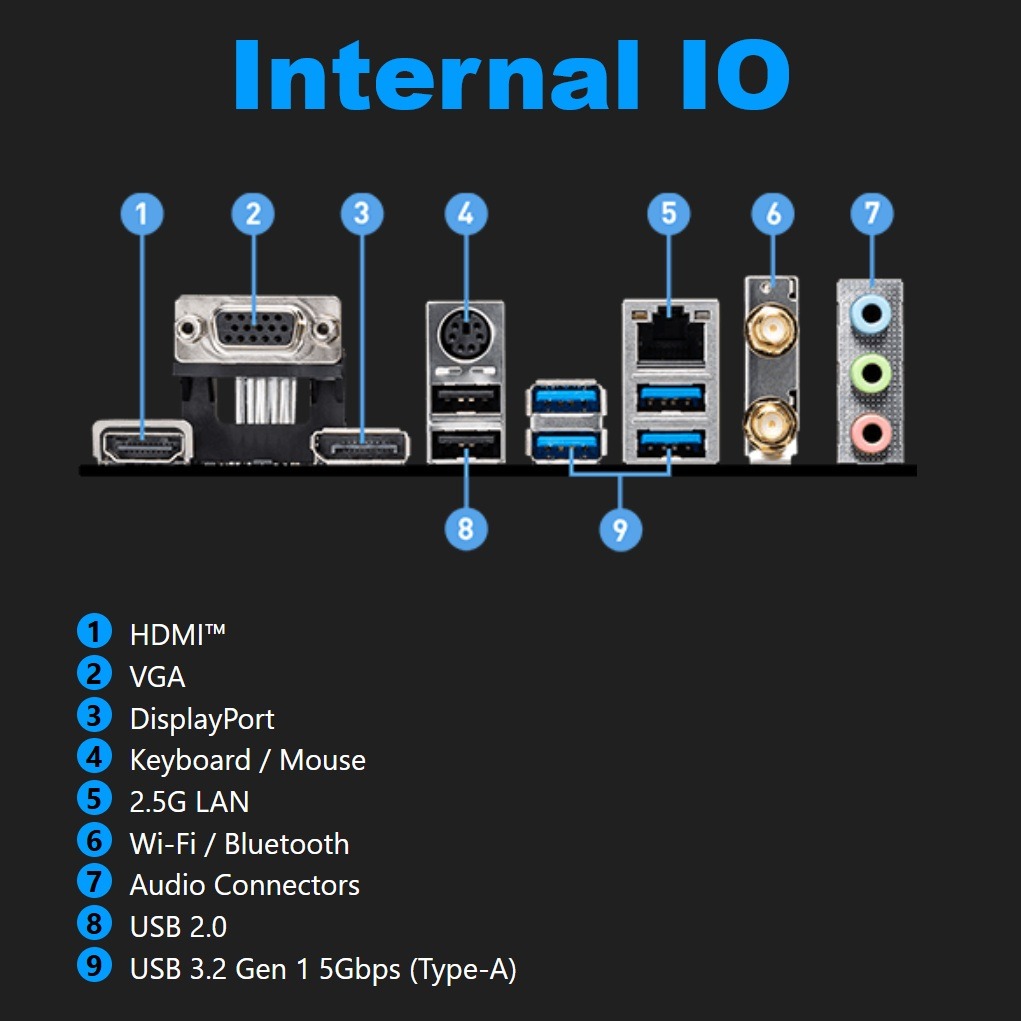

Back Panel Ports HDMI™, VGA, DisplayPort, LAN, Audio Jacks, USB 2.0, USB 3.2 Gen1 (5Gbps), Wi-Fi/Bluetooth
Cooling & LEDs 4Ă— EZ Debug LEDs, 2Ă— Addressable RGB, 1Ă— RGB Header
Operating System Windows® 10/11 64-bit
Weight / Build Reinforced Steel PCIe Slot, PCB Shielding for Stability
