MSI B760M BOMBER DDR4 M-ATX Motherboard With Intel 12th 13th Gen CPU Support, Dual Channel DDR4 4800+MHz, PCIe 4.0, Dual M.2 Shield Frozr, 2.5G LAN, Audio Boost ~ – 1 Year Warranty

MSI B760M BOMBER DDR4 M-ATX Motherboard With Intel 12th 13th Gen CPU Support, Dual Channel DDR4 4800+MHz, PCIe 4.0, Dual M.2 Shield Frozr, 2.5G LAN, Audio Boost ~ – 1 Year Warranty

114 $

Quantity
Categories: ,

⚡ Expert Features

Step into the battlefield of next-gen PC building with the MSI B760M BOMBER DDR4—a motherboard designed to be small in form but mighty in firepower. Here’s why geeks, gamers, and perfectionists love it:

  • Next-Gen CPU Support: Compatible with Intel® 12th & 13th Gen Core™, Pentium® Gold, and Celeron® processors on the LGA 1700 socket.
  • DDR4 Memory Boost: Dual-channel DDR4 up to 64GB, hitting overclocked speeds of 4800+ MHz for buttery-smooth multitasking and gaming.
  • Core & Memory Boost Technology: Optimized digital power design delivers stable, high-performance computing with pristine data signals.
  • Lightning-Fast Storage: Dual PCIe 4.0 M.2 slots with MSI Shield Frozr keep your NVMe SSDs blazing fast and cool under pressure.
  • 2.5G LAN: Built for pro-level stability, this upgraded Realtek® network solution keeps online battles lag-free.
  • Audio Boost: Studio-grade 7.1 channel HD sound ensures you hear every footstep, explosion, and soundtrack in crystal clarity.
  • Steel Armor PCIe: Protects your graphics card against bending and electromagnetic interference.
  • Visual Variety: HDMI™ 2.1, DisplayPort 1.4, and VGA outputs support up to 4K resolution for flexible monitor setups.
  • EZ Debug LED: Diagnose issues faster than your squad respawns.
  • Compact & Mighty: mATX form factor (220mm x 243.84mm) fits neatly into a wide range of builds.

This board doesn’t just support your system—it powers your ambitions with stability, speed, and geek-approved style.

🔧 Expert Specs

Category Details
Chipset Intel® B760
CPU Support Intel® 12th & 13th Gen Core™, Pentium® Gold, Celeron® (LGA 1700 Socket)
Memory 2x DDR4 DIMMs, up to 64GB, Dual-Channel, Non-ECC, Un-buffered, XMP Supported
Memory Speeds OC: 4800 / 4600 / 4400 / 4266 / 4200 / 4000 / 3800 / 3733 / 3600 / 3466 / 3400 / 3333 MHz
JEDEC: 3200 / 2933 / 2666 / 2400 / 2133 MHz
Max OC: 4800+ MHz (1DPC 1R), 4600+ MHz (1DPC 2R)
Graphics Outputs 1x HDMI™ 2.1 (4K@60Hz, HDR), 1x DisplayPort 1.4 (4K@60Hz), 1x D-Sub (up to 2048×1536@50Hz / 1920×1200@60Hz) CPU must support integrated graphics
Expansion Slots 1x PCIe x16 (Gen 4.0 from CPU), 1x PCIe x1 (Gen 4.0 from chipset)
Audio Realtek® ALC897 Codec, 7.1 Channel High Definition Audio
Storage 2x M.2 Slots (PCIe 4.0 x4 / 2280/2260/2242), SATA RAID 0/1/5/10 Support
RAID Supports RAID 0, 1, 5, 10 for SATA drives
LAN Realtek® RTL8125B 2.5Gbps Ethernet
USB (Rear) 2x USB 2.0, 2x USB 3.2 Gen 1 (Type-A, 5Gbps)
USB (Front) 4x USB 2.0
Internal IO 1x ATX_PWR, 1x CPU_PWR, 1x CPU Fan, 2x System Fan, 2x JFP, 1x JCI, 1x JAUD, 1x JCOM, 2x JARGB_V2, 1x JRGB, 1x TPM 2.0 Header, 4x USB 2.0 Ports
LED Features 4x EZ Debug LED

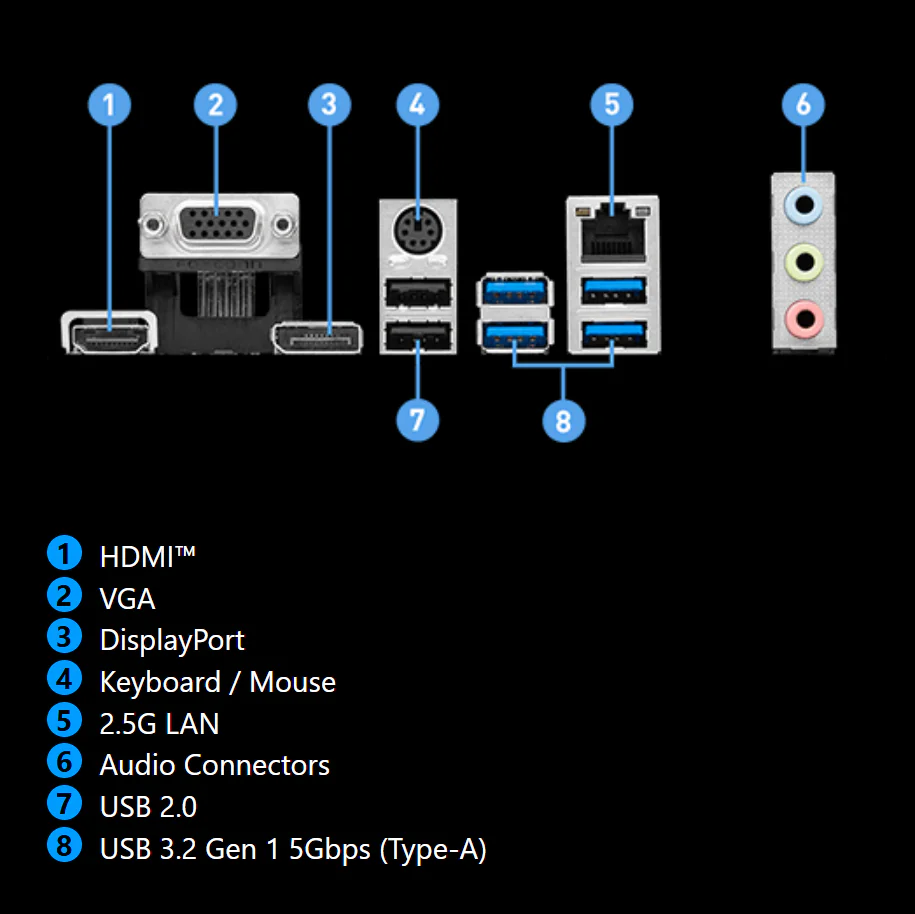

Back Panel HDMI™, VGA, DisplayPort, Keyboard/Mouse, 2.5G LAN, Audio Connectors, USB 2.0, USB 3.2 Gen 1
Operating System Windows® 11 64-bit, Windows® 10 64-bit
Form Factor mATX (220mm x 243.84mm)
