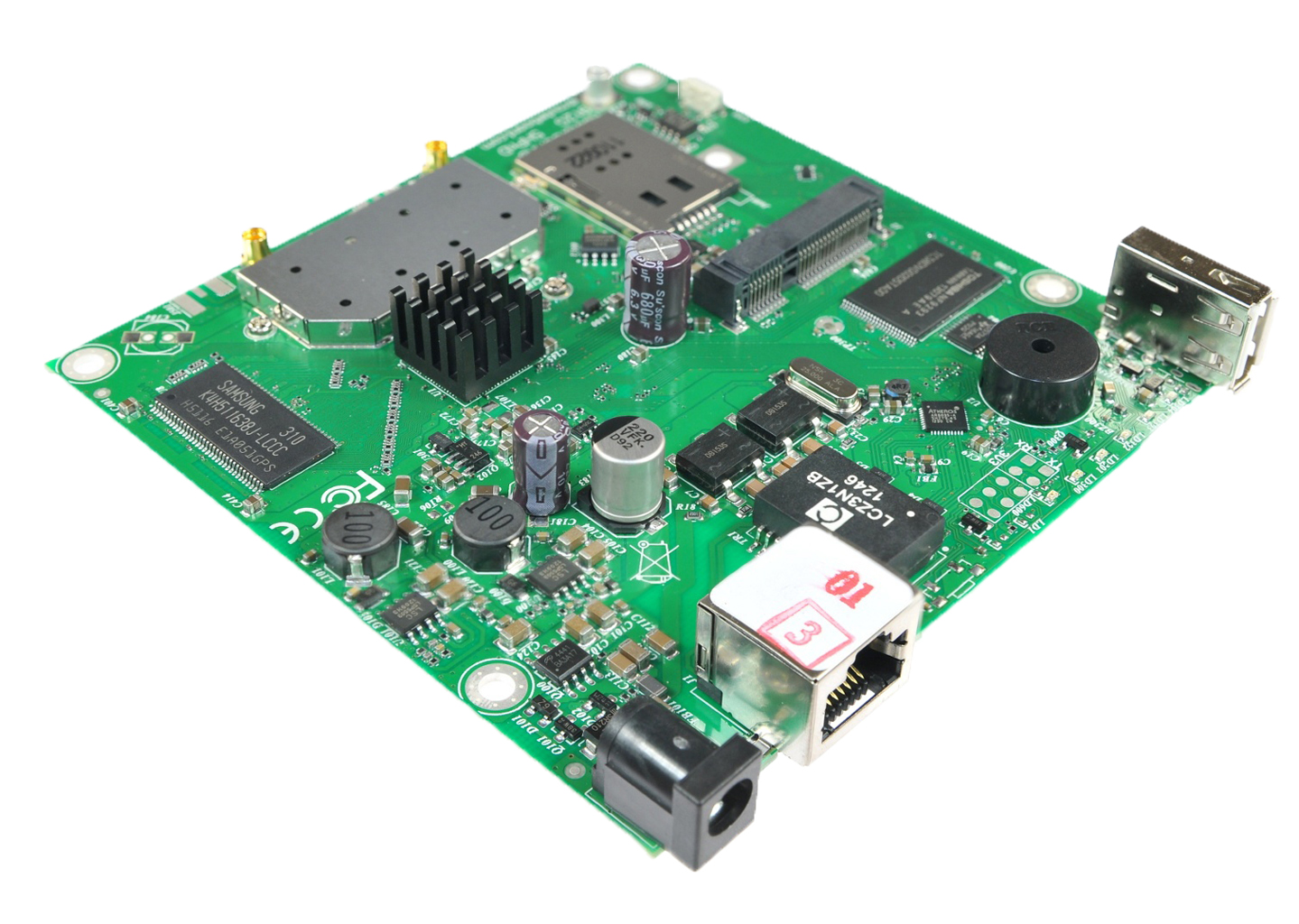

MicroTick Routerboard 600MHz CPU 64MB RAM

Expert Features of RB912UAG-2HPnD:

• Powerful 600MHz CPU: Smooth performance with a 1-core processor.
• 64MB RAM & 128MB NAND Storage: Reliable memory for stable performance and fast data handling.
• Gigabit Ethernet Port: Maximize your wired network speeds.
• Built-in 2.4GHz Wireless: Enjoy Wi-Fi speeds up to 300Mbps with 802.11b/g/n support.
• MiniPCIe Slot: Expandable with 802.11 wireless cards, mobile cards, or LoRa modules for additional functionality.
• SIM Slot: Supports mobile modems for internet connectivity anywhere.
• ESD Protection: Built-in 16kV ESD protection on Ethernet and MMCX ports to prevent damage from static.
• Rugged & Versatile: Wide operating temperature range (-40°C to 70°C) and passive cooling for durability.
• PoE Support: Power over Ethernet (PoE) with input voltage 8-30V, simplifying installation and reducing cable clutter.
• RouterOS L4: Includes RouterOS for advanced networking and management features.
• Compact Design: Small, 105x105mm footprint to fit in tight spaces.
• USB & Power Reset: USB port for additional peripherals and USB-powered reset function.

Specifications:

• Product Code: RB912UAG-2HPnD
• CPU: AR9342, 600MHz single-core
• RAM: 64MB
• Storage: 128MB NAND
• Ethernet Port: 1x Gigabit Ethernet
• Wireless: 2.4GHz, Wi-Fi 4 (802.11b/g/n), 300Mbps max data rate
• MiniPCI-e Slot: 1x
• SIM Slot: 1x (Mini SIM)
• USB Port: 1x USB Type-A, Max current 1A
• Power Input: PoE (8-30V), DC Jack (8-30V)
• Max Power Consumption: 13.5W
• Operating Temp: -40°C to 70°C
• MTBF: 100,000 hours at 25°C
• Certification: FCC, IC
• Dimensions: 105 x 105mm
