Expert Features
- Next-Gen WiFi with AC1200 Speeds
Complies with the latest 802.11ac standard, delivering up to 1200Mbps combined speed — 300Mbps on 2.4GHz and 867Mbps on 5GHz. Perfect for streaming, gaming, and HD video calls. - Dual-Band Simultaneous Connections
Use both 2.4GHz and 5GHz bands concurrently for optimized performance across all devices, reducing congestion and improving stability. - Extended Range with 4× 5dBi High-Gain Antennas
Equipped with four external 5dBi antennas and advanced signal amplification to ensure strong coverage and reduced dead zones in homes or offices. - 2×2 MIMO Technology
Boosts wireless throughput and efficiency by handling multiple data streams at once, ensuring smoother performance with multiple users. - Guest WiFi Network
Create a separate, secure network for guests without exposing your main connection. - Full IPTV & IPv6 Support
Seamlessly stream IPTV using IGMP Proxy/Snooping, VLAN, and Bridge mode while preparing your network for future services with IPv6 compatibility. - Fast & Easy Setup
Simple 3-step web-based setup makes installation a breeze for anyone, no technical knowledge required. - Smart Management Options
Includes remote and local management, access control, port forwarding, and network diagnostics to give you full control. - Advanced Wireless Security
WPA-PSK / WPA2-PSK encryption, IP/MAC binding, and firewall tools ensure strong protection against cyber threats.
Expert Specs
| Category | Details |
|---|---|

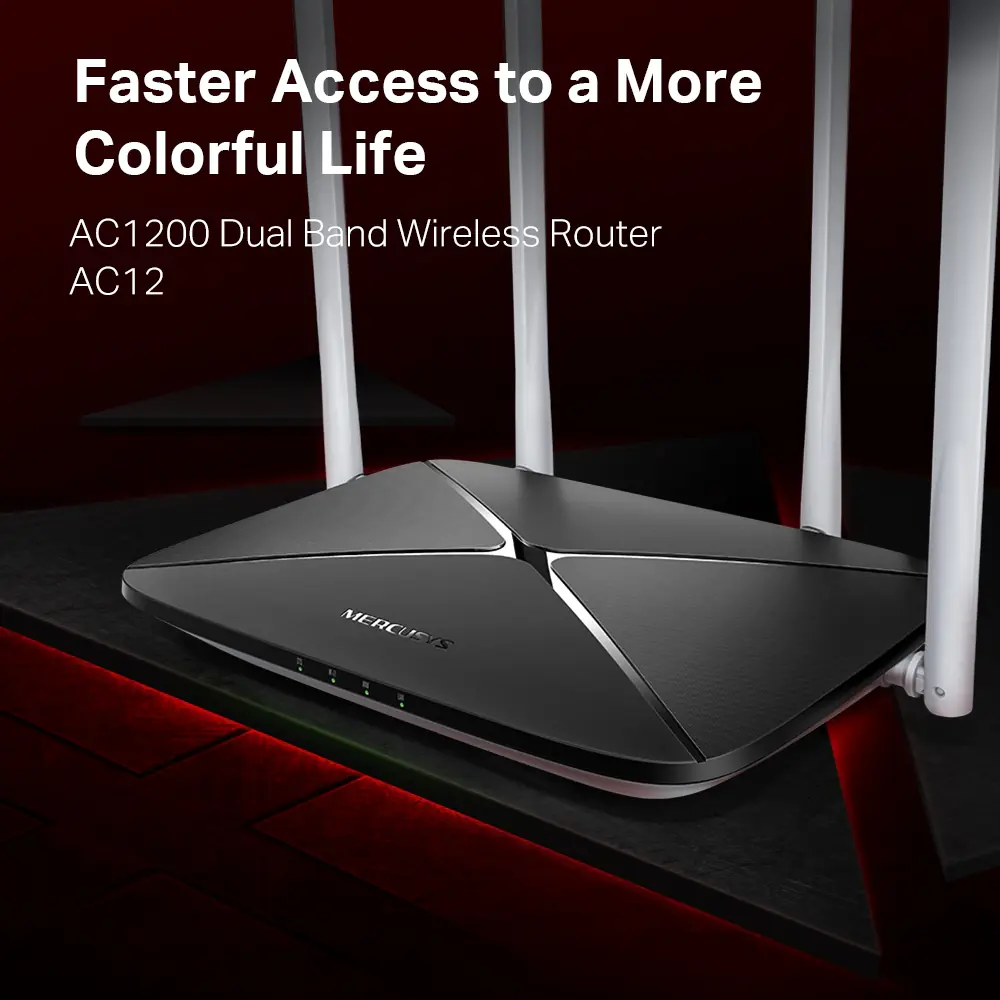

| Model | MERCUSYS AC12 |
| WiFi Standards | IEEE 802.11a/n/ac (5GHz), IEEE 802.11b/g/n (2.4GHz) |
| WiFi Speeds | 300Mbps (2.4GHz), 867Mbps (5GHz) |
| Frequency Bands | 2.4 – 2.5GHz, 5.15 – 5.25GHz |
| Antennas | 4 × 5dBi External Fixed Antennas |
| MIMO Technology | 2×2 MIMO |
| Reception Sensitivity | 2.4GHz: -95dBm to -71dBm; 5GHz: -92dBm to -60dBm |
| Security | WPA-PSK/WPA2-PSK, IP & MAC Binding, SPI Firewall |
| Wireless Functions | Enable/Disable Radio, Wireless Statistics |
| Guest Network | Separate networks on both 2.4GHz & 5GHz |
| WAN Port | 1 × 10/100 Mbps |
| LAN Ports | 3 × 10/100 Mbps |
| WAN Types | Dynamic IP, Static IP, PPPoE, L2TP, PPTP |
| Port Forwarding | Virtual Server, UPnP, DMZ |
| Management | Local, Remote, Access Control |
| DHCP Server | Yes |
| Setup Method | Web Interface (3-Step Installation) |
| IPTV Support | IGMP Proxy/Snooping, VLAN, Bridge |
| IPv6 Support | Yes |
| Button | WPS/Reset |
| Dimensions | 222 × 140 × 32 mm |
| Power Supply | 9V/0.85A External Adapter |
| Color | Black |
