Expert Features
- Dual Band AC1200 WiFi
Offers blazing speeds of up to 1167 Mbps (867 Mbps on 5 GHz + 300 Mbps on 2.4 GHz), perfect for HD streaming, gaming, and large file downloads. - 4 High-Gain 5dBi External Antennas
Boosts signal strength and ensures wide, stable wireless coverage throughout your home or office. - Advanced Beamforming Technology
Focuses WiFi signals directly to your devices for a stronger and more stable connection. - MU-MIMO for Simultaneous Connections
Communicates with multiple devices at once to reduce wait time and improve overall throughput. - Powerful Parental Controls
Set profiles, limit online time, block websites, and pause internet access for specific users. - Multi-Mode Support
Operates as a Router, Access Point, or Range Extender – adapts to any networking setup. - Easy Setup with MERCUSYS App
Set up and manage your network easily with the intuitive MERCUSYS mobile app for iOS and Android. - Secure Guest Network
Lets visitors connect safely without exposing your main network. - IPTV & IPv6 Support
Designed for smooth IPTV streaming with IGMP Proxy/Snooping and VLAN. IPv6 support future-proofs your network. - Enhanced Network Security
WPA3/WPA2 encryption and SPI firewall provide advanced protection against unauthorized access. - Compact, Stylish Design
Clean white housing with a modern, minimal footprint fits any room or desktop.
Expert Specs
| Category | Details |
|---|---|

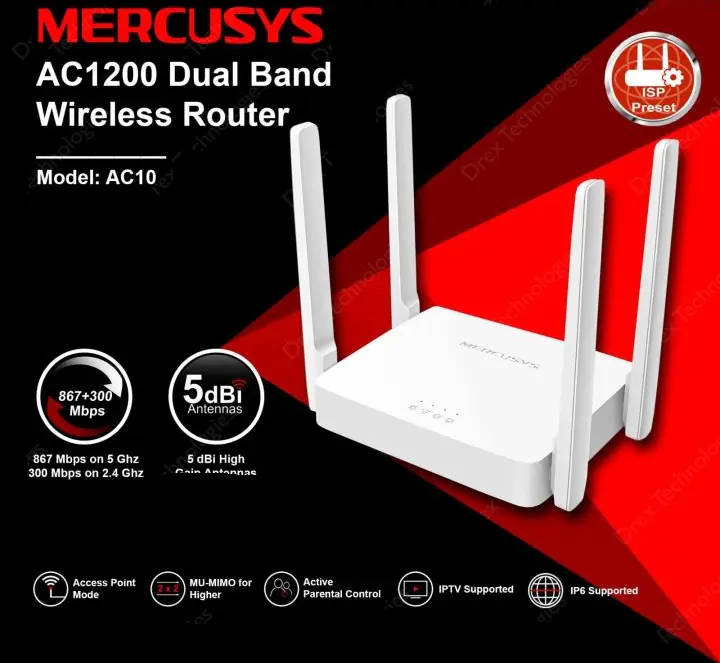

| Model | MERCUSYS AC10 |
| WiFi Standard | IEEE 802.11ac/n/a (5 GHz), 802.11b/g/n (2.4 GHz) |
| WiFi Speed | 300 Mbps (2.4 GHz), 867 Mbps (5 GHz) |
| Wireless Modes | Router, Access Point, Range Extender |
| Antennas | 4 × 5dBi External Fixed Omni-Directional |
| Beamforming | Yes |
| MU-MIMO | Yes |
| Parental Control | Yes – with User Profiles, Time Limits, Content Blocking |
| Guest Network | 2.4 GHz & 5 GHz Supported |
| Wireless Security | WEP, WPA/WPA2-Personal, WPA2/WPA3-Personal |
| Operating Frequency | 2.4 GHz & 5 GHz Dual Band |
| Ethernet Ports | 1 × WAN (10/100 Mbps), 2 × LAN (10/100 Mbps) |
| WAN Types | Dynamic IP, Static IP, PPPoE, L2TP, PPTP |
| NAT Forwarding | Port Forwarding, UPnP, DMZ, Port Triggering |
| Firewall | SPI, IP & MAC Address Binding |
| DHCP | Server, Client List |
| Dimensions | 114 × 94 × 26 mm (4.5 × 3.7 × 1.0 in) |
| Power Supply | 9V/0.85A External Adapter |
| Max Transmission Power | 2.4GHz < 20dBm; 5GHz < 23dBm (EIRP) |
| Reception Sensitivity | Up to -97 dBm on 5 GHz & 2.4 GHz (varies by modulation) |
| App Support | MERCUSYS App (iOS & Android) |
| Other Features | IPTV Ready, QoS, IPv6 Support |
