Lenovo AI-Powered Legion Pro 5 16IAX10 Intel® Core Ultra 7 255HX , 13 AI TOPS | 16GB DDR5 RAM ; 1TB NVMe SSD | RTX 5060 (8GB) 572 AI TOPS | 16-inch WQXGA OLED 100% DCI-P3, 165Hz Display | Windows 11 Home | Eclipse Black

Lenovo AI-Powered Legion Pro 5 16IAX10 Intel® Core Ultra 7 255HX , 13 AI TOPS | 16GB DDR5 RAM ; 1TB NVMe SSD | RTX 5060 (8GB) 572 AI TOPS | 16-inch WQXGA OLED 100% DCI-P3, 165Hz Display | Windows 11 Home | Eclipse Black

1.458 $

Quantity
Categories: ,

BRAND-NEW SEALED ~ 1 YEAR WARRANTY

⚙️ Expert Features

  • AI-Powered Gaming Brilliance: Armed with Intel® Core Ultra 7 255HX (20C/20T, up to 5.2GHz) and integrated Intel® AI Boost (13 TOPS), this Legion is built for smart, adaptive performance in every frame.
  • Next-Gen Graphics Muscle: NVIDIA® GeForce RTX™ 5060 8GB GDDR7, 2497MHz boost clock, and 115W TGP—built for high-refresh 165Hz OLED gaming and next-level ray tracing with 572 AI TOPS of acceleration.
  • Visuals That Stun: 16” WQXGA OLED 165Hz panel with 100% DCI-P3 color, Dolby Vision®, DisplayHDR™ True Black 1000, and G-SYNC®—every scene feels alive.
  • Fast, Cool, and Future-Proof: Dual M.2 slots (1TB PCIe 4.0 NVMe included, up to 2TB supported) and 16GB DDR5-5600 RAM (expandable to 32GB) for endless multitasking.
  • HARMAN Sound + Nahimic Audio: Dual 2W speakers tuned by HARMAN deliver spatial clarity and precise positional sound for total immersion.
  • Tactical Design, Pro Finish: Eclipse Black chassis made from anodized aluminum and PC-ABS blend—strong, sleek, and just 2.43kg.
  • Connectivity on Steroids: Thunderbolt™ 4, USB-C® PD up to 100W, HDMI® 2.1 (8K/60Hz), Wi-Fi® 7, Ethernet, and more—ready for every battlefield.
  • AI-Ready Cooling + LA3 Chip: Lenovo AI Engine+ auto-optimizes thermals, GPU load, and fan acoustics in real time.
  • True Gamer Perks: 24-Zone RGB keyboard, 91.7% screen-to-body ratio, and 80Wh battery for long gaming sessions.
  • Built to Endure: Backed by a 1-Year Lenovo Courier or Carry-in Warranty with ENERGY STAR® 8.0 and TÜV Rheinland® certifications.

PERFORMANCE
Processor
Intel® Core Ultra 7 255HX, 20C (8P + 12E) / 20T, Max Turbo up to 5.2GHz, 30MB
AI PC Category
AI-Powered Gaming PC
NPU
Integrated Intel® AI Boost, up to 13 TOPS
Graphics
NVIDIA® GeForce RTX™ 5060 8GB GDDR7, Boost Clock 2497MHz, TGP 115W, 572 AI TOPS
Chipset
Intel® HM870 Chipset
Memory
1x 16GB SO-DIMM DDR5-5600
Memory Slots
Two DDR5 SO-DIMM slots, dual-channel capable
Max Memory
Up to 32GB DDR5-5600 offering
Storage
1TB SSD M.2 2242 PCIe® 4.0×4 NVMe®
Storage Slot
Two M.2 2280 PCIe® 4.0 x4 slots
Max Storage Support
Up to two drives, 2x M.2 SSD • M.2 2242 SSD up to 1TB • M.2 2280 SSD up to 1TB
Optical
None
Card Reader
None
Audio Chip
High Definition (HD) Audio, Realtek® ALC3306 codec
Speakers
Stereo speakers, 2W x2, audio by HARMAN, optimized with Nahimic Audio
Microphone
2x, Array
Camera
5.0MP with E-shutter
Battery
80Wh
Power Adapter
245W Slim Tip (3-pin)
Special Features
AI Chip: LA3
DESIGN
Display
16″ WQXGA (2560×1600) OLED 500nits Glossy, 100% DCI-P3, 165Hz, DisplayHDR™ True Black 1000, Dolby Vision®, G-SYNC®, Low Blue Light, High Gaming Performance, Flicker Free
Touchscreen
None
Screen-to-Body Ratio
91.7% AAR (active area ratio)
Color Calibration
Factory Color Calibration
Pen
Pen Not Supported
Keyboard
24-Zone RGB Backlit, English
Touchpad
Buttonless Mylar® surface multi-touch touchpad, supports Precision TouchPad (PTP), 75 x 120 mm (2.95 x 4.72 inches)
Dimensions (WxDxH)
364.38 x 268.06 x 21.69-25.95 mm (14.35 x 10.55 x 0.85-1.02 inches)
Weight
Around 2.43 kg (5.36 lbs)
Case Color
Eclipse Black
Case Material
Aluminium (Top), PC-ABS (Bottom)
Surface Treatment
Anodizing Sandblasting
SOFTWARE
Operating System
Windows® 11 Home, English
Bundled Software
Office Trial + Lenovo® AI Now
CONNECTIVITY
WLAN + Bluetooth
Wi-Fi® 7, 802.11be 2×2 + BT5.4
WWAN
Non-WWAN
Ethernet
100/1000M (RJ-45)

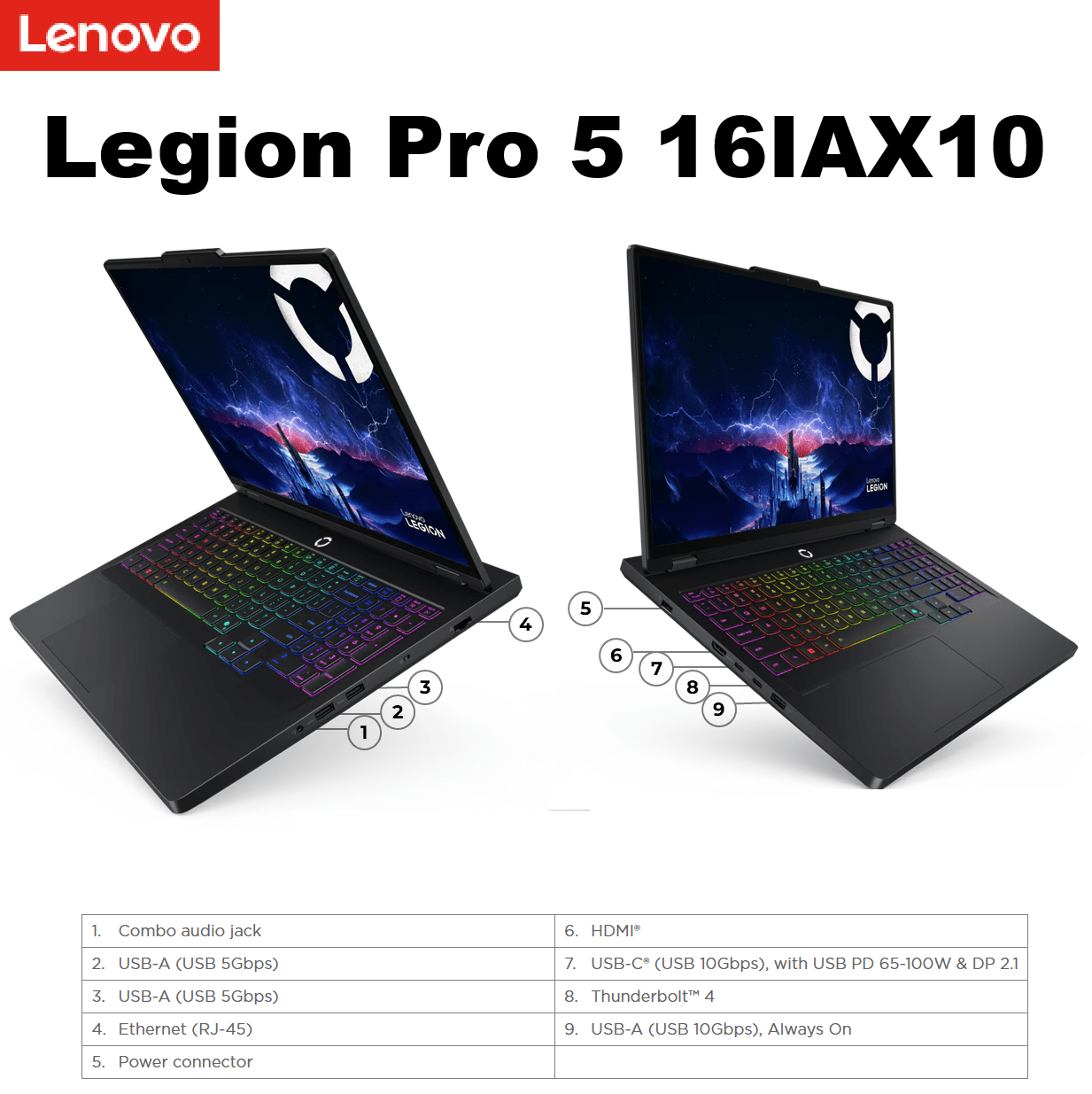

Standard Ports
  • 2x USB-A (USB 5Gbps / USB 3.2 Gen 1)
  • 1x USB-A (USB 10Gbps / USB 3.2 Gen 2), Always On
  • 1x USB-C® (USB 10Gbps / USB 3.2 Gen 2), with USB PD 65-100W and DisplayPort™ 2.1
  • 1x USB-C® (Thunderbolt™ 4 / USB4® 40Gbps), with DisplayPort™ 2.1
  • 1x HDMI® 2.1, up to 8K/60Hz
  • 1x Headphone / microphone combo jack (3.5mm)
  • 1x Ethernet (RJ-45)
  • 1x Power connector
Docking
Various docking solutions supported via Thunderbolt™ or USB-C®. For more compatible docking solutions, please visit Docking for Legion Pro 5 16IAX10
SECURITY & PRIVACY
Security Chip
Firmware TPM 2.0 Enabled
Fingerprint Reader
None
Other Security
E-shutter
SERVICE
Base Warranty
1-year, Courier or Carry-in
Included Upgrade
None
ACCESSORIES
Bundled Accessories
None
CERTIFICATIONS
Green Certifications
  • ENERGY STAR® 8.0
  • ErP Lot 6/26
  • RoHS compliant
Other Certifications
  • TÜV Rheinland® Flicker Free
  • TÜV Rheinland® High Gaming Performance
  • TÜV Rheinland® Low Blue Light (Hardware Solution)
MODEL INFORMATION
Model
83F30009US
