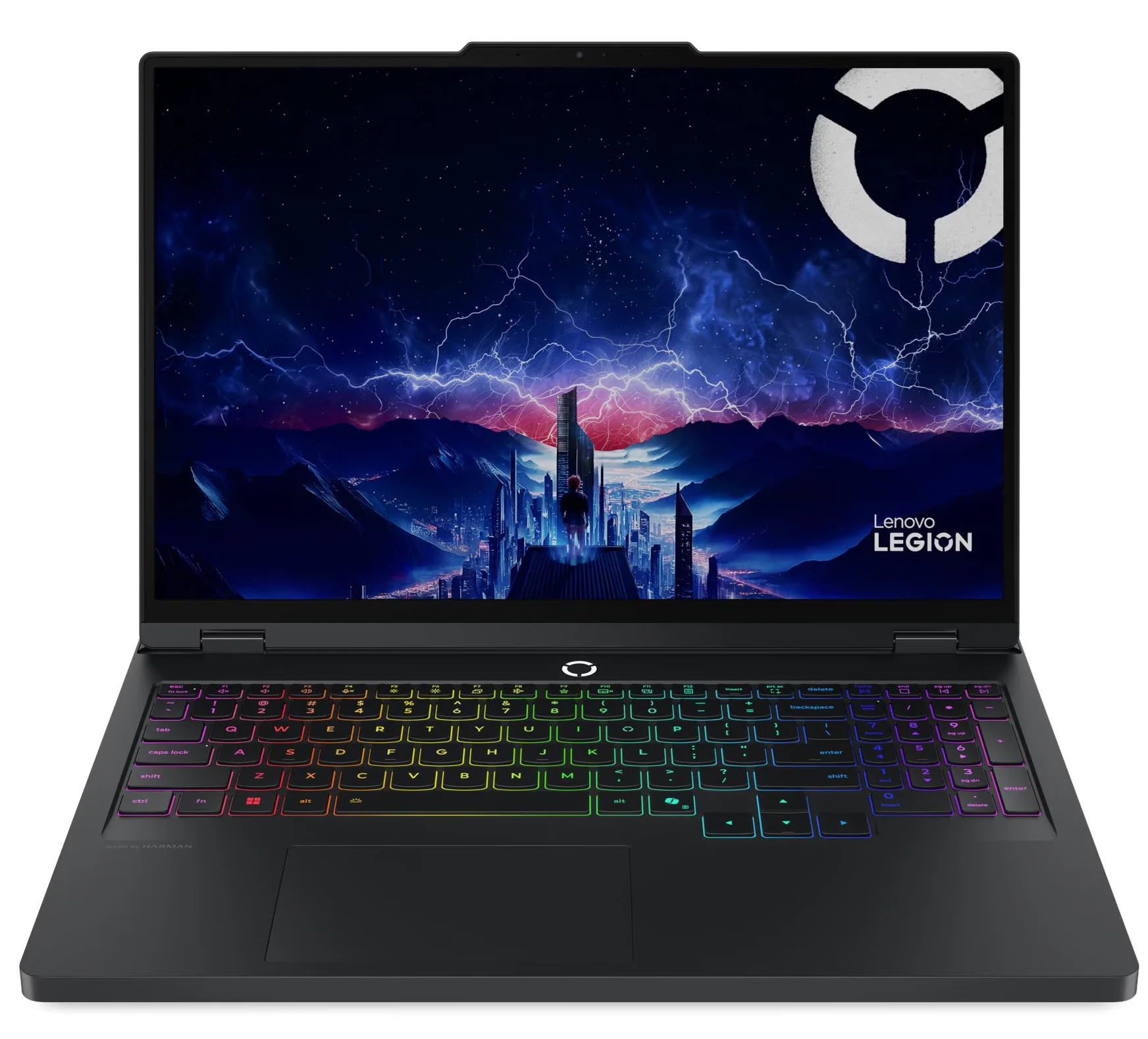

LENOVO AI-Powered Legion 5 16IAX10 Intel® Core Ultra 9 275HX | 32GB DDR5 RAM , 1TB SSD NVMe | RTX 5060 , 8GB | 16-inch WQXGA IPS 240Hz Display | 24-Zone RGB Backlit Keyboard | Windows® 11 | Storm Grey

LENOVO AI-Powered Legion 5 16IAX10 Intel® Core Ultra 9 275HX | 32GB DDR5 RAM , 1TB SSD NVMe | RTX 5060 , 8GB | 16-inch WQXGA IPS 240Hz Display | 24-Zone RGB Backlit Keyboard | Windows® 11 | Storm Grey

1.628 $

Quantity
Categories: ,

BRAND-NEW SEALED ~ 1 YEAR WARRANTY 83NX0000US

⚡ Expert Features

  • AI-Powered Gaming PC: Runs on Intel® Core Ultra 9 275HX with 24 cores (8P + 16E) and integrated Intel® AI Boost NPU, delivering up to 13 TOPS for next-level performance.
  • Epic Graphics Muscle: Armed with the NVIDIA® GeForce RTX™ 5060 8GB GDDR7, featuring 572 AI TOPS, a 2497 MHz boost clock, and 105W TGP for serious ray-traced gaming.
  • Blazing-Fast Memory & Storage: Dual-channel 32GB DDR5-5600 RAM (2×16GB) plus 1TB PCIe® 4.0×4 NVMe® SSD for lightning boot times and game load speeds.
  • Immersive Visuals: Stunning 16″ WQXGA (2560×1600) IPS panel, 500 nits, 240Hz refresh, 100% DCI-P3, HDR400, Dolby Vision®, G-SYNC®, and TÜV Low Blue Light certification.
  • Cinematic Audio: Dual 2W Harman speakers optimized with Nahimic Audio and AI noise-canceling mics for crystal-clear team comms.
  • Battle-Ready Design: Storm Grey aluminum lid with anodized sandblasting, RGB-backlit keyboard (24-zone), and precision Mylar® touchpad.
  • Connectivity Arsenal: Wi-Fi 7, Bluetooth® 5.4, Thunderbolt™ 4, USB-C® with PD & DP 2.1, HDMI® 2.1 (8K/60Hz), Ethernet RJ-45, and a headphone combo jack.
  • Pro Gamer Stamina: 80Wh battery paired with a 245W Slim Tip charger for performance on-the-go.
  • Smart Security & Privacy: Firmware TPM 2.0, E-shutter for webcam protection, and TÜV Rheinland certifications for safe long sessions.
  • Ready For The Future: Dual M.2 SSD slots (up to 2TB support), factory color-calibrated display, Windows® 11 Home, plus Lenovo® AI Now software bundle.

Expert Specs

PERFORMANCE
Processor
Intel® Core Ultra 9 275HX, 24C (8P + 16E) / 24T, Max Turbo up to 5.4GHz, 36MB
AI PC Category

AI-Powered Gaming PC
NPU
Integrated Intel® AI Boost, up to 13 TOPS
Graphics
NVIDIA® GeForce RTX™ 5060 8GB GDDR7, Boost Clock 2497MHz, TGP 105W, 572 AI TOPS
Chipset
Intel® HM870 Chipset
Memory
2x 16GB SO-DIMM DDR5-5600
Memory Slots
Two DDR5 SO-DIMM slots, dual-channel capable
Max Memory
Up to 32GB DDR5-5600 offering
Storage
1TB SSD M.2 2242 PCIe® 4.0×4 NVMe®
Storage Slot
Two M.2 2280 PCIe® 4.0 x4 slots
Max Storage Support
Up to two drives, 2x M.2 SSD • M.2 2242 SSD up to 1TB each
Optical
None
Card Reader
None
Audio Chip
High Definition (HD) Audio, Realtek® ALC3306 codec
Speakers
Stereo speakers, 2W x2, audio by HARMAN, optimized with Nahimic Audio
Microphone
2x, Array
Camera
5.0MP with E-shutter
Battery
80Wh
Power Adapter
245W Slim Tip (3-pin)
Special Features
AI Chip: LA3
DESIGN
Display
16″ WQXGA (2560×1600) IPS 500nits Anti-glare, 100% DCI-P3, 240Hz, DisplayHDR™ 400, Dolby Vision®, G-SYNC®, Low Blue Light, High Gaming Performance
Touchscreen
None
Screen-to-Body Ratio
91.7% AAR (active area ratio)
Color Calibration
Factory Color Calibration
Pen
Pen Not Supported
Keyboard
24-Zone RGB Backlit, English
Touchpad
Buttonless Mylar® surface multi-touch touchpad, supports Precision TouchPad (PTP), 75 x 120 mm (2.95 x 4.72 inches)
Dimensions (WxDxH)
364.38 x 268.06 x 21.69-25.95 mm (14.35 x 10.55 x 0.85-1.02 inches)
Weight
Around 2.45 kg (5.4 lbs)
Case Color
Storm Grey
Case Material
Aluminium (Top), PC-ABS (Bottom)
Surface Treatment
Anodizing Sandblasting
SOFTWARE
Operating System
Windows® 11 Home, English
Bundled Software
Office Trial + Lenovo® AI Now
CONNECTIVITY
WLAN + Bluetooth
Wi-Fi® 7, 802.11be 2×2 + BT5.4
WWAN
Non-WWAN
Ethernet
100/1000M (RJ-45)

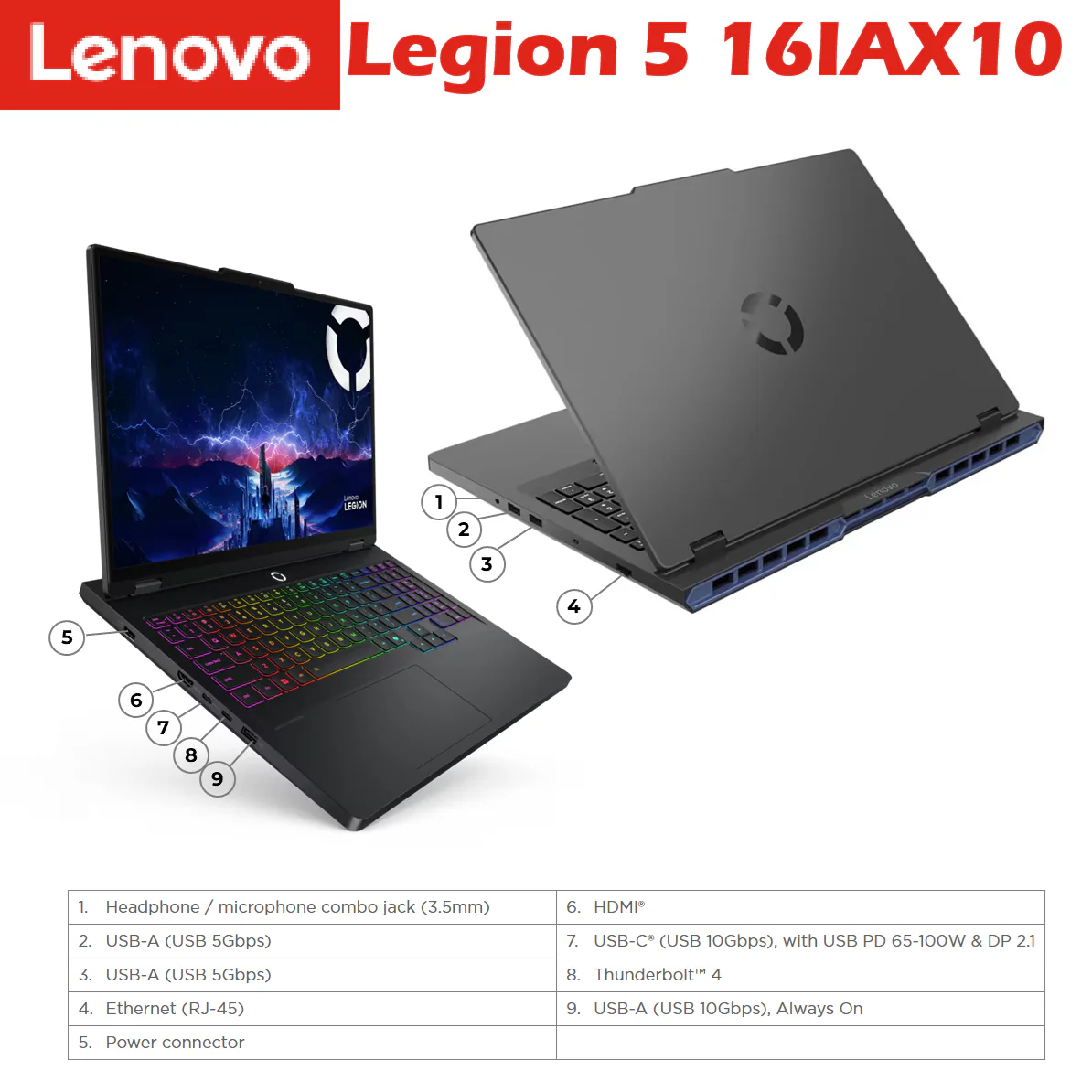

Standard Ports
  • 2x USB-A (USB 5Gbps / USB 3.2 Gen 1)
  • 1x USB-A (USB 10Gbps / USB 3.2 Gen 2), Always On
  • 1x USB-C® (USB 10Gbps / USB 3.2 Gen 2), with USB PD 65-100W and DisplayPort™ 2.1
  • 1x USB-C® (Thunderbolt™ 4 / USB4® 40Gbps), with DisplayPort™ 2.1
  • 1x HDMI® 2.1, up to 8K/60Hz
  • 1x Headphone / microphone combo jack (3.5mm)
  • 1x Ethernet (RJ-45)
  • 1x Power connector
Docking
Various docking solutions supported via Thunderbolt™ or USB-C®. For more compatible docking solutions, please visit Docking for Legion 5 16IAX10
SECURITY & PRIVACY
Security Chip
Firmware TPM 2.0 Enabled
Fingerprint Reader
None
Other Security
E-shutter
SERVICE
Base Warranty
1-year, Courier or Carry-in
Included Upgrade
None
ACCESSORIES
Bundled Accessories
None
CERTIFICATIONS
Green Certifications
  • ENERGY STAR® 8.0
  • ErP Lot 6/26
  • RoHS compliant
Other Certifications
  • TÜV Rheinland® High Gaming Performance
  • TÜV Rheinland® Low Blue Light (Hardware Solution)
MODEL INFORMATION
Model
