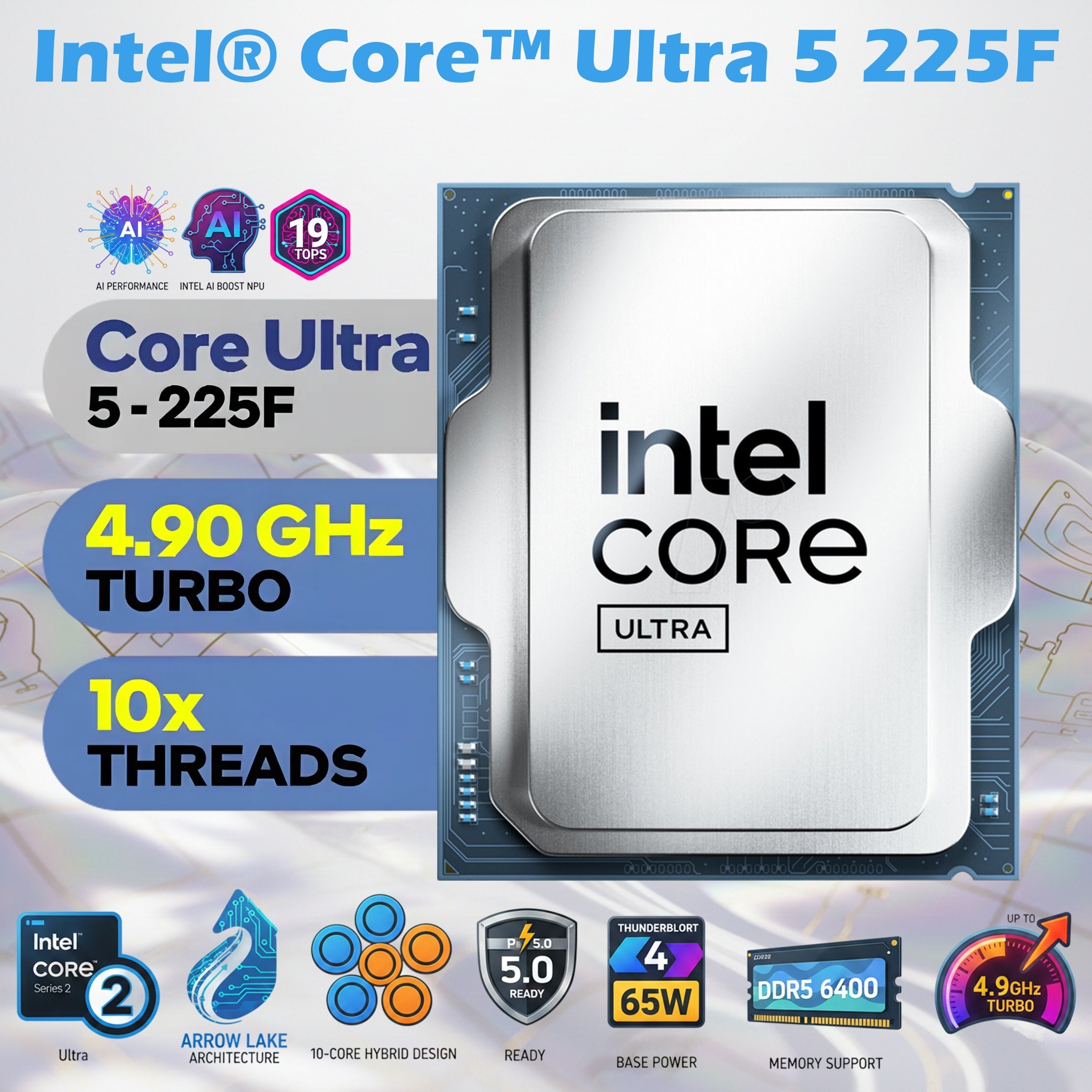

Intel Core Ultra 5 225F Desktop Processor With 10 Cores, Up To 4.9GHz Turbo, 20MB Cache, Arrow Lake Architecture, DDR5 6400 Support, PCIe 5.0 | TRAY ONLY – NO BOX
173 $
Categories: COMPUTER PARTS, CPUs / Processors, Intel® Processors
BRAND-NEW PROCESSOR TRAY VERSION / NO BOX ~ 1 YEAR WARRANTY
Expert Features
- Intel Core Ultra Series 2 – Arrow Lake DNA : The Core™ Ultra 5 225F belongs to Intel’s Series 2 Core Ultra lineup, formerly known as Arrow Lake, bringing modern desktop performance with a focus on efficiency, AI acceleration, and next-gen platform support.
- Hybrid Core Architecture : Features 10 total cores split into 6 Performance-cores and 4 Efficient-cores, delivering balanced responsiveness for gaming, productivity, and multitasking without wasting power.
- High Turbo Headroom : Reaches up to 4.9 GHz Max Turbo Frequency, with both Performance-cores and Efficient-cores tuned for responsive boosts under load.
- Built-In AI Acceleration : Equipped with Intel® AI Boost (NPU) delivering 13 TOPS (Int8), plus Intel DL Boost on CPU, enabling local AI workloads and accelerating supported AI frameworks.
- AI-Ready Software Ecosystem : Supports OpenVINO™, WindowsML, DirectML, ONNX Runtime, and WebNN, making it suitable for AI-enhanced applications, content tools, and future Windows AI features.
- Advanced Power Efficiency : Built on TSMC N3B lithography, this processor operates at a 65W base power with a 121W maximum turbo power, striking a balance between performance and thermals.
- Next-Gen Memory & Expansion Support : Supports DDR5 memory up to 6400 MT/s, PCI Express 5.0 and 4.0, and up to 24 PCIe lanes, ensuring compatibility with modern GPUs and high-speed storage.
- Enterprise-Grade Security And Virtualization : Includes Intel technologies such as VT-x, VT-d, AES-NI, Boot Guard, OS Guard, and Control-Flow Enforcement, delivering a secure and virtualization-ready platform.





Expert Specs
| Category | Specification |
|---|---|
| Processor Name | Intel® Core™ Ultra 5 225F |
| Series | Intel® Core™ Ultra Processors (Series 2) |
| Code Name | Arrow Lake |
| Launch Date | Q1 2025 |
| Socket / Segment | Desktop |
| Total Cores / Threads | 10 Cores / 10 Threads |
| Performance Cores | 6 |
| Efficient Cores | 4 |
| Max Turbo Frequency | Up to 4.9 GHz |
| P-Core Base / Turbo | 3.3 GHz / 4.9 GHz |
| E-Core Base / Turbo | 2.7 GHz / 4.4 GHz |
| Cache | 20 MB Intel® Smart Cache |
| Total L2 Cache | 22 MB |
| Processor Base Power | 65 W |
| Maximum Turbo Power | 121 W |
| CPU Lithography | TSMC N3B |
| Memory Support | Up to 256GB DDR5 |
| Max Memory Speed | DDR5 6400 MT/s |
| Memory Channels | 2 |
| ECC Support | No |
| NPU | Intel® AI Boost |
| NPU Performance | 13 TOPS (Int8) |
| Overall AI Performance | 19 TOPS (Int8) |
| PCI Express | PCIe 5.0 & PCIe 4.0 |
| Max PCIe Lanes | 24 |
| Thunderbolt Support | Thunderbolt™ 4 |
| Instruction Set | 64-bit (SSE4.1, SSE4.2, AVX2) |
| Virtualization | VT-x, VT-d, EPT |
| Security Features | AES-NI, Boot Guard, OS Guard, CET |
| OS & Use Case | PC / Client / Tablet |
