Expert Features

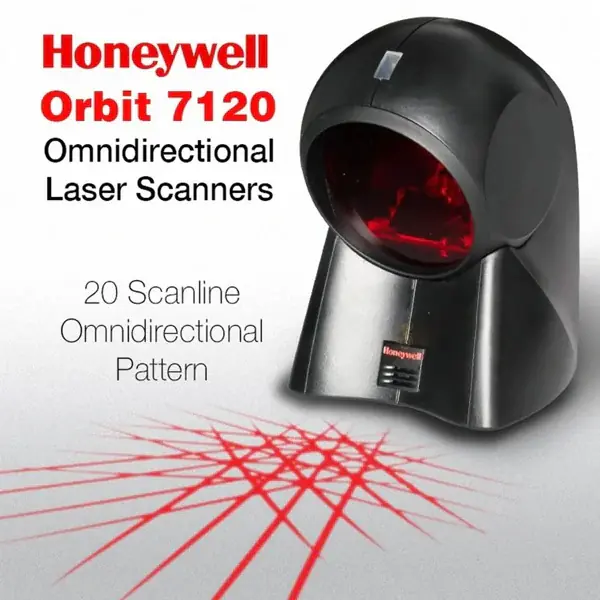

• 20 Scan Line Omnidirectional Pattern
• Sweet Spot Scanning for enhanced first-pass read accuracy
• Adjustable Scan Head with 30° tilt for larger products
• Flash ROM for firmware updates via MetroSet®2
• Automatic Scanning Operation for quick barcode capture
• Built-in RF EAS Antenna for tag deactivation (MK7120)
• Power Save Mode for energy efficiency
• User-replaceable cables for added convenience
• MetroSelect®2 for easy configuration and data editing
• OPOS/JPOS compatibility for easy POS integration

Expert Specs

• Dimensions: 105 mm x 102 mm x 150 mm (4.1˝ x 4.0˝ x 5.9˝)
• Weight: 400 g (14.1 oz)
• Input Voltage: 5 VDC ± 0.25 V
• Operating Power: 900 mW (180 mA @ 5 V)
• Standby Power: 850 mW (170mA @ 5 V)
• Host System Interfaces: USB, RS232, Keyboard Wedge, IBM 468xx (RS485), Light Pen Wand Emulation
• Operating Temperature: 0°C to 40°C (32°F to 104°F)
• Storage Temperature: -40°C to 60°C (-40°F to 140°F)
• Humidity: 5% to 95% relative humidity, non-condensing
• Drop Resistance: Withstands drops from 1.2 m (4′)
• Environmental Sealing: Sealed to resist airborne particulate contaminants
• Light Levels: 4842 Lux
• Scan Speed: 1,120 scan lines per second (omnidirectional), 56 scan lines per second (single line)
• Decode Capability: Reads standard 1D and GS1 DataBar symbologies
• Pitch, Skew: 60°, 60°
