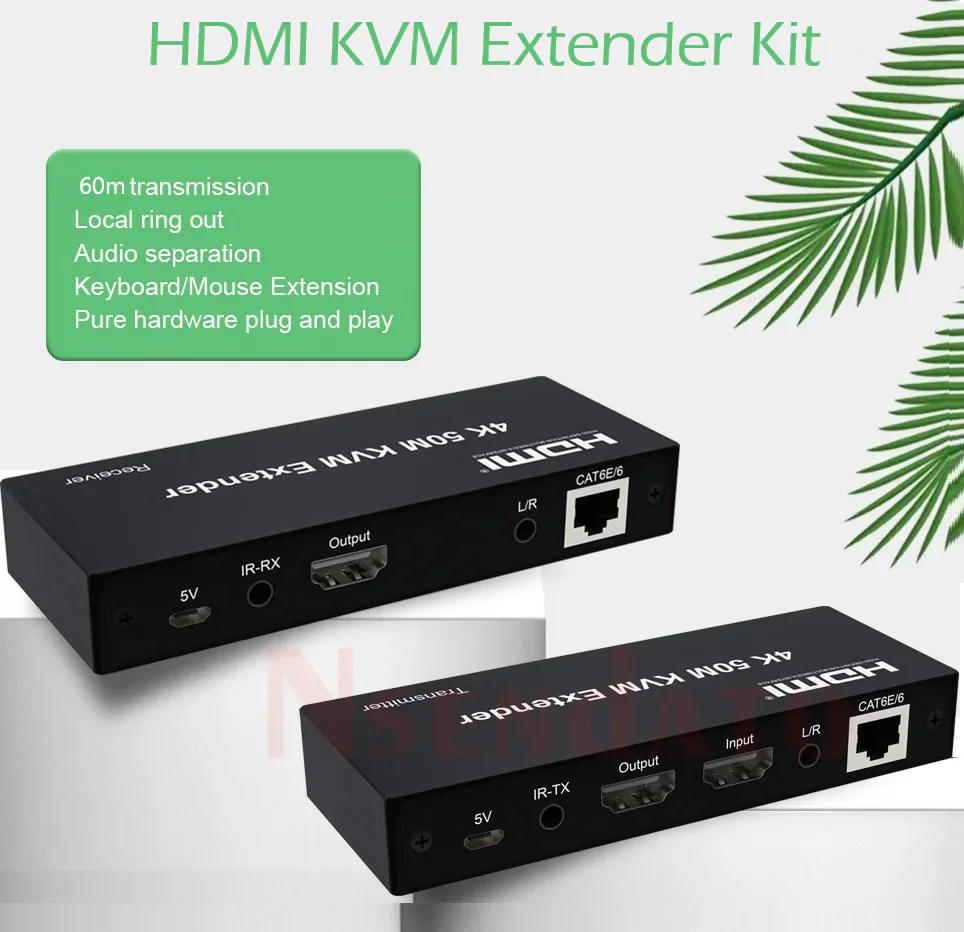

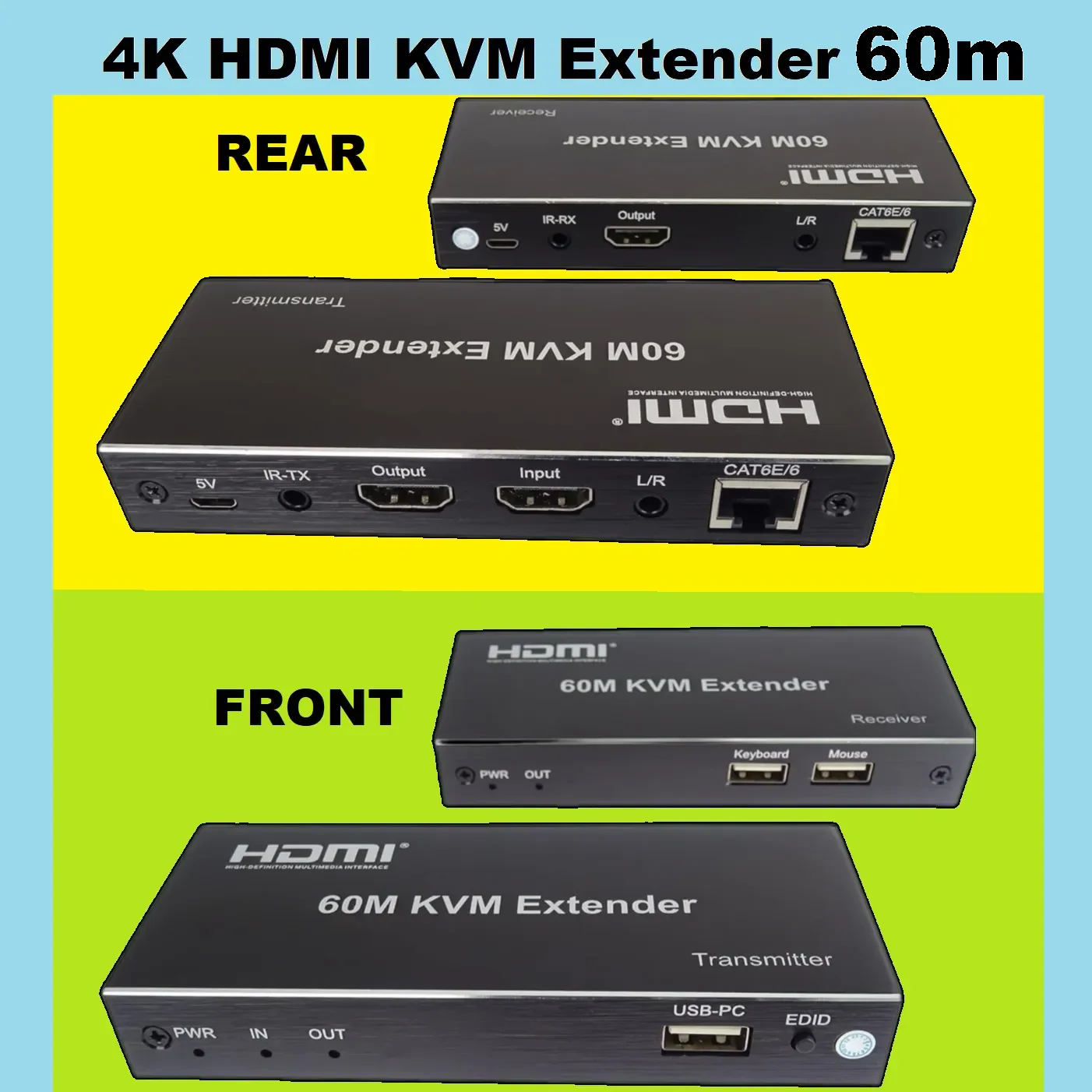

HDMI KVM Extender Kit ” Transmitter TX & Receiver RX ” Supports Audio Output and 2 x USB up to 60 meters Over Patch Cable CAT6E/6 , Compatible with Full HD 4K/1080P/1080i/720P 340MHz  , local loop-out

HDMI KVM Extender Kit ” Transmitter TX & Receiver RX ” Supports Audio Output and 2 x USB up to 60 meters Over Patch Cable CAT6E/6 , Compatible with Full HD 4K/1080P/1080i/720P 340MHz  , local loop-out

26 $

Quantity
Categories: ,

HDMI KVM Extender Kit Audio Output USB

Expert Features:

  • Support 4K/30Hz
  • Support local loop-out

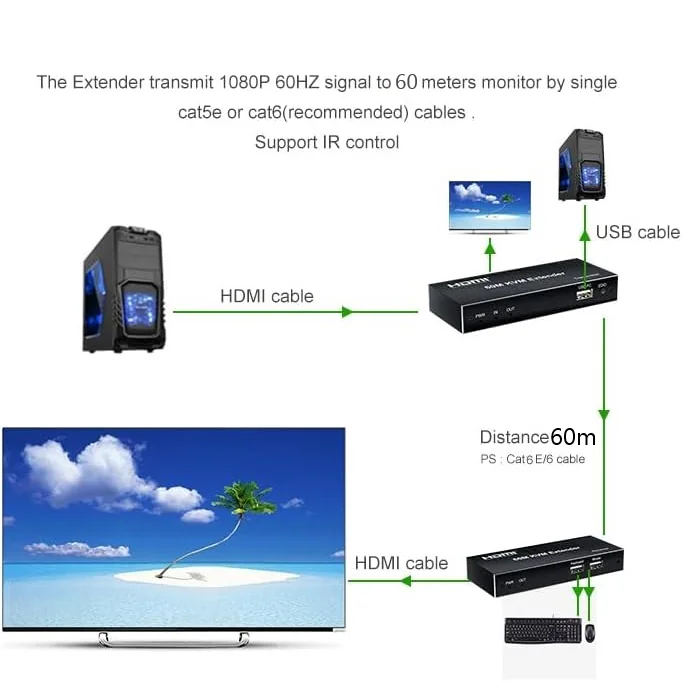

  • Support 60m long distance transmission
  • Low power consumption, low temperature and high safety
  • Both the TX and RX support 3.5MM left and right audio output
  • Support IR control
  • Support mouse and keyboard extension

Expert Specification:

  • length of CAT-6/CAT-6E cable between Rx and TX:Up to 60 meters
  • HDMI Input:4K/1080P/1080i/720P
  • HDMI Output:4K/1080P/1080i/720P
  • Max bandwidth:340MHz
  • Max baud rate:3×3.4Gbps
  • Input video signal:0.5~1.5Volts p-p
  • Output DDC signal:5Volts p-p (TTL)
  • Input HDMI cable distance:≤10m AWG26 HDMI standard cable
  • Output HDMI cable distance:≤10m AWG26 HDMI standard cable
  • TX Max working current:550mA
  • RX Max working current:450mA
  • Power adapter format:Input:AC (50HZ,60HZ) 100V-240V;Output:DC5V/1A

Package:

  • TX Extender
  • RX Extender
  • IR cable
  • Power adapter
  • User Manual
