🧠 Expert Features

🚀 PERFORMANCE & OVERCLOCKING

• X3D Turbo Mode: Boost gaming FPS with one click—engineered to optimize Ryzen™ 9000 X3D & non-X3D CPUs alike for next-level frame rates.

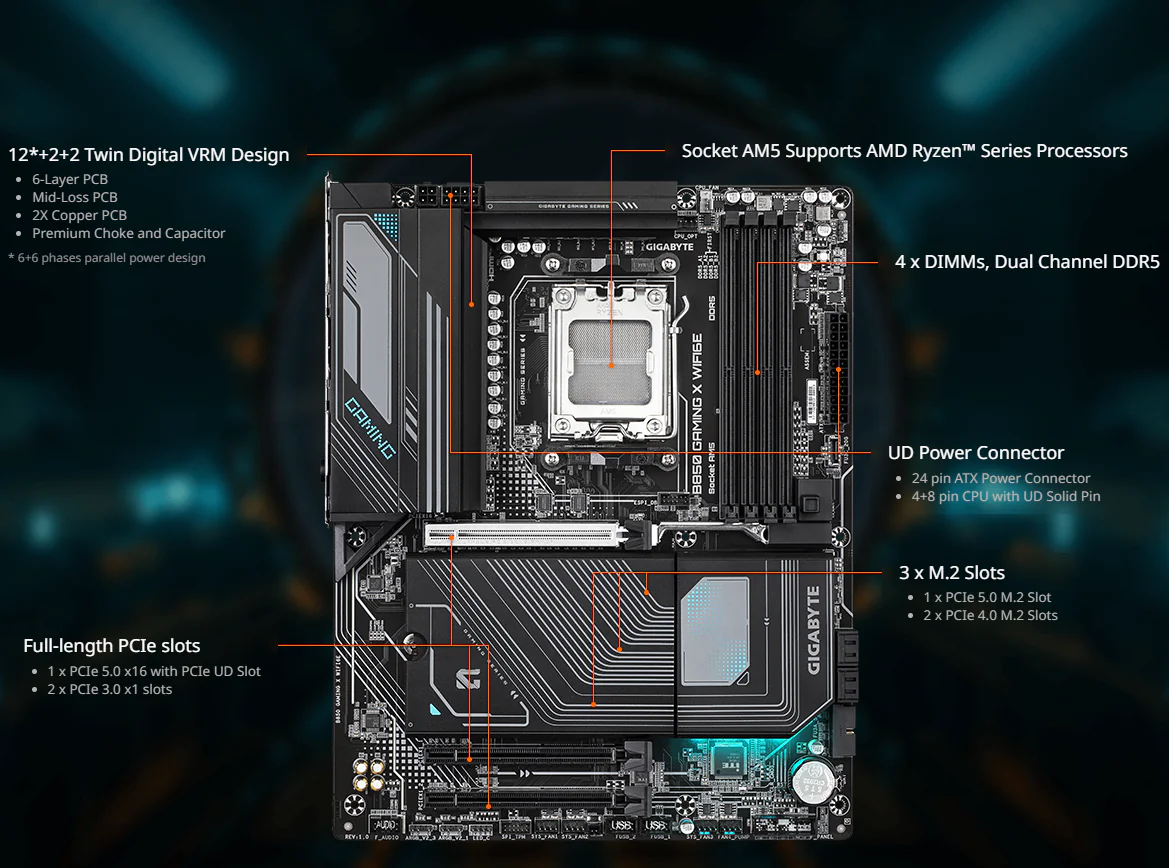

• Digital Twin 12+2+2 VRM Design: Built with 60A DrMOS and premium capacitors for stable overclocking and multi-core CPU performance.
• D5 Bionic Corsa: AI-powered DDR5 overclocking up to 8200MT/s, with enhanced signal tuning for memory-intensive workflows.

🧊 ADVANCED THERMALS

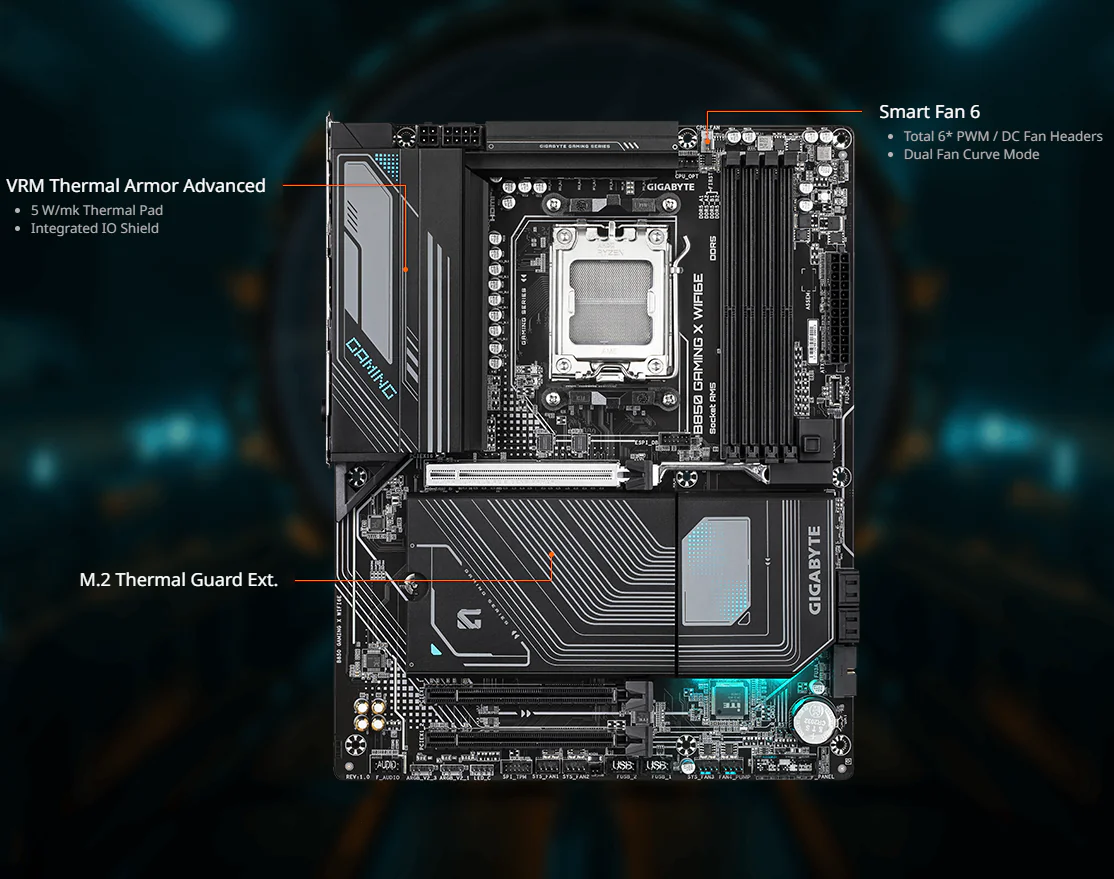

• VRM Thermal Armor Advanced: Robust heatsinks with 4X the surface area for consistent thermal dissipation.
• M.2 Thermal Guard Ext.: Full coverage on all 3 M.2 slots to prevent thermal throttling.
• Smart Fan 6: Hybrid fan headers, customizable fan curves, and sensors to keep your rig cool and whisper-quiet.

🛠️ DIY-FRIENDLY DESIGN

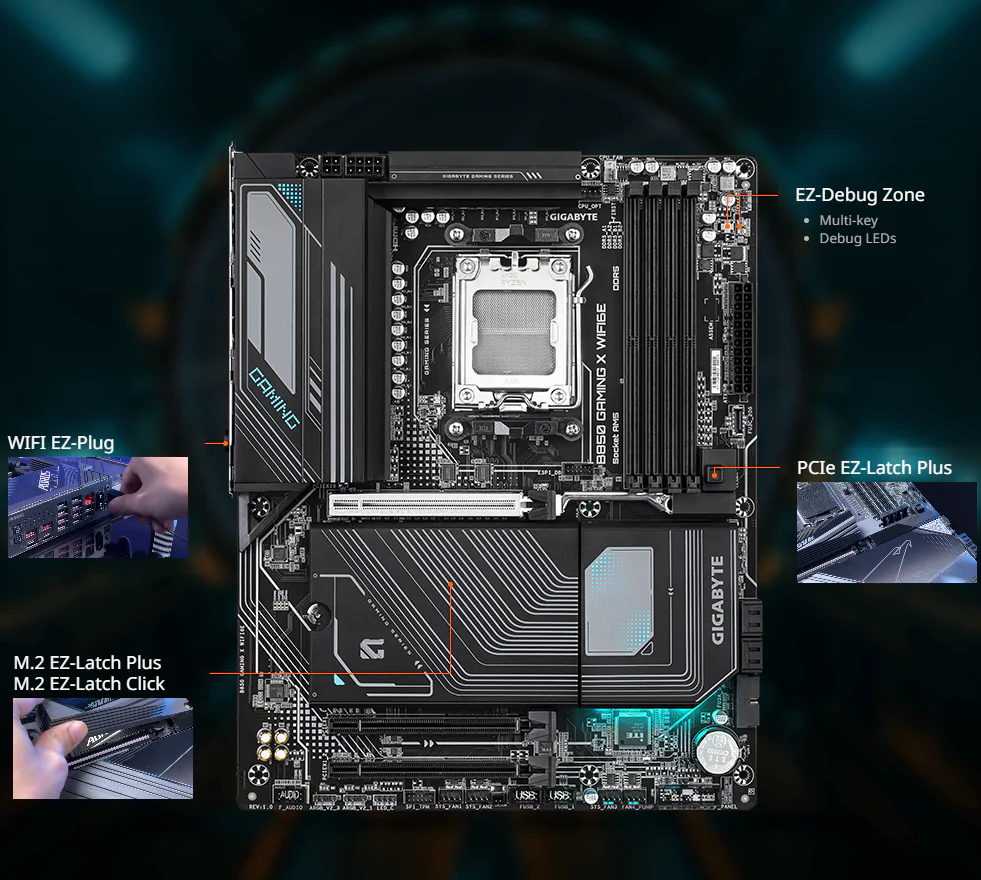

• EZ-Latch System: Tool-free installation for PCIe and M.2 devices with click-lock latches and quick-release mechanisms.
• Wi-Fi EZ-Plug: Simplified antenna connection with integrated plug design.
• Q-Flash Plus: Update BIOS without CPU, RAM, or GPU.

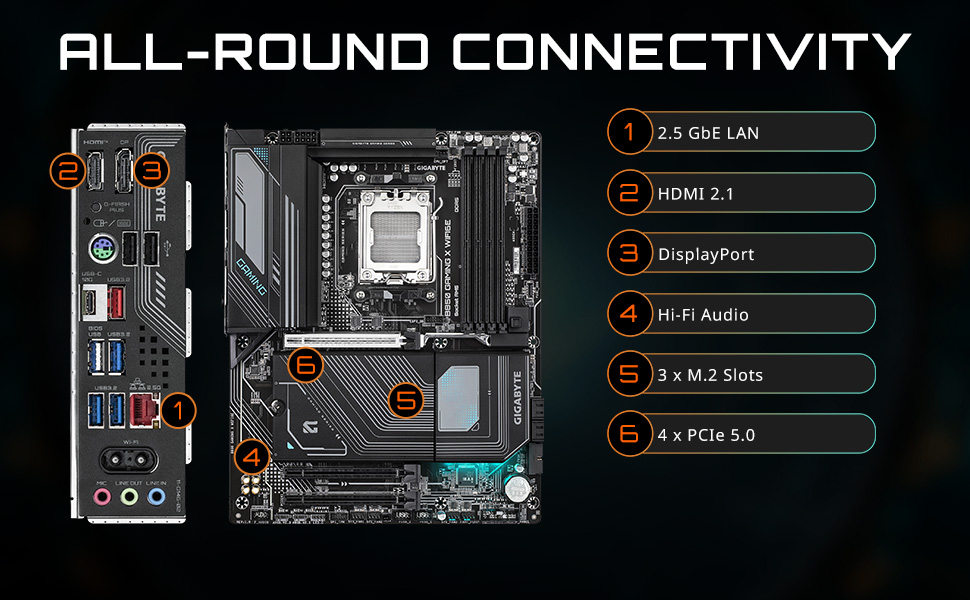

📡 NEXT-GEN CONNECTIVITY

• Wi-Fi 6E & 2.5GbE LAN: Lag-free wireless and wired performance with ultra-high gain antennas.
• USB 3.2 Gen2x2 Type-C: Blazing-fast 20Gbps transfer via front header.
• Triple M.2 Support: Includes one PCIe 5.0 x4 M.2 slot and two PCIe 4.0 x4 M.2 slots for next-gen NVMe SSDs.

🔊 AUDIO & AESTHETICS

• Realtek HD Audio: Immersive 7.1-channel sound with high-end capacitors and noise guard.
• RGB Fusion: Personalize your build with addressable RGB headers and synchronized lighting effects.
• Multi-Theme BIOS: User-friendly UC BIOS with AIO fan control and grayscale skin support.

📊 Expert Specs

Category	Specification
CPU Support	AMD Ryzen™ 9000 / 8000 / 7000 Series (Socket AM5)
Chipset	AMD B850
Memory	4× DDR5 DIMMs, Up to 256GB, Dual Channel, Up to 8200MT/s (OC), AMD EXPO™ & XMP
Graphics Outputs	1× HDMI 2.1 (4096×2160@60Hz), 1× DisplayPort 1.4 (3840×2160@144Hz)
Expansion Slots	1× PCIe 5.0 x16, 2× PCIe 3.0 x1
Storage Support	3× M.2 (1× PCIe 5.0, 2× PCIe 4.0), 4× SATA 6Gb/s, RAID 0/1/5/10
Audio	Realtek HD Audio, 7.1 Channels, Audio Noise Guard
LAN	Realtek 2.5GbE
Wi-Fi / Bluetooth	Wi-Fi 6E (802.11ax), Bluetooth 5.3

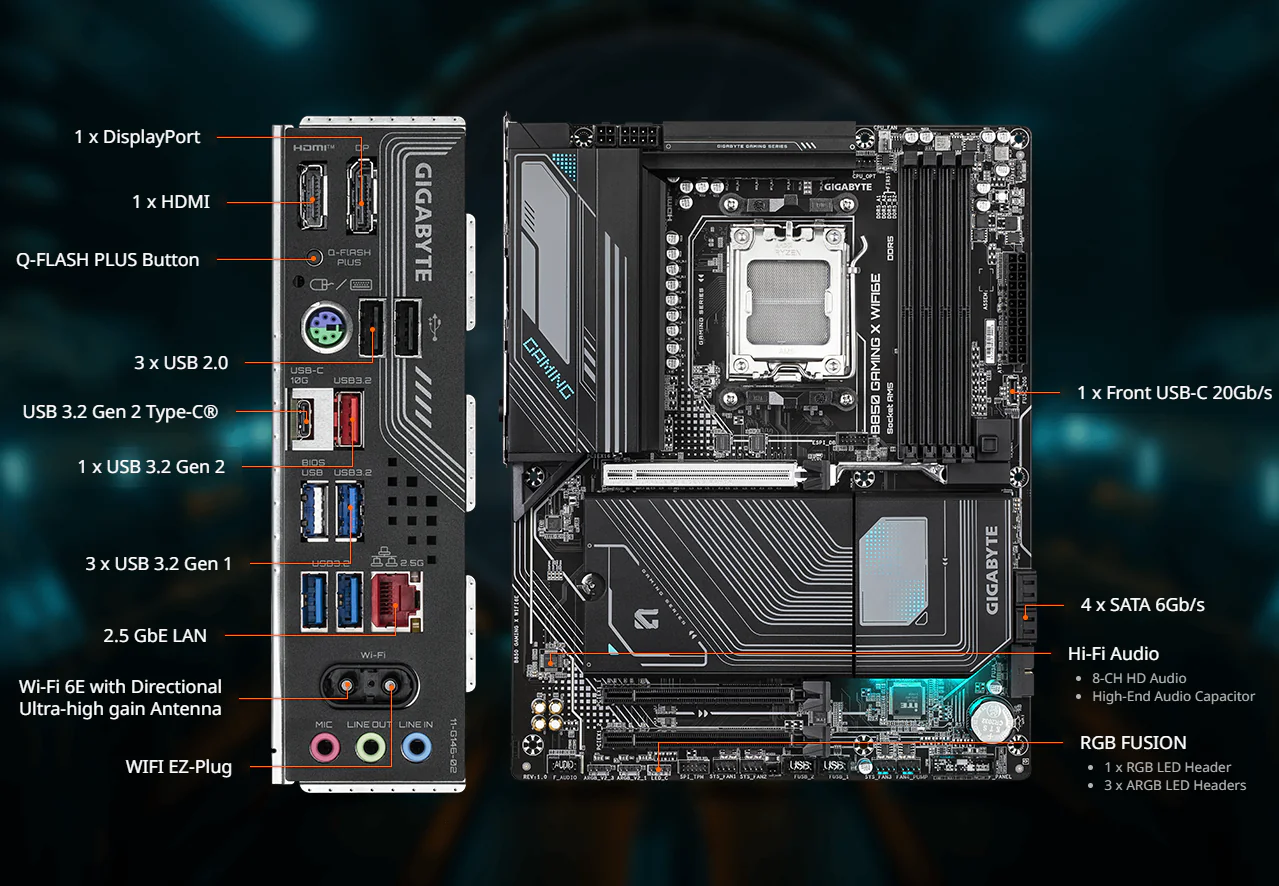

USB Ports	Rear: USB-C 3.2 Gen2, USB-A 3.2 Gen2, USB-A 3.2 Gen1, USB 2.0; Internal: USB-C Gen2x2, USB 3.2, USB 2.0
Internal Headers	3× ARGB, 1× RGB, 1× USB-C (Gen2x2), 1× USB 3.2, 2× USB 2.0, TPM, Audio, Fan headers
Cooling Support	1× CPU Fan, 1× CPU/WP Pump, 3× Sys Fan, 1× Sys/WP Pump
Form Factor	ATX
Special Features	EZ-Latch PCIe/M.2, Q-Flash Plus, RGB Fusion, Smart Fan 6, UC BIOS, AI Overclocking
BIOS	UC BIOS with Q-Flash, Multi-theme UI, AIO Fan Control, Debug Zone
