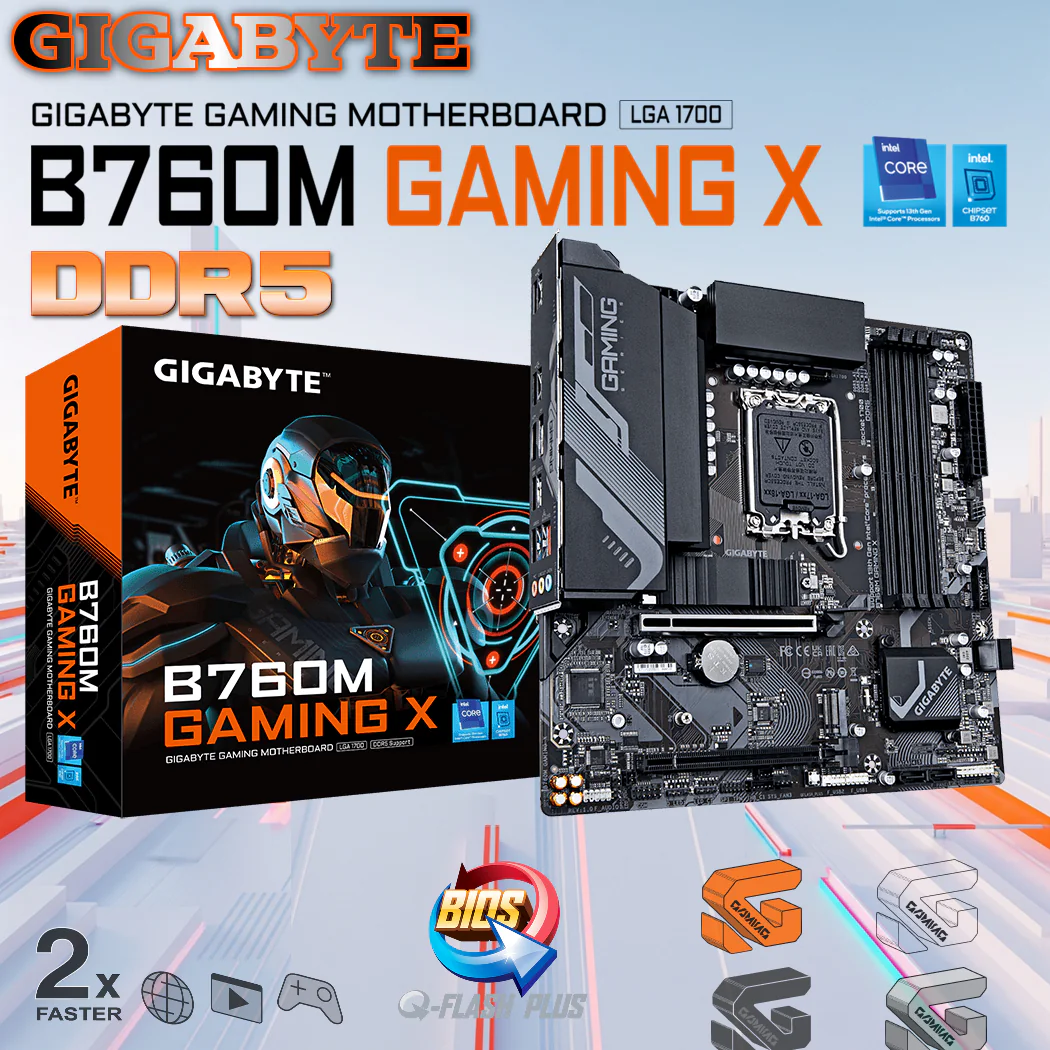

Gigabyte B760M Gaming X (Rev. 1.0) mATX Motherboard, Intel LGA1700, DDR5 7600 OC, 2x PCIe 4.0 M.2, 2.5GbE LAN, USB-C 10Gb/s, Smart Fan 6, Q-Flash Plus, RGB Fusion, HDMI+DP , Supports 14th, 13th, and 12th Gen Intel® Core™

Gigabyte B760M Gaming X (Rev. 1.0) mATX Motherboard, Intel LGA1700, DDR5 7600 OC, 2x PCIe 4.0 M.2, 2.5GbE LAN, USB-C 10Gb/s, Smart Fan 6, Q-Flash Plus, RGB Fusion, HDMI+DP , Supports 14th, 13th, and 12th Gen Intel® Core™

177 $

Quantity
Categories: ,

🔥 Expert Features

  • CPU Support You Can Count On: Designed for 14th, 13th, and 12th Gen Intel® Core™, Pentium® Gold, and Celeron® processors via LGA1700 socket.

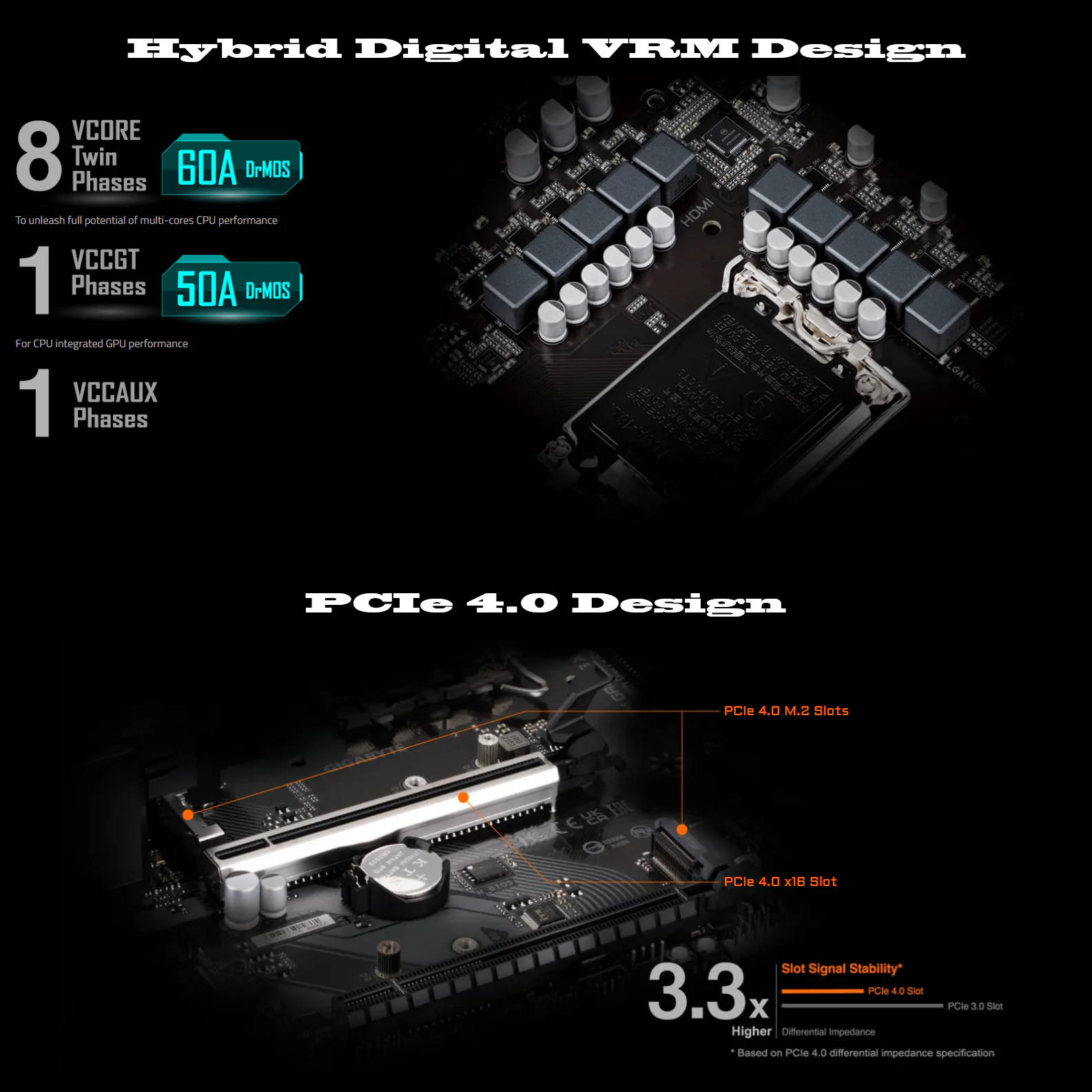

  • Hybrid 8+1+1 Phases Digital VRM Solution: Ensures stable and efficient power delivery, even during intense multitasking or gaming.

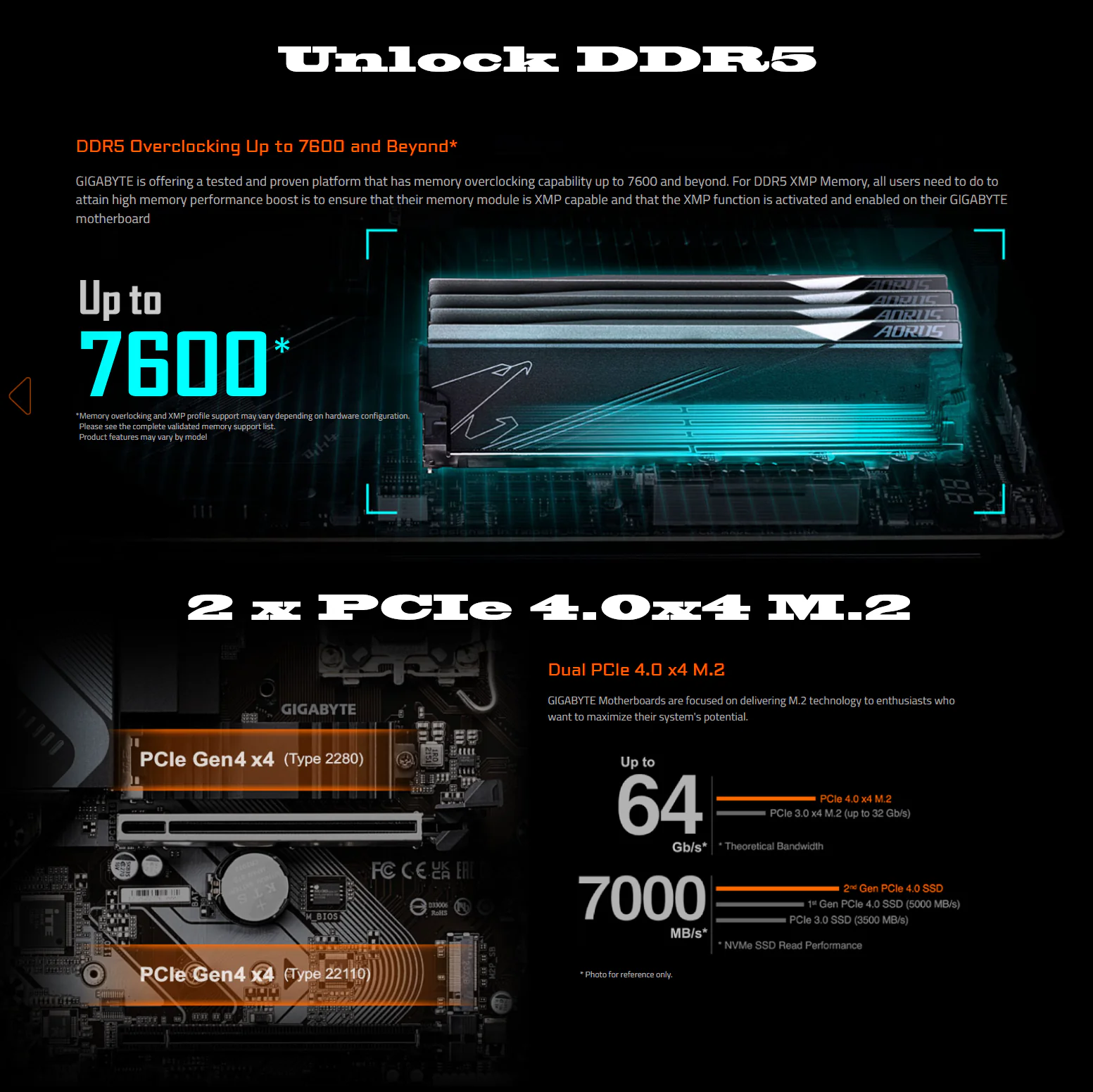

  • Unleash DDR5 Potential: Supports DDR5 memory up to 7600MHz (OC), with dual-channel architecture and XMP module compatibility for ultimate performance.
  • Dual PCIe 4.0 x4 M.2 Slots: Next-gen storage support with thermal guards to prevent throttling and maintain peak SSD performance.
  • PCIe EZ-Latch: Hassle-free GPU installation and removal thanks to an innovative quick-release design.
  • Smart Fan 6: Multiple temp sensors and hybrid fan headers (with Fan Stop) for dynamic cooling without the noise.

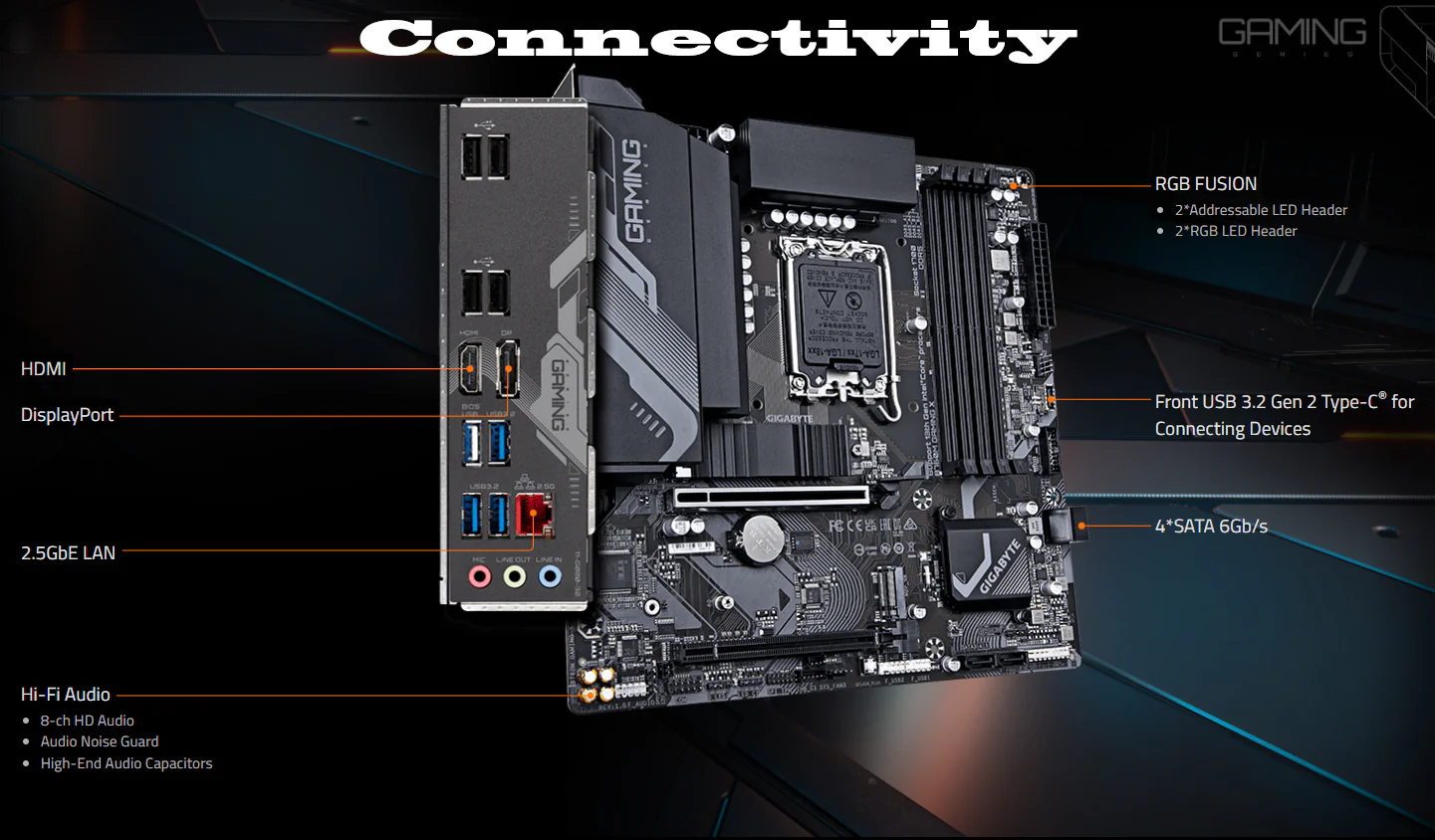

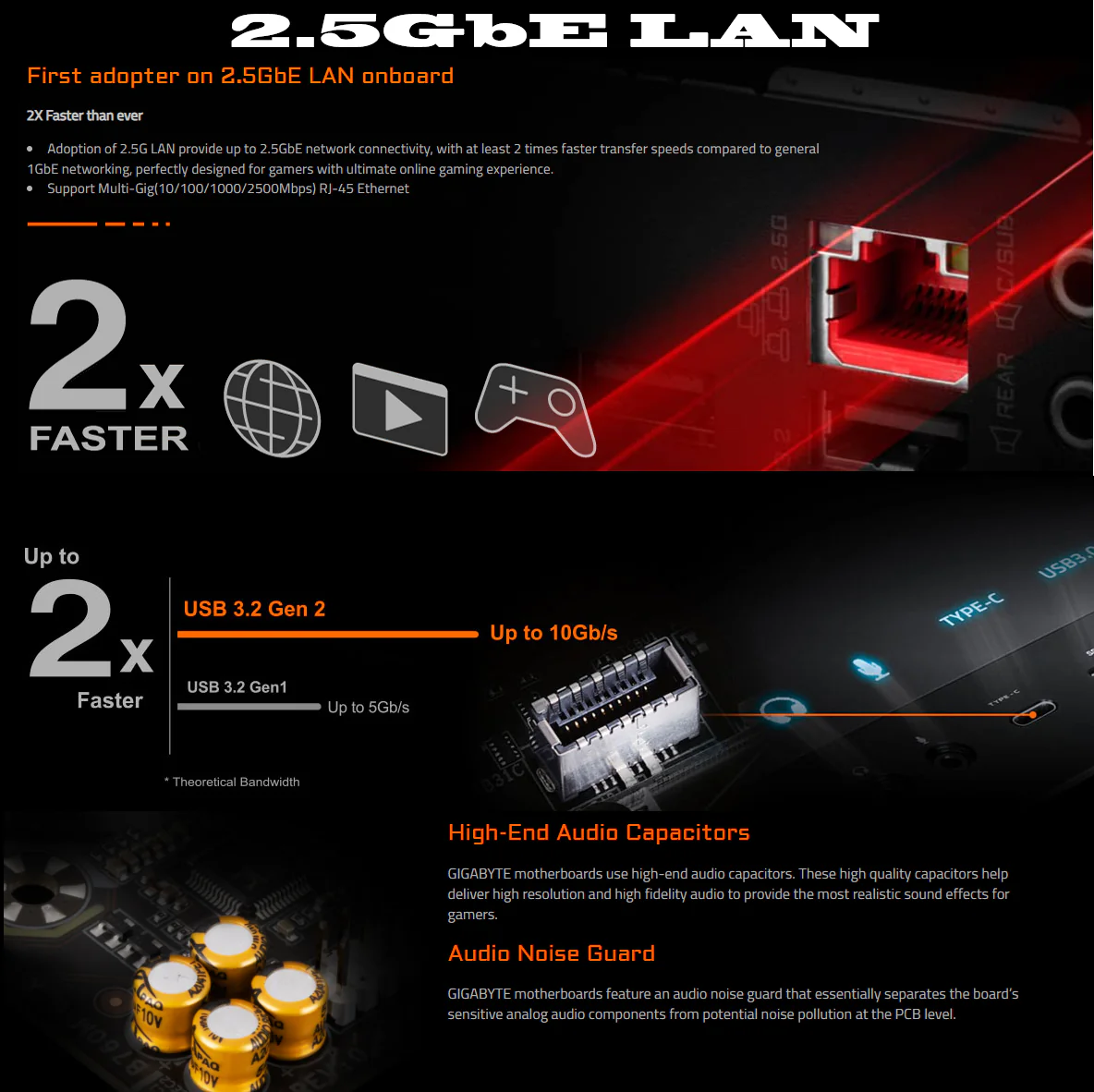

  • 2.5GbE LAN: Lightning-fast networking with Realtek 2.5GbE chip for minimal latency and max bandwidth.
  • USB-C® 10Gb/s Front Panel Support: For high-speed file transfers and modern peripherals—future-ready connectivity at your fingertips.
  • DisplayPort & HDMI: Native support for 4K resolution @60Hz through both DisplayPort and HDMI 2.1.
  • Hi-Fi Audio Experience: High-end capacitors and an audio noise guard deliver immersive sound for gaming and media.

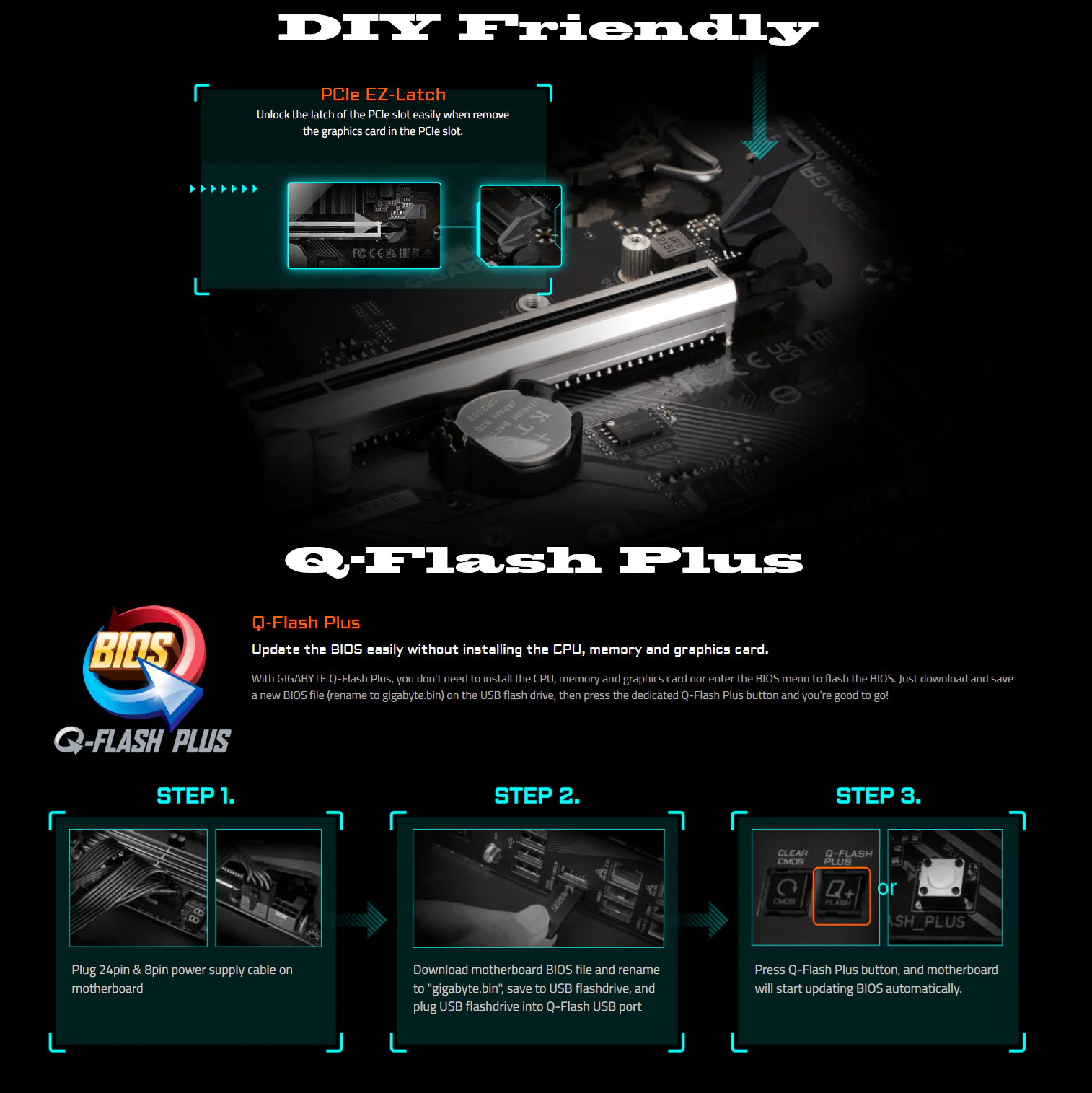

  • Q-Flash Plus: Update BIOS without CPU, memory, or GPU—DIY-friendly to the max.
  • RGB Fusion: Personalize your rig with addressable LED headers and traditional RGB support.

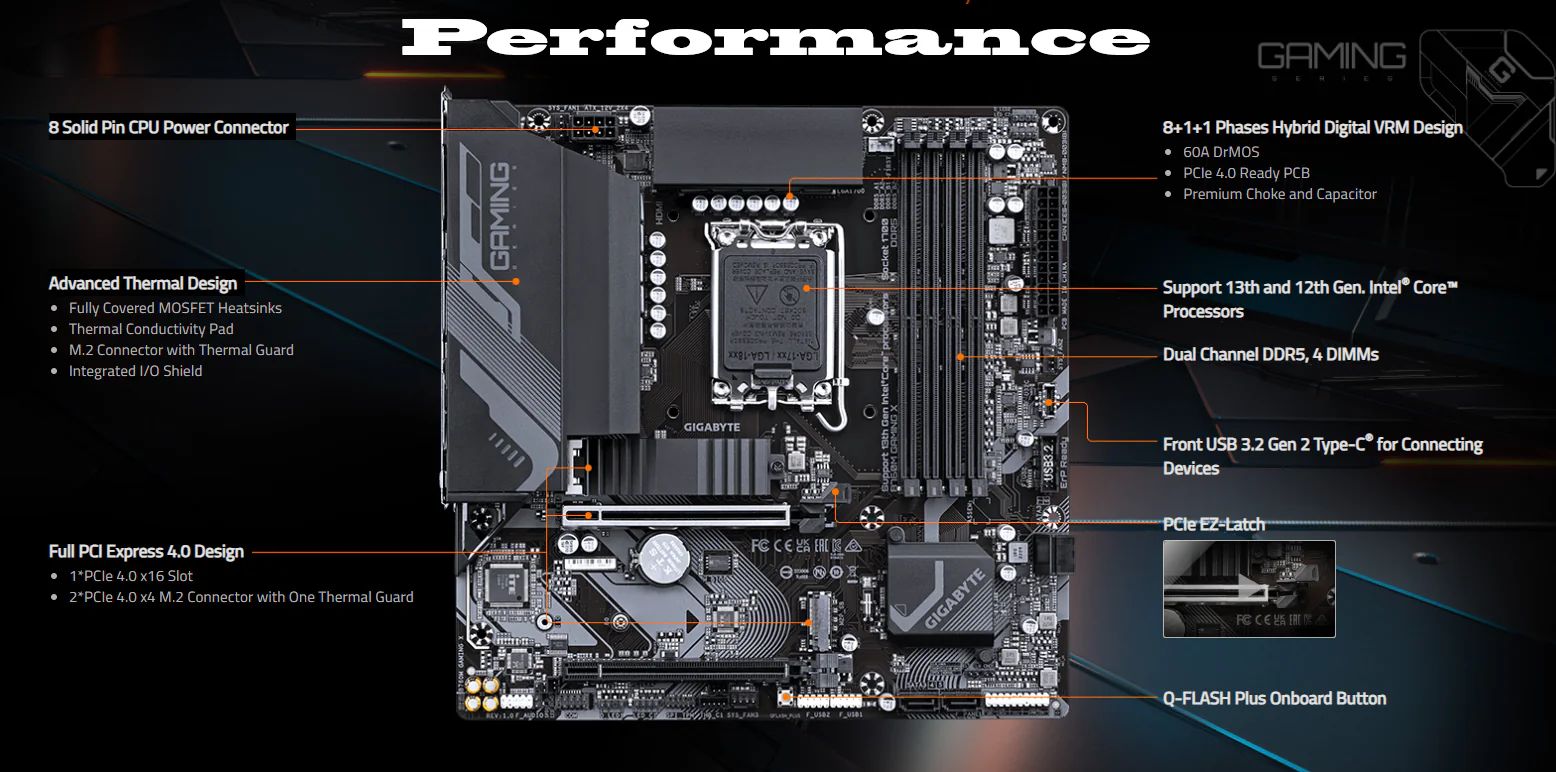

  • Ultra Durable Design: Premium components, reinforced slots, and thermal armor—built for performance and longevity.

📊 Expert Specs

Category Details
CPU Socket LGA1700 (Supports Intel® 14th/13th/12th Gen)
Chipset Intel® B760 Express Chipset
Memory Support 4x DDR5 DIMM, up to 256GB, up to 7600MHz (OC), Dual-Channel, XMP Ready
Storage 2x M.2 PCIe 4.0 x4, 4x SATA 6Gb/s
Expansion Slots 1x PCIe 4.0 x16, 1x PCIe 3.0 x4
USB Ports 1x USB-C 10Gb/s (internal), 5x USB 3.2 Gen1, 9x USB 2.0
LAN Realtek® 2.5GbE (2.5G/1G/100M)
Audio Realtek® Audio CODEC, 7.1-Channel, S/PDIF Out
Graphics Outputs 1x HDMI 2.1, 1x DisplayPort 1.2 (Up to 4K@60Hz)
Cooling Features Fully Covered VRM Heatsink, M.2 Thermal Guard, Smart Fan 6
RGB Support 2x Addressable LED Headers, 2x RGB LED Headers
Form Factor Micro ATX (24.4cm x 24.4cm)
BIOS AMI UEFI BIOS, Q-Flash & Q-Flash Plus Supported
OS Compatibility Windows 11 64-bit, Windows 10 64-bit
Software GIGABYTE Control Center, Norton Security (OEM), Bandwidth Manager
