GAMDIAS CHIONE E4 420mm AIO ARGB BLACK CPU Water Cooler, Real-time Digital Display Patented PWM Pump, Hidden Cable Design, ARGB PWM Fan w/MB Sync, Intel LGA 1700/1200, AMD AM5/AM4 | BLACK GHIONE-E4-420-B

GAMDIAS CHIONE E4 420mm AIO ARGB BLACK CPU Water Cooler, Real-time Digital Display Patented PWM Pump, Hidden Cable Design, ARGB PWM Fan w/MB Sync, Intel LGA 1700/1200, AMD AM5/AM4 | BLACK GHIONE-E4-420-B

103 $

Quantity
Categories: ,

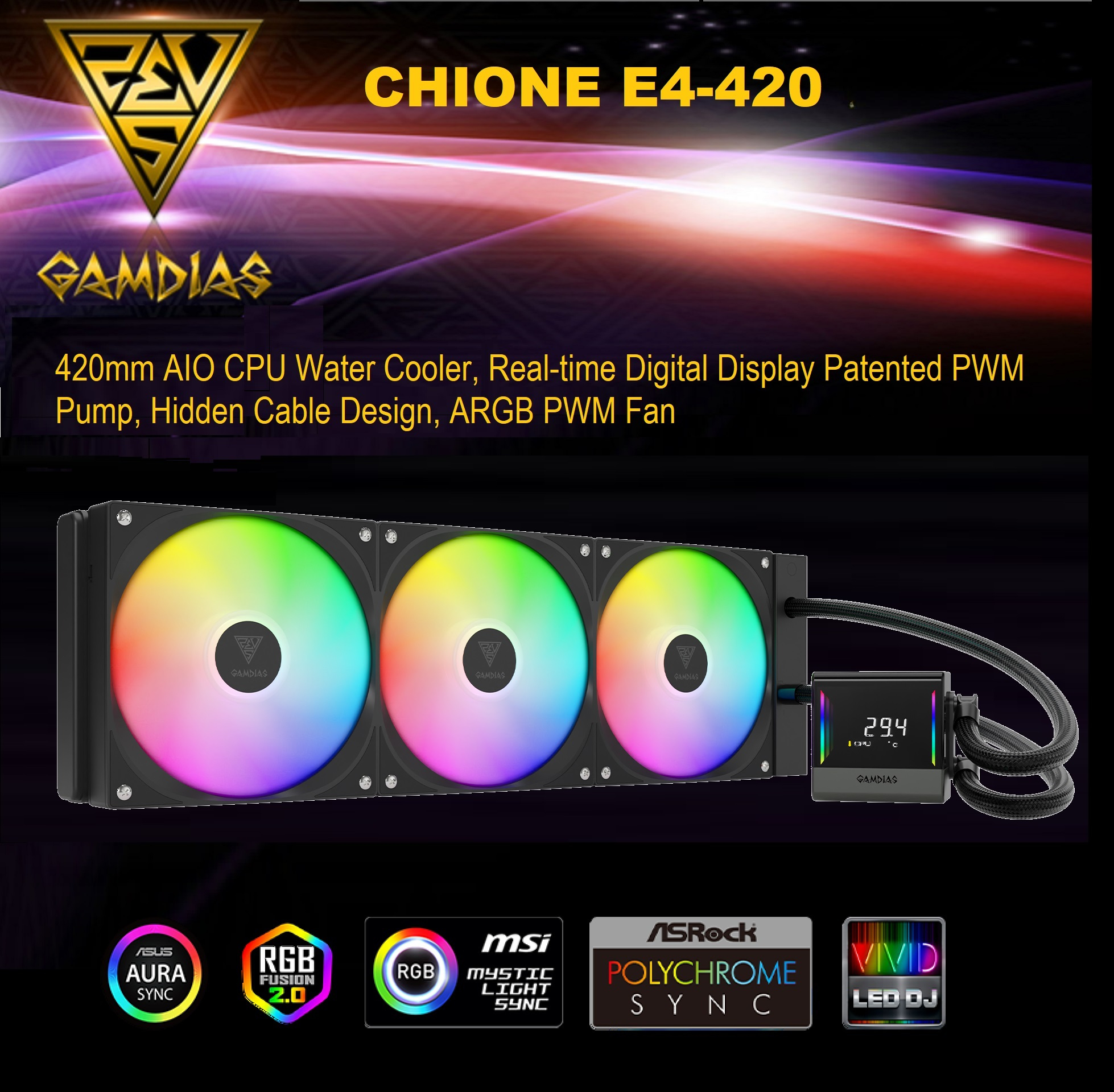

CHIONE E4 420mm ARGB BLACK CPU LIQUID Cooler

Expert Features

  • Real-time Display: The CHIONE E4-420 WH empowers users to monitor real-time system information through the intuitive ZEUS CAST software. This versatile software enables the selection of display modes, including CPU temperature, temperature alarms, and fan speed RPM information.
  • Upgraded PWM Pump: The CHIONE E4-420 WH features a patented PWM pump operating at 4600 RPM positioned on the side of the radiator, providing elite performance and extending lifespan due to reduced bracket vibration. Additionally, the detachable chamber streamlines the fan installation process.
  • Radiator Optimized Fans: Engineered to enhance airflow efficiency, the PWM fans operate at speeds of up to 1800 RPM, delivering exceptional static air pressure and airflow rates of up to 73.36 CFM. These hydraulic bearing fans incorporate PWM functionality and customizable RGB lighting, ensuring optimal cooling performance and visually captivating aesthetics.
  • Effortless Cable Management: The meticulously designed hidden cable routing mechanism effectively addresses cable management challenges, resulting in a clean and organized system build.
  • Universal Compatibility: The CHIONE E4 Series ensures seamless installation on both Intel and AMD platforms, including LGA 1700 and AM5 socket compatibility, facilitated by the inclusion of universal mounting kits.

Expert Specs

  • Dimensions 140 x 140 x 25 mm
  • Speed 450 – 1800 RPM±10%
  • Noise Level 11 – 35.2 dBA
  • Air Flow 100.28 CFM
  • Air Pressure 2.57 mmH2O
  • Bearing Hydraulic
  • Rated Voltage 12 V (Fan) / 5V(LED)
  • Connector PWM & 5V sync
  • Support PWM Control Yes
  • Radiator Dimensions 456 x 140 x 27 mm
  • Tube Material EPDM
  • Base Plate Material Copper
  • Radiator Material Aluminum
  • Sleeved Tube Yes
  • Pump Rated Voltage 12 V (Pump)
  • Pump Connector 4 Pin
  • Compatibility LGA2066 / 2011-v3 / 2011 / 1700 / 1200 / 1151 / 1150 / 1155 / 1156 / AM5 / AM4 / AM3+ / AM3 / AM2+ / AM2 / FM2+ / FM2 / FM1
  • Support Motherboard RGB Sync Connectors : 5V 3-pin addressable (digital) RGB header Only
