Expert Features

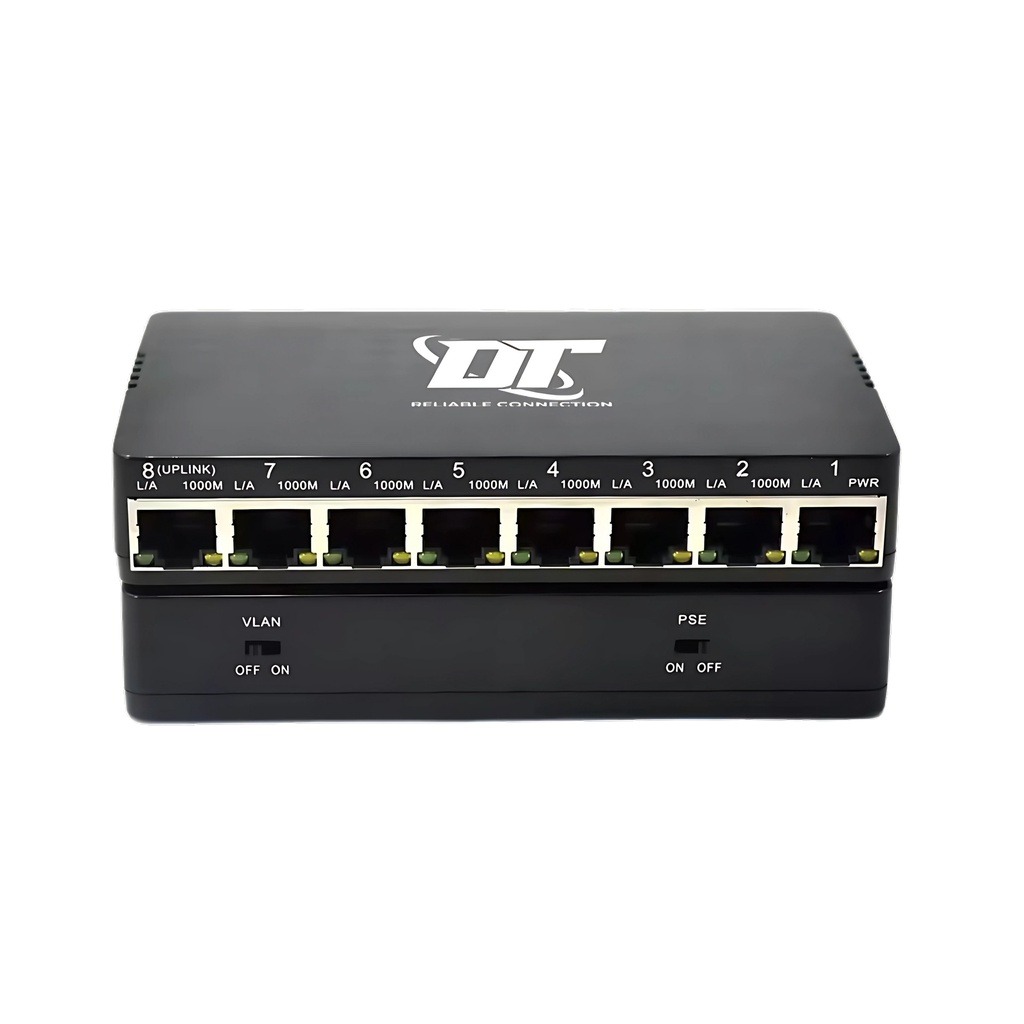

• Reverse PoE Design (7 In + 1 Out)
  Powered via PoE on up to 7 input ports, delivering power and data through a single cable, with 1 PoE output port to power another device—ideal for flexible deployments where power outlets are limited.
• Full Gigabit Performance
  All 8 RJ45 ports support 10/100/1000Mbps auto-negotiation, ensuring fast and stable data transmission for IP cameras, access points, routers, and network devices.
• Non-Blocking Switching Capacity
  With 16Gbps switching bandwidth and 11.904 Mpps forwarding rate, the switch delivers smooth, full wire-speed performance without congestion.
• Store-and-Forward Architecture
  Ensures reliable packet transmission with error checking, improving overall network stability and data integrity.
• Long & Standard Cable Support
  Supports up to 250m at 10Mbps and 100m at 100/1000Mbps using standard CAT3/4/5 UTP cables.
• Jumbo Frame Support
  Handles 9216-byte jumbo frames, improving efficiency for large data transfers and reducing CPU load on connected devices.
• Energy Efficient & Low Power Consumption
  Consumes ≤3W, making it suitable for continuous operation in small network environments.
• Simple Plug & Play Operation
  No configuration required. Automatic MDI/MDIX, half/full duplex auto-adaptation, and LED indicators for easy monitoring.
• Compact & Durable Design
  Space-saving form factor ideal for desktop, cabinet, or embedded installations in offices, surveillance systems, and telecom setups.

Expert Specs
