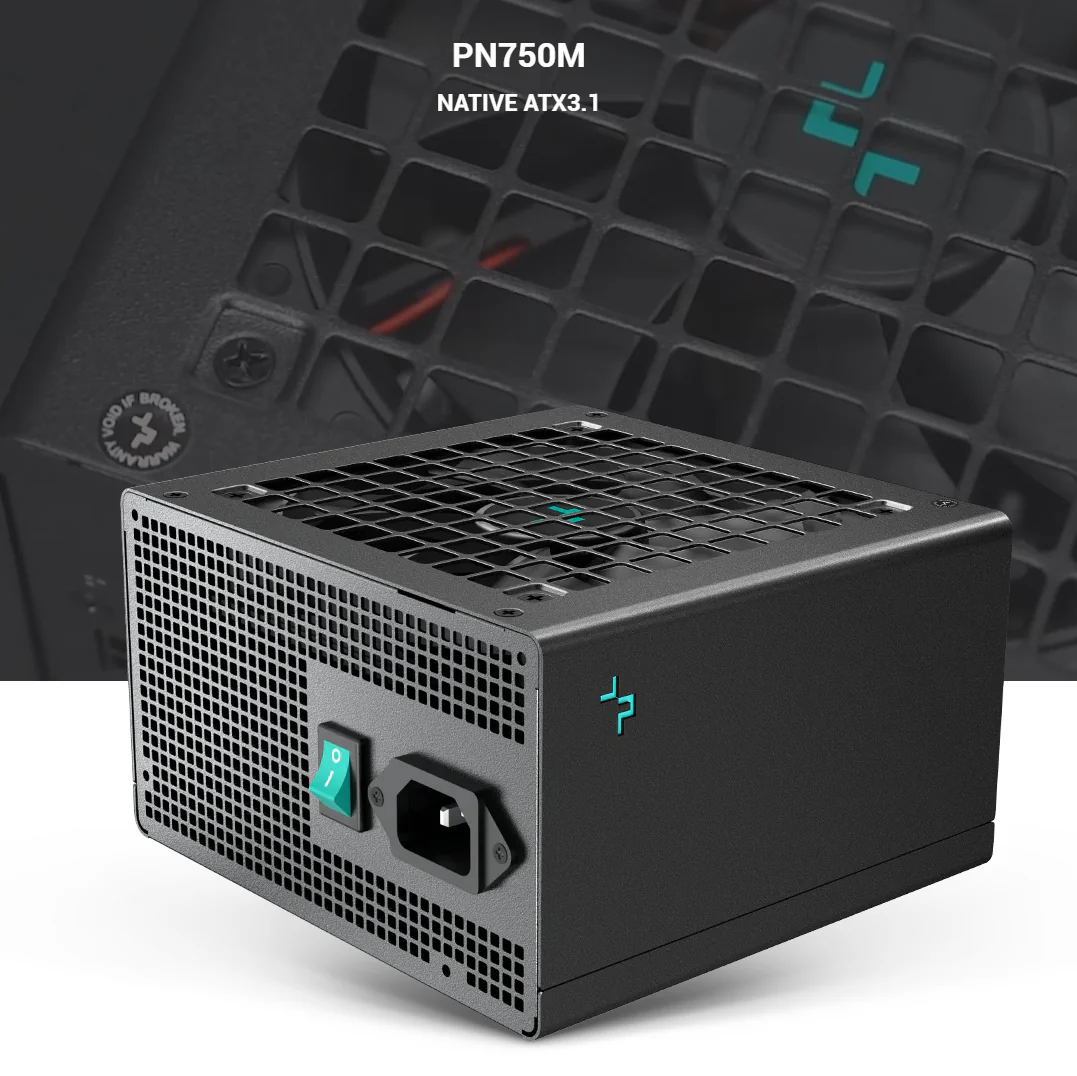

DeepCool PN750M 750W Power Supply With ATX 3.1, PCIe 5.1, 80 Plus Gold, Cybernetics Gold, 120mm FDB Fan, 450W 12V-2×6 GPU Cable, Japanese Capacitor, Compact 140mm Design | BLACK

109 $

Quantity

Expert Features

  • ATX 3.1 & PCIe 5.1 Ready – Built to support modern and future hardware standards with native compatibility and full-power stability.
  • 12V-2×6 GPU Power Cable – Includes a 16AWG embossed copper-core cable rated for up to 450W—ready for high-performance GPUs.

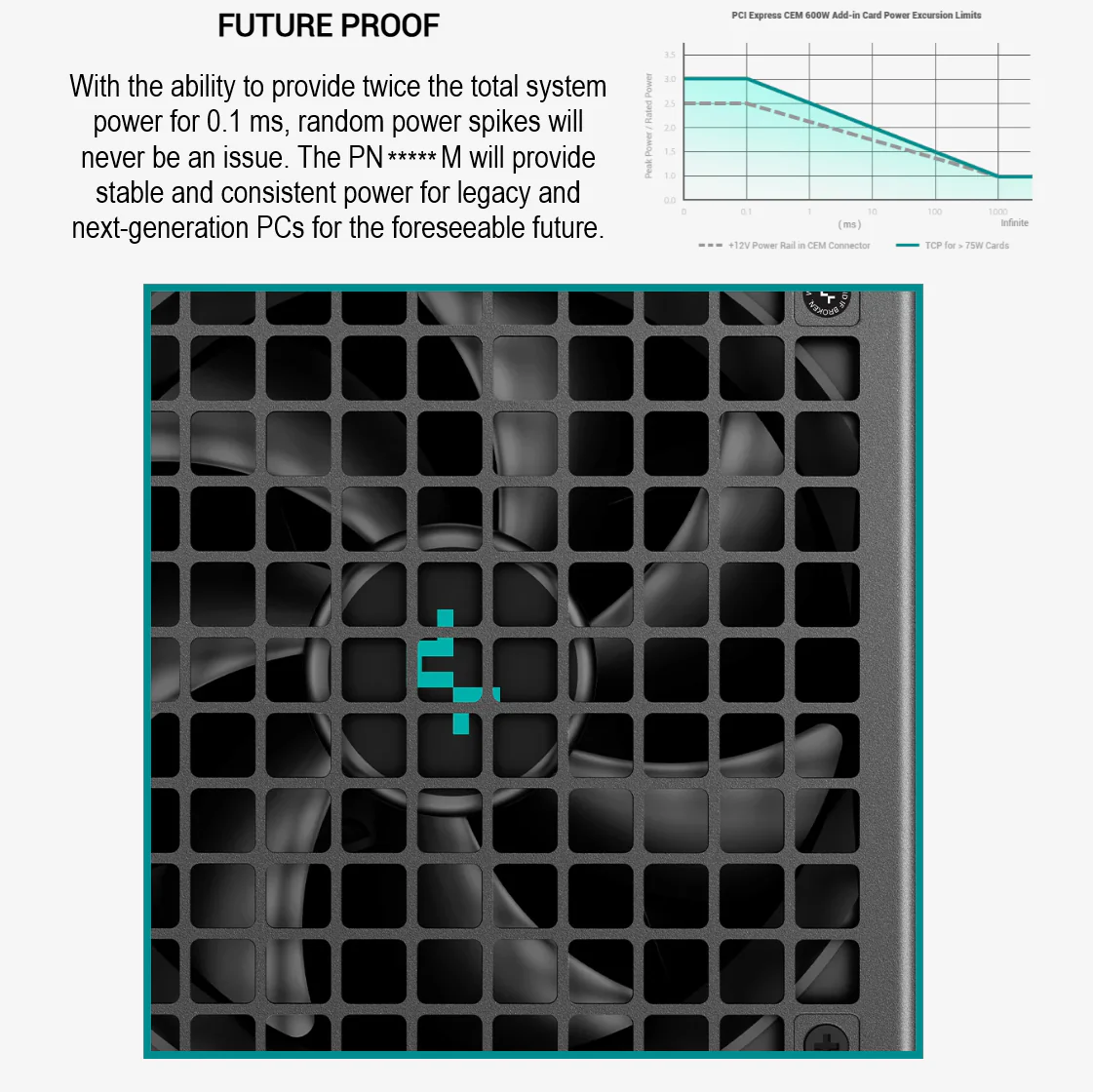

  • Power Spike Tolerance – Delivers up to 2× system power for 0.1ms to absorb those sudden GPU surges without crashing your rig.

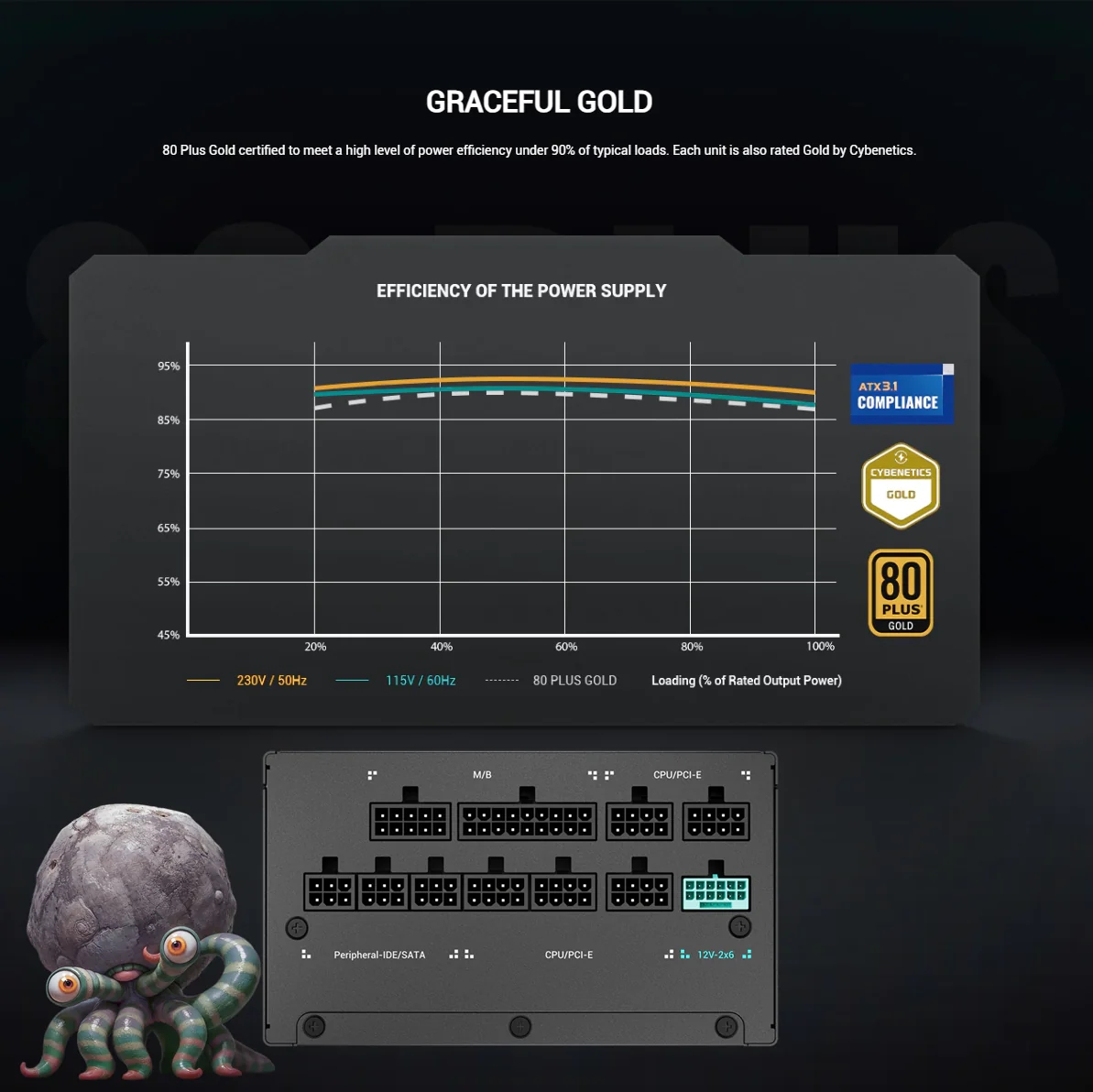

  • 80 PLUS Gold Certified – Runs at ≥90% efficiency at 50% load—better thermals, less noise, and reduced power bills.

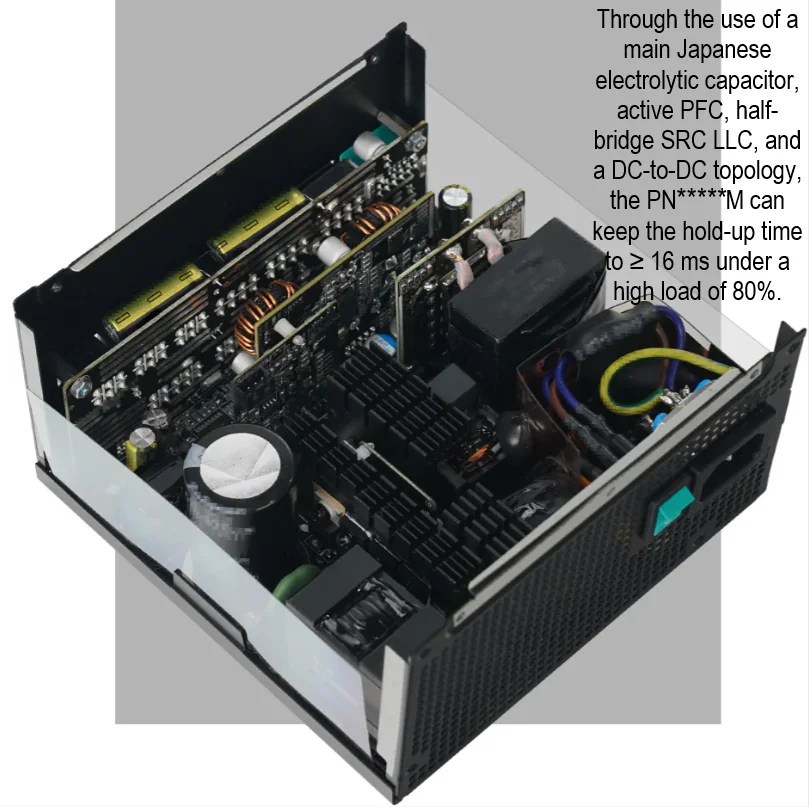

  • Top-Notch Internals – Features a Japanese main capacitor, Active PFC, Full Bridge SRC LLC, and DC-to-DC conversion for clean, stable voltage.

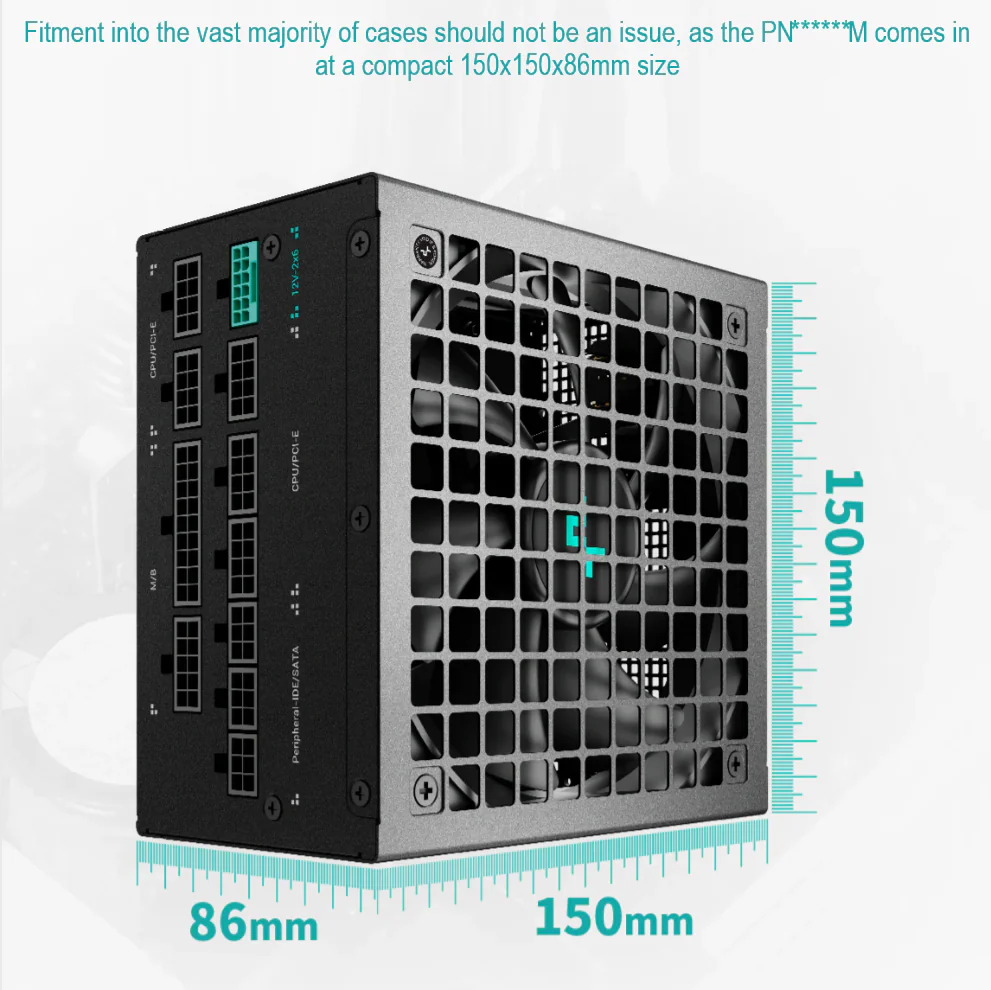

  • Space-Saving Design – Compact 150 x 140 x 86mm form factor fits most cases with ease.

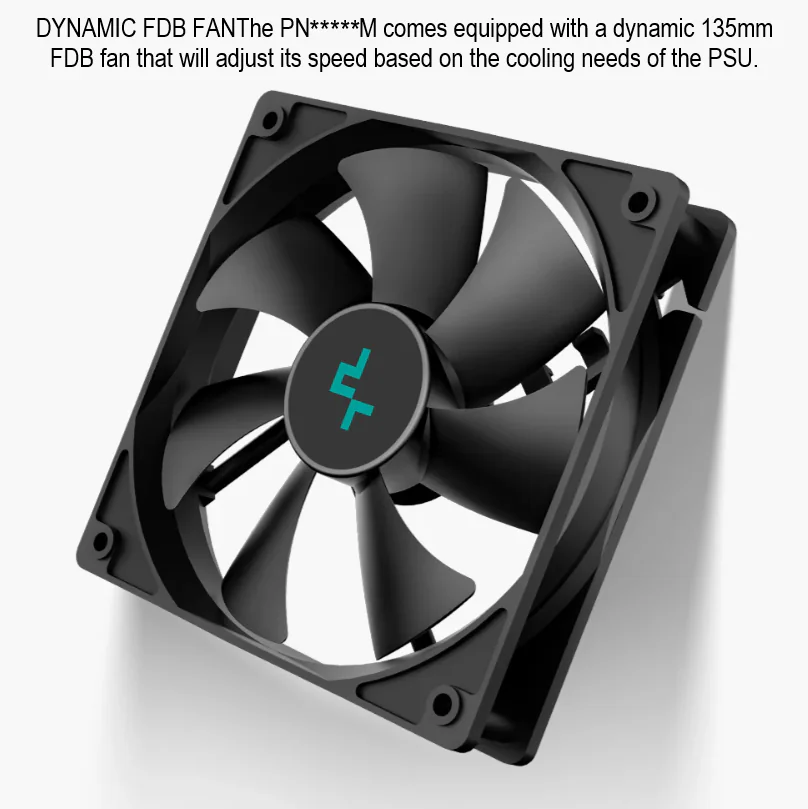

  • FDB Cooling Fan – A smart 120mm Fluid Dynamic Bearing fan adjusts speed based on power load and temp—cool, quiet, efficient.

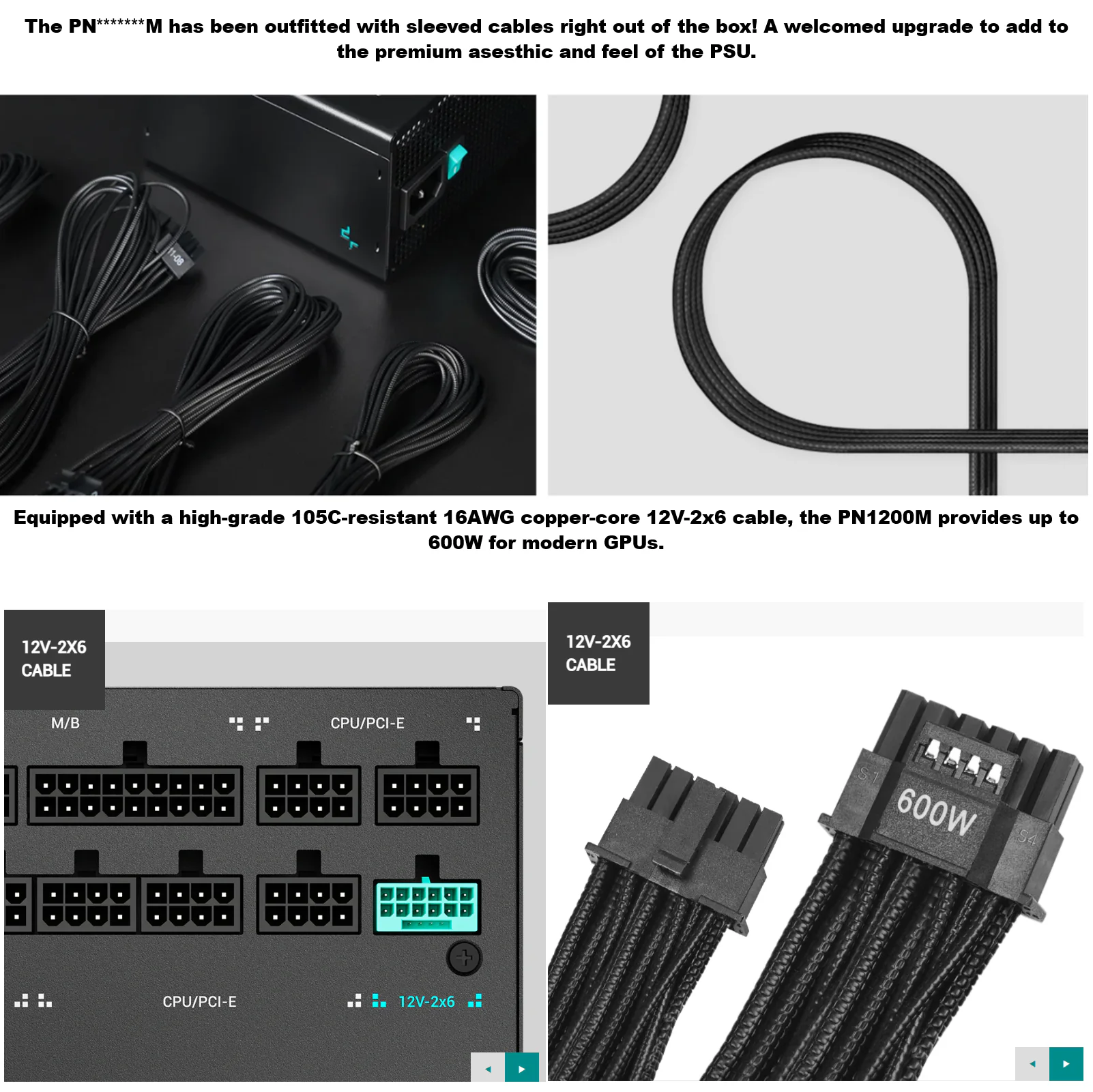

  • Sleeved Cables Included – Comes with premium sleeved cables for clean builds and zero extra effort.

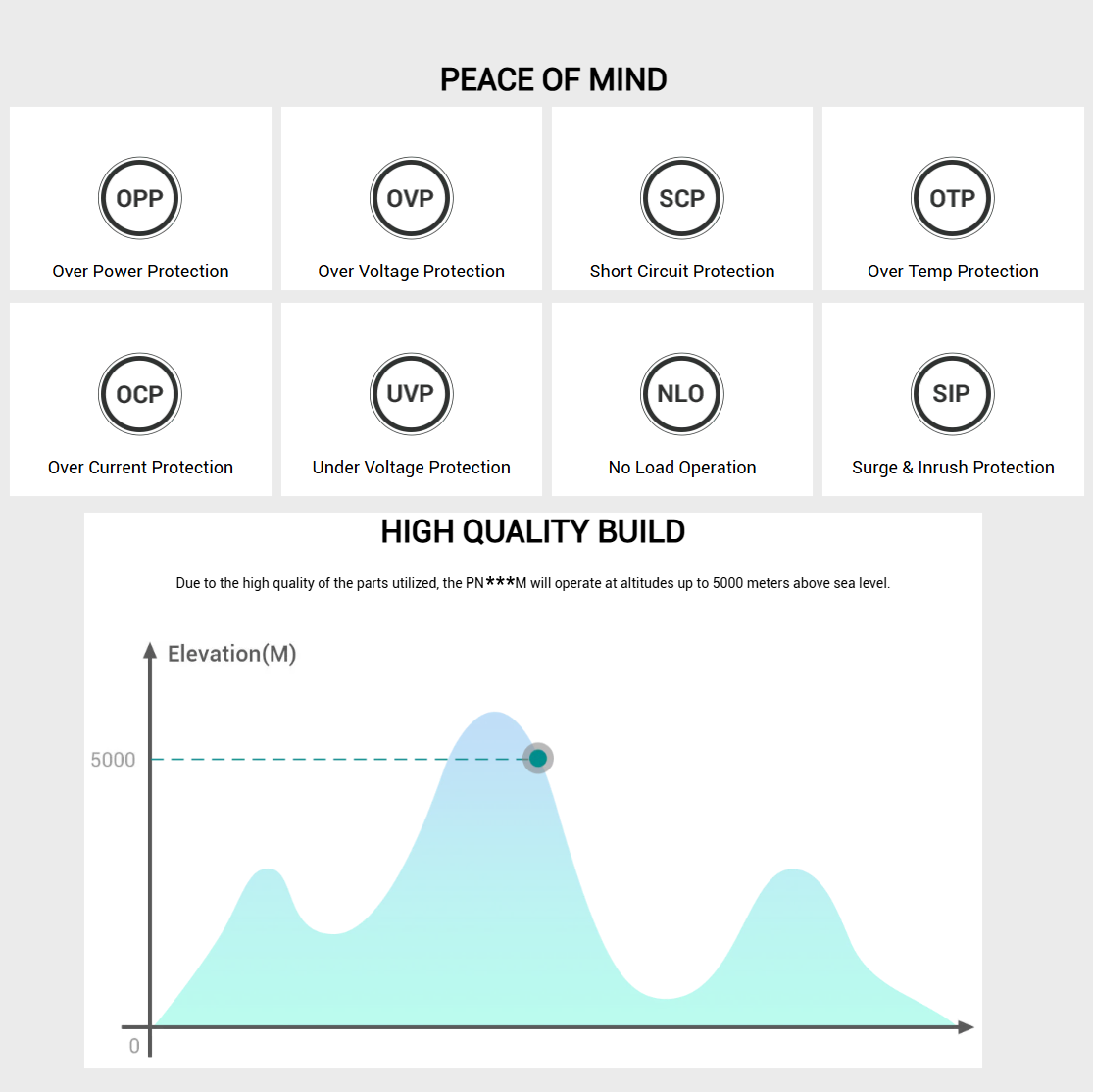

  • High Altitude Capable – Designed to perform even at 5000 meters above sea level—ideal for global use.
  • Complete Safety Suite – Full protection against all critical risks: OVP, UVP, OPP, SCP, OTP, OCP, SIP, NLO.
  • Global Certification & Eco Standards – Fully compliant with major international standards, from CE to RoHS.
  • 1-Year Warranty – A full year of DeepCool backing (*non-mining usage only).

📊 Expert Specs

Specification Details
Model Name DeepCool PN750M
Form Factor ATX12V v3.1
Dimensions (W x L x H) 150 x 140 x 86 mm
Efficiency Certification 80 PLUS Gold / Cybenetics Gold
Efficiency ≥90% at 50% load
Fan Size & Type 120mm Fluid Dynamic Bearing (FDB)
Main Capacitor Japanese Bulk Capacitor
Topology Active PFC + Full Bridge SRC LLC + DC to DC
Hold-Up Time ≥16ms at 80% load
Power Good Signal 100–150ms
Connectors 24-pin x1, 4+4-pin CPU x2, 6+2-pin PCIe x3, 12V-2×6 x1
SATA & Peripheral SATA x4 + 4-pin Molex x1 (x2 bundles)
Protection Features OPP, OVP, SCP, OTP, OCP, UVP, SIP, NLO
Operating Temp. Range 0°C to 40°C
Altitude Rating Up to 5000 meters above sea level
Regulatory Compliance CE, FCC, CCC, TUV-RH, cTUVus, RCM, EAC, BIS
Eco Compliance WEEE, China RoHS, Triman, Prop 65
ErP Compliance ErP Lot 6 2014
MTBF 100,000 hours
