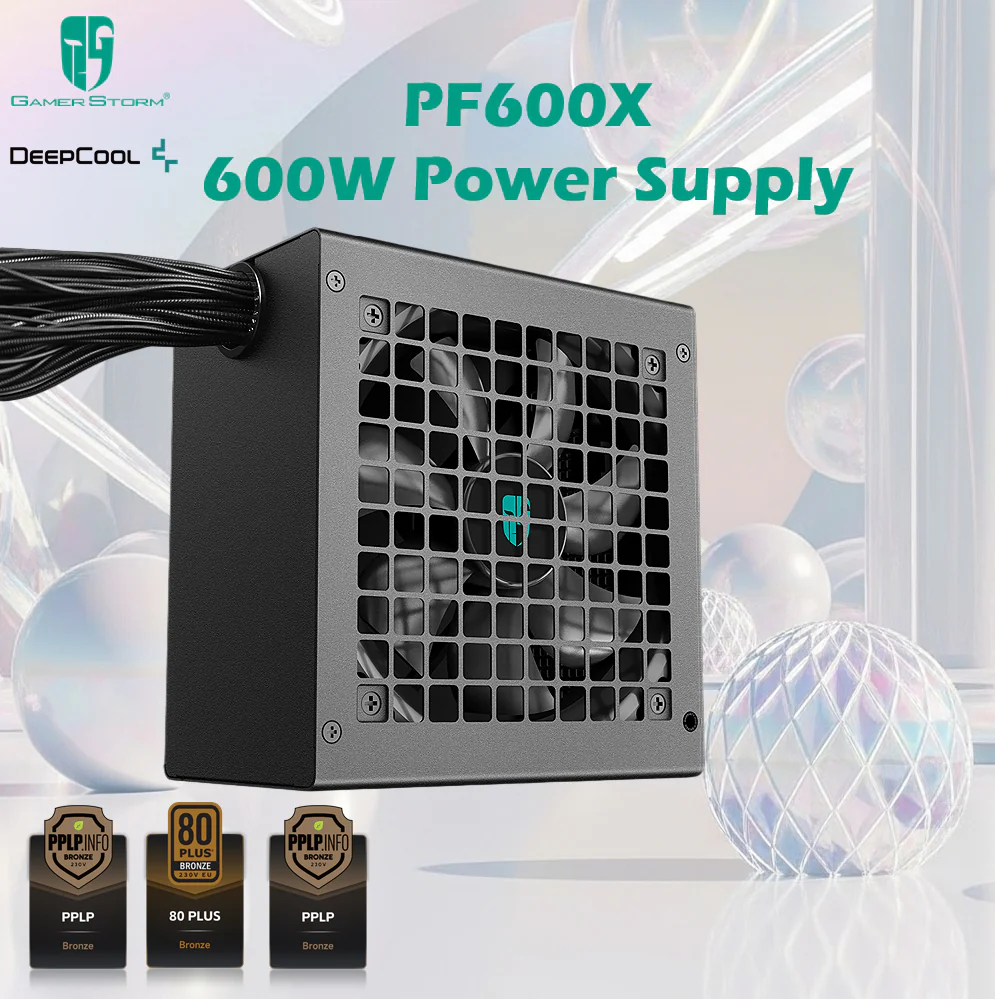

DeepCool Gamer Storm PF600X 600W 80+ Bronze Power Supply With Japanese Capacitors, Wide Voltage Adaptation, Long-Life Fan, And Full Protection Suite

47 $

Quantity

🛠 Expert Features

  • Triple Bronze-Certified Efficiency – Officially blessed by 80 PLUS, Cybenetics, and PPLP with ≥88% efficiency at 50% load. Less wasted energy = more watts for epic battles.
  • Premium Capacitor Army – Reinforced with Taiwanese solid capacitors and Japanese standby capacitors for ultra-reliable hold-up times (≥16ms @ 75% load). When others crash, this PSU holds the line.
  • Intel ATX 2.52 Compliant – Modern Active PFC + Double Forward + DC-to-DC topology slays ripple noise, reduces voltage deviation, and ensures your GPU and CPU always get clean power.
  • Voltage Warrior – Survives between 180V–264V with full-load stability. Even if your grid drops to 160V, this beast refuses to bow out.
  • Fan That Never Quits – A 120mm Long-Life HYB Bearing Fan with aerodynamic PCB-friendly design ensures 24/7 operation at 40°C. 40,000-hour MTBF = endless uptime.
  • Eight Shields of Protection – OPP, OVP, SCP, OTP, OCP, UVP, SIP, and NLO. In geek speak: it’s basically the Gandalf of power supplies (“You shall not pass!” to power surges).
  • Cable Management That Doesn’t Suck – Outfitted with custom-molded sleeved cables for smoother installs and airflow-friendly routing.
  • Battle-Tested Warranty – Backed by a 1-Year Limited Warranty so you can game, stream, or code with zero worries.

🧾 Expert Specs

Category Details
Model PF600X
Model No. PF600X-HD
Total Output Power 600W
Form Factor ATX12V v2.52
Dimensions (W x L x H) 150 × 140 × 86 mm
Efficiency Certification 80PLUS 230V EU Bronze / Cybenetics Bronze / Cybenetics A 230V / PPLP Bronze
Fan Size 120mm
Fan Bearing Long-Life HYB
Topology Active PFC + Double Forward + DC-to-DC
Capacitors Taiwanese Solid + Japanese Electrolytic
Power Good Signal 100–150ms
Hold-Up Time ≥16ms (75% Load)
Efficiency ≥88% Under Typical Load (50%)
Protections OPP / OVP / OCP / SCP / OTP / UVP / SIP / NLO
Operating Temperature 0–40°C
Regulatory CE / TUV-RH / CCC / RCM / KC
ErP Regulation ErP 2014
Eco Compliance WEEE / China RoHS / Triman
MTBF 40,000 Hours
AC Input Voltage 200–240V
AC Input Current 5A
AC Input Frequency 50–60Hz
DC Output Rails +3.3V (16A) / +5V (16A) / +12V (50A) / -12V (0.3A) / +5VSB (3A)
DC Output Max 100W (+3.3V & +5V), 600W (+12V), 3.6W (-12V), 15W (+5VSB)
Total Output 600W
Main Connector 24(20+4)-Pin ×1
CPU Connector 4+4-Pin ×1
PCI-E Connector 6+2-Pin ×2
Peripheral Connectors SATA ×3 + 4-Pin Peripheral ×1 (×2 cables)
