DeepCool CH270 DIGITAL Micro-ATX Gaming Case – Tempered Glass Side Panel, Digital Display Base, High Airflow Mesh, 413mm GPU Support, USB 3.0 & Gen2 Type-C | BLACK
70 $
Categories: Computer Cases, COMPUTER PARTS
Expert Features
- Micro-ATX Ready: Designed for Mini-ITX and Micro-ATX motherboards, including rear connector layouts with expanded clearance for modern hardware.

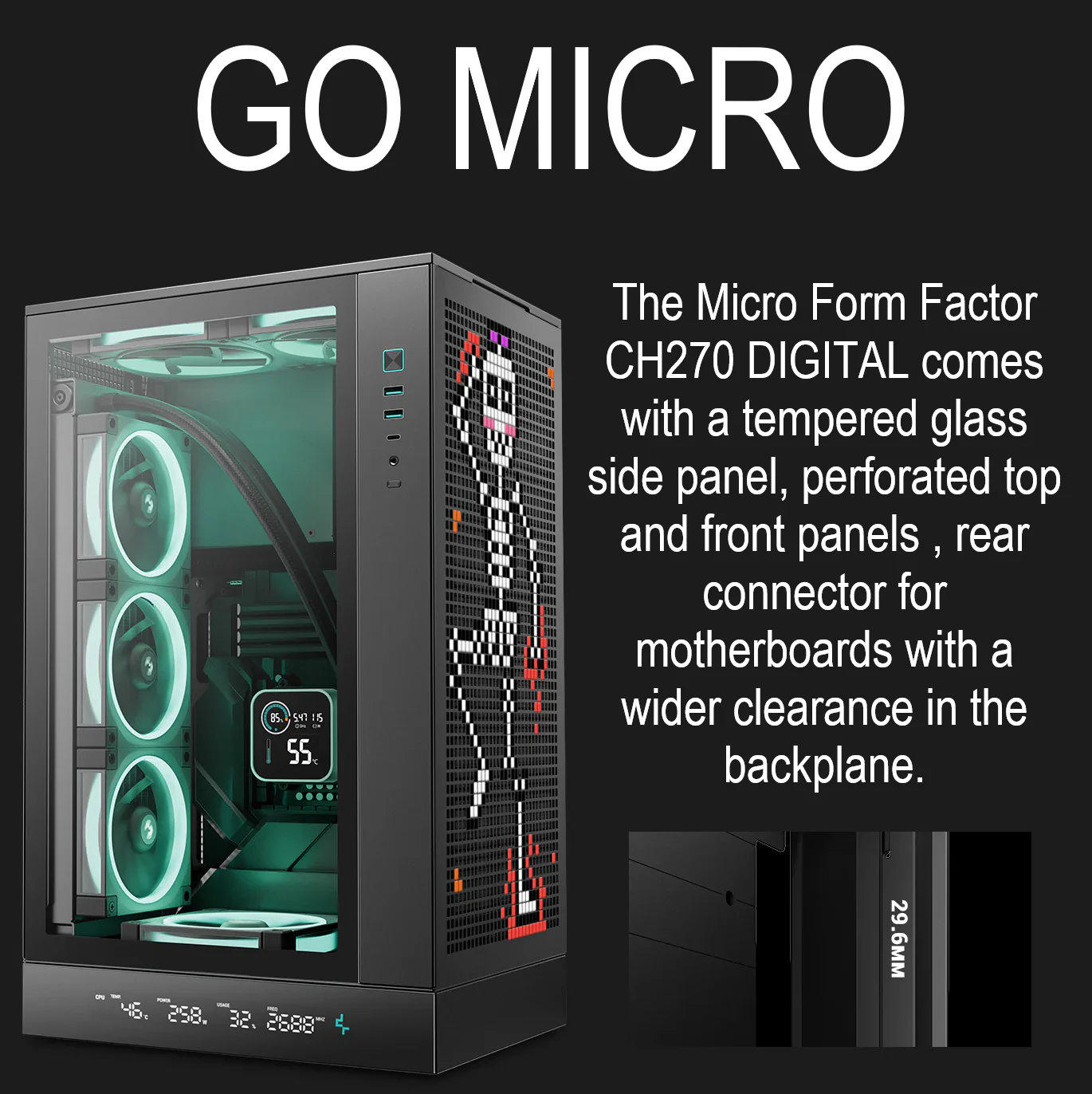

- Tempered Glass Showcase: Displays your internal RGB and components in all their glory while perforated front and top mesh panels allow airflow and styling with PIXEL rubber bits.

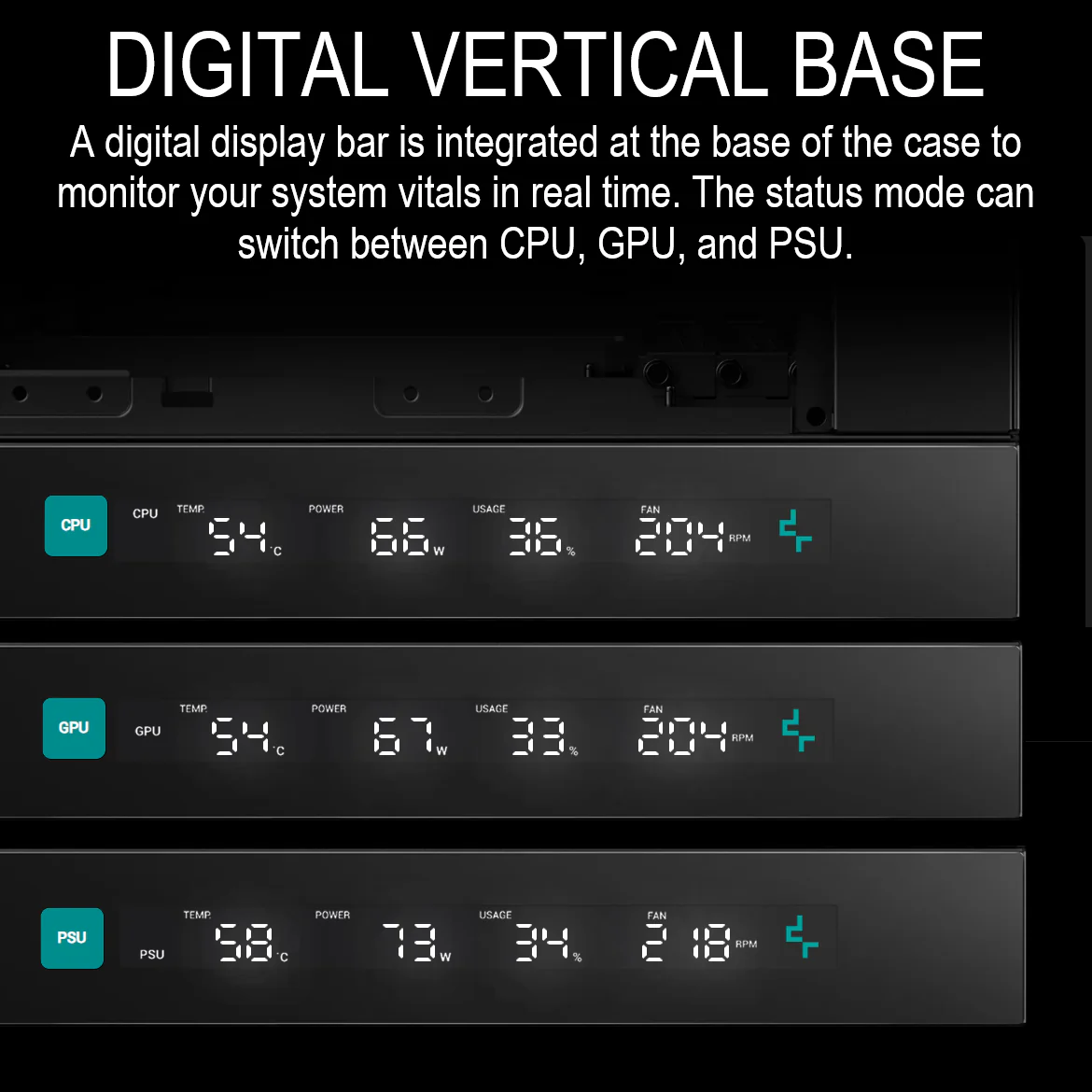

- Digital Vertical Base: Integrated digital display bar at the base shows CPU, GPU, and PSU vitals in real-time for monitoring your system performance like a pro.

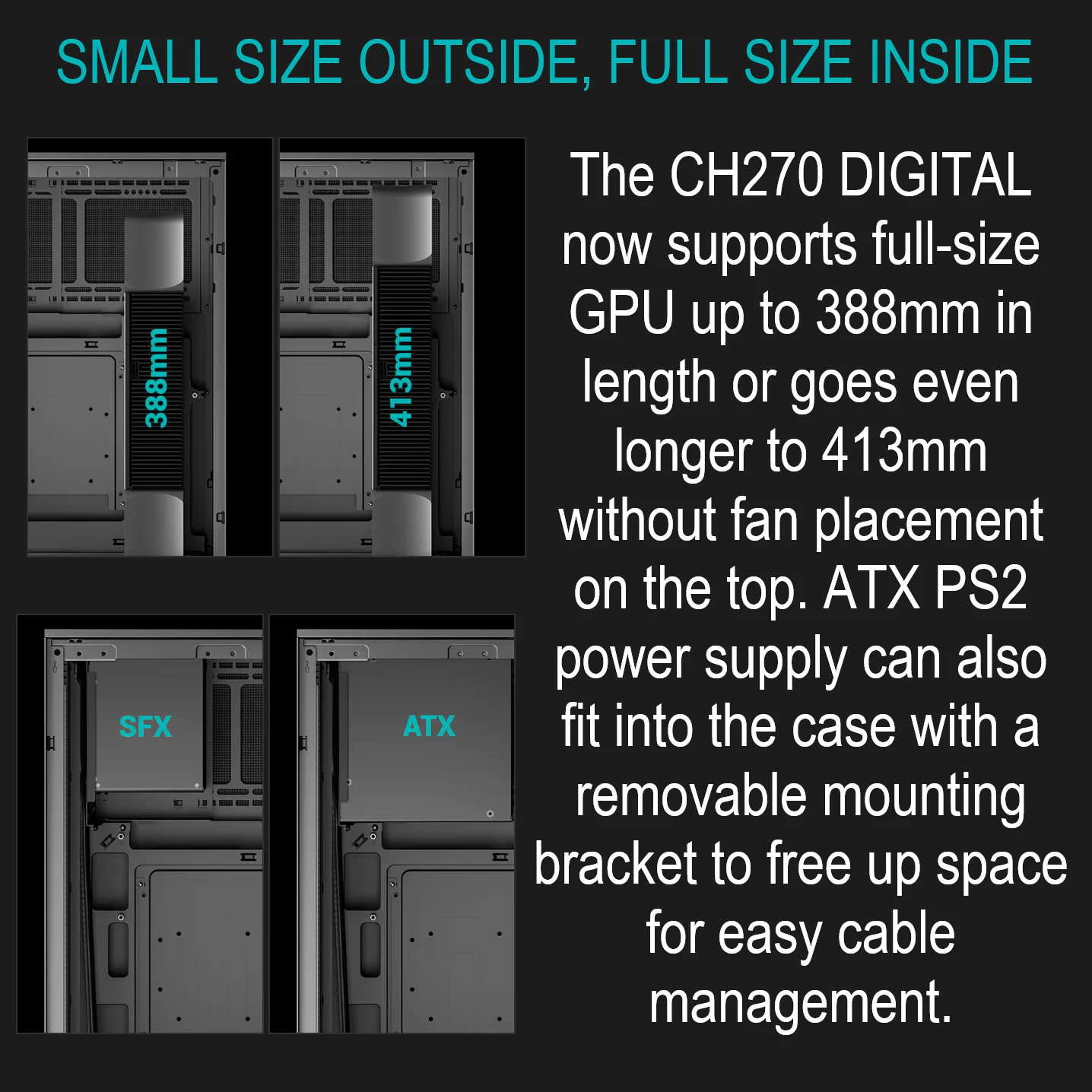

- Massive Component Compatibility: Supports full-size GPUs up to 388mm, or up to 413mm without top fan placement, plus ATX PS2 power supplies with a removable bracket for clean cable management.
- Uncompromised Cooling: Full mesh panels with up to six 120mm fan placements keep your system frosty; supports 360mm side AIO radiators or 174mm CPU coolers.

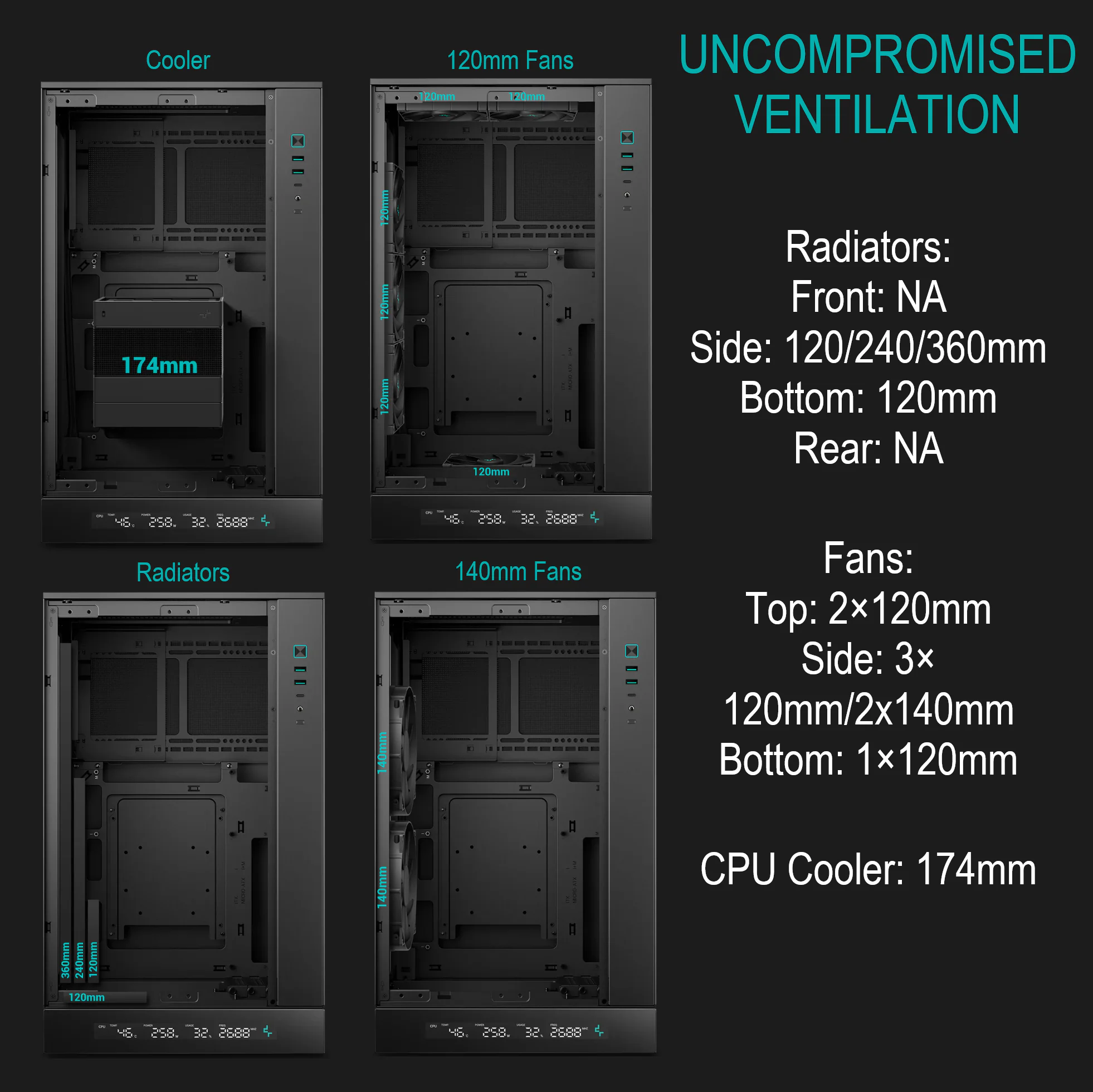

- Fan & Radiator Flexibility: Top: 2×120mm; Side: 3×120mm/2×140mm; Bottom: 1×120mm; Radiators: Side 120/240/360mm, Bottom 120mm.
- Enhanced Building Experience: Tool-free top panel access, four removable dust filters, and four reusable PCI-e baffles streamline installation and maintenance.

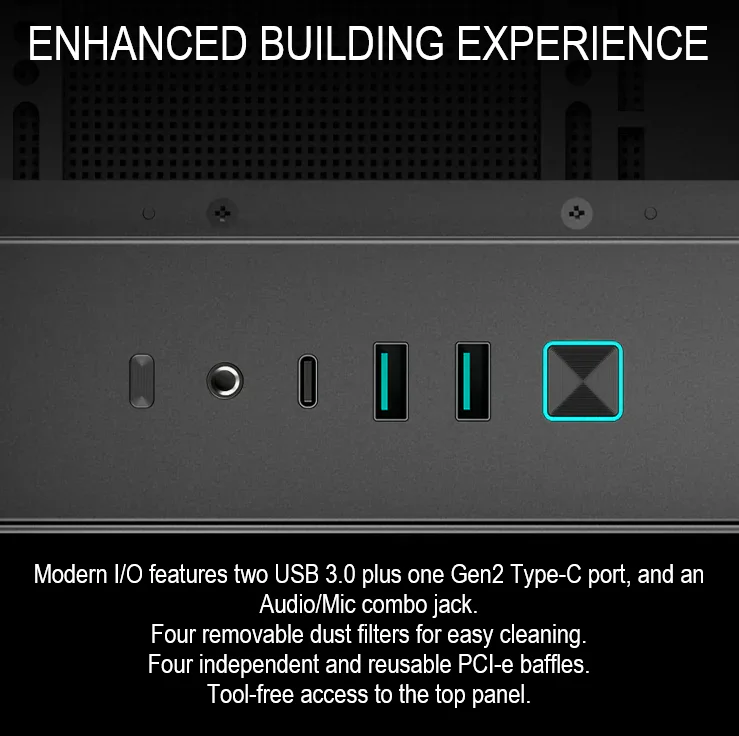

- Modern I/O Ports: Two USB 3.0 ports, one Gen2 Type-C, Audio/Mic combo jack for full connectivity convenience.






Expert Specs
| Feature | Details |
|---|---|
| Model | DeepCool CH270 DIGITAL |
| Color | Black |
| Materials | ABS + SPCC + Tempered Glass |
| Motherboard Support | Mini-ITX / Micro-ATX (Rear Connector) |
| Dimensions (L×W×H) | 296 × 225 × 486 mm |
| Net Weight | 5.8 Kg |
| Front I/O Ports | USB 3.0 ×2, Gen2 Type-C ×1, Audio/Mic |
| Drive Bays | 1 × 3.5″ / 2 × 2.5″ (shared) |
| Expansion Slots | 4 |
| Pre-Installed Fans | None |
| Fan Support | Top: 2×120mm; Side: 3×120mm/2×140mm; Bottom: 1×120mm |
| Radiator Support | Side: 120/240/360mm; Bottom: 120mm |
| CPU Cooler Height Limit | 174mm |
| GPU Size Limit | 388mm / 413mm (No Top Fans) |
| Power Supply Type | ATX PS2 (Max Length 150mm) |
| EAN / P/N | 6933412765257 / R-CH270-BKNDM0-G-1 |
