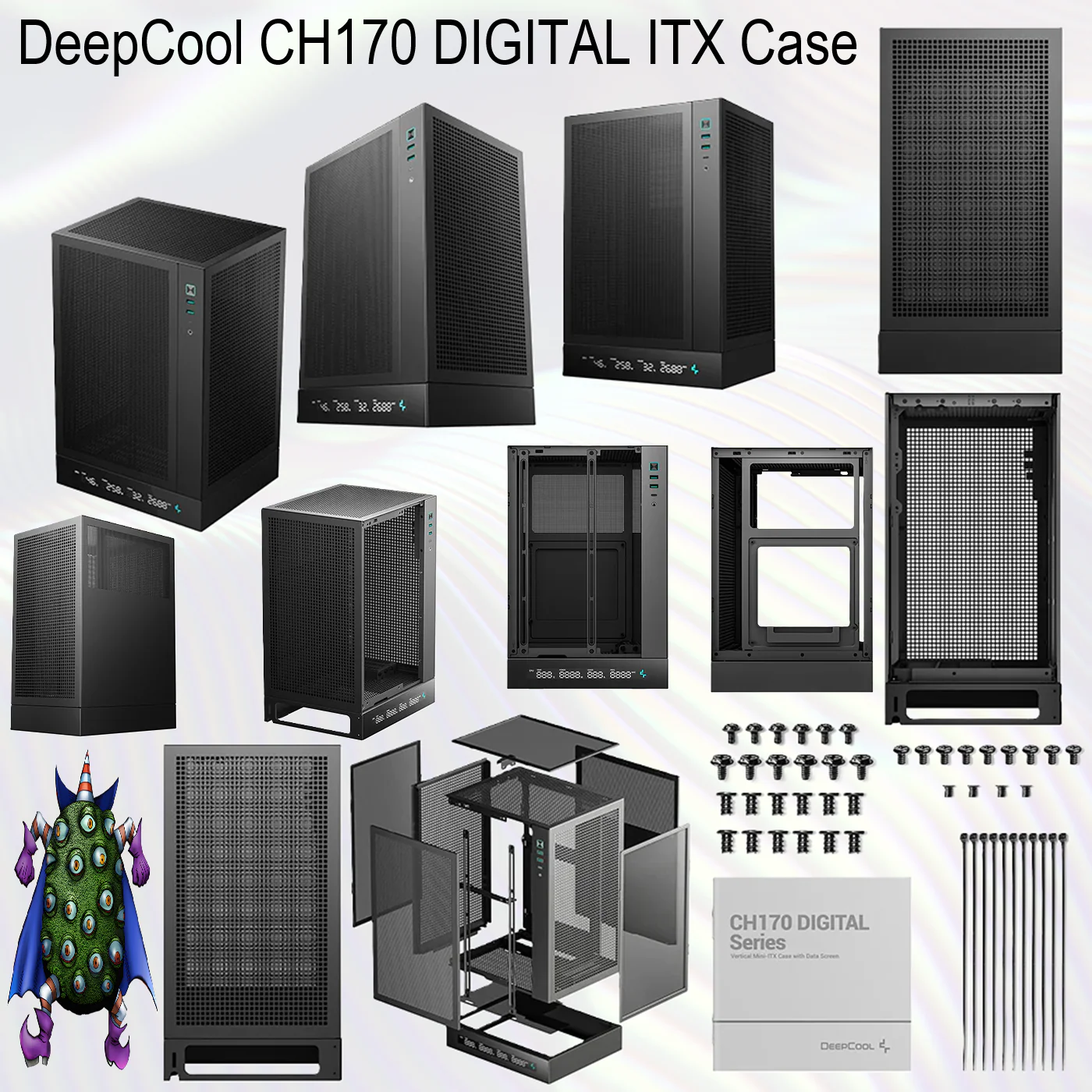

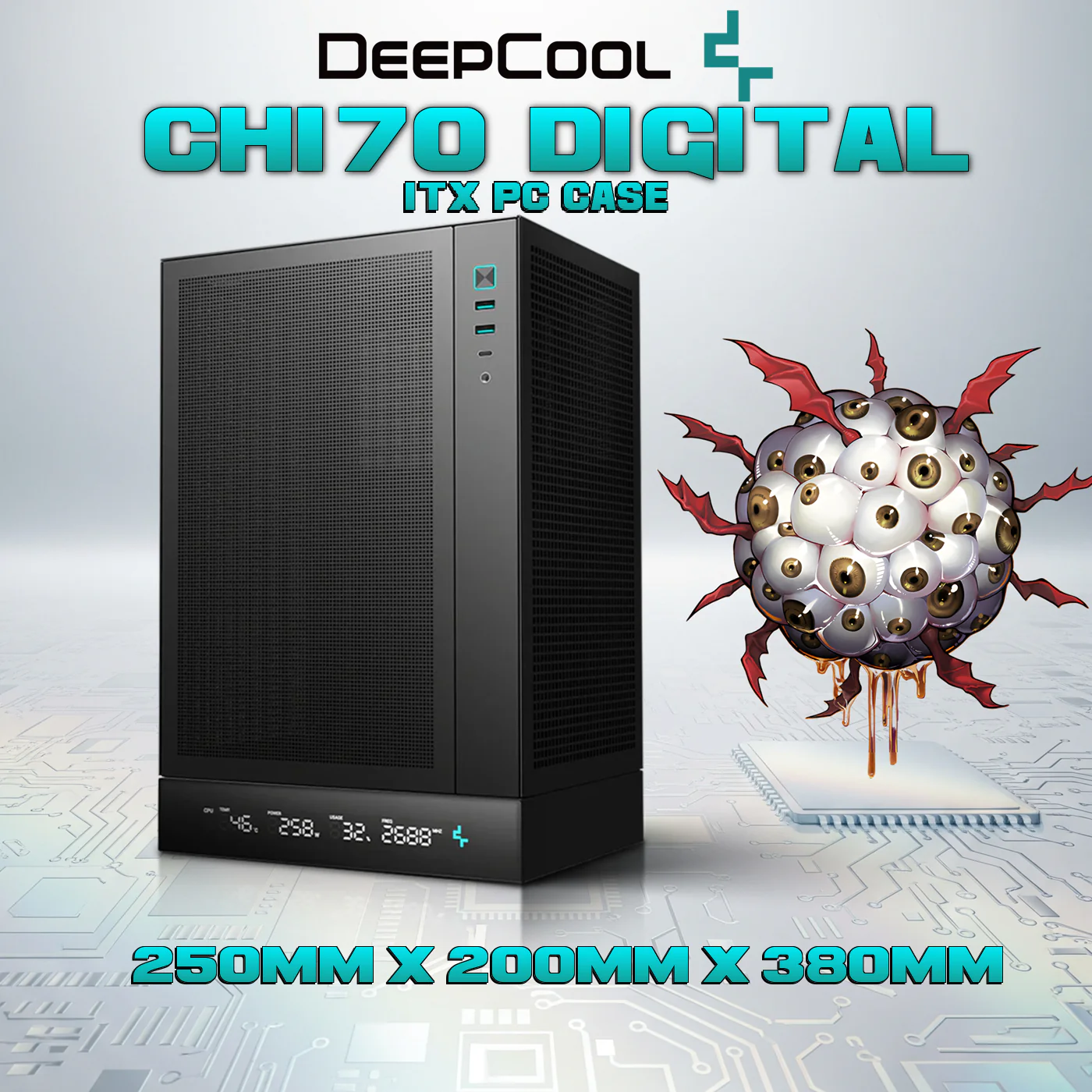

DeepCool CH170 DIGITAL ITX Case – High Airflow Mesh Panels, Digital Display Base, ATX/SFX PSU Support, 305mm GPU Clearance, Tempered Glass, USB 3.0 & Gen2 Type-C | BLACK
53 $
Categories: Computer Cases, COMPUTER PARTS
Expert Features

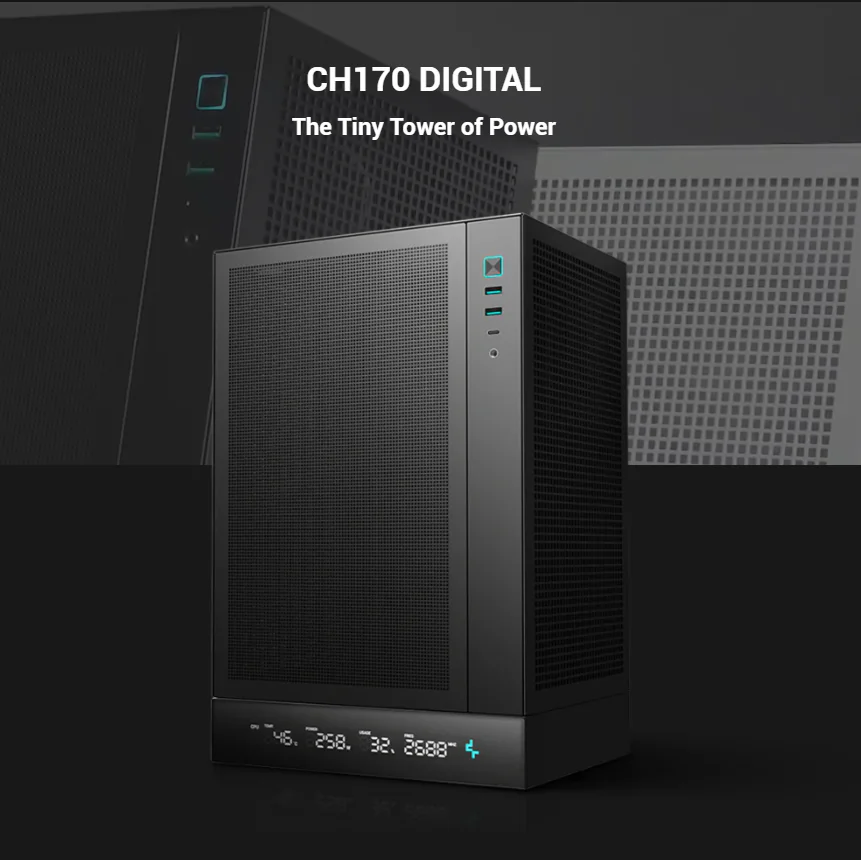

- Tiny Tower of Power: A vertical ITX case built for performance in a small footprint, packed with DeepCool’s legendary airflow design.

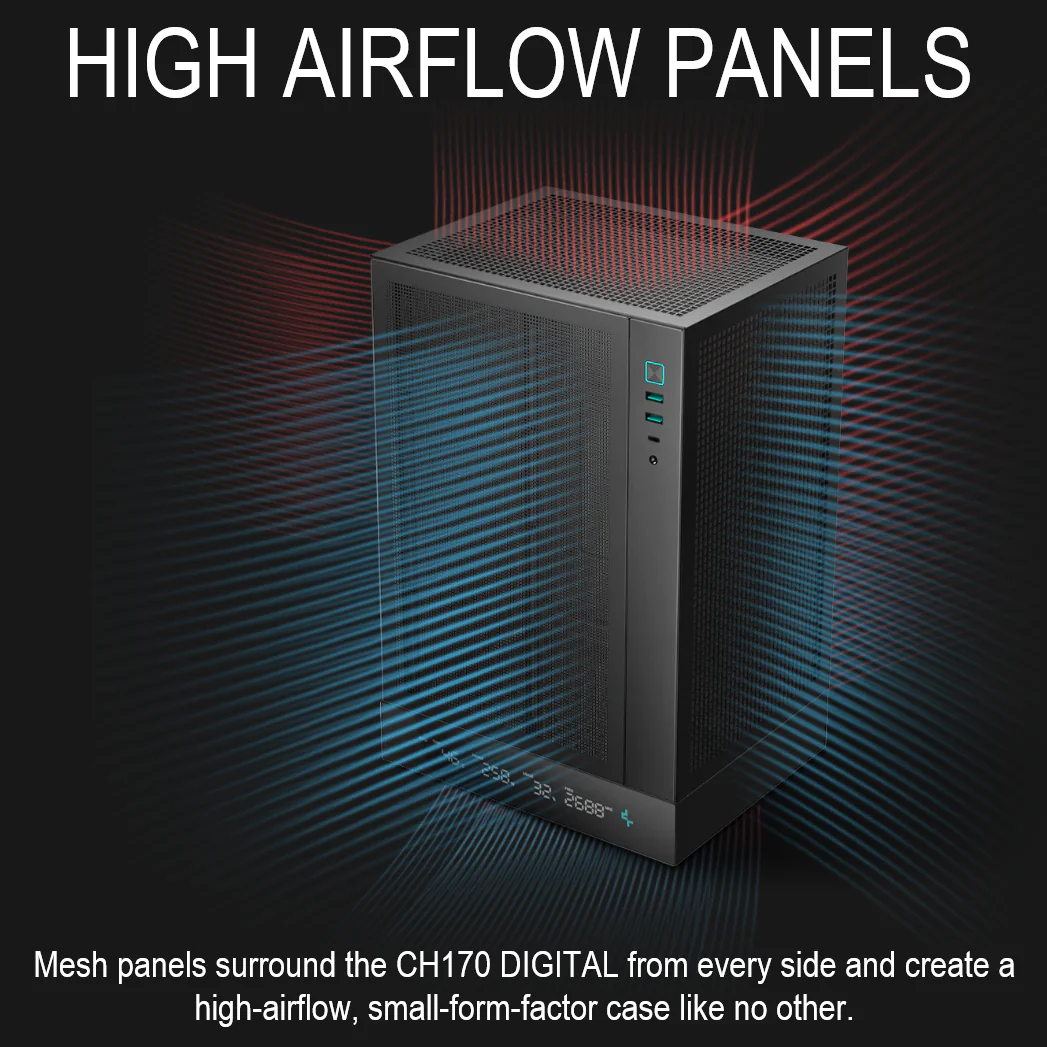

- High-Airflow Mesh Panels: Mesh surfaces wrap the case on all sides, ensuring maximum ventilation and steady cooling for your compact gaming rig.

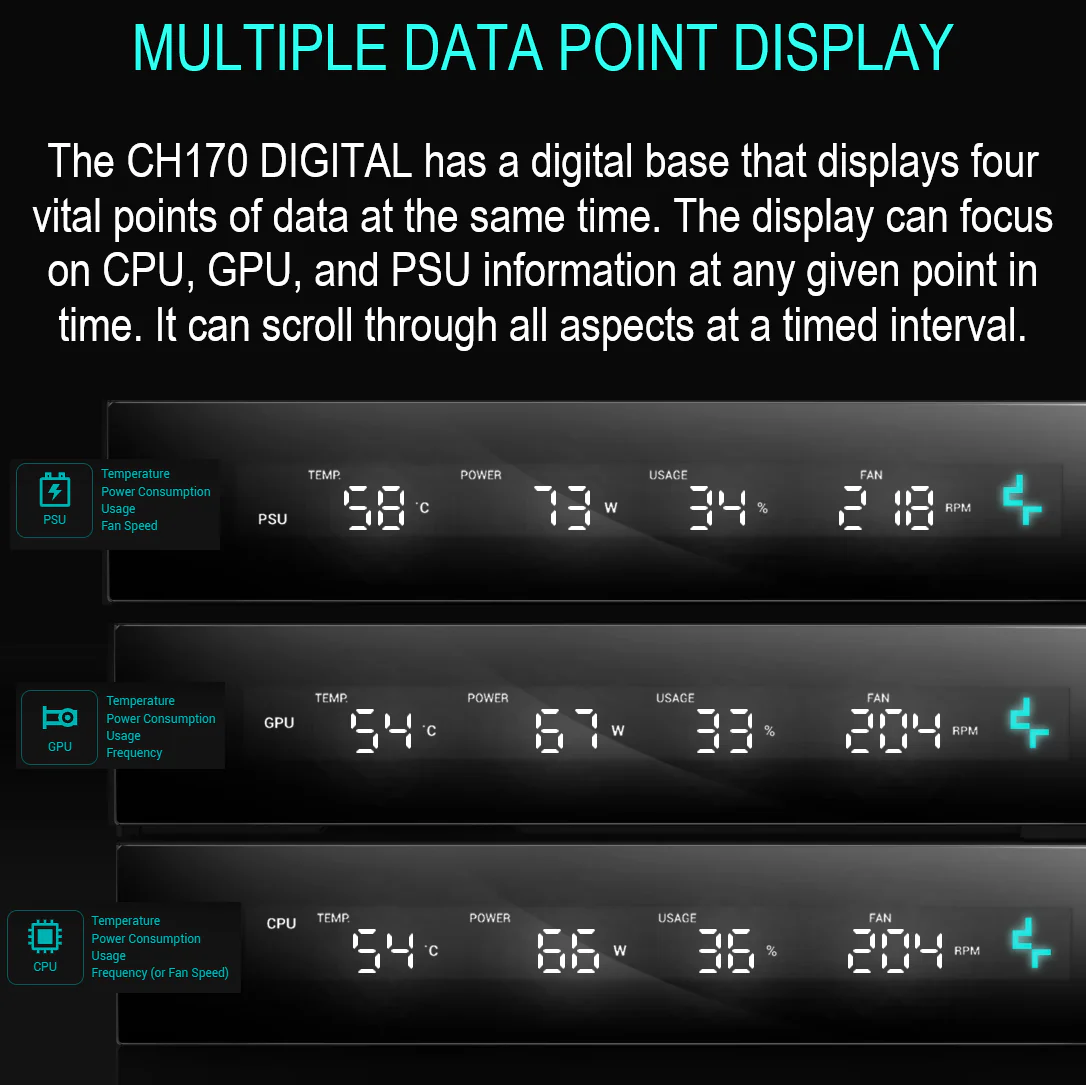

- Digital Base with Real-Time Monitoring: Displays CPU, GPU, and PSU vitals at a glance—temperature, power draw, usage, frequency, and fan speed. Monitor like a pro without extra software.

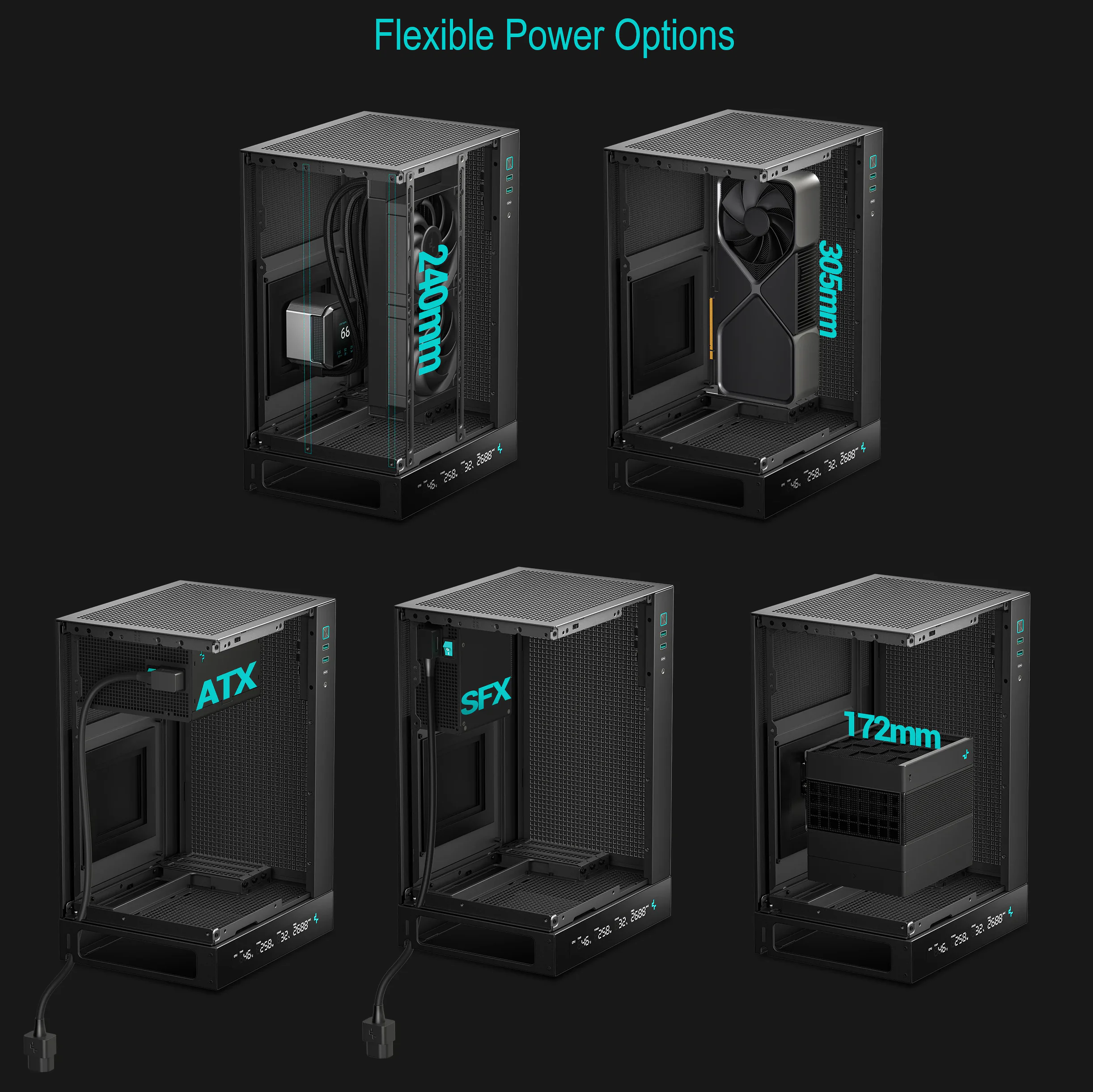

- Flexible Power Options: Compatible with ATX, SFX, and SFX-L power supplies up to 140mm, giving you full flexibility for performance or efficiency builds.

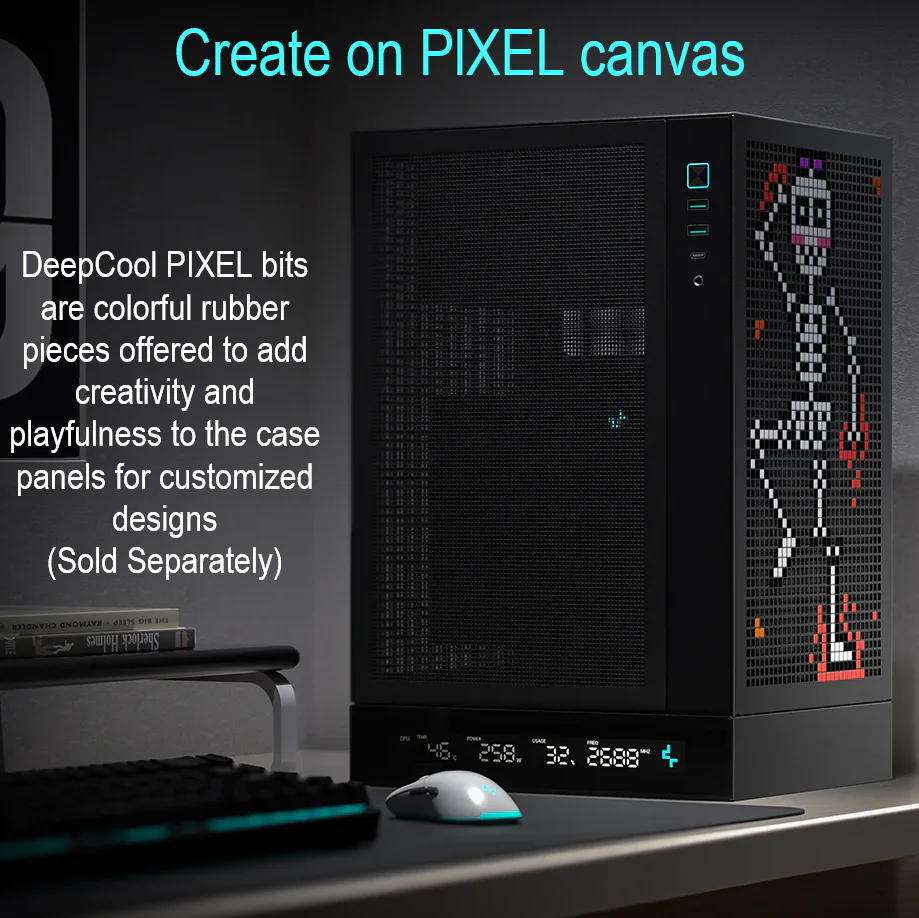

- Customizable Pixel Creativity: Add personality with PIXEL rubber bits (sold separately), turning your case into a true expression of your gamer soul.

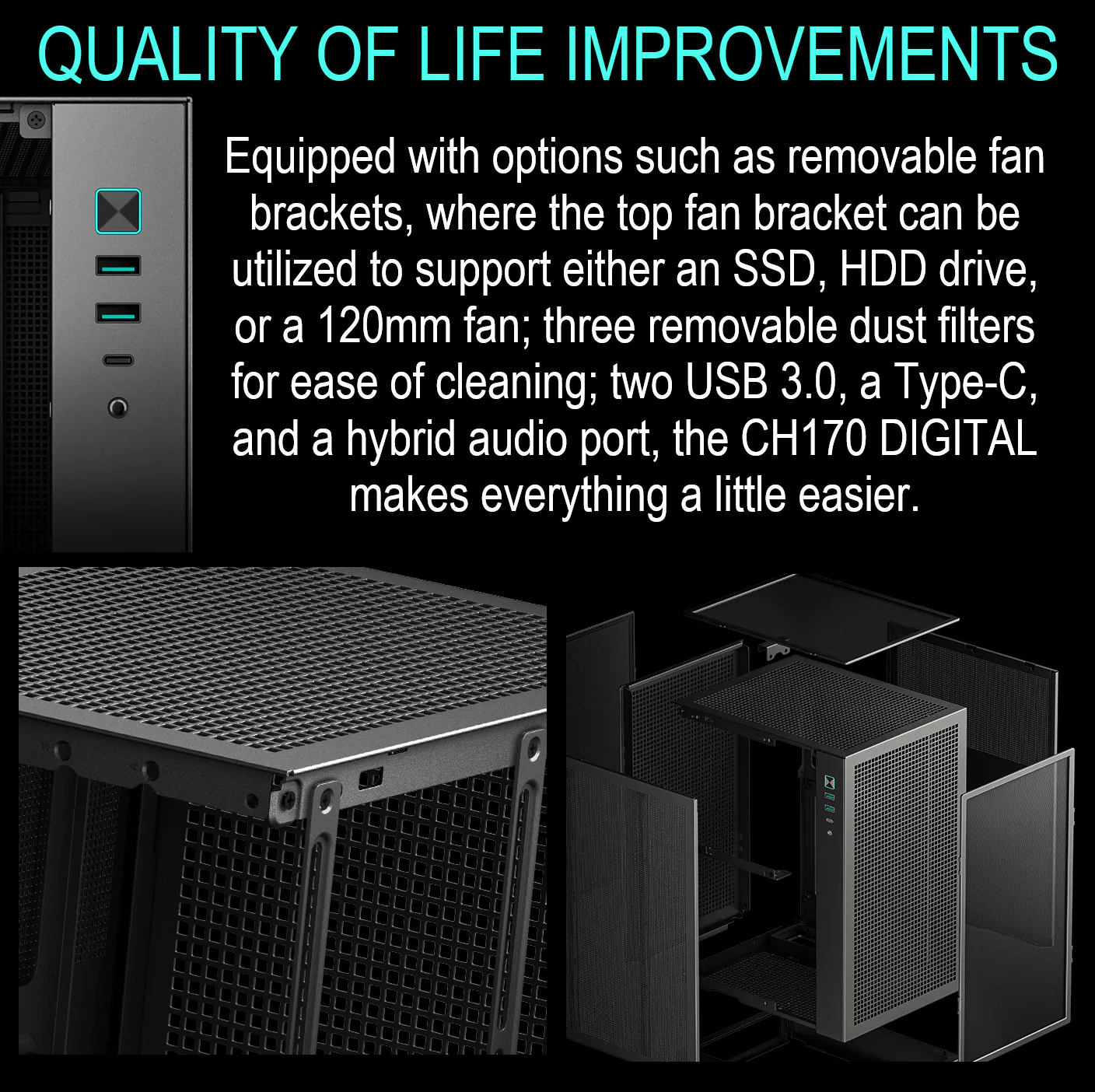

- Premium Build Features: Removable fan brackets, three dust filters for easy maintenance, and top bracket multipurpose use (mount a fan, SSD, or HDD).
- Modern Connectivity: Equipped with two USB 3.0 ports, Gen2 Type-C, and a hybrid audio jack, so your front I/O is future-proof.
- Unmatched Compatibility: Supports full-length GPUs up to 305mm (SFX PSU) or 230mm (ATX PSU), CPU coolers up to 172mm, and 240mm side radiator for liquid cooling.




![]()






Expert Specs
| Feature | Details |
|---|---|
| Model | DeepCool CH170 DIGITAL |
| Color | Black |
| Materials | ABS + SPCC |
| Motherboard Support | Mini-ITX |
| Dimensions (L×W×H) | 250 × 200 × 380 mm |
| Net Weight | 3.3 Kg |
| Front I/O Ports | USB 3.0 ×2, Gen2 Type-C ×1, Audio/Mic |
| Drive Bays | 1 (shared with fan bracket) |
| Expansion Slots | 3 |
| Pre-Installed Fans | None |
| Fan Support | Top: 1×120mm; Rear: 2×120mm; Bottom: 1×120mm; Side: 2×120mm |
| Radiator Support | Side: 240mm |
| CPU Cooler Height Limit | 172mm |
| GPU Size Limit | Length: 305mm (SFX) / 230mm (ATX); Height: 138mm; Width: 65mm (3 Slots) |
| Power Supply Type | ATX PS2 / SFX / SFX-L (Max Length 140mm) |
| EAN / P/N | 6933412774228 / R-CH170-BKNPI0D-G-1 |
