Expert Features

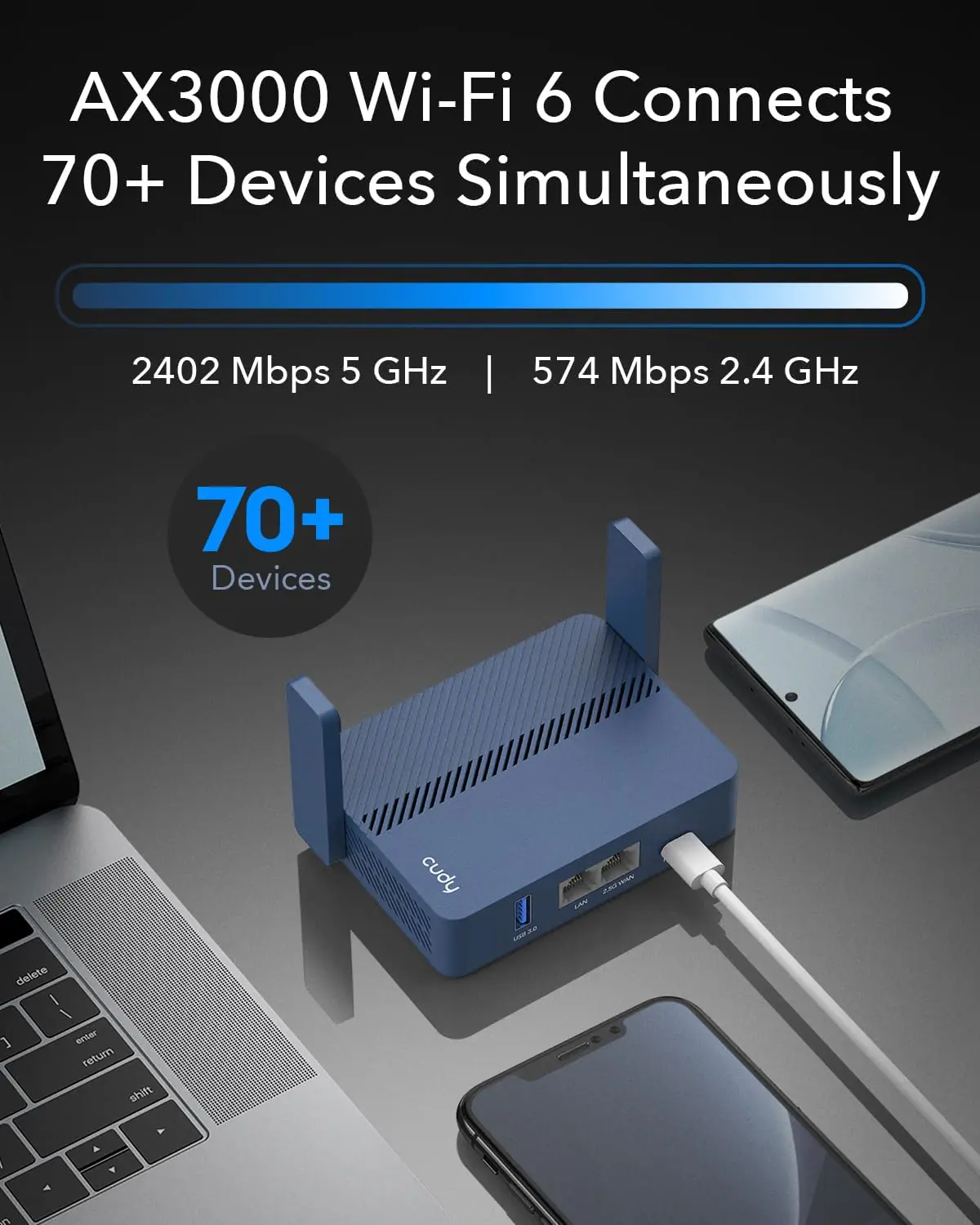

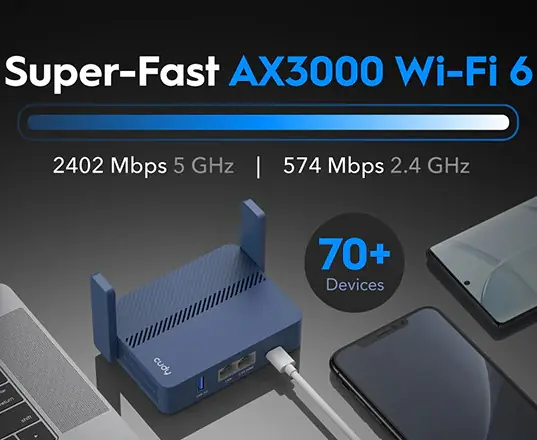

- Next-Gen AX3000 Wi-Fi 6 Speed: Enjoy ultra-fast dual-band speeds up to 2402 Mbps (5GHz) + 574 Mbps (2.4GHz) with support for 1024-QAM and 160 MHz channel width.
- Powerful Dual-Core CPU: 1.3 GHz ARM Cortex-A53 ensures smooth handling of VPN, file sharing, and multi-device connections.

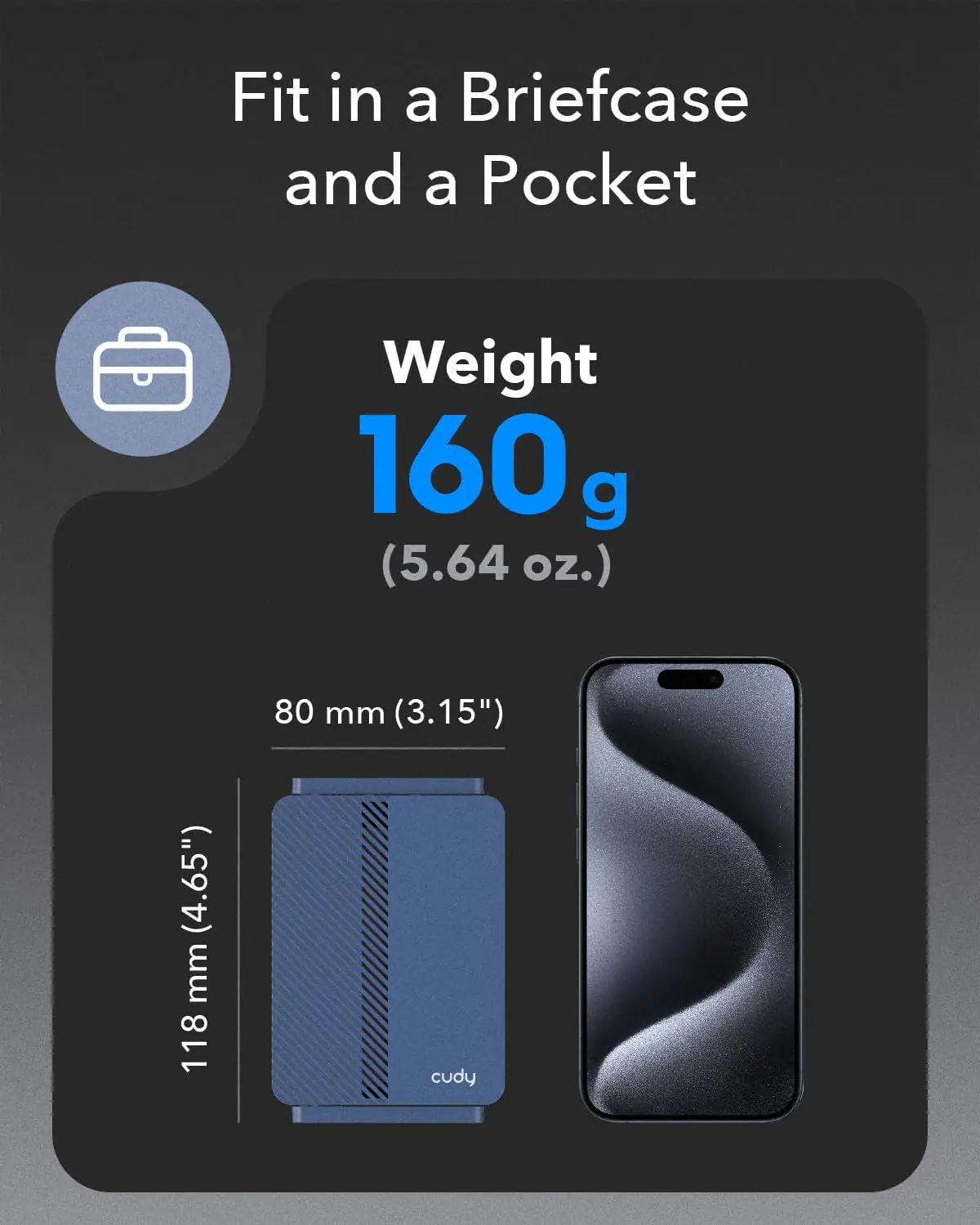

- Pocket-Sized & Ultra-Light: Weighs just 160g (5.64 oz.), smaller than most smartphones—designed for travel and portability.

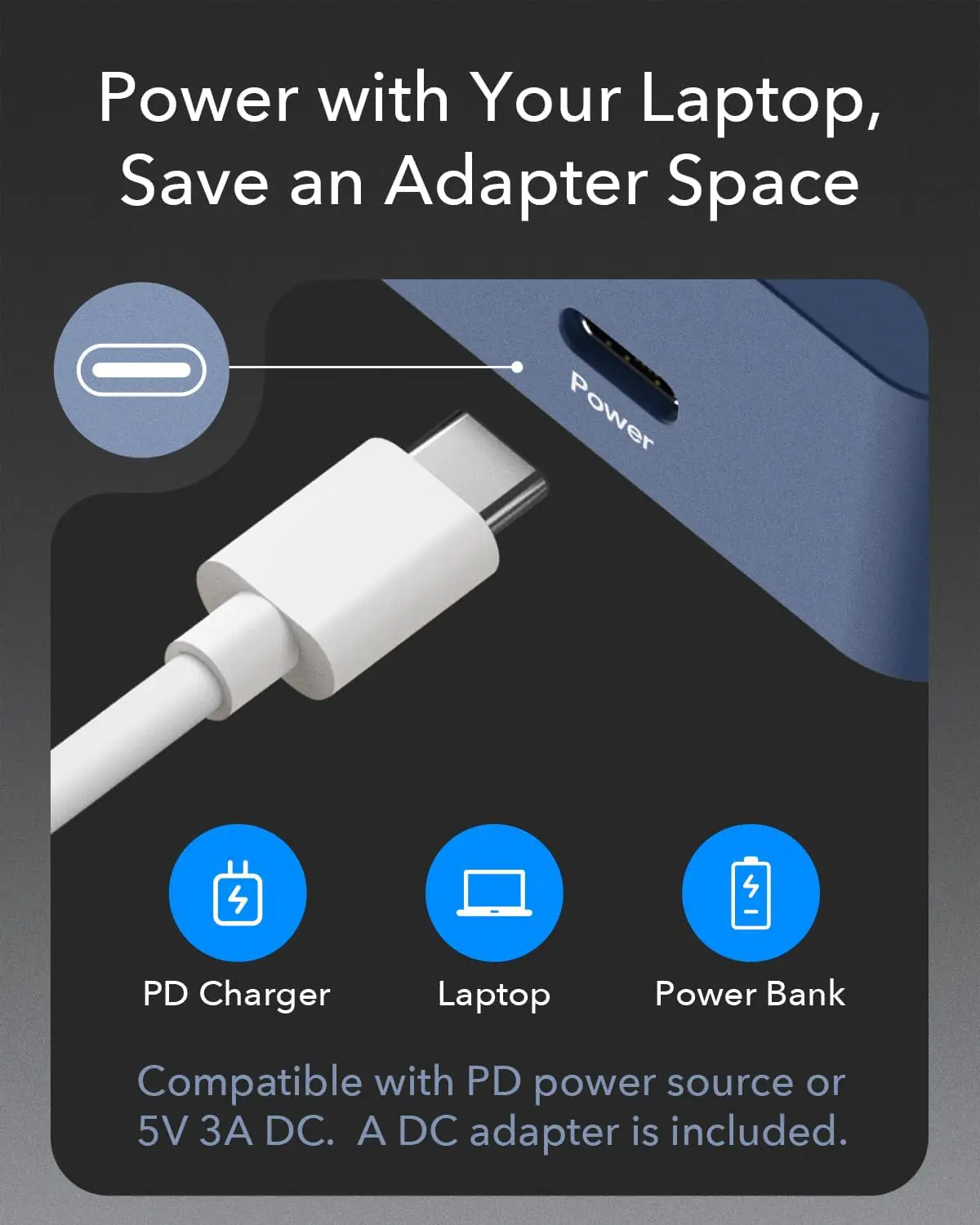

- USB-C Powered: Plug into your laptop, phone charger, or power bank—no bulky power brick required.
- Multi-Mode Functionality: Functions as Wi-Fi Router, Access Point, Range Extender, WISP, or Mesh Node.
- Cudy VPN Client & Server: Easily encrypt connections back to home or office with built-in VPN support.
- Cudy Mesh Support: Expand your Wi-Fi network seamlessly with wireless or wired mesh backhaul.

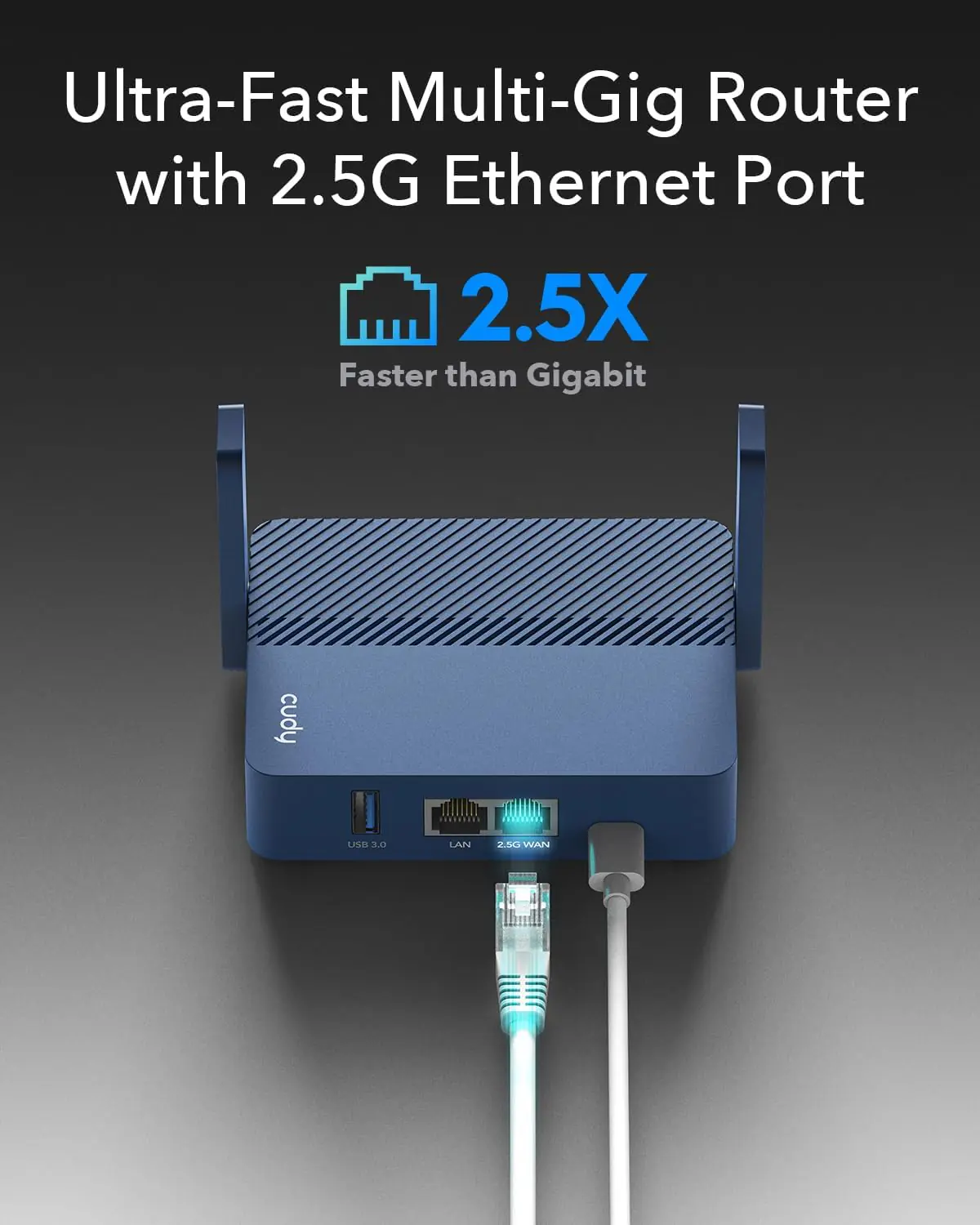

- Reliable 2.5GbE WAN Port: Ultra-fast 2.5G port for modern internet plans and fast downloads.

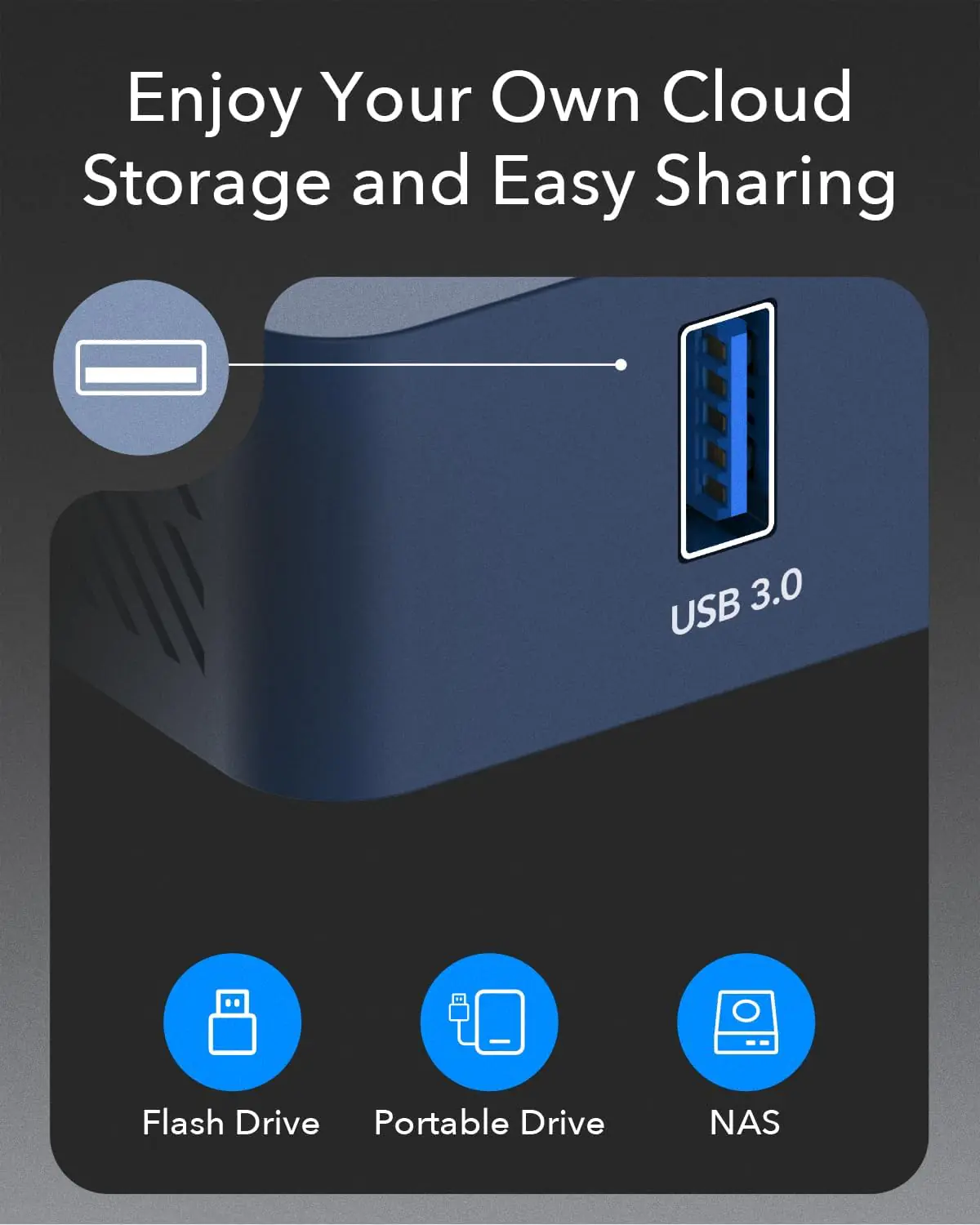

- USB 3.0 Port: Host your own private cloud or media/file server on the go.
- Smartphone App & Cloud Control: Manage remotely with the Cudy App and cloud-based features.

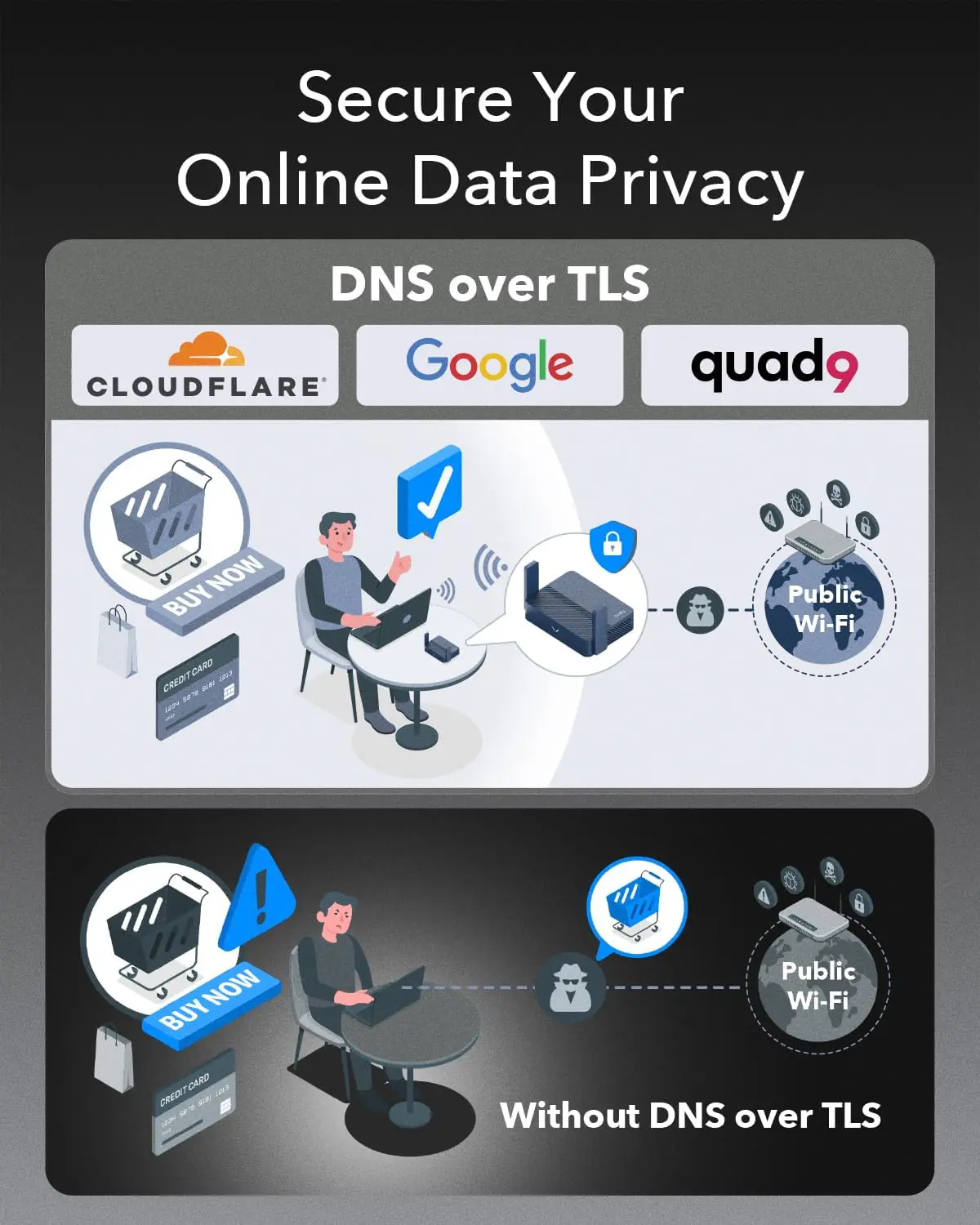

- Advanced Security: WPA3 encryption, guest networks, WPS, and firewall support.
- Strong Signal Range: Coverage up to 180 meters in open space, with beamforming and OFDMA for efficiency.
- Ideal for Travel: Share paid Wi-Fi in hotels, airports, or cafes with ease.








Expert Specs
| Category | Specification |
|---|---|
| Model Version | TR3000 1.0 |
| CPU | 1.3 GHz Dual-Core ARM Cortex-A53 |
| Memory | 512 MB DDR3 RAM |
| Storage | 128 MB NAND Flash |
| Wi-Fi Standards | Wi-Fi 6 (802.11ax), Dual-Band |
| Wi-Fi Speeds | 5 GHz: 2402 Mbps / 2.4 GHz: 574 Mbps |
| Wi-Fi Features | Beamforming, OFDMA, MU-MIMO, BSS Coloring, WPA3, Guest Networks, WPS |
| Max Wi-Fi Range | Up to 180 meters (open space) |
| Max Channel Width | 160 MHz |
| Max Wi-Fi Clients | 512 (Recommended: up to 70) |
| WAN Port | 1× 2.5GbE RJ45 (WAN) |
| LAN Port | 1× Gigabit RJ45 (LAN) |
| USB Port | 1× USB 3.0 Type-A |
| Power Input | USB-C (5V 3A, PD Supported) |
| Power Adapter | Input: 100~240V AC / Output: 5V 3A DC |
| Max Power Consumption | 11.5W (Idle: 4.2W) |
| Physical Buttons | Reset Button, Configurable DIP Switch |
| Operation Modes | Router, Access Point, Range Extender, WISP, Mesh Node |
| Mesh Capability | Cudy Mesh (Wireless or Wired Backhaul) |
| Dimensions | 176 × 140.5 × 56 mm (Retail Box) |
| Weight | Device: 160 g / Retail Package: 413 g |

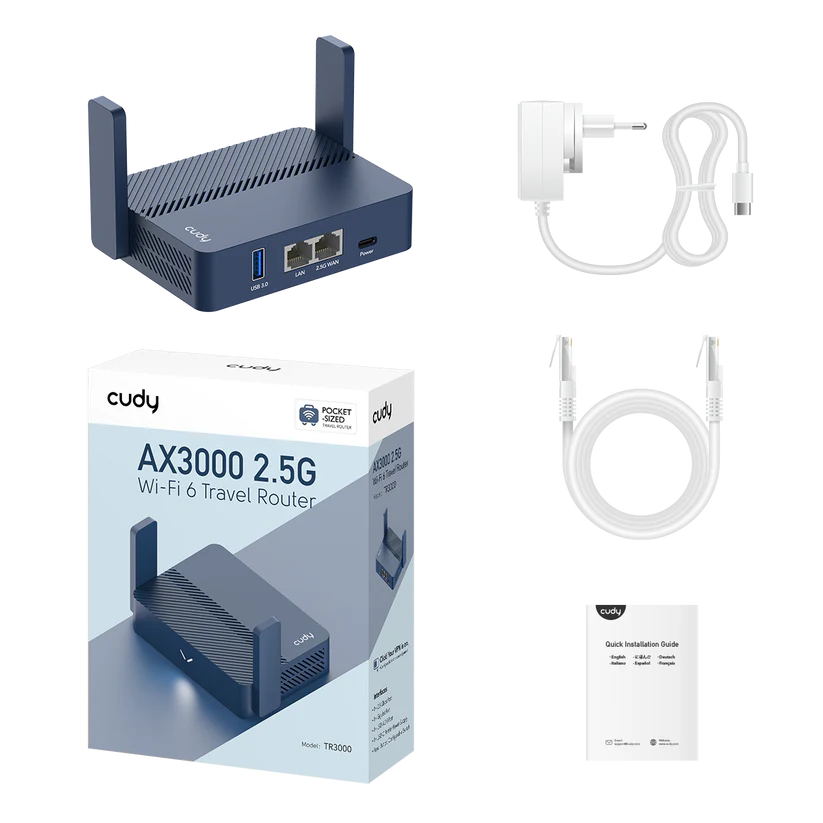

| Package Includes | TR3000 Unit, Power Adapter, Ethernet Cable, Installation Guide |
