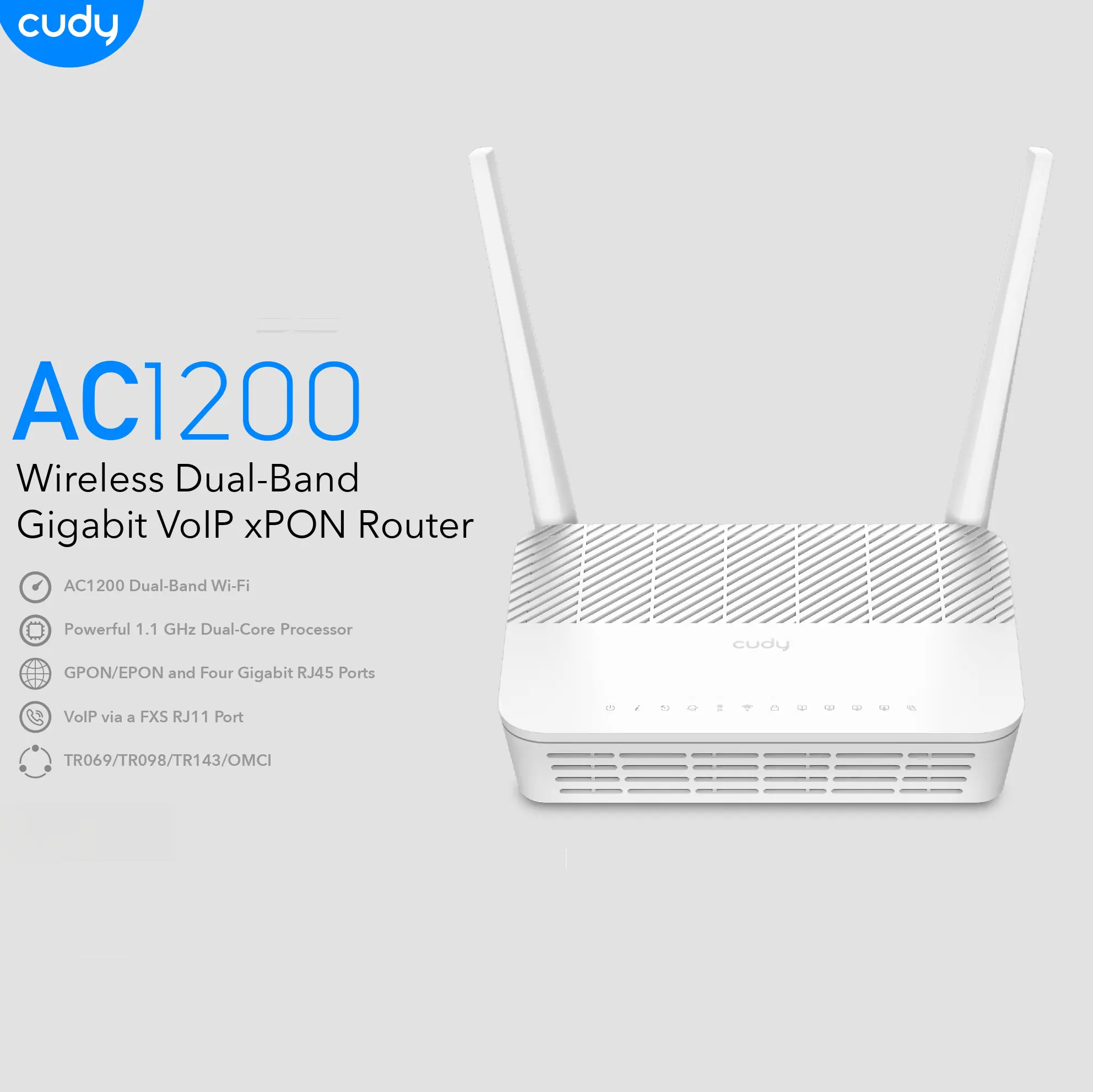

Cudy GP1200 AC1200 xPON Fiber Router | Dual-Band Wi-Fi 5 | GPON/EPON | 4× Gigabit Ports | EasyMesh | IPTV | 1.15GHz CPU | TR069/OMCI | Up to 2.48 Gbps Fiber

Cudy GP1200 AC1200 xPON Fiber Router | Dual-Band Wi-Fi 5 | GPON/EPON | 4× Gigabit Ports | EasyMesh | IPTV | 1.15GHz CPU | TR069/OMCI | Up to 2.48 Gbps Fiber

30 $

Quantity
Categories: ,

Expert Features

  • Dual-Mode Fiber Support (xPON): Fully compatible with both GPON (ITU-T G.984) and EPON (IEEE 802.3ah) standards for flexible FTTx deployments.
  • High-Speed Fiber Access: Delivers up to 2.48 Gbps (GPON) or 1.25 Gbps (EPON) speeds, supporting up to 20 km transmission distance.
  • AC1200 Dual-Band Wi-Fi 5: Simultaneous 867 Mbps on 5GHz and 300 Mbps on 2.4GHz, powered by 2×2 MIMO and MU-MIMO for efficient multi-user performance.
  • 1.15 GHz Dual-Core CPU + 256MB RAM: Ensures smooth performance, fast packet processing, and stable routing even under load.
  • EasyMesh Ready: Supports both wired and wireless mesh backhaul, enabling seamless whole-home Wi-Fi coverage.
  • 4× Gigabit Ethernet Ports: One configurable as LAN/WAN; supports high-speed wired networking.
  • Comprehensive IPTV Support: Includes IGMP Proxy/Bridge, Tag VLAN, and QoS for optimized video streaming.
  • Advanced Management Protocols: TR069, OMCI, OAM, TR098/TR111/TR143/TR181 — ideal for ISP deployments and centralized control.
  • Robust Security: SPI firewall, MAC/IP/domain/port filters, guest network support, and WPA/WPA2 encryption.
  • Wall & Desktop Mountable: Compact (173×123.8×33 mm), lightweight design with high-gain 5dBi antennas.

Expert Specs

Category Details
Model GP1200 1.0
CPU 1.15 GHz Dual-Core
Memory 256 MB DDR3 RAM, 128 MB NAND Flash
Fiber Standards GPON (2.488/1.244 Gbps), EPON (1.25/1.25 Gbps)
Max Distance 20 km (SC/APC Port)
Wi-Fi Standard Dual-Band Wi-Fi 5 (802.11ac/n/g/b)
Wi-Fi Speed 867 Mbps (5GHz), 300 Mbps (2.4GHz)
Antennas 2× Fixed Internal Antennas (5dBi Gain)
Mesh EasyMesh R1, Wired/Wireless Backhaul
Ethernet Ports 4× Gigabit RJ45 (1× WAN/LAN, 3× LAN)
WPS/Buttons Power On/Off, Reset, WPS, Wi-Fi On/Off
Security SPI Firewall, WPA/WPA2, Guest Wi-Fi, Filters (MAC/IP/Domain/Port)
QoS 4 Queues, DSCP, 802.1p, MAC/IP/Port Based
IPTV Support IGMP Proxy, Tag VLAN, TTL Customization
IP Versions IPv4 & IPv6 (SLAAC, DHCPv6, Static)
Management Web GUI, TR069, OMCI, OAM, Remote Mgmt, Local Backup/Restore
Power Supply 12V⎓1A DC Adapter (100–240V Input)
Dimensions 173×123.8×33 mm (6.81×4.87×1.3 in)
Weight 288 g (10.16 oz)
Certifications FCC, CE
Mounting Options Desktop or Wall Mount
Package Contents Router, Power Adapter, Ethernet Cable, Installation Guide
