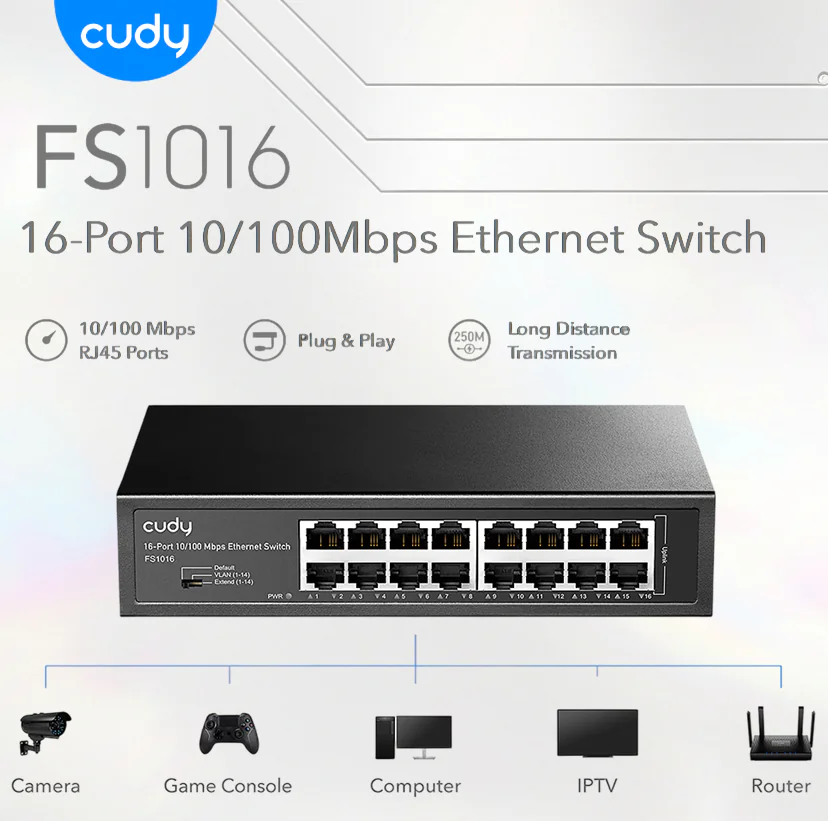

CUDY FS1016 16-Port 10/100 Mbps Ethernet Switch | VLAN & Extend Mode up to 250m | Metal Casing | 3.2Gbps Capacity | Rackmount | Power Saving

CUDY FS1016 16-Port 10/100 Mbps Ethernet Switch | VLAN & Extend Mode up to 250m | Metal Casing | 3.2Gbps Capacity | Rackmount | Power Saving | Plug & Play

22 $

Categories: NETWORK, SWITCH

VLAN Mode for Port Isolation – Activate VLAN mode to enhance network security. Ports 1–14 can only communicate with uplink ports, protecting connected devices from unauthorized access.
Extend Mode up to 250M – Prolong transmission distance up to 250 meters for ports 1–14, ideal for long-range connections in large areas like warehouses or malls.
Energy Efficient – Smart power-saving technology reduces electricity use when ports are idle, keeping your network eco-friendly and cost-effective.
Flexible Mounting Options – Standard 1U rackmount design with included kits for easy installation in server racks or desktop setups.
Versatile Applications – Perfect for office networks, surveillance systems, ISP FTTB connections, and mall Wi-Fi setups.

Specification	Details
Model	FS1016 1.0
Ports	16 × 10/100 Mbps RJ45 (Shielded)
Modes	Default / VLAN / Extend
Extend Mode Ports	1–14 (up to 250m)
VLAN Mode Ports	1–14
Switching Capacity	3.2 Gbps
Forwarding Rate	2.38 Mpps
MAC Address Table	8192
Jumbo Frame	2 KB
Packet Buffer	2 Mbit
Power Input	AC 90–260V~, 50/60Hz
Power Consumption	Max 2.0W / Idle 0.8W
Buttons	VLAN / Default / Extend DIP Switch
LED Indicators	Power, Link/ACT per port
Material	Metal casing
Dimensions	200 × 118 × 44 mm (7.87 × 4.65 × 1.73 in)
Mounting	Desktop / Rackmount
Certifications	IEEE 802.3, IEEE 802.3u, IEEE 802.3x
