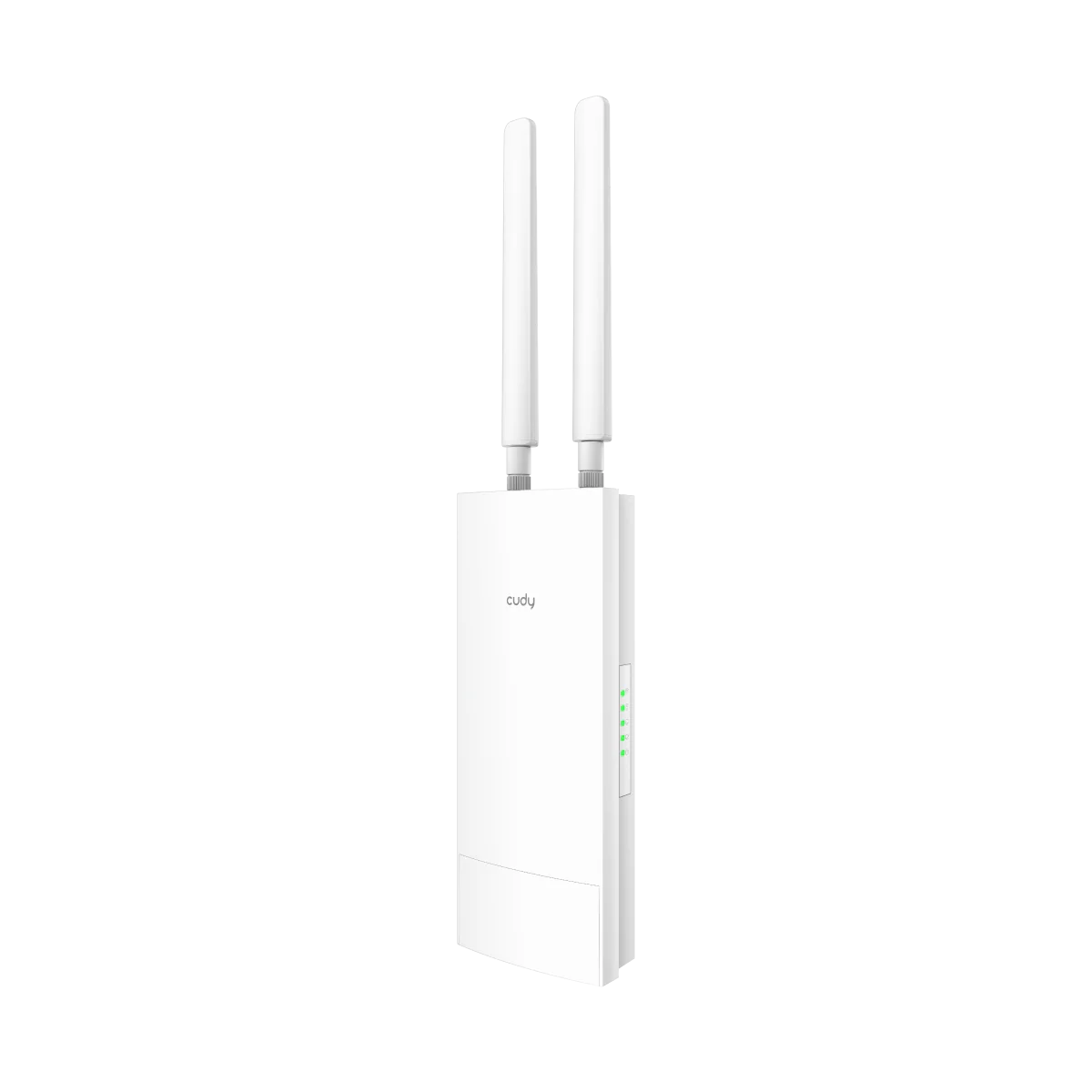

CUDY AP1200 Outdoor AC1200 Wi-Fi 5 Access Point | IP65 Weatherproof, 4kV Surge, Dual-Band 867+300 Mbps, Passive PoE, Beamforming, 170m Range, Multi-Mode, Pole/Wall Mount

35 $

Quantity
Categories: ,

Expert Features

  • Weatherproof Design: Built with IP65-rated casing, ideal for outdoor use in farms, parks, parking lots, and open environments.
  • Dual-Band AC1200 Wi-Fi 5: Offers combined speeds of up to 867 Mbps on 5 GHz and 300 Mbps on 2.4 GHz for smooth HD streaming, browsing, and light business usage.
  • Beamforming Technology: Improves signal focus and range, optimizing performance toward connected devices even in challenging environments.
  • Flexible Operation Modes: Supports Router, Access Point, Range Extender, WISP, and Client modes—perfect for a variety of deployment needs.
  • PoE-Powered Simplicity: Runs on 24V passive PoE, reducing cable clutter and simplifying installations without needing nearby power outlets.
  • Compact & Mountable: Includes hardware for both wall and pole mounting; ideal for flexible placement in indoor and outdoor spaces.
  • Surge & ESD Protection: Built-in 4kV surge and 8kV ESD protection ensure reliable operation in storms and electrically noisy environments.
  • Stable Coverage Range: Provides coverage up to 170 meters (558 ft) in open areas—ideal for small to medium outdoor zones.
  • Secure Access: Includes guest network, WPA/WPA2 security, and physical buttons for WPS and reset.
  • Smart Status LEDs: System and connectivity LEDs make troubleshooting and installation more intuitive.
  • Detachable Antennas: Comes with two external RP-SMA antennas for greater installation flexibility and replacement options.

Expert Specs

Category Specification
Model Version AP1200 Outdoor 1.0
CPU 580 MHz Single-Core CPU
Memory 64 MB DDR2 RAM
Storage 8 MB NOR Flash
Wi-Fi Standard Wi-Fi 5 (802.11ac), Dual-Band
Wi-Fi Speeds 5 GHz: 867 Mbps / 2.4 GHz: 300 Mbps
Wi-Fi Streams 2×2 MIMO on both 2.4 GHz and 5 GHz
Beamforming Yes
Antenna Configuration 2× Detachable Antennas (RP-SMA Female)
Antenna Gain 5 GHz: 4.4 dBi / 2.4 GHz: 4.6 dBi
Power Amplifiers 2× Internal PA per band
Maximum Range 170 m (558 ft) in open areas
Range Reference Park: 150 m / Street: 50 m / Woods: 30 m
Ethernet Port 1× 10/100 Mbps RJ45 (PoE In)
Power Input 24V Passive PoE (Adapter included)
Max Power Consumption 12 W / Idle: 2.5 W
Surge & ESD Protection 4kV (Surge), 8kV (Air ESD), 4kV (Contact ESD)
Ingress Protection IP65 (when installed vertically)
Buttons WPS, Reset
LED Indicators 5 GHz, 2.4 GHz, LAN, Internet, System
Mounting Options Wall-Mount / Pole-Mount (Mounting Kit Included)
Product Dimensions Body: 240×100×53.7 mm / Antenna: 197.5×21.6×15.5 mm
Weight 415 g (14.64 oz.)
Certifications FCC, CE
Operating Modes Router, Access Point, Range Extender, WISP, Client
Max Connected Devices Up to 30
Package Includes AP1200, Detachable Antennas, PoE Adapter, Power Cord, Mount Kit, Ethernet Cable, Installation Guide
