Expert Features: TRAY – NO BOX

• 16 CPU Cores: Provides powerful multi-threaded performance, ideal for gaming, content creation, and heavy workloads.
• 2nd Gen AMD 3D V-Cache™ Technology: Optimized for gaming performance by increasing the L3 cache, reducing latency and improving throughput.
• Max Boost Clock of 5.7 GHz: Delivers top-tier speeds for peak performance during demanding tasks.
• Unlocked for Overclocking: Offers flexibility for enthusiasts to tweak and push the CPU’s performance beyond stock settings.
• AMD EXPO™ Memory Overclocking Technology: Simplifies memory tuning, enabling higher speeds and improved performance.
• Precision Boost Overdrive: Automatically boosts performance when the CPU is under load, providing additional power when needed.
• Advanced Cooling Support: Liquid cooling recommended for optimal thermal management during high workloads.
• PCIe® 5.0 Support: Ensures the latest bandwidth for graphics cards and storage devices, supporting future-proof gaming and productivity solutions.
• AMD Ryzen™ Master Support: Provides an intuitive interface for overclocking and monitoring system performance.
• Supports DDR5 Memory: Future-proof memory technology offering high-speed performance for gaming, multitasking, and content creation.

Expert Specs:

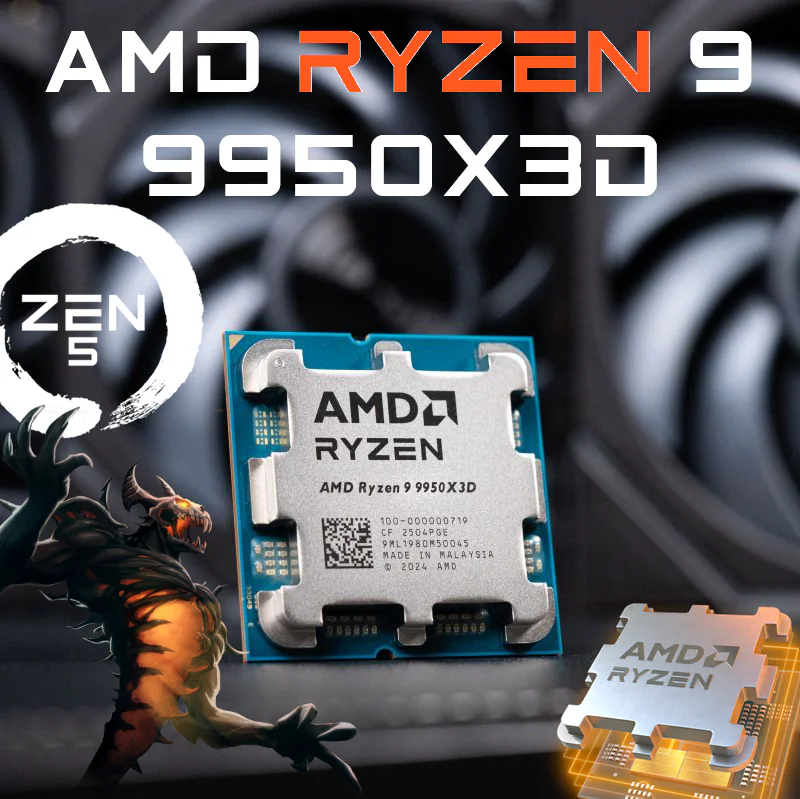

• Name: AMD Ryzen™ 9 9950X3D
• Family: Ryzen
• Series: Ryzen 9000 Series
• Architecture: Zen 5
• # of Cores: 16
• # of Threads: 32
• Base Clock: 4.3 GHz
• Max Boost Clock: Up to 5.7 GHz
• L1 Cache: 1280 KB
• L2 Cache: 16 MB
• L3 Cache: 128 MB
• Default TDP: 170W
• Manufacturing Process: TSMC 4nm (CPU Cores), TSMC 6nm (I/O Die)
• Unlocked for Overclocking: Yes
• Supported Memory: DDR5, Max Memory Size 192 GB
• Max Memory Speed: DDR5-5600 (2x1R, 2x2R), DDR5-3600 (4x1R, 4x2R)
• ECC Support: Yes (requires motherboard support)
• CPU Socket: AM5
• PCIe Version: PCIe® 5.0
• USB Support: 4x USB 3.2 Gen 2 (10Gbps), 1x USB 2.0
• Graphics: Integrated AMD Radeon™ Graphics with 2 cores at 2200 MHz
• Operating System Support: Windows 10/11, RHEL, Ubuntu
• Launch Date: 03/12/2025
• Thermal Solution: Liquid cooler recommended for optimal performance
• Max Operating Temperature: 95°C
