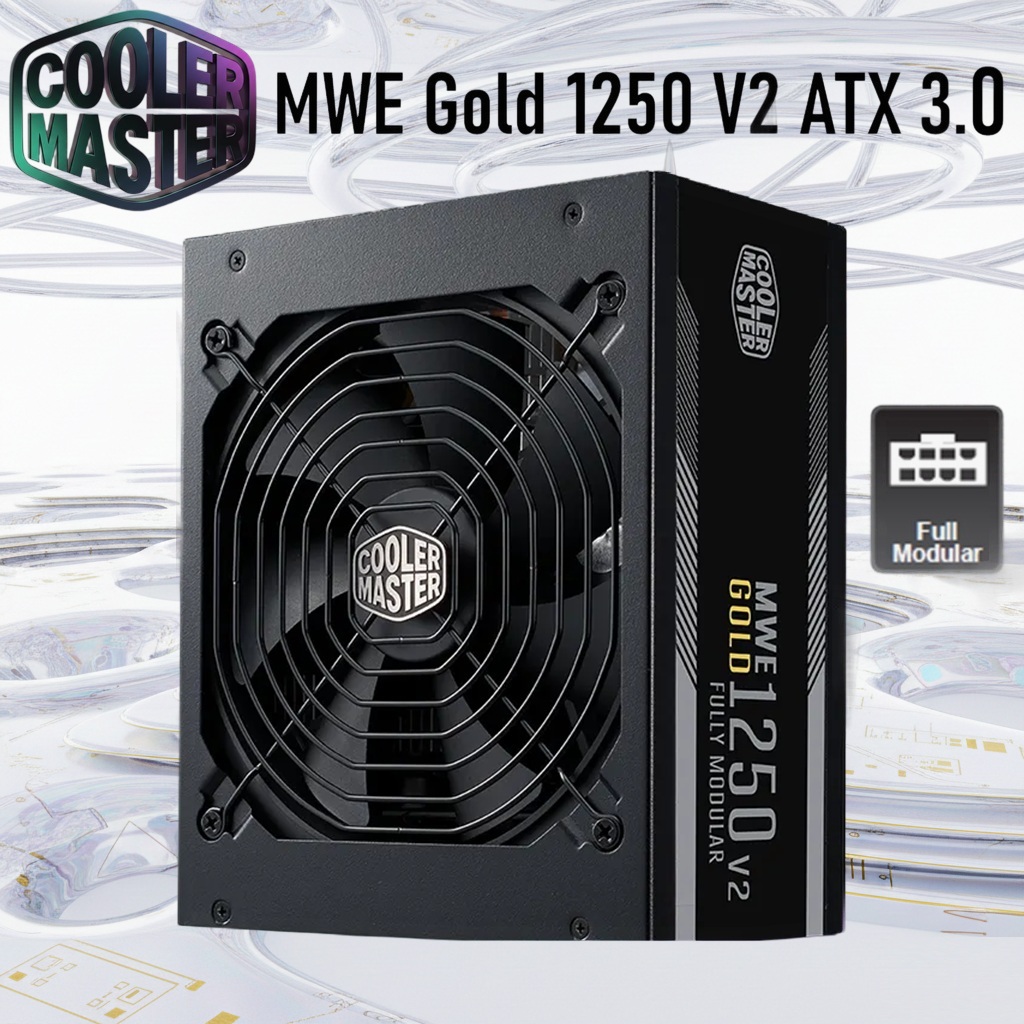

Cooler Master MWE Gold 1250 V2 ATX 3.0 Fully Modular Power Supply With 80 PLUS Gold Efficiency, 12VHPWR Connector, 140mm Fan, Active PFC, 1250W Output | BLACK

258 $

Quantity

Expert Features

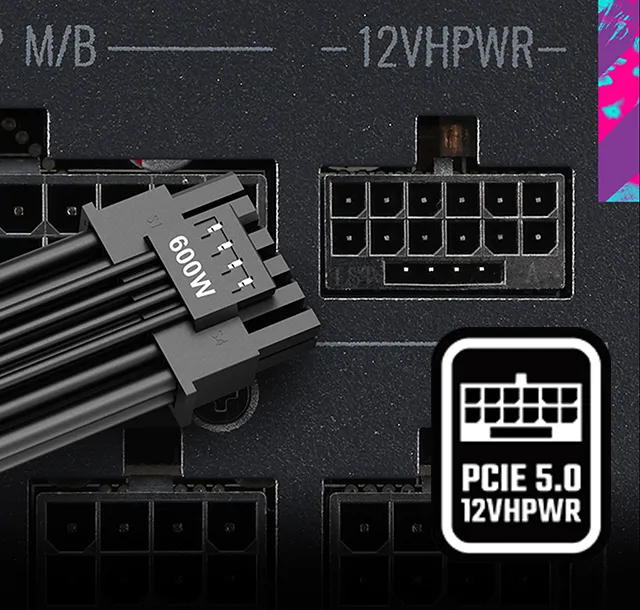

  • ATX 3.0 Full Compliance : Fully compliant with the ATX 3.0 standard and equipped with a native 12VHPWR connector to support high peak power demands of modern RTX 40 Series GPUs.
  • Massive 1250W Power Output : Designed for high-end systems, overclocked builds, and multi-component configurations requiring stable, high-wattage power delivery.

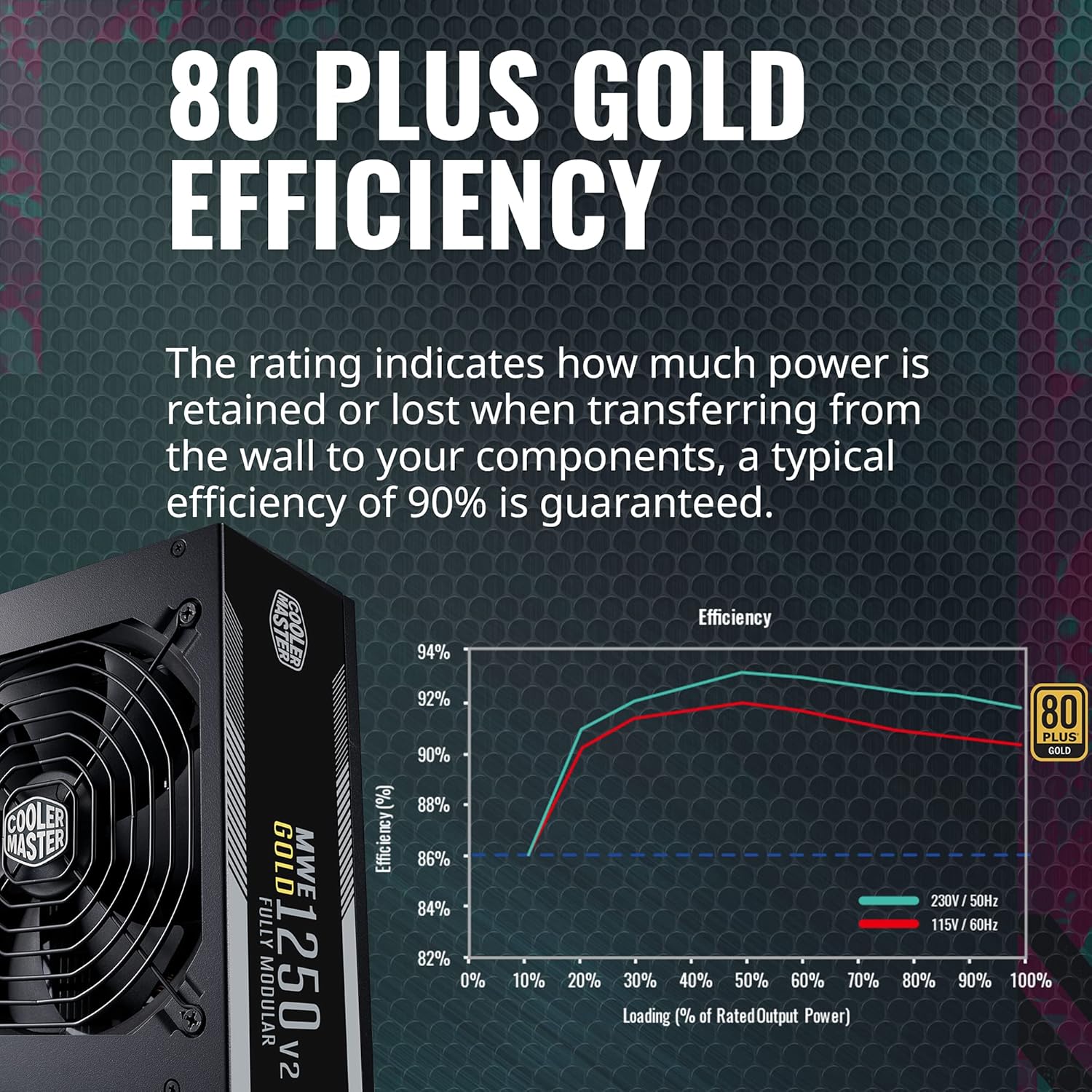

  • 80 PLUS Gold Efficiency : Certified to deliver at least 90% efficiency at typical load, reducing wasted power, excess heat, and electricity costs.

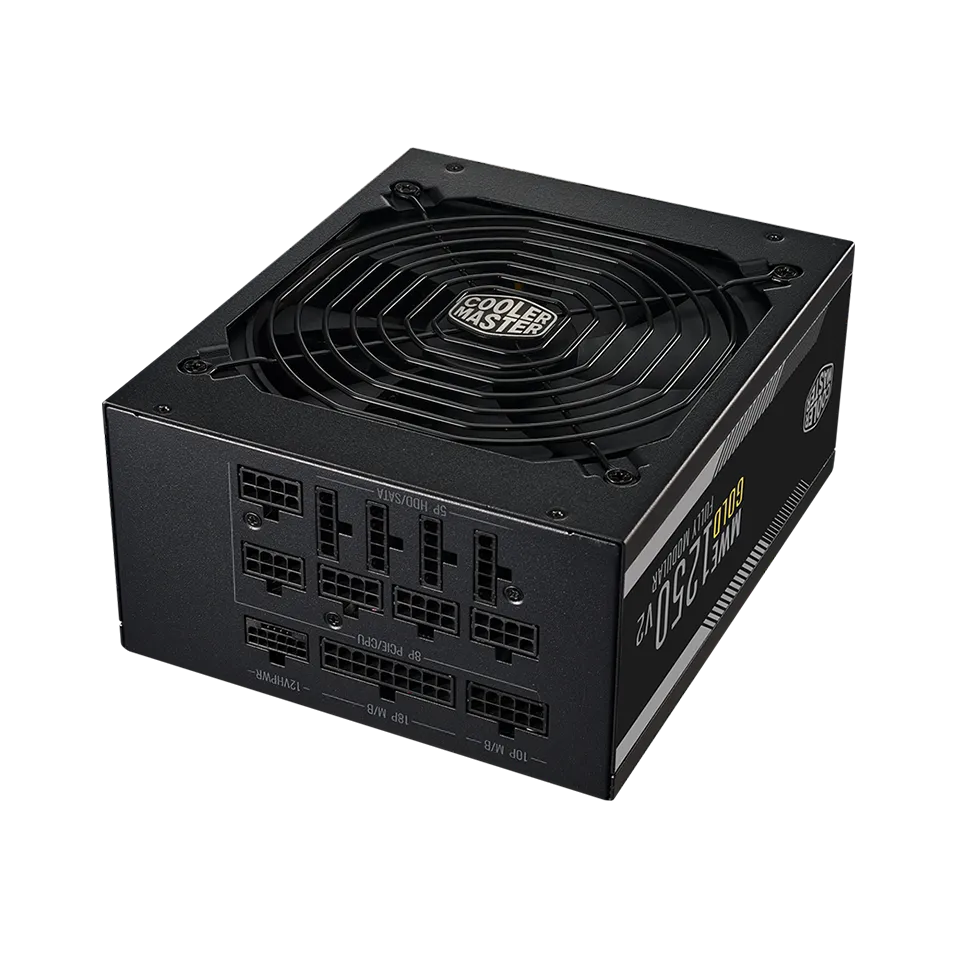

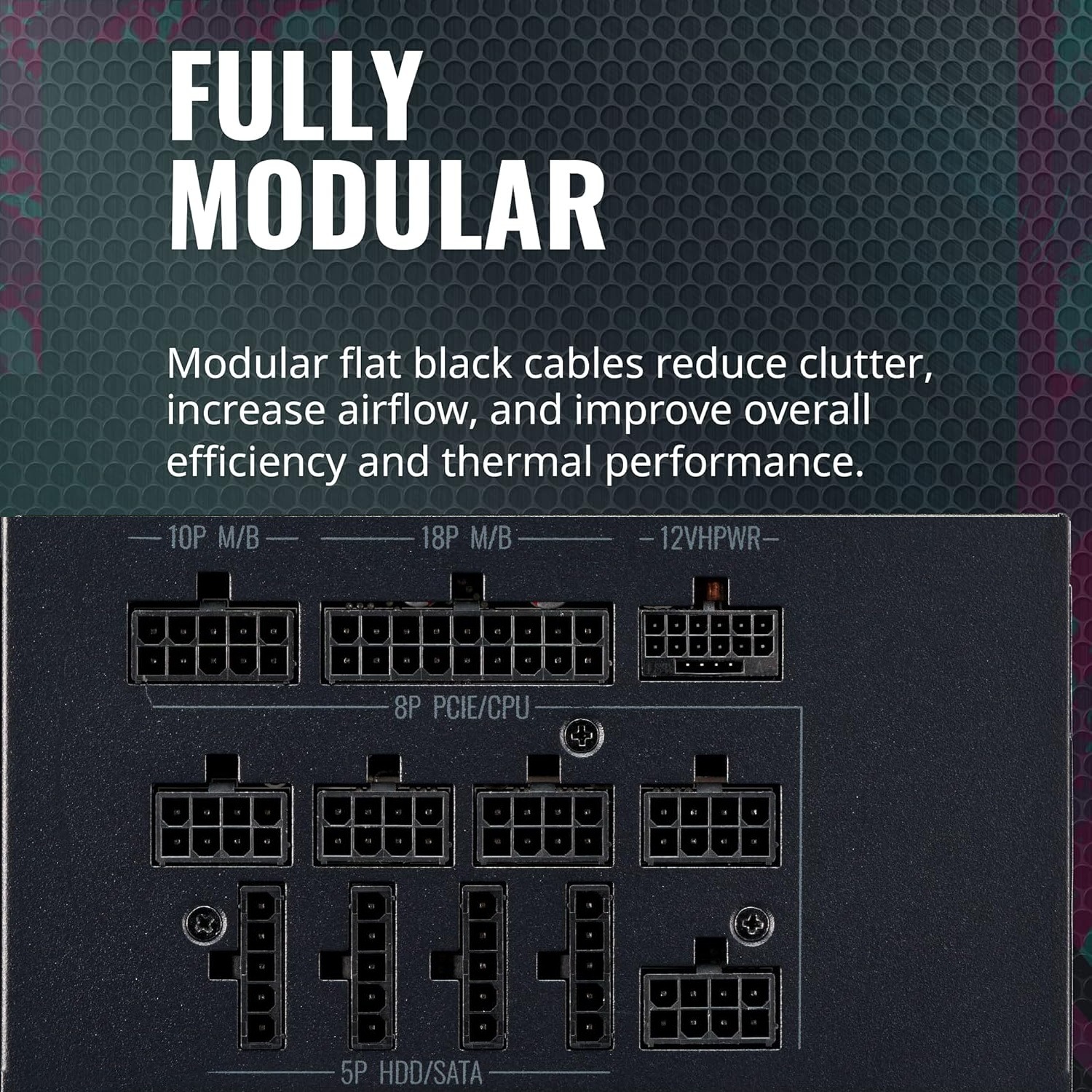

  • Fully Modular Cabling System : Flat black, fully modular cables allow users to connect only what is needed, improving airflow, cable management, and overall system aesthetics.
  • High-Quality Japanese Capacitors : Premium internal components ensure long-term reliability, electrical stability, and consistent power delivery under heavy loads.

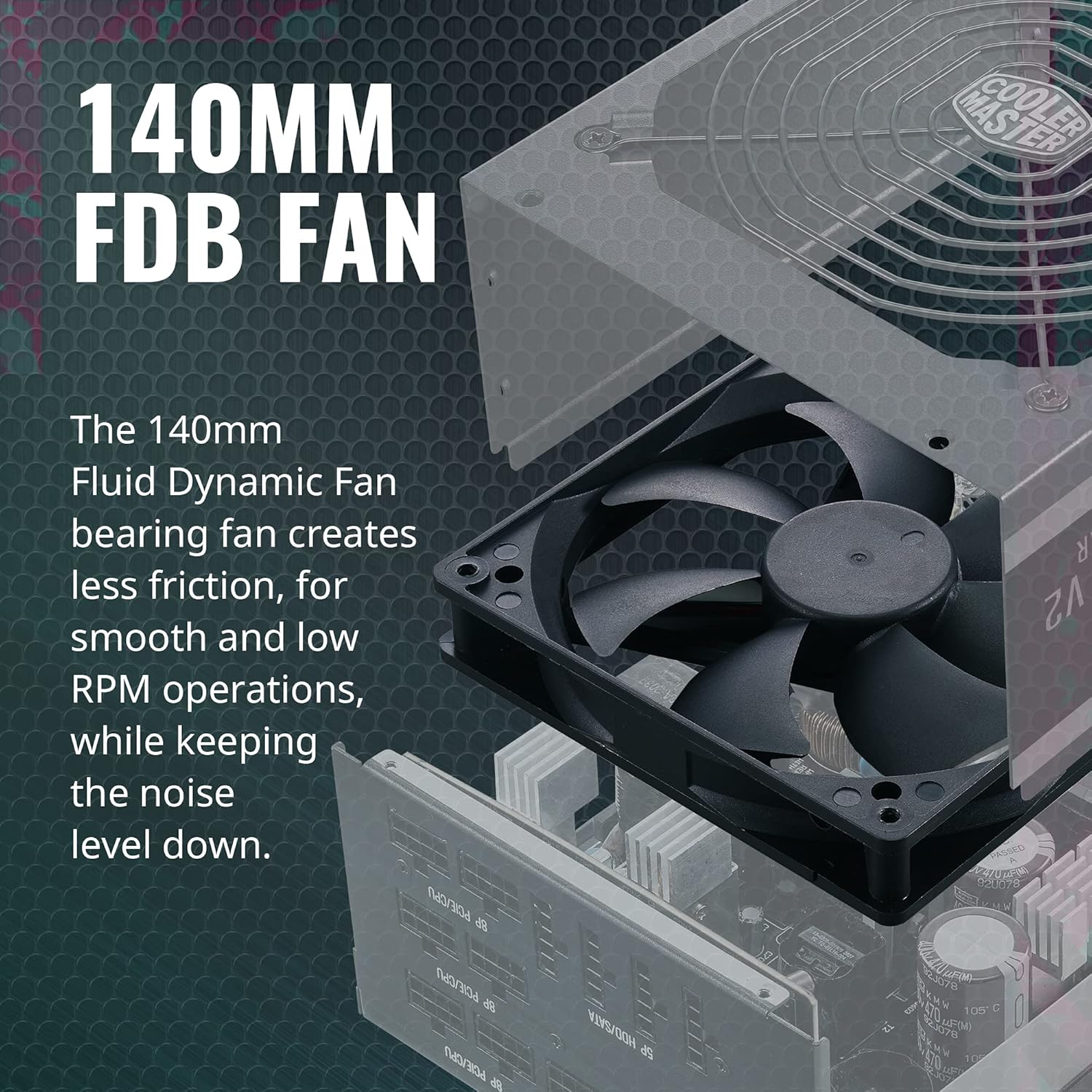

  • 140mm Silent Cooling Fan : Large 140mm fan optimized for quiet and efficient cooling, maintaining thermal stability during demanding workloads.
  • Smart Thermal Control System : Fan remains inactive until 40% load is reached, minimizing noise during low to moderate system usage.

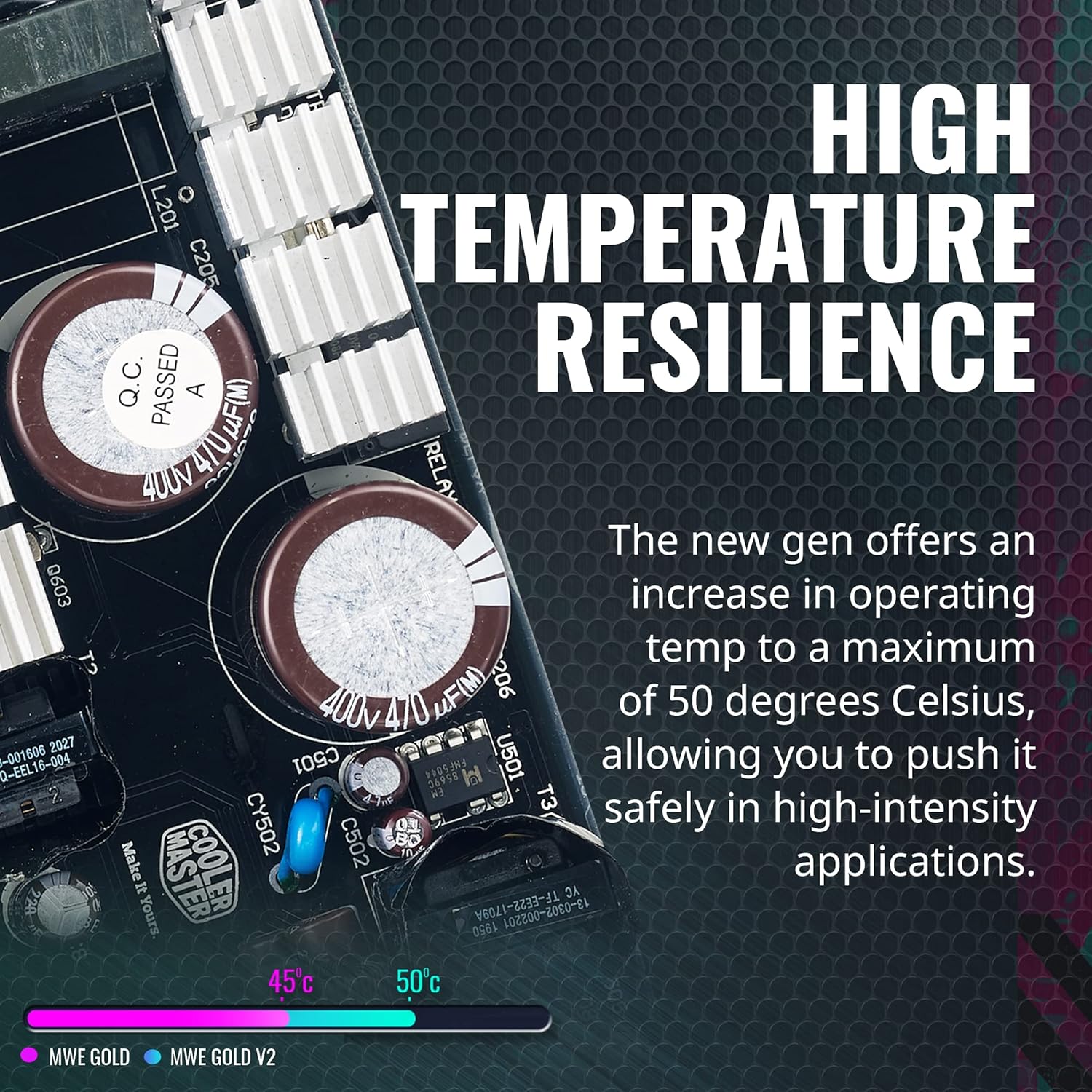

  • High Temperature Resilience : Rated to operate safely at ambient temperatures up to 50°C, making it suitable for high-performance gaming and overclocked systems.
  • Comprehensive Protection Suite : Integrated protections include OVP, OPP, SCP, OCP, UVP, OTP, and inrush protection to safeguard all system components.
  • Global Safety Certifications : Certified by multiple international regulatory standards including TUV, CE, FCC, UKCA, and more.

Expert Specs

Specification Details

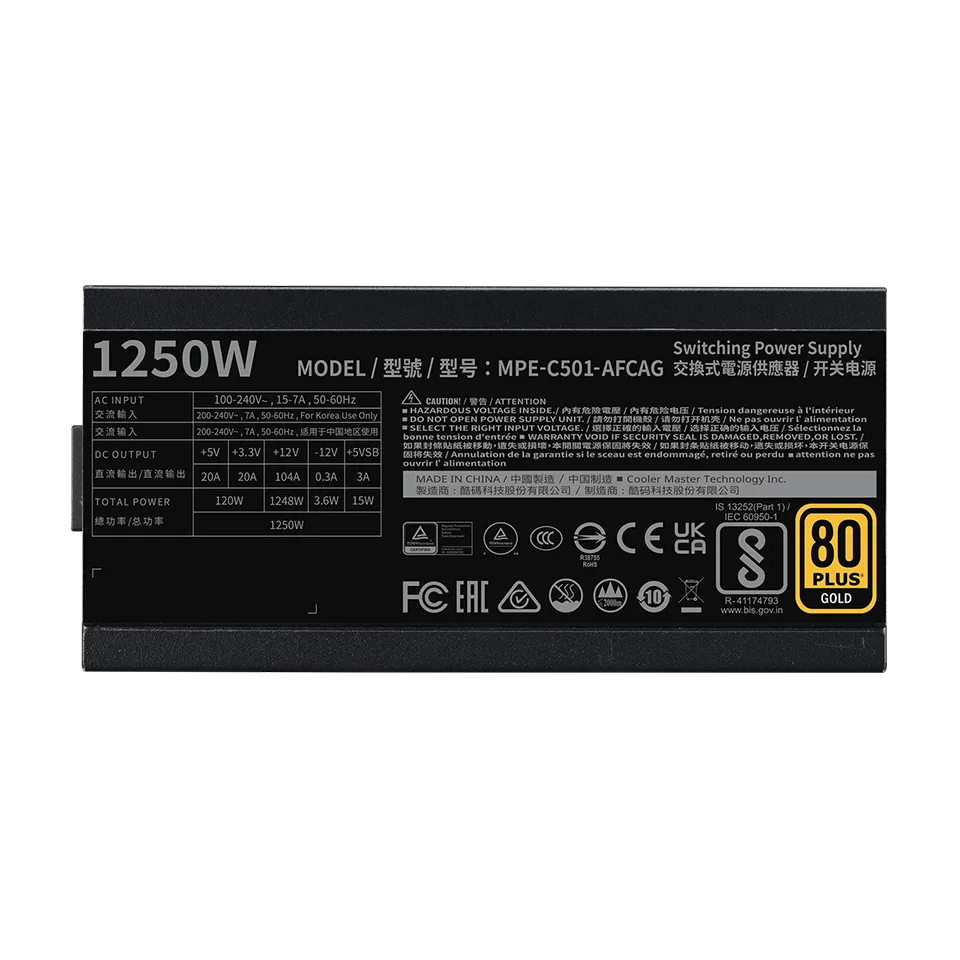

Model MPE-C501-AFCAG-3
Series MWE Gold Series
Form Factor ATX
ATX Version ATX Rev. 3.0
Wattage 1250 W
Efficiency Rating 80 PLUS Gold
Efficiency ≥90% @ Typical Load
Modular Fully Modular
Input Voltage 100–240 V
Input Current 15–7 A
Input Frequency 50–60 Hz
Active PFC Yes
Fan Size 140 mm
Fan Bearing Two Ball Bearing
Operating Temperature 0–50°C
Hold-Up Time ≥16 ms @ 100% Load
Power Good Signal 100–150 ms
MTBF >100,000 Hours
Protections OVP / OPP / SCP / OCP / UVP / OTP / Inrush
Dimensions (L × W × H) 180 × 150 × 86 mm
ATX 24-Pin Connector 1
EPS 4+4-Pin Connector 1
EPS 8-Pin Connector 1
PCIe 6+2-Pin Connectors 3
12VHPWR Connector 1
SATA Connectors 12
Peripheral 4-Pin Connectors 4
Certifications TUV, cTUVus, CE, FCC, BSMI, CCC, EAC, RCM, UKCA, BIS
ErP 2014 Lot 3 Yes
