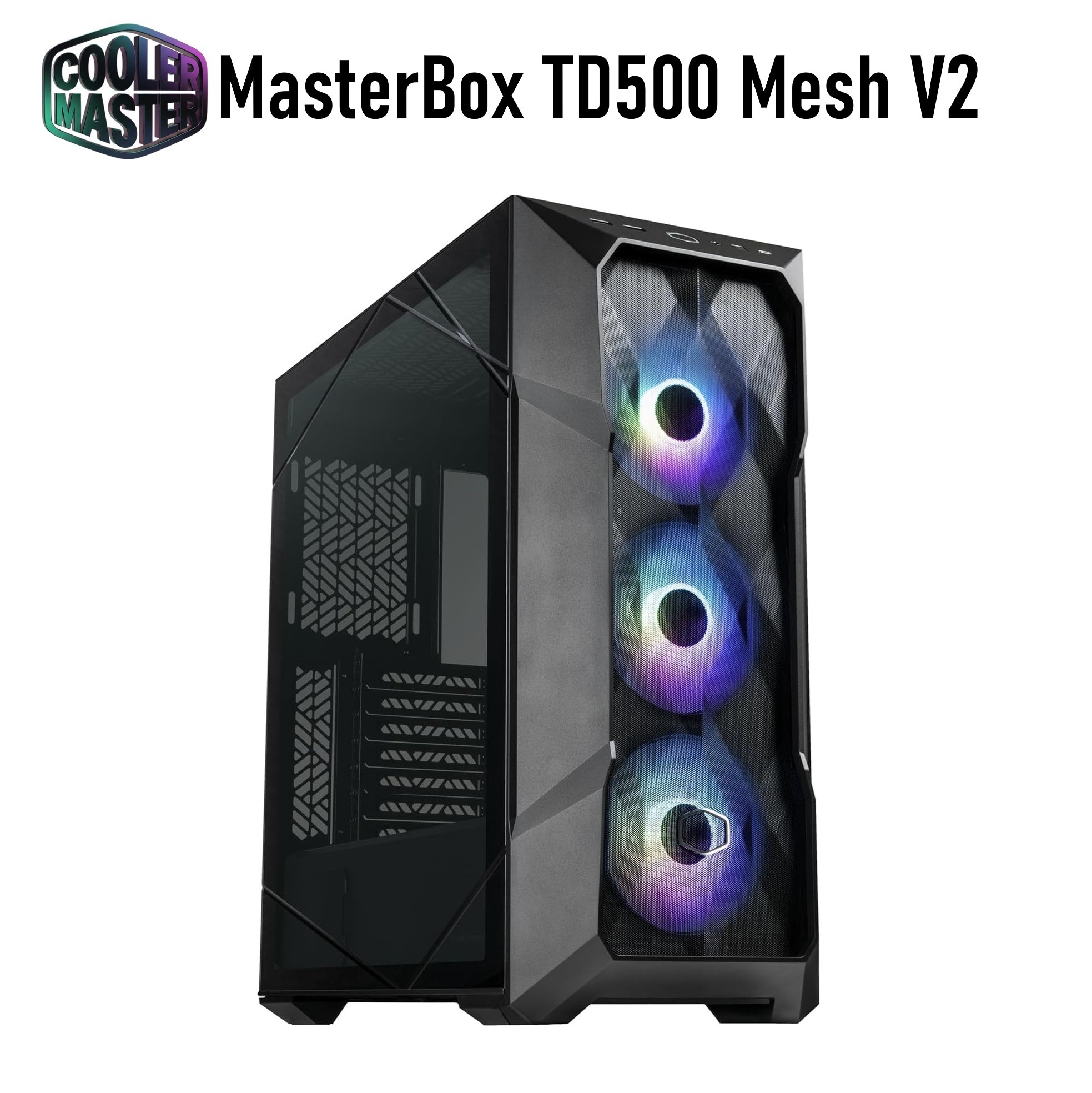

Cooler Master MasterBox TD500 Mesh V2 ATX Mid Tower PC Case With FineMesh Polygonal Front Panel, 3× CF120 ARGB Fans, USB Type-C, Tempered Glass | BLACK
Categories: Computer Cases, COMPUTER PARTS
Expert Features
- Polygonal FineMesh Front Panel : Iconic 3D polygonal FineMesh design delivers high airflow while maintaining effective dust filtration and a visually striking front profile
- High-Airflow Performance Design : Optimized internal layout ensures consistent cooling and stable thermals during extended gaming or heavy workloads
- Pre-Installed CF120 ARGB Fans : Includes three 120mm CF120 ARGB fans at the front to provide balanced airflow, vivid lighting, and thermal efficiency
- USB 3.2 Gen 2 Type-C Front I/O : Integrated USB Type-C port enables high-speed data transfer and modern device compatibility
- Removable Top Panel : Fully detachable top panel allows easier access during system assembly and simplifies radiator and fan installation
- Wide Motherboard Compatibility : Natively supports Mini-ITX, Micro-ATX, and ATX motherboards, with E-ATX compatibility up to 12″ × 10.7″
- Versatile Cooling Support : Supports up to seven 120mm fans and extensive radiator options on the front, top, and rear
- Tool-Free Tempered Glass Side Panel : Crystalline tempered glass panel offers quick access to internals without tools while showcasing system components
- PSU Shroud With Removable Cover : Modular PSU shroud lets users choose between a clean hidden build or a fully visible power supply presentation
- Integrated ARGB And Fan Hub : Included controller allows independent lighting management and provides four additional fan headers
- Extensive GPU Clearance : Supports graphics cards up to 410mm in length, enabling compatibility with high-end GPUs
- Comprehensive Dust Filtration : Front, top, and bottom dust filters help maintain internal cleanliness and long-term component reliability











Expert Specs
| Category | Specification |
|---|---|
| Product Name | Cooler Master MasterBox TD500 Mesh V2 |
| Model Numbers | TD500V2-KGNN-S00 |
| Series | MasterBox Series |
| Case Type | Mid Tower |
| Exterior Color | Black |
| Exterior Materials | Steel, Mesh, Plastic |
| Left Side Panel Material | Tempered Glass |
| Dimensions (Incl. Protrusions) | 499 × 210 × 500 mm |
| Dimensions (Excl. Protrusions) | 430 × 210 × 477 mm |
| Motherboard Support | Mini-ITX / Micro-ATX / ATX / SSI-CEB / E-ATX (Up To 12″ × 10.7″) |
| Expansion Slots | 7 |
| 3.5″ Drive Bays | 2 |
| 2.5″ Drive Bays | 3 |
| Pre-Installed Front Fans | 3 × 120mm CF120 ARGB |
| Pre-Installed Top Fans | N/A |
| Pre-Installed Rear Fans | N/A |
| Fan Support – Front | 3 × 120mm / 2 × 140mm |
| Fan Support – Top | 3 × 120mm / 2 × 140mm |
| Fan Support – Rear | 1 × 120mm |
| Radiator Support – Front | 120 / 140 / 240 / 280 / 360mm |
| Radiator Support – Top | 120 / 140 / 240 / 280 / 360mm (Max Thickness 55mm Recommended) |
| Radiator Support – Rear | 120mm |
| CPU Cooler Clearance | 165mm |
| GPU Clearance | 410mm |
| PSU Clearance | 200mm (Recommended Up To 170mm) |
| Cable Routing Space | 19mm / 0.74″ |
| Dust Filters | Front, Top, Bottom |
| Power Supply Support | Bottom Mount, ATX |
| Front I/O USB Ports | 2 × USB 3.2 Gen 1, 1 × USB 3.2 Gen 2 Type-C |
| Front I/O Audio | 1 × Audio Jack |
| Included Controller | ARGB / Fan Hub |
| Back Connector Motherboard Support | No |
