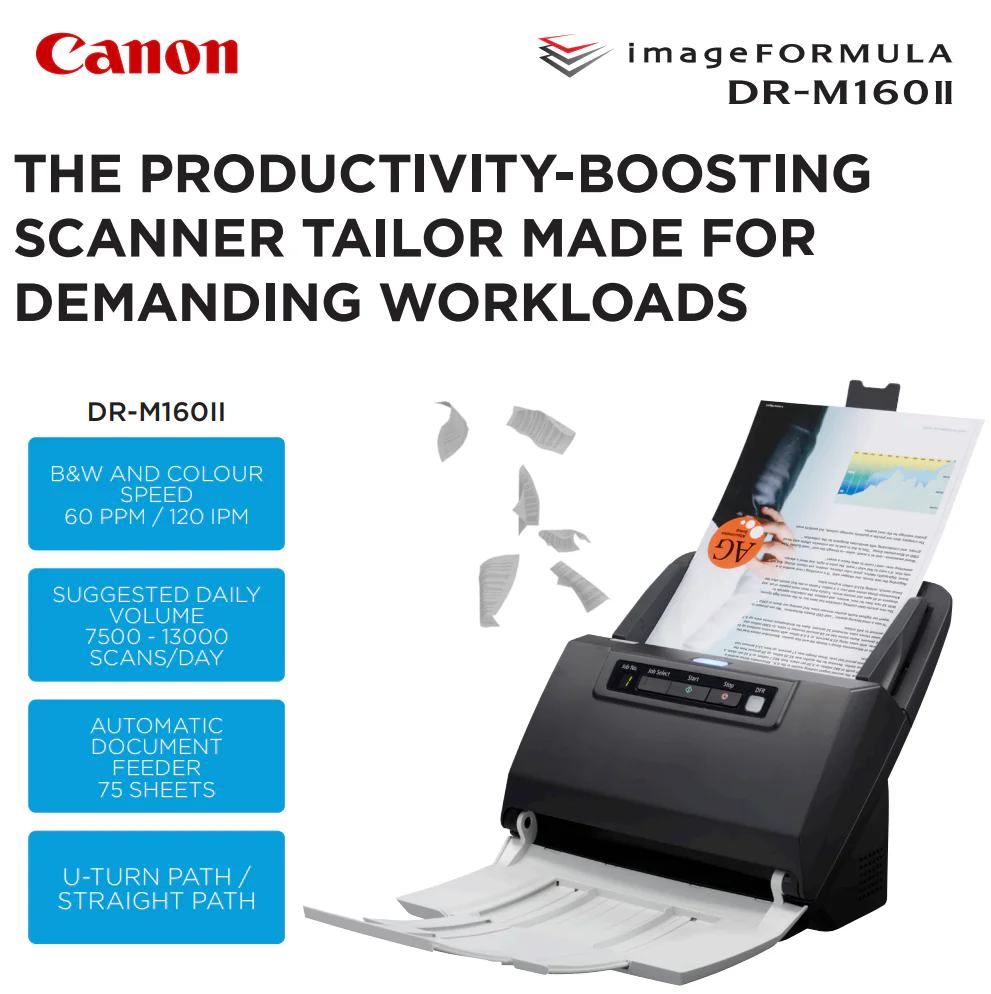

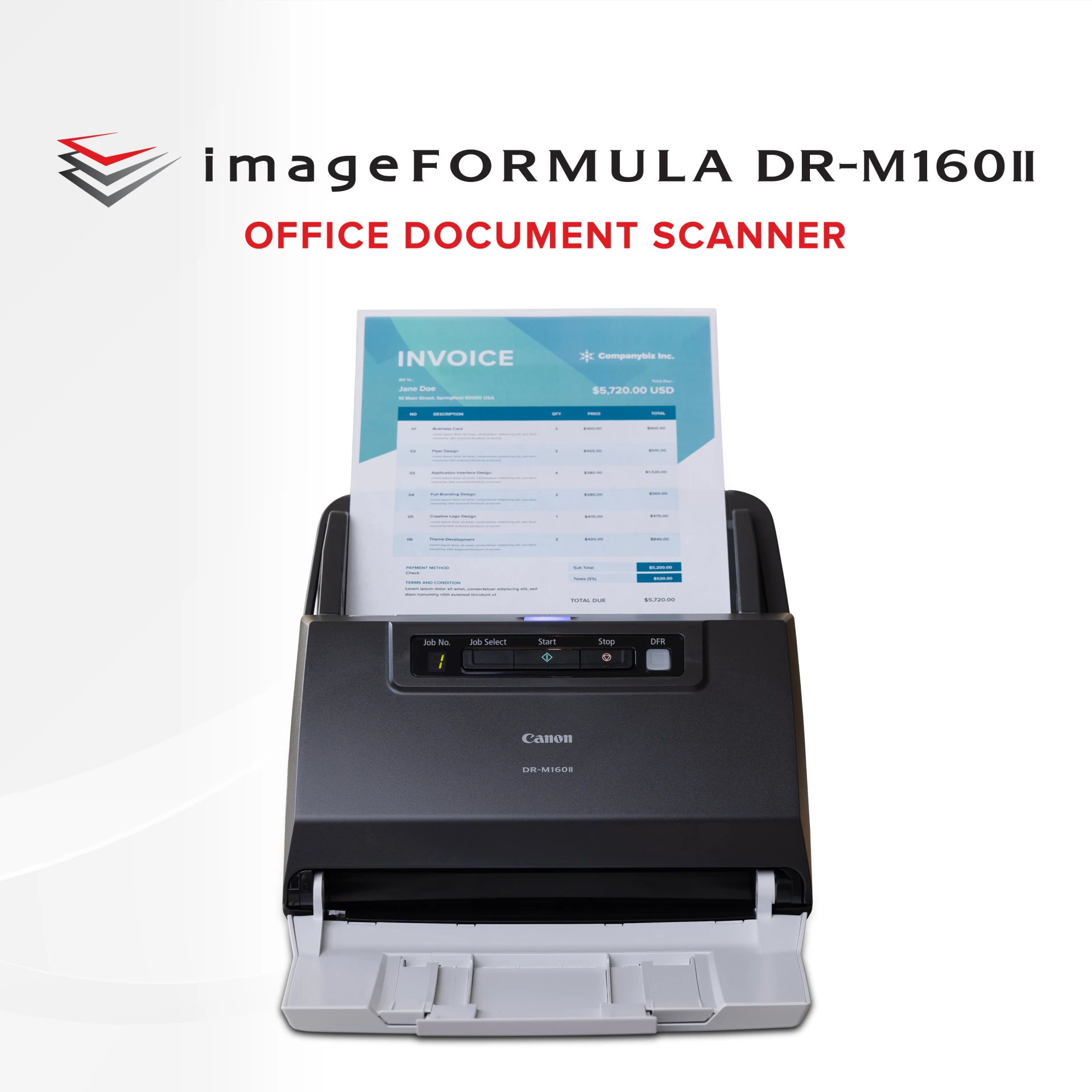

Canon imageFORMULA DR-M160II Desktop Sheet Fed Scanner With 120ipm Duplex Scanning, 75-Sheet ADF, 600dpi Optical Resolution, USB 2.0 Interface, Windows & Mac Compatible | DR-M160II

645 $

Quantity
Categories: ,

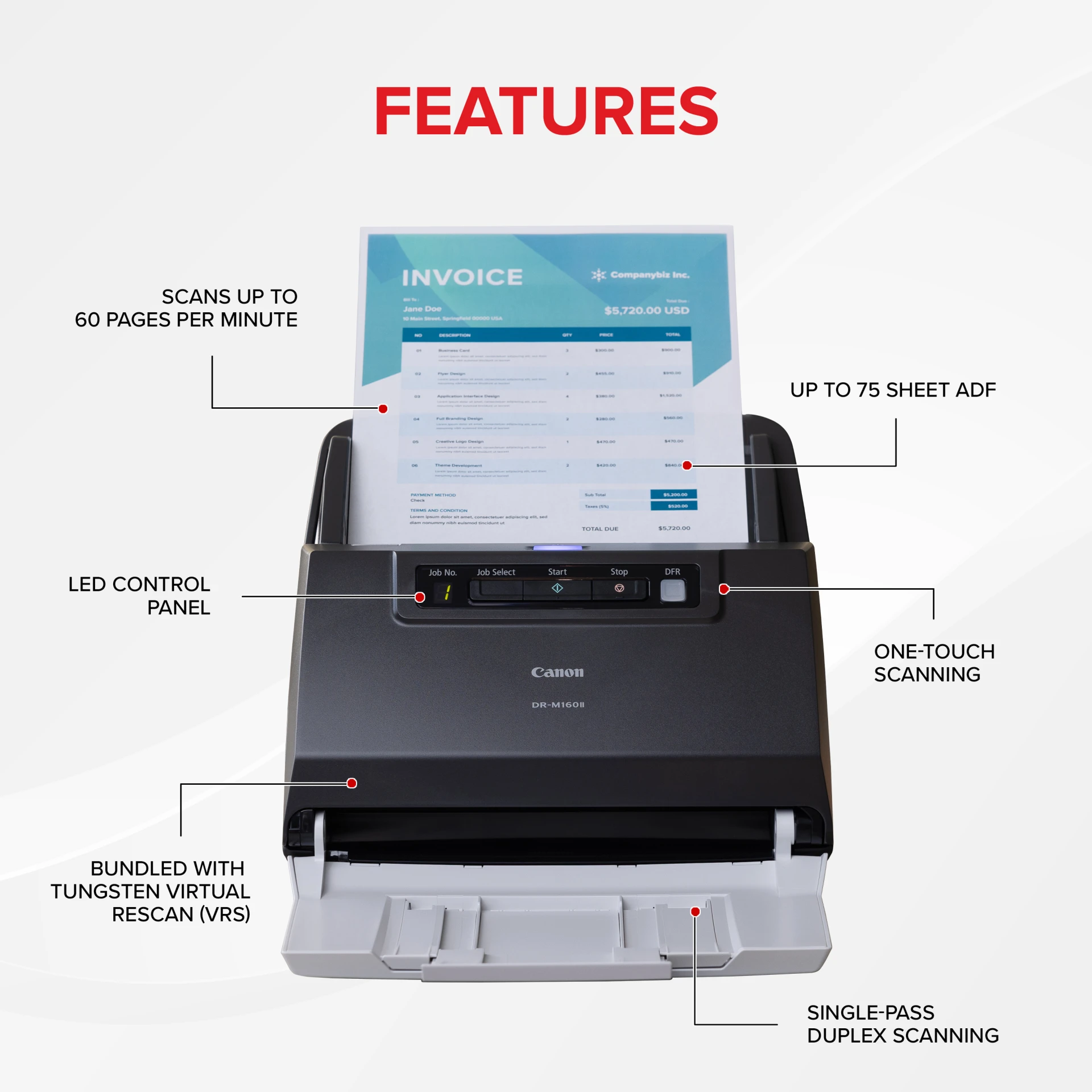

🛠 Expert Features

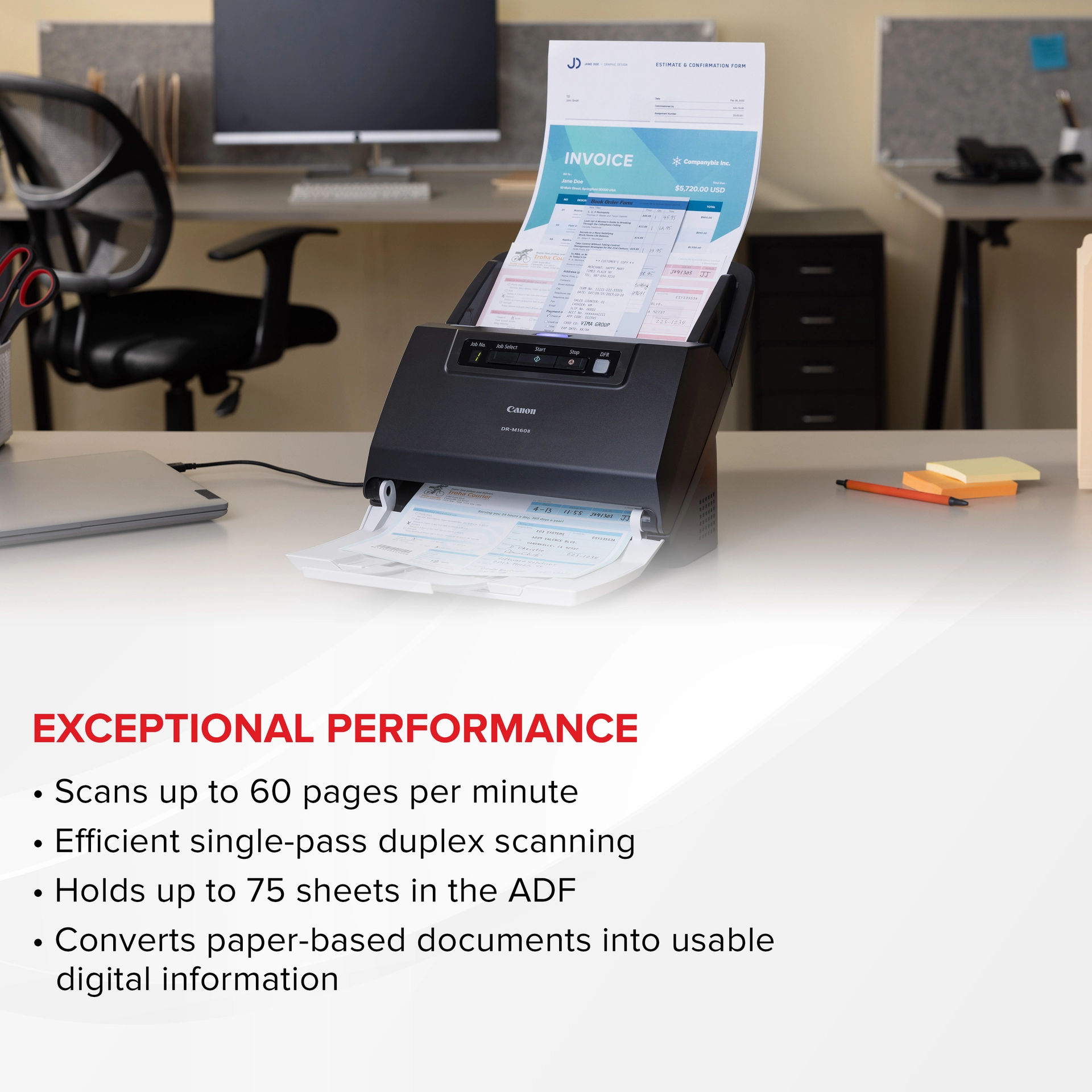

  • High-Speed Duplex Scanning – Capture both sides of your documents at up to 120 images per minute, ideal for high-volume office environments.
  • Robust Productivity Design – Handles up to 13,000 scans per day with a 75-sheet ADF, perfect for mixed batches and demanding workflows.
  • Reliable Paper Handling – Retard roller separation system plus Separation Retry reduces double-feed errors and minimizes user intervention.
  • Superior Colour & Black/White Quality – Optical resolution of 600dpi, output resolutions from 150×150 up to 600×600, with advanced colour correction, dropout, and enhancement features.

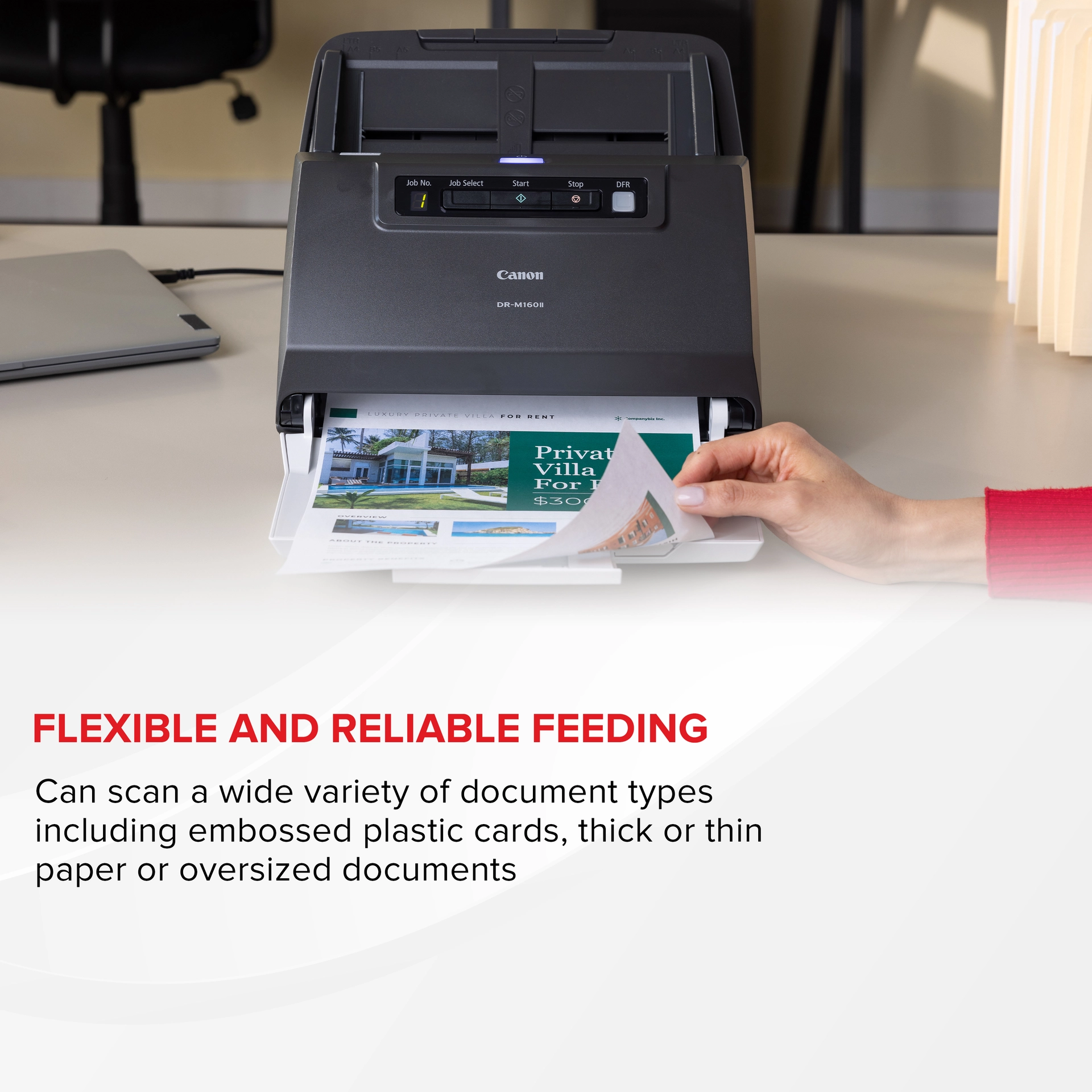

  • Versatile Document Support – Scan documents from 50.8mm–216mm width, 54–356mm length, 27–209g/m² thickness, including embossed business cards.
  • Compact Yet Expandable – Desktop form factor with optional A4 or A3 flatbed units for bound materials.
  • Intuitive Software Bundled – Windows: CaptureOnTouch Pro, ReadIRIS PDF, Kofax VRS, EMC Captiva; Mac: TWAIN Driver, CaptureOnTouch.
  • Energy Efficient – Scanning power <27W, sleep mode <1.8W, off <0.5W; supports global AC100–240V power.

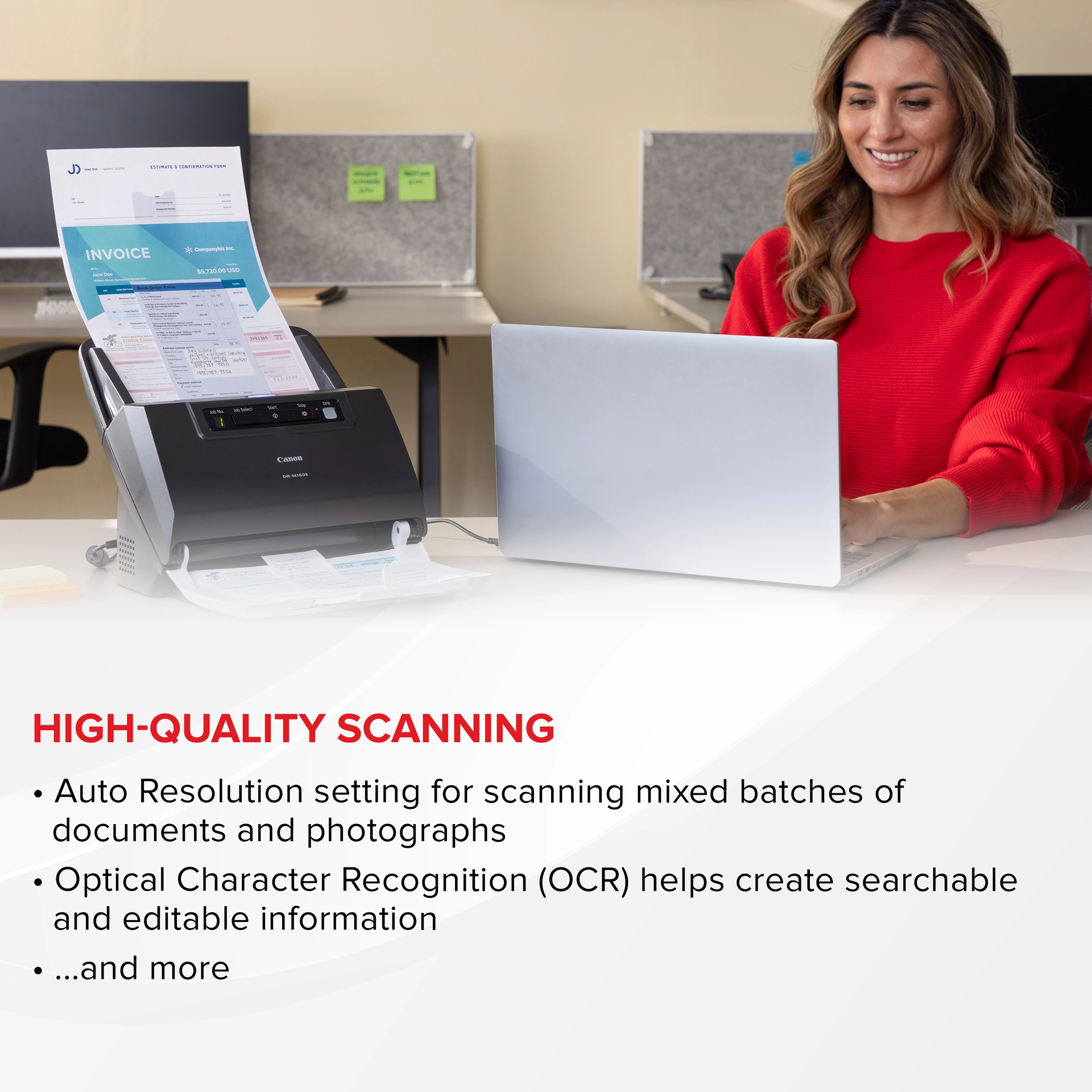

  • Advanced Features for OCR & Workflow – Auto page size detection, deskew, shading correction, multi-stream, skip blank page, barcode/2D code recognition, and more.

📊 Expert Specs

Specification Details
Scanner Type Desktop Sheet Fed Scanner
Scanning Sensor Unit CMOS CIS 1 Line Sensor
Optical Resolution 600 dpi
Light Source RGB LED
Scanning Side Front / Back / Duplex
Interface High-Speed USB 2.0
Dimensions (Tray Closed) 280 × 172 × 178 mm
Dimensions (Tray Opened) 280 × 606 × 366.4 mm
Weight Approx. 3.2 kg
Power Requirements AC100–240V, 50/60Hz
Power Consumption Scanning 27W, Sleep 1.8W, Off <0.5W
Operating Environment 0–32.5°C, Humidity 20–80% RH
Suggested Daily Duty Cycle 7,500–13,000 scans/day
Document Width 50.8–216 mm
Document Length 54–356 mm
Document Thickness 27–209 g/m² (0.04–0.25 mm)
Long Document Mode Up to 3,000 mm (Windows only)
Feeder Capacity 75 Sheets (A4, 80 g/m²)
Special Features Auto Page Size Detection, Deskew, Colour Correction, Colour Dropout/Enhancement, Skip Blank Page, Barcode/2D Recognition, Separation Retry, Double Feed Detection, MultiStream, Folio Mode, Edge Enhancement, Moire Reduction, Shadow Cropping, and more
Bundled Software (Windows) CaptureOnTouch Pro, ReadIRIS PDF, Kofax VRS, EMC Captiva, DR Management Tool
Bundled Software (Mac) TWAIN Driver, CaptureOnTouch
Optional Accessories A4 Flatbed Scanner Unit 102, A3 Flatbed Scanner Unit 202, Exchange Roller Kit
